IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 01, 2005 Think Express models of ThinkPad® T43 notebook, powered by 1.8 GHz Intel Pentium M processor 750 or 2.0 GHz Pentium M processor 760, include 2 MB L2 cache and 533 MHz FSB. Equipped with 60 GB, 5,400 rpm HDD, computers also feature 14.1 in. TFT display and 24x-24x-24x-8x max CD-RW/DVD drive. Unit comes with ThinkPad HDD shock absorber and integrated communications and utilizes 64 MB ATI Mobility Radeon X300 graphics chipset or Intel Graphics Media Accelerator 900 chipset.

Hybricon Corp.    Ayer, MA 01432

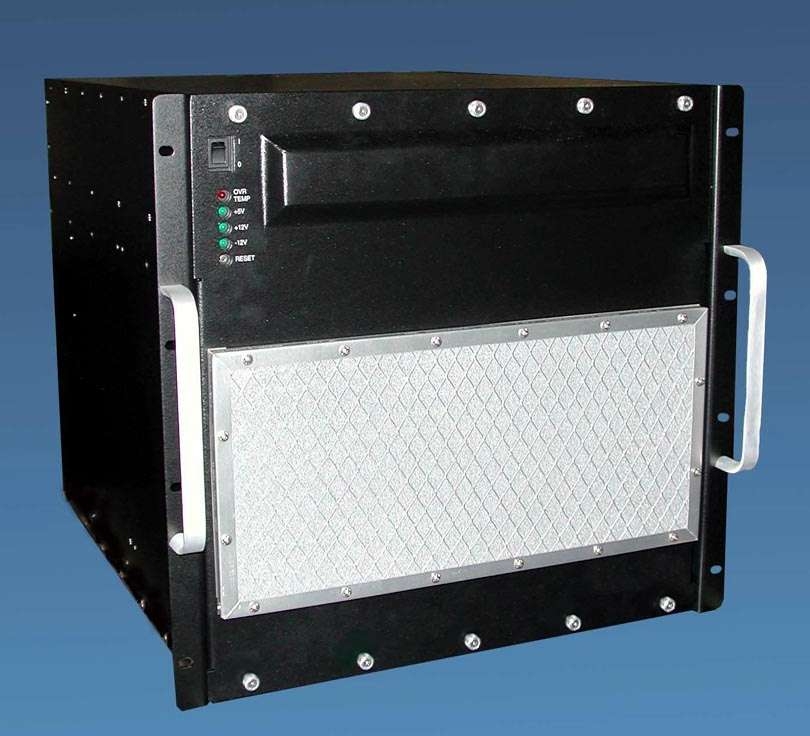

Mar 31, 2005 Featuring stackable design for vertically mounted cards, 10U Series RME1021M cool extremely dense CPU and DSP boards. Dual DC impellers powered by dedicated power supply output provide 16.1 cfm per slot. Included are front and rear cover panels with honeycomb inlet and exhaust, and provisions for shielded connectors for I/O. Enclosures are available with 21-slot CompactPCI®, VME64x, VME, or VXS backplanes and up to 2,400 W of embedded power.

Octagon Systems Corp.    Westminster, CO 80021
Mar 31, 2005 Available in EPIC(TM) form factor, Model XE-900 incorporates 32-bit VIE Eden CPU operating at 400 MHz, 733 MHz, or 1 GHz. It includes 2 USB ports, 6 RS-232/422/485 serial ports, 24 lines of bit-programmable digital I/O with 16 mA sink/source capability, 10/100 Base-T Ethernet, CRT and flat panel video, and PC/104 and PC/104-Plus expansion. Operating from -40 to +85°C, unit is suited for transportation, security, military, communications, and distributed control.

Advantech Automation Corp.    Cincinnati, OH 45240
Mar 31, 2005 Industrial-grade Universal PCI communication card, PCI-1610CU, features 4 RS-232 serial ports with 2,500 Vdc optical isolation and 2,500 Vdc surge protection. Compatible with 3.3 and 5 V PCI slots, product provides 9-wired RS-232 signaling with serial transmission rates up to 921.6 Kbps. It incorporates 16PCI954 UART chipset with 128-byte FIFO and is suited for operation in harsh environments.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Mar 31, 2005 Single-slot, multi-function, Model 64D1 VME Card can include 3 combinations of: 6 channels of Synchronous or Asynchronous RS-232C/RS-422/RS-485, 2 channels of Dual Redundant MIL-STD-1553 BC/RT/MT, 8 channels of Profibus, 48 channels of Discrete I/O, or 48 channels of TTL I/O. Each function is programmable at channel level. Featuring interchangeable, modular design, card provides diagnostics and is available with operating temperatures of -40 to +85°C and 0-70°C.

STMicroelectronics    Lexington, MA 02421
Mar 31, 2005 Fabricated using 130 nm CMOS technology, GreenFIELD STW21000 combines ARM926EJ-S MIPS RISC processor core, 16-Mbit on-chip eDRAM memory, eFPGA block, and range of analog and digital peripherals. Unit is available with on-chip multiple HDLC controllers, 10/100 Ethernet MACs, multi-channel serial port, and Power-On-Reset function. It is suited for feedforward and digital pre-distortion ratio network controllers and remote control for electrical tilt antennas.

Saelig Co., Inc.    Pittsford, NY 14534

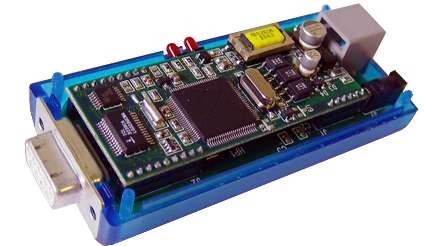

Mar 30, 2005 ALFAT-SD board adds megabytes of multimedia storage to any digital device. Based on ALFAT serial-to-FATfile converter IC, information stored on removable media with ALFAT-SD can be read on any PC. For operation, users send data to unit via serial port or SPI. Product, which measures 2 x 1.6 in., can be used with any microcontroller and can run from 3.3 or 5-12 V supplies. It is suited for file transfer between automated machines and PCs.

Squid Ink    Spring Lake Park, MN 55432
Mar 30, 2005 Modular Vector XII is available with 2 printhead sizes providing 1 or 1¾ in. character height. Each printhead can print at 100%, 40%, or 26% character height, offering 6 print sizes from ¼â€“1¾ in. Input device provides programming and retrieval for up to 128 messages. Resident software walks users through series of prompts to program and save each message for printing on-demand. SQ-60â„¢ no-clog ink can be left in printhead for extended periods without flushing.

WIN Enterprises    North Andover, MA 01845
Mar 30, 2005 Model MB-06047 Opteronâ„¢ processor-based Motherboard, in EBX form factor, incorporates stackable HyperTransportâ„¢ connector. Unit offers nVidia nForce Professional 2200 chipset, 8 GB RAM, right-angle 16-lane PCI-Express Slot, and two 10/100/1000 Gigabit Ethernet ports. With small form factor and optional dual-core design, it suits networking, imaging, and gaming applications.

Spectra Logic Corp.    Boulder, CO 80301
Mar 30, 2005 Spectra® T50 offers intuitive GUI with web-browser based interface and color touch screen, as well as enterprise-class management and health-check tools. Library allows user to increase capacity in 5-slot increments. Media can be recorded through web-based remote controller or front panel touch screen. Spectra T50 holds up to 4 LTO drives and 50 media slots in 4U, or 7 in. in standard NEMA rack. It has 576 GB per hour throughput and 40 TB compressed or 20 TB native with LTO-3.

Aitech Defense Systems, Inc.    Chatsworth, CA 91311

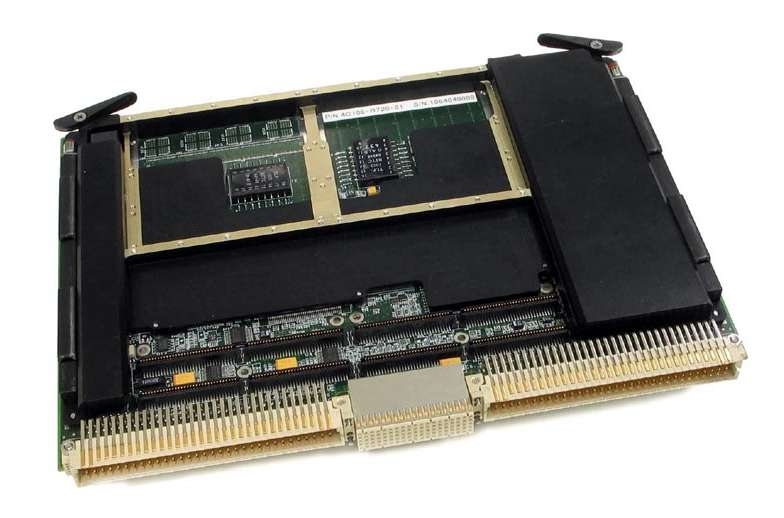

Mar 29, 2005 Suited for harsh environments, VME64x-compliant Model C106 is equipped with 1.5 GHz of processing power and on-board NAND Flash memory, which is independent of user application program Flash. Flash Memory Manager software automatically treats Flash memory as system’s disk drive, with automatic wear leveling to ensure that write-erase cycles are uniformly balanced. Board includes 2 USB 2.0 ports, 10 UART serial ports, and several types of discrete I/O channels.

Transtector Systems    Hayden Lake, ID 83835

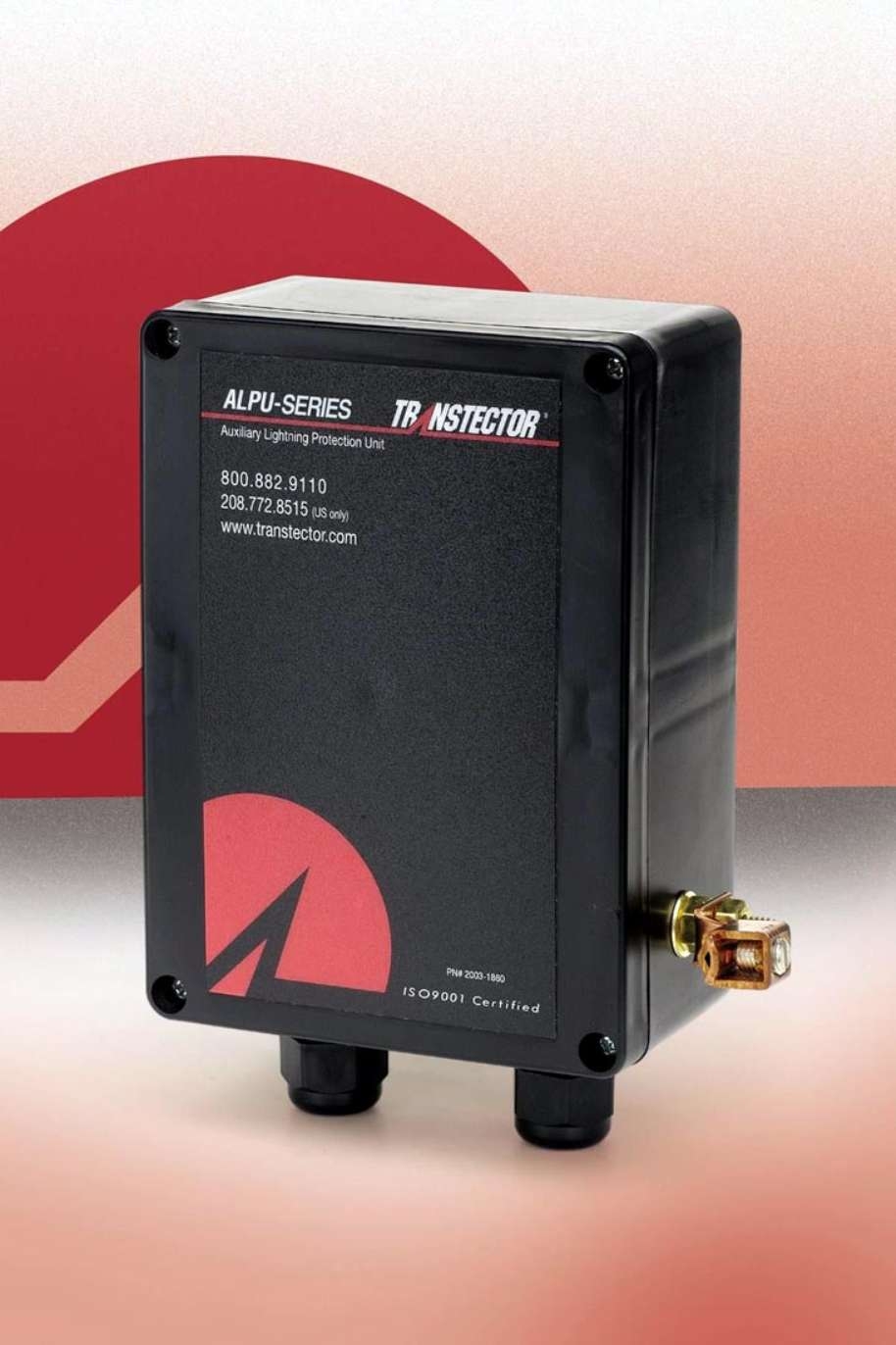

Mar 29, 2005 Available in 12 configurations, Series ALPU protectors use fast-acting silicon avalanche suppression diodes and reduced capacitance protection circuitry that permits high signal bandwidth. Units deliver protection to IEC 61000-4-5 standards, and can protect up to 8 Cat-5e pairs as well as various configurations of dc power for POE applications. Measuring 5.5 x 4 x 3 in., metal or plastic enclosures are rated NEMA 3R rainproof.

French Technology Press Office, Inc.    Chicago, IL 60601
Mar 29, 2005 Interactive Vocal Server allows users to control equipment from fixed or mobile telephones. Internal module can be integrated directly into electronics board or used as external device, connected via serial port of equipment. Once device is installed, IVS connects directly to standard phone jack and automatically answers incoming calls. Server plays voice messages stored in memory, enabling caller to perform series of commands using telephone's keypad.

StarPanel Technologies, Inc.    Clackamas, OR 97015
Mar 29, 2005 At less than 2.0 in. thick, 17.0 in. SXGA Model M7170 will fit in areas CRTs and other touch screen monitors can not. It is capable of operating from computer's RGB video output port or from video camera or player. Unit is suited for industrial environments that demand rugged operator interface or video monitor.

SBS Technologies Inc.    Albuquerque, NM 87110
Mar 29, 2005 Using Altera® Stratix® EP1S30 FPGA-based processor, TS-Video PMC delivers dual-input RS-170 video capture and compression solution for camera-based applications where video data is transferred over a network. Dual video inputs allow for overlay or mixing of multiple video images, while single RS170 output permits data playback. Available as conduction or convection-cooled, product also incorporates MPEG-4 encoder.

SBS Technologies Inc.    Albuquerque, NM 87110
Mar 29, 2005 Utilizing 2eSST VMEbus, V2S 6U SBC is powered by 1 GHz Motorola® MPC7447A PowerPC processor and offers 512 Kb on-chip L2 cache, 512 Mb or 1 Gb DDR SDRAM, and 256 Mb soldered boot Flash memory. Conduction- and convection-cooled versions feature Marvell® Discoveryâ„¢ III System Controller bridge chip and support data transfer rates up to 320 Mbps. Product, able to host one single-wide 64 bit/66 MHz PMC site, is offered with 2 or 3 Gigabit Ethernet ports.

SBS Technologies Inc.    Albuquerque, NM 87110
Mar 29, 2005 Software Defined Radio (SDR) Development Kits TS-DK-SDR1 and TS-DK-SDR2 include 6U cPCI SBC with dual Altera® Stratix® EP1S80 FPGA computing devices, 2 PMC sites, Wave FPGA software tool kit, and soft-core Nios® processor SOPC Builder tool kit. Kits also incorporate Model 309 PMC Flex Receiver Plus A/D 2-channel front-end digitizer and Model 919 dual DAC broadband analog signal generator mezzanine module. TS-DK-SDR2 adds SBS CT8 Intel® Pentium® III SBC and 6U CPCI chassis.

DAP Technologies    Vanier, QC G1M 3B2  Canada
Mar 29, 2005 Handheld Microflex CE3240 is equipped with Intel XScale PXA 255 400 MHz processor and runs Windows CE 5.0 OS. Supporting optional 2D scanning, unit offers GPRS and CDMA 1X RTT WWAN and 802.11b WLAN wireless connectivity. Microflex CE5000X integrates GPS and GPRS system with color 1.3 mega pixel camera and flash into industrial mobile unit. Microflex 2240 runs Windows Mobile 2003, allowing users to view documents such as Adobe Acrobat, Microsoft Word, PowerPoint, and Excel in original formats.

Kontron    Poway, CA 92064
Mar 28, 2005 Powered by 1.4 GHz Intel® 738 Pentium M® processor, Embedded Computing Module (ECM) provides PC engine with up to 1 GB DDR RAM and 2 MB cache for application-specific mobile systems. Unit integrates Intel Pro Wireless 802.11b/g wireless networking capability, removable 40-60 GB hard drive, and one docking connector. Mil-Std 810F-certified packaging, measuring 6.5 x 4 x 1.8 in., is suited for military and harsh industrial environments.

Men Micro Inc.    Lago Vista, TX 78645-4160
Mar 25, 2005 Running on Windows or Linux operating systems, Model EM07 features Celeron or Pentium III processor with clock speeds from 400-933 MHz, and Altera Cyclone FPGA, which allows unit to be configured with application-specific functions. It includes 2 Fast Ethernet ports, 1 or 2 serial RS232 interfaces, and slots for SO-DIMM memory module and CompactFlash memory. Combining low-power modes of processor with heat sink eliminates forced air cooling in many applications.
