Gateway    Irvine, CA 92618
Apr 28, 2005 Mobile 7426GX, powered by 64-bit processor, features 15.4 in. display and dedicated ATI® Mobility Radeon® 9550 graphics with 64 Mb video memory. Along with 100 Gb hard drive and 6-in-1 digital media reader, notebook offers double-layer DVD+/-R/RW multi-format drive. Computer also provides 1 Gb DDR memory, IEEE 1394 port, 4 USB 2.0 ports, and is broadband- and network-ready with 10/100 Ethernet and integrated 802.11g wireless.

Diversified Technology Inc.    Ridgeland, MS 39157
Apr 27, 2005 Powered by CPB4612 processor blade, which utilizes Intel Pentium M processor, PlexSys-1 and PlexSys-2 are PICMG 2.X-compliant building blocks that provide telecom and Internet IP-based OEMs with open standards ecosystem for application solutions development. PlexSys-1 1U system features 2-slot backplane with 1 system master and 1 node slot, while PlexSys-2 2U system features 4-slot backplane with 1 dedicated system master and 3 peripheral node slots.

Dynics    Ann Arbor, MI 48108
Apr 27, 2005 Based on Mini-ITX style motherboard that supports Pentium 4 or embedded CPU architecture, ITX2 is available with 15 and 17 in. flat panel displays and touchscreen support. System, fully compatible with Microsoft and Linux OS, has 4.5 in. mounting depth and is built to NEMA 4 specifications. Industrial computer incorporates 4 serial ports, 4 USB 2.0 ports, 2 PCI slots, onboard 10/100 Ethernet controller, and video graphics chipset.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 Suited for small and medium businesses, ThinkPad® X32 is based on 1.8 GHz Intel Pentiumâ„¢ M processor with 2 Mb L2 cache, 400 MHz FSB, and Intel SpeedStep technology. Unit features Intel 855 PM chipset, 12.1 in. TFT display with 1,024 x 768 pixel resolution, 40 Gb hard disk drive, accelerated graphics port, and 256 Mb memory expandable to max of 2.0 Gb. Optional extended life battery provides up to 10 hours of life when used with main battery.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 ThinkPad® X41 is based on 1.5 GHz Intel Pentium M, low voltage processor with 2 Mb L2 cache and 400 MHz FSB. It includes Intel 915GM chipset, 12.1 in. TFT display with 1,024 x 768 pixel resolution, 40 Gb HDD, Intel Graphics Media Accelerator 900, variety of network connections, and 512 Mb DDR2 memory expandable to max of 1.536 Gb. Integrated fingerprint reader on selected models helps to prevent unauthorized access to notebook and data.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 27, 2005 Featuring 1.8 in. form factor, ThinkPad 60 GB Mini Hard Drive includes IDE interface with Ultra-DMA transfer mode and advanced power management technology. Unit provides rotational speed of 4,200 rpm, interface transfer rate of 100 Mb/sec, max media transfer rate of 240 Mbits/sec, and average access time of 15 ms.

Omron Electronics, LLC    Schaumburg, IL 60173
Apr 27, 2005 Safety Network Controller features modularly configured safety functions for programming safety circuits. It can allow safety control and machine control to be performed in parallel via single wiring. Machine conditions can therefore be monitored without requiring other wiring for maintenance. Controller meets guidelines of SIL3 of IEC61508 for functional safety and category 4 of EN954-1 regarding safety of machinery.

Indala Corp.    San Jose, CA 95134 2017
Apr 27, 2005 Rated at 13.56 MHz, Contactless Smart Card solutions include entry-level ISO 15693 readers to MIFARE® ISO 14443A with full sector choice, key management, and outputs such as Wiegand and ABA Track 2. Product line also includes DESFire ISO 14443A high-security Government Smart Card-compliant readers as well as MR Series magnetic stripe readers with built-in read head heater (outdoor unit). All include conventional mullion and PIN pad readers.

AR Worldwide    Souderton, PA 18964
Apr 27, 2005 Using serial tunneling method, IA232ET interface encapsulates serial data into packets and transports it over Ethernet. Use of product enables AR Worldwide products to be remotely monitored, managed, and controlled over 10Base-T and 100Base-TX networks, eliminating limited distance, point-to-point connections.

Advantech Co.Ltd.      Taiwan
Apr 27, 2005 Designed with multiple I/O options, PCM-3380 embedded platform enables developers to design solutions that combine data throughput rates of PCI-104 with low-power, fanless features of Pentium M processor. It supports 6 USB 2.0 as well as 2 CRT/LVDS displays and can be equipped with Pentium M processors from 1.1–1.6 GHz or Celeron M processor from 600 MHz. Along with Intel® 855GME chipset, platform features 2 COM ports and LAN support.

Molex Inc.    Lisle, IL 60532-1682
Apr 27, 2005 Featuring integrated magnetics, HyperJackâ„¢ 1000 Gigabit Power over Ethernet® module provides PoE management functions embedded within RJ-45 connector. Fully shielded unit is available in multi-port configurations, including 2 x 4 and 2 x 6. It contains up to three TI quad-port TPS2384 power management ICs, which support operation over temperature range of -40 to +125°C. Applications range from enterprise systems with up to 128 ports to low-port count hub Ethernet switches.

IntelliCom Innovation AB    Halmstad S-302 50  Sweden
Apr 25, 2005 NetBiter® webSCADA Modbus Gateway is available with software that enables users to monitor Modbus data on Web pages inside Gateway without writing HTML. Software gives unit support for 200 data points, alarms by SMS, and data logging for Modbus data. With additional support for up to 250 Modbus Slaves and 10/100 Mbit Ethernet, product features 2 digital inputs, Modbus TCP, as well as ability to upload pictures, save configurations, and backup software.

Advantech Automation Corp.    Cincinnati, OH 45240

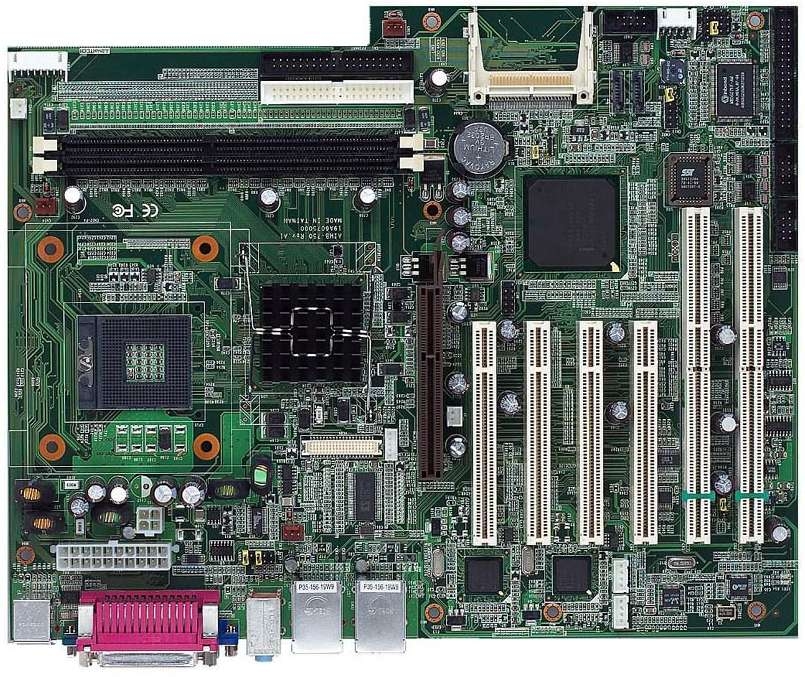

Apr 25, 2005 Industrial AIMB-750 supports socket 479 Intel Pentium M/Celeron M processors with processing speeds of 2.1/1.5 GHz and above across 400 MHz FSB. Equipped with Intel 855GME chipset and 6300ESB I/O controller hub, it offers two 64-bit/66 MHz PCI-X slots, four 32-bit/33 MHz PCI slots, 4 serial ports, and 4 USB 2.0 ports. Along with 2 LAN ports that support Gigabit Ethernet connections, product provides up to 2 Gb single-channel DDR memory with error-correcting code function.

Gateway    Irvine, CA 92618
Apr 25, 2005 Model 9415 server is offered in 1U rack-mount form factor It supports 64-bit Intel® Xeonâ„¢ processors with 800 MHz front-side bus and 1 or 2 Mb L2 cache. Server is suited for use as database or Web server, and can scale to ERP and CRM applications. Designed as 2U modular enclosure, Model 840 Serial ATA SAN provides host connectivity via Fibre Channel or SCSI RAID modules and supports SATA hard drives totaling 4.8 Tb of storage.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 25, 2005 Equipped with 12.1 in. XGA TFT display, Think Express models of the ThinkPad® X41 notebook are powered by 1.5 GHz Pentium M Low Voltage processor and feature 2 MB L2 cache, 400 MHz FSB, and SpeedStep technology. Integrated fingerprint reader prevents unauthorized access, while 8-cell system battery has 8.1 hr life. In 10.5 x 8.3 in. footprint, notebook features Intel PRO/Wireless 2915ABG or open Mini-PCI slot, powered USB 2.0 port, and 802.11a/b/g wireless LAN connectivity.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 25, 2005 Suited for SMBs, ThinkPad® X32 Express notebooks are powered by Pentium M processor with 2 Mb L2 cache, 400 MHz FSB, and Intel SpeedStep technology. Wireless or wireless-upgradeable models feature up to 10 hr battery life, titanium composite cover, and port replication and expansion capabilities. Measuring 10.7 x 8.8 in. x 0.98–1.19 in., computers have 12.1 in. TFT display, Mini-PCI card, and UltraConnectâ„¢ antenna for 802.11a/b/g wireless LAN connectivity.

SIXNET    Clifton Park, NY 12065 0767

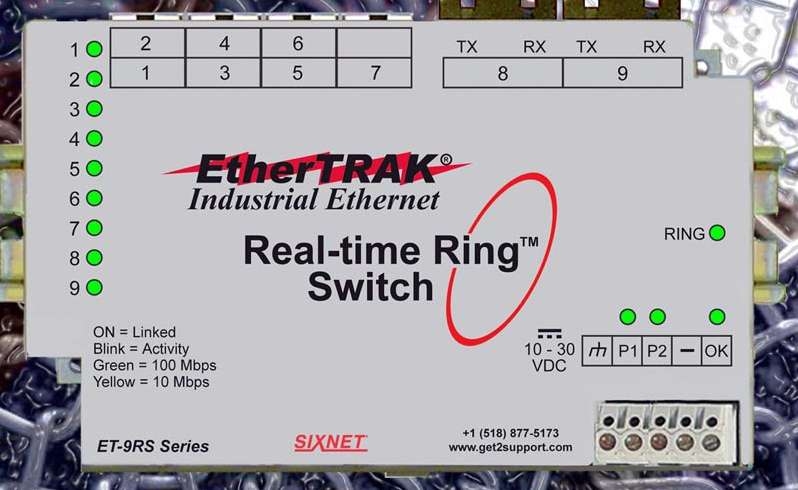

Apr 22, 2005 Offered with copper and fiber ports for connections up to and over 40 km, fault-tolerant Industrial Real-time Ringâ„¢ Ethernet switch ET-9RS features 9 ports and network redundancy. Self-configurable product provides recovery time under 5 ms per hop and allows over 50 switches to be connected per ring. With priority queuing and port mirroring, product filters messages to prevent broadcast storms. There are no delays with store and forward wire-speed switching.

Four D Imaging, Inc.    Berkeley, CA 94710

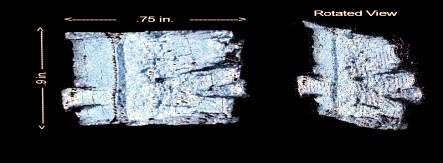

Apr 22, 2005 HoloScanner Mark IIa can acquire full 3-dimensional image of objects or people in less than 1 sec. All dimensions of scanned object are digitally stored in computer memory and are available for scaling, slicing, rotation, and other manipulations. Dimensional data is linked to all available CAD/CAM systems such as those produced by Solid Works, AutoDesk, Dassault, and EDS. Applications include aerospace, manufacturing, and automation.

Advanced Thermal Solutions Inc.    Norwood, MA 02062

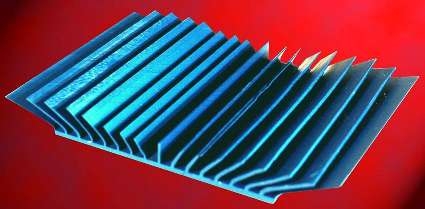

Apr 22, 2005 Measuring 4–7 mm in height, blueICEâ„¢ Heat Sinks feature thermal resistance as low as 1.23°C/W within air velocity of 600 fpm. Double-sided, thermally conductive adhesive tape can be used to attach heat sinks securely to components so no mechanical hardware is needed. Units are suited for use inside most telecommunications enclosures where space is limited.

Gateway    Irvine, CA 92618
Apr 22, 2005 Weighing 7.7 lb and measuring 1.24 in. thick, Model M680 is based on Intel® 915 chipset, Intel Pentium M processors with 533 MHz FSB, and ATI Mobility RADEON X700 PCI Express graphics with up to 128 Mb video memory. Dual channel DDR2 memory is expandable to 2 Gb. Additional features include 10-key numeric keypad; up to 60 Gb 7,200 rpm hard drive; dual layer, multi-format DVD-RW drive; 10/100/1000 Ethernet and 802.11b/g or 802.11a/b/g wireless LAN.
