Video Scan & Computer Signal Converters

Electrical Equipment & Systems, Communication Systems & Equipment

Composite A/V to HDMI Converter is completely plug-and-play.

November 20, 2014

Generating compatible analog to digital conversion signals, 2.17 x 2.60 x 0.94 in. CVA-HD-LC connects composite video input and HDMI output. This plug-and-play video converter, powered via mini USB Type A port, can be connected to USB port on display monitor or USB PC. Unit supports 1080p or 720p HDTV output resolutions and embedded digital audio through HDMI-compatible TVs or audio receivers. Supported input video formats include PAL, NTSC 3.58, NTSC 4.43m SECAM, PAL/M, and PAL/N. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Communication Systems & Equipment

Converter Cable connects VGA computer to HDMI monitor/projector.

September 16, 2014

Offering plug and play functionality without requiring any new software or drivers, VGAA-HD-ULC changes computer's analog VGA and stereo audio signals to single HDMI stream with integrated audio. Product supports HDTV resolutions of 1080p, 1080i, and 720p and  has cable length of 8 in. Features include female 15-pin HD connector for VGA input, 3.5 mm stereo audio jack for audio input; female HDMI port for HDMI output, and male USB Type A connector for power. Read More

Computer Hardware & Peripherals, Sensors, Monitors & Transducers, Communication Systems & Equipment

Video Signal Processor is future-proofed for IP and Ultra HD.

April 14, 2014

Selenio X100 intelligent, dual-channel 1RU frame synchronizer and converter delivers diverse processing capabilities for video, audio, data, and metadata. Future-proofed for uncompressed baseband over IP and Ultra HD (UHD), architecture ensures support for hybrid, next-generation TV and production systems. From ingest and outbound processing and tape archive to production and post-production applications, processor integrates into signal workflow of any broadcast environment. Read More

Communication Systems & Equipment

Video Up-Converter turns HD video into 4K in real-time.

March 31, 2014

Featuring built-in Web server, SNMP support, and ability to add optional redundant power supply, URC-4000 leverages approach to input and resolution conversion which uses spatiotemporal frame interpolation to detect changes in images on pixel-by-pixel basis. Any distortions from conversions are reduced, and resolution of still image areas is restored. Multi-scale nonlinear enhancement further improves resolution. Unit supports outputs of 3G-SDI Level A or B and multiple input formats. Read More

Test & Measuring Instruments, Computer Hardware & Peripherals, Communication Systems & Equipment, Optics & Photonics

SDI-DVI Converter/Extender carries video over fiber optic cable.

December 23, 2013

Supporting HDTV resolutions to 1080p, 3GSDI-DVI-FOSC converts SD/HD/3G-SDI video into DVI signal that can be extended up to 1,650 ft. Solution auto detects 3G, HD, or SD-SDI input formats and comprises 2 components – 3GSDI-DVI-FOSC converter/transmitter and optional ST-1FODVI-R-SC receiver – interconnected by single-strand multimode (50-micron or 62.5-micron) SC fiber optic cable. Main converter/transmitter support SMPTE 259M-C/292M/424M input signals. Read More

Test & Measuring Instruments, Computer Hardware & Peripherals, Communication Systems & Equipment, Electronic Components & Devices

HDMI to DSI MIPI Converter Chipset drives Next-Gen SFF LCDs.

October 4, 2013

With LSI video processing, de-interlacing, and scaling, TC358779XBG enables HDMI video output to be converted and processed as MIPI® Display Serial Interface (DSI) video stream for small form-factor (SFF) LCDs. This 80-pin device, measuring 7.0 x 7.0 mm with 0.65 mm ball pitch and 1.0 mm max height, supports 3D video formats and protocols compatible with HDMI 1.4 standard. Max resolution supported is 1,920 x 1,200 @ 24 bpp at refresh rate of 60 fps. Read More

Test & Measuring Instruments, Communication Systems & Equipment

Frame Rate Converter provides automatic conversion modes.

January 31, 2013

In addition to simultaneous HD and SD output and optional front touch panel, FRC-8000HS offers software with ability to customize settings based on specific needs. Broadcasters have range of control parameters and can select from normal, sports, or winter sports as menu setting. Latter optimizes conversion process in environments with high-speed moving objects in highly saturated backgrounds that contain great amount of bright white, such as snow or ice. Read More

Test & Measuring Instruments, Communication Systems & Equipment

Video Scan Converter drives electronic displays. .

May 21, 2012

Converting computer VGA signals into PAL/NTSC/RSI170, NanoVTV is suited for multi-purpose displays in fighting vehicles, illuminated panels, and aircraft/avionics displays. Unit features on-board frame store and DSP unit which performs scan conversion, flicker filtering, scaling, and color space conversion in digital domain. Equipped with board microcontroller, converter can operate completely standalone without run-time control from external system. Read More

Communication Systems & Equipment

Modular Frame Rate Converter accommodates many applications.

March 29, 2011

Designed for installation in UFM series universal frames, UFM-30FRC offers HD/SD-SDI and analog composite I/O. It can perform variety of format conversions, including 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 525/60, and 625/50. To optimize results for various applications, converter offers linear converter and motion compensation processing modes. Product can also upconvert SD signals to HD signals, downconvert HD to SD, and cross-convert between 1080i and 720p. Read More

Test & Measuring Instruments, Communication Systems & Equipment

Video Signal Converter turns VGA output into STANAG 3350.

June 2, 2010

VGASTANAG module converts non-interlaced VGA output of up to 1,280 x 1,024 SXGA resolution from any standard graphics source to STANAG 3350-compliant signals. All three STANAG frequencies - Class A/B/C - are available in standard or extended temperature versions of this PCI-104 form factor module, and no device driver software is required. In addition to timing generator, features include analog signal digitization, video scaling, frame rate conversion capabilities. Read More

Vision Systems, Communication Systems & Equipment

Surveillance Camera Domes perform in low light applications.

December 28, 2009

Featuring outdoor, impact-resistant, and pressurized housings, SurveyorVFT 35X zoom domes include progressive scan camera that delivers high quality video in normal and high sensitive modes. Digital Noise Reduction (DNR) digitally samples video image and removes excessive noise, while White Balance menu allows user to choose between sodium and mercury settings to specifically accommodate those types of lighting. Camera also offers fast and slow auto-focus modes, as well as manual focus option. Read More

Vision Systems, Communication Systems & Equipment

CCD Cameras are suited for machine vision applications.

November 26, 2007

Available in monochrome and single chip color versions, digital progressive scan CCD cameras feature auto-iris function that makes them suited to outdoor applications. Models CM-140 MCL/CB-140 MCL cameras have 1,380 x 1,040 pixel resolution (½ in. SXGA) and operate at maximum 31 frames/sec, while Models CM-200 MCL/CB-200 MCL have 1,620 x 1,236 pixel resolution (1/1.8 in. UXGA) and operate at maximum 25 frames/sec at full resolution. Read More

Test & Measuring Instruments, Computer Hardware & Peripherals, Communication Systems & Equipment

Video Converter has built-in timebase corrector.

October 6, 2006

Model TR-50 video standards converter changes video signals such as PAL, NTSC, and SECAM from one TV system into another. Product features automatic input system detection, selectable PAL and NTSC color bar generator, and power button with LED indication. Housed in metal box measuring 8 x 1¼ x 5 in. and weighing 1.5 lb, converter offers 12 Vdc operation at 500 mA or 110 or 220/240 V and provides resolution of 400 lines. Read More

Vision Systems, Communication Systems & Equipment

Video Converter is packaged for outdoor use.

September 8, 2003

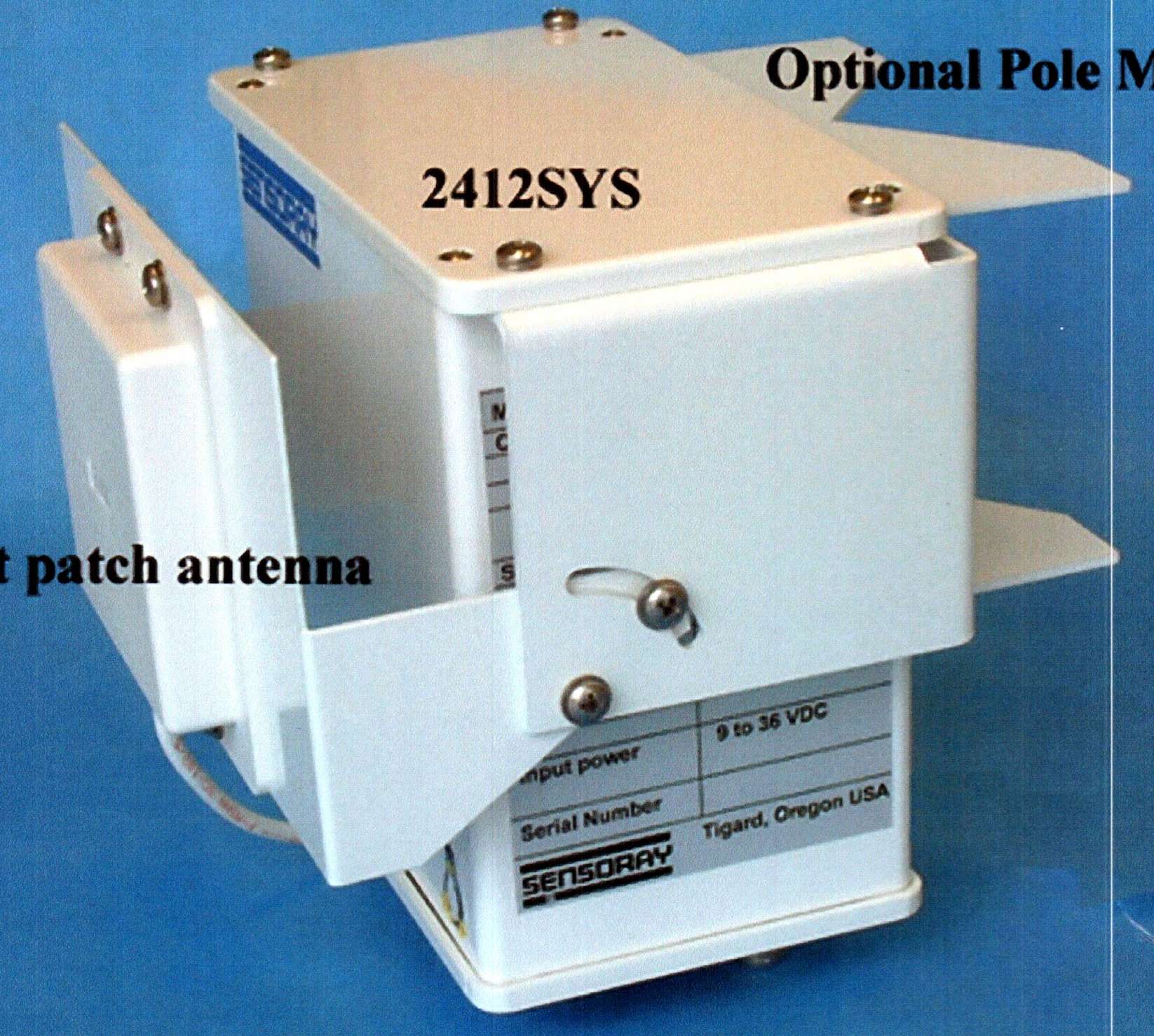

Controlled via Web browser, Model 2412SYS video-over-IP streaming solution converts PAL or NTSC video into 802.11b stream using UDP or RTP Ethernet protocol. Built-in directional antenna ensures unit-to-unit outdoor range of up to 1 mile. System accepts input power from 10-36 Vdc and draws 6 W for one video channel. Bit rate from MPEG-2 codec can be reduced to as low as 500 kbits/s to minimize bandwidth. Serial port can relay PZT commands to a camera. Read More

Communication Systems & Equipment

Video Scan Converter handles up to 1600 x 1200 pixel input.

July 29, 2003

RGB/Videolink® 1690 transforms computer signals to broadcast standard video in real time for recording, broadcast, display, or transmission over video codecs. Unit offers NTSC/PAL composite video, S-Video, and component analog video outputs. Digital-signal processing circuitry eliminates interlace flicker in output image. Features include pan and zoom, underscan/overscan adjustment, automatic synchronization and set-up, and 24-bit color. Read More
