Cypress Computer Systems    Lapeer, MI 48446

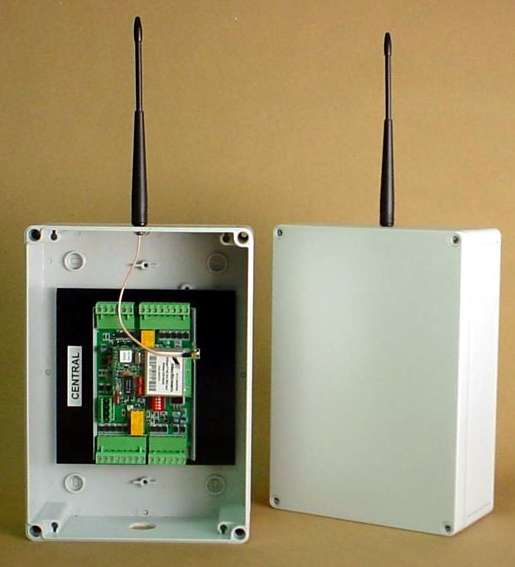

Dec 15, 2004 Built on SUPREX® technology, DUPREXâ„¢ RF (Dual, Supervised Reader Extender) extends distance between 2 access control readers and one controller. Able to span up to 10,000 ft, product has weatherproof enclosure, making it suited for indoor or outdoor installation. It provides immediate feedback from on-board diagnostics, while alarm output from central unit indicates power or communication loss with reader at remote unit.

Pericom Semiconductor Corp.    San Jose, CA 95131
Dec 02, 2004 Series PI3V and PI5V high-bandwidth analog video switches are multiplexer/demultiplexers with Hi-Z outputs, and are recommended for RGB and composite video switching. They offer low crosstalk of -60 to -80 dB and greater isolation of -60 dB. Features include operating voltages of 5, 3.3, and 2.5 V; 5 V rail-to-rail switching and 5 V I/O tolerance, 7.0 ohm R-on for low distortion, and channel on-capacitance of 9.0 pF.

Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 30, 2004 Offering bi-directional capabilities, 2 x 2 Video Amplification Module provides central hub for home video network by combining video signal originating outside home, such as cable TV or antenna, with signals originating or processed inside home, such as DVD, VCR, and satellite. Unit amplifies signal for up to 16 TV locations when installed with 1 x 8 or 1 x 4 Video Splitter/Combiner. Self-terminating connectors prevent video bleeding onto off-air or cable systems.

Atmel Corp.    San Jose, CA 95131
Nov 29, 2004 Controlled by standard ARM® core, baseband processor, Model ATR2740 requires only crystal and 8 Mb Flash memory to run DAB function. All RAM functions such as interleaving or program memory are incorporated into device. At full decoding data bit rate of 1.8 Mbit/s, unit consumes 180 mW. It provides sufficient unused processing power for customer software such as user interfaces. UART, USB, SPI, SSO, SFCO, and RDI interfaces are supported.

Syntax Groups    City Of Industries, CA 91789
Nov 26, 2004 With respective profiles of 4.6 and 5.6 in., Olevia 32 (LT32HV) and 37 in. (LT37HV) widescreen HDTV-ready LCD TVs feature displays optimized for digital image delivery through Super-IPS technology. They provide 1200:1 contrast ratio and 1366 x 768 resolution. Utilizing 1080i HDTV format with true 720P images, Olevia 50-inch LCOS projection TV (LCT50HV) incorporates 3-panel subsystem (R,G,B) that allows color reproduction and vivid images with 1400 x 1050 pixel resolution.

Radcom Equipment Inc.    Paramus, NJ 07652
Nov 18, 2004 As add-on to Cellular Performerâ„¢, 3G Video Analyzer monitors end-to-end cellular video service quality over 3G networks. It isolates problems that cause poor quality video and identifies them. Product examines video over 3G-324M circuit switch sessions and can synchronize multiple video playback of MPEG4 and H.263 sessions of all video participants in single view. Perceptual impairment analysis capability provides objective video quality evaluation intrusively and non-intrusively.

Raritan Computer, Inc.    Somerset, NJ 08873

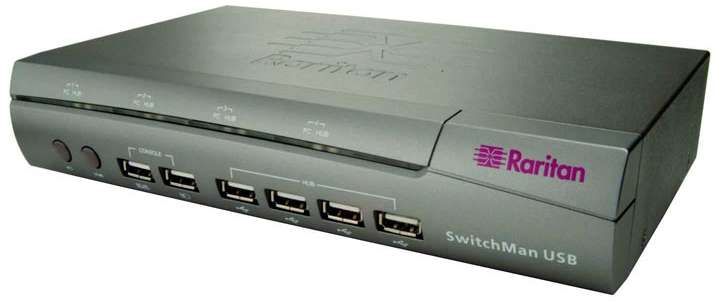

Nov 16, 2004 Featuring plug-and-play functionality, SwitchMan SW2-USB and SW4-USB switches allow users to control up to 4 computers with one keyboard, monitor, and mouse console. They provide control over peripheral equipment via push-button controls on switch or hot-key commands from PC keyboard and let users share PC peripherals. SwitchMan Cable Plus (SW2-CP) switch lets users manage 2 PCs or Mac workstations from 1 PS/2 console via 6 ft KVM cables.

PI Vision    Orlando, FL 32811
Nov 11, 2004 Model UVMSâ„¢ D3 Decoder and Display Driver is suitable for controlling banks of video displays. System is modular, with each D3 driving up to 4 display units. D3 exploits built-in switching capabilities of IP network to provide virtual video matrix with almost unlimited potential for expansion. System includes built-in quad feature, supports displays with up to 3,200 x 2,400 pixel resolution, and offers access to replay and live video in any window.

ATEN Technology Inc.    Irvine, CA 92618

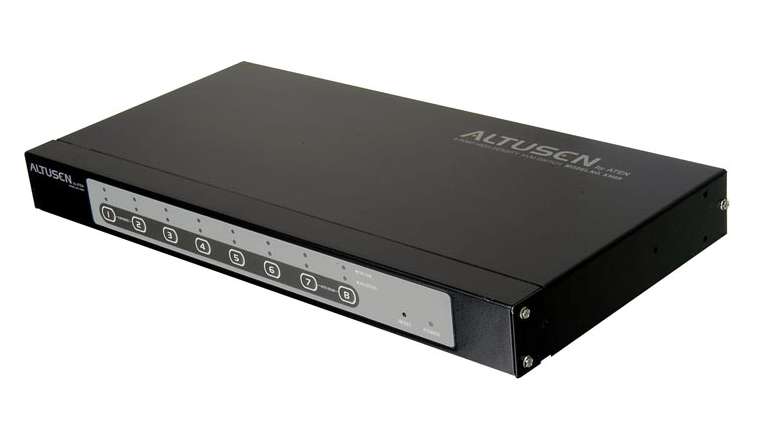

Nov 10, 2004 Eight-port Model KH88 permits access of up to 8 computers and is cascadeable to 3 levels from any port for controlling up to 512 computers from single console. Extendable front panel allows users to mount body of KVM near back of rack, easing cable management. Featuring 2,048 x 1,536 resolution video quality, rack-mountable switch includes internal full range power supply with low power warning indicator.

Micronas GmbH    Frieburg D-79108  Germany
Nov 10, 2004 MDE 95xyD single-chip DVB-compliant MPEG-2 decoder family is suited for free-to-air, pay-TV, and PVR set-top boxes. System-on-chip platform integrates MIPS-compatible 32-Bit processor with configurable unified memory interface and utilizes MICTOS. Processor is engulfed by transport stream interface unit with parallel and serial inputs, transport stream demultiplexer, embedded DVB descrambler, and MPEG-2 A/V decoders. Series also includes ATA, UART, and Ci module interfaces.

Hewlett Packard    Houston, TX 77269-2000

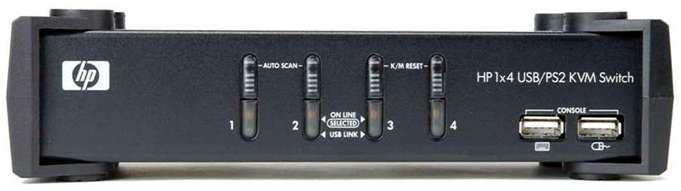

Nov 09, 2004 Available in rack-mount or tabletop configurations, 1 x 4 USB/PS2 KVM Switch provides 4-port integrated keyboard, video monitor, and mouse (KVM) system for managing multiple USB and PS2 devices from one console. KVM, audio, and USB focus can be switched together or independently. Supporting resolutions to 2048 x 1536 @ 75 Hz, switch allows high-resolution monitor to be switched between 4 systems. It fits into 19 in. rack via 3 mounting options.

Parvus Corp.    Salt Lake City, UT 84115 2913
Oct 14, 2004 Supporting up to 4 independent cameras, Model MPEG104+â„¢ delivers dedicated hardware and rate control algorithms for high-resolution live video encoding. It provides 4 audio input channels and analog video output channel to perform real-time monitoring of recording sequence. Designed in PC/104-Plus form factor, card supports motion detection functionality and has fully programmable or automatic static gain control for each CVBS channel.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Sep 30, 2004 With rated bandwidth of 800 MHz, FSAV430 quad SPDT (2-to-1 multiplexer/demultiplexer) video switch operates on less than 15 A and features -75 dB OFF isolation to eliminate monitor ghosting effects. Differential gain and phase maintain stable color saturation and hue consistency over all brightness levels. Offered in DQFN, TSSOP, or QSOP packages, lead-free product is designed for switching HD YPbPr and computer RGB signals in LCD televisions and monitors.

STMicroelectronics    Lexington, MA 02421
Sep 22, 2004 With integrated on-chip features such as USB and High-bandwidth Digital Content Protection (HDCP) processor, STi7710 integrated System-on-Chip (SoC) decoder provides CPU and video-decoding functions required by set-top boxes. Security module secures digital interface to HDCP-enabled TV set and authenticates and monitors decryption keys. Product also provides DVI and HDMI display interfaces in addition to embedded Advanced Audio Coding decoder.

Polaris Industries, Inc.    Atlanta, GA 30324-3943

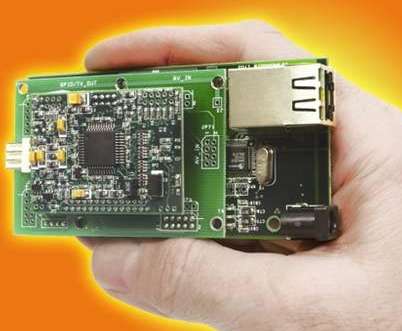

Aug 23, 2004 Offering video distribution over 10/100BaseT networks, NSB-01 provides adjustable video transmission than can be integrated into existing video devices. Board, with 98 x 50 mm footprint, allows for video transmission to any computer using Internet Explorerâ„¢ or Netscape/Mozilla at rate of 30 fps using 55 Kb/s of bandwidth. Resolution is user-selectable, and system incorporates built-in web server, DHCP client, and motion detection algorithms.

Environmental Devices Corporation    Plaistow, NH 03865
Jul 27, 2004 Portable, Haz-Dust Model VD-7500 measures levels of lung damaging particulates while simultaneously overlaying dust concentration onto video images. All data is displayed in real-time on computer screen, allowing investigator to obtain and record events that are linked to worker exposure to airborne contaminants.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jul 26, 2004 Rackmounted system facilitates passing connection of voice and data lines from designated equipment to existing building network. It can also disconnect same set of lines from building network, isolating all equipment in designated room or area. System includes Secure/NonSecure Indicator Unit and Fiber Optic SC, 16-Channel Ethernet, 16-Channel Telco, and 6-Channel ISDN Data Pass/Off-Line Switches. All systems are switched via front panel keylock actuator.

CyberResearch, Inc.    Branford, CT 06405 2932

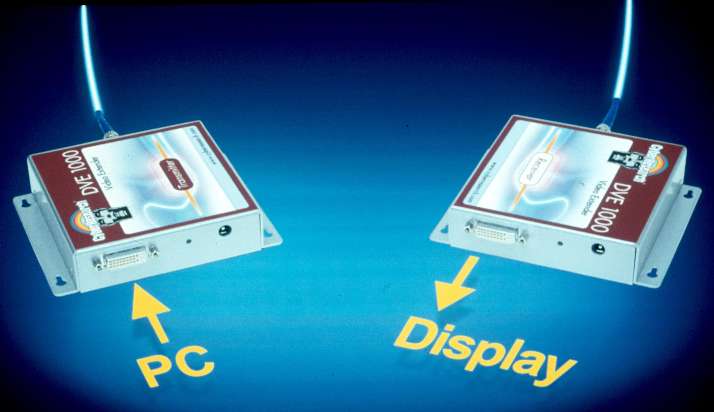

Jul 09, 2004 Both DVE 1000 video extenders and CLE 500 camera extenders use matched converters to switch between electronic and optical signals. DVE 1000 units allow monitors or projectors to be located up to 3,300 ft away from host computers, while CLE 500 models allows distances up to 1,640 ft from camera to computer. Transmitters and receivers are connected using CFSM simplex fiber-optic cables, while monitors and computers are connected with VESA DVI-D cables.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 25, 2004 Quick Vision STREAMâ„¢ Series CNC non-contacting video system employs progressive camera with stroboscopic illumination bundled with QVPak® software to enable machine to register measurements while camera-head is in motion. Software enables programming of non-stop mode via intuitive GUI and supports extended 3-D data processing. Machine is suited for measurement and inspection of processes such as molding of plastic or metal parts and PCB assembly.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 25, 2004 Quick Vision Apex® Series CNC systems provide non-contact measurement of IC chips, IC packages, hybrid chassis, lead frames, and molded parts. Programmable power turret tube lens provides zooming for wider field of view at high levels of image detail. Systems are driven by QVPAK software, which displays measurement results in 2D/3D graphics and includes 3-D data processing functions, support of touch-probe measurement with video/TP calibration, and 2 illumination tools.
