Radiometrix Ltd.    Watford Hertfordsh WD19 5EZ  United Kingdom
Jun 18, 2010 Optimized for industrial environments, NTR2 module delivers RF power output of 10 dBm and receiver sensitivity of -118 dBm, with usable range extending beyond 500 m. It conforms to ETSI EN 300 220-3 and EN 301 489-3 standards and has operating temperature range of -10 to + 60°C. Available in 434.075, 434.650, and 458.700 MHz versions, and in customized options across 433 MHz (EU) and 458 MHz (UK) license-exempt bands, module consumes only 20 mA for transmitting and 15 mA for receiving.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Jun 16, 2010 Suited for mobile computing and access piont WiFi applications, Model RF5608 integrates components for 2.4-2.5 GHz and 4.9-5.85 GHz ISM bands, including power amplifiers (PA), low noise amplifiers, power detector circuitry, and diplexer with full harmonic filtering. Three-stage PAs provide linear output power of 18 dBm in 2.4-2.5 GHz frequency range and 16 dBm in 4.9-5.85 GHz frequency range. Unit features integrated RF matching network to minimize external SMD requirements.

VPT, Inc.    Blacksburg, VA 24063
Jun 14, 2010 Intended for distributed power systems, VPTc10-28 Series satisfies reliability requirements for commercial avionics and military systems in USA and Europe. Dual modules in one package reduce reflected noise of DC/DC converters while simultaneously protecting power system from inrush current damage and reverse polarity conditions. Features include up to 10 A output current and up to 150 W output power, 45 dB min attenuation at 500 kHz, and transient operation up to 80, 100, and 202 V.

Z-Communications, Inc.    San Diego, CA 92126
Jun 11, 2010 Model SFS6400A-LF features typical phase noise of -88 dBc/Hz at 10 KHz offset and typical sideband spurs of -65 dBc. Delivering output power of 6 dBm with VCO voltage supply of 5 Vdc while drawing 40 mA, RoHS-compliant product also offers phase locked loop voltage of 3 Vdc while drawing 11 mA over -40 to +85ºC temperature range. Synthesizer also features 2nd harmonic suppression of -20 dBc. Unit is available in PLL-V12N package measuring 0.60 x 0.60 x 0.13 in.

SyChip    Plano, TX 75093
Jun 09, 2010 Supplied in 10 x 11.3 x 1.5 mm packages, WLBT8120 and WLBT8121 respectively conform to IEEE 802.11b/g WLAN and Bluetooth v2.0 with Enhanced Data Rate. Feature set for WLAN includes IEEE 802.11i security, QoS traffic prioritization, and sleep mode, while Bluetooth feature set includes v2.0 with EDR for optimal throughput and real-time data profiles. Targeting mobile phones and consumer electronics, modules provide 2 RF interfaces to support independent antenna configurations.

SyChip    Plano, TX 75093
Jun 09, 2010 Supplied in 10 x 11.3 x 1.5 mm package, WLBT8111/WLBT8112 dual radio module conforms to IEEE 802.11b/g wireless LAN and Bluetooth v2.0 with Enhanced Data Rate. Feature set for WLAN includes IEEE 802.11i security, QoS traffic prioritization, and sleep mode, while Bluetooth feature set includes v2.0 with EDR for optimal throughput and real-time data profiles. Targeting mobile phones and consumer electronics, module provides single RF interface to support shared antenna configuration.

Maxim Integrated Products    Sunnyvale, CA 94086
Jun 08, 2010 Model MAX2136 supports reception of signals as large as 10 dBm while maintaining sensitivity of -99 dBm, and acheives low noise figure of 3.8 dB while consuming 210 mW. Unit operates from 3 V supply and draws 70 mA when receiving either ISDB-T 13-segment or DVB-T signals. Featuring lead-free 5 x 5 mm, 32-pin TQFN package, it includes on-chip tracking filters, low pass filters, and low-noise amplifiers. Product is specified over -40 to +85°C temperature range.

Antenna Factor    Grants Pass, OR 97526
Jun 07, 2010 Featuring integral counterpoise that eliminates need for proximity ground plane, 2.4 GHz WRT antennas are available with U.FL connector terminations - miniature coaxial RF connectors intended for high-frequency signals. Antennas use 1.32 mm micro coax, and 19 x 11 mm radome, anchored by threaded base, installs through hole on product. Featuring adhesive foam compression ring that protects against elements, antennas suit applications requiring unobtrusive, tamper-resistant solution.

Spectrum Advanced Specialty Products    Fairview, PA 16415

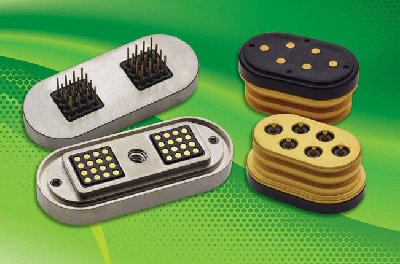

Jun 04, 2010 Designed for mating to spring loaded, compliant contacts, Rapid Mate Connectors provide rapid connection with low mating force, allowing for some misalignment during mating. Ruggedized units resist sand, dust, and water and are suitable for military and commercial communications systems, thermal and ambient light imaging cameras, docking stations, and scanners. Feed-through capacitors or Pi filters with selective loading and custom values are available.

Quintech Electronics and Communications Inc.    Indiana, PA 15701

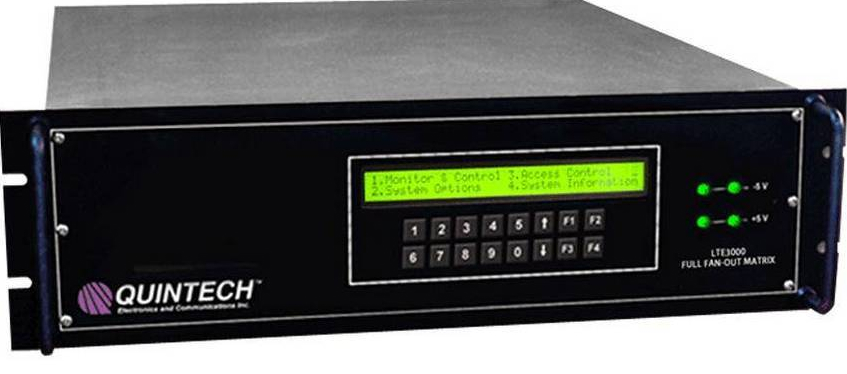

Jun 03, 2010 Suited for use in LTE, Wimax, and 4G test applications, LTE 3000 16 x 16 passive full fan-out matrix switch allows any of 16 inputs to be routed to any or all outputs. Switch can be controlled via front panel or remotely via web browser interface. Providing replacement for patch panels, switch ensures no signal degradation in lab environments.

Eltek Limited    Cambridge   United Kingdom
Jun 03, 2010 Able to receive information from sensors relayed via Eltek transmitter unit over distances up to 2,000 m, WSR (Wireless Sensor Receiver) converts incoming data into voltage signals that are then fed directly to DAQ or process control system. Self-contained, mains-powered receiver and output unit, available with 8 or 16 I/O, incorporates LCD that shows real-time metering of sensor values. Built-in batteries provide 48 hr of operation in case of mains failure.

Z-Communications, Inc.    San Diego, CA 92126
May 27, 2010 Operating at 3,900 MHz, model SFS3900A-LF has typical phase noise of -88 dBc/Hz @ 10 kHz offset and typical sideband spurs of -65 dBc. RoHS-compliant product delivers typical output power of 3 dBm with VCO voltage supply of 5 Vdc while drawing 33 mA (typ) and PLL voltage of 3 Vdc while drawing 15 mA (typ) over -40 to 85°C range. Supplied in 0.60 x 0.60 x 0.13 in. PLL-V12N package, synthesizer offers typical second harmonic suppression of -20 dBc.

Analog Devices, Inc.    Norwood, MA 02062-9106
May 27, 2010 Supplied in 32-LFCSP, ADF4150HV 4.4 GHz fractional-N or integer-N PLL synthesizer features charge pump capable of 30 V drive level. Product can be used to directly drive high tuning-voltage external VCOs, removing need for active loop filters and subsequently simplifying system design. Operating from 3-3.6 V supply, IC incorporates on-chip frequency dividers that enable VCO frequency to be divided by 2, 4, 8, or 16, allowing user to generate RF output frequencies down to 31.25 MHz.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
May 27, 2010 Measuring 3.5 x 3.5 x 0.5 mm, RF6525 meets/exceeds system requirements of ZigBee® applications operating in 2.4-2.5 GHz band and supports multiple applications. It integrates +20 dBm PA with Tx harmonic output filter in transmit path and low noise amplifier (LNA) with bypass mode in receive path. Other components include DPDT diversity transfer switch and 2-port, 50 ohm Rx/Tx integrated balun that simplifies matching and provides balanced I/O signals for Tx and Rx paths.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
May 27, 2010 Covering multiple bands in DC to 25 GHz range, RFSW204x series includes SPDT, SP3T, and SP4T configurations - each available in absorptive or reflective versions - and can be adapted to multiple frequencies. Products provide P1dB output powers from 19-27 dBm and IIP3 up to 47 dBm. They are designed using 0.5 micron GaAs pHEMT process, offering insertion loss as low as 1 dB, isolation up to 45 dB @ 20 GHz, and switching speeds of 20 nsec.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
May 25, 2010 Model RF5755 includes 2.5 GHz power amplifier, multi-throw switch, low-noise amplifier, power detector coupler, as well as matching circuitry with output harmonic attenuation in 3 x 3 x 0.5 mm package. Product offers 20 dBm linear output power; switching between WiFi transmit, WiFi receive, or Bluetooth; and simultaneous receive of WiFi and Bluetooth with positive gain in both paths. Power detector coupler decreases sensitivity to voltage supply, temperature, and VSWR.

RADWIN    Tel Aviv 69710  Ireland
May 24, 2010 Providing up to 16 E1s/T1s + Ethernet and operating at range of up to 75 miles, RADWIN 2000 C-Series is optimized for IP and 3G mobile backhaul, and supports evolution to 4G networks. Systems incorporate advanced technologies such as MIMO and OFDM together with proprietary protocols to ensure optimal operation in sub-6 GHz bands. Products can also operate in challenging conditions, including non-line-of-sight, interference zones, and extreme temperatures.

Wi2Wi, Inc.    San Jose, CA 95131
May 21, 2010 Targeted for portable electronics developers, W2SW0001 System-in-Package (SiP) offers IEEE 802.11b/g radio solution, complete with all radio components, clocking, and regulation. Integration requires connection to end-product's interfaces, antenna port, and single 3.3 Vdc power supply. While various drivers are offered for several processors and operating systems, custom drivers can also be developed.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
May 19, 2010 Power Box(TM) 360 products feature 4 speakers and subwoofer that projects sound in all directions. Remote controlled from up to 40 ft away, they provide AM/FM reception and play MP3 and WMA files via SD memory card/USB port in digital media bay. Model PB360S also features 4-way power outlets, while PB360D has GFCI outlets, SIRIUS(TM) Dock & Play port, and backlit control panel. These shock/impact protected systems also feature bay for charging Bosch 14.4 or 18 V lithium-ion power tool batteries.

Analog Devices, Inc.    Norwood, MA 02062-9106
May 14, 2010 With operating frequency in range of 2,300-2,900 MHz, single-channel ADL5353 and dual-channel ADL5354 integrated passive mixers suit wireless applications, such as cellular base station receivers, transmit observation receivers and radio link downconverters. They can be integrated with RF balun, local oscillator (LO) switch for dual LO frequency applications, LO driver and integrated IF amplifier. Models can be operated on 3.3 V supply voltage for power saving applications.
