SMC Networks    Irvine, CA 92618
Jan 16, 2004 EliteConnectâ„¢ wireless networking products incorporate SMC2512W-B high-power wireless PCI card that provides 802.11b connectivity with 200 mW of transmit power and SMC2512W-AG PCI card that brings 100 mW of power with universal connectivity. With operating ranges up to 2,700 and 2,145 ft., respectively, SMC2512W-B and SMC2512W-AG cards overcome indoor multipath distortions. Both cards support Wi-Fi Protected Access (WPA) and user authentication via RADIUS 802.1x, EAP, LEAP, and PEAP.

ProSoft Technology Inc.    Bakersfield, CA 93311
Jan 15, 2004 Model MVI 56-DNP is a single-slot, backplane-compatible solution for Allen-Bradley ControlLogix platform. It provides configurable support for both DNP 3.0 Master and Slave implementations, allowing many SCADA and field devices supporting DNP 3.0 protocol to be integrated into ControlLogix platform. Module is fully configurable through ladder logic and has built-in debug port. It directly interfaces to RS-232, 422, or 485.

Berk-Tek, A Nexans Co.    New Holland, PA 17557
Jan 15, 2004 GIGAlite-10XB 50 micron, laser-optimized, multimode fiber will support 10 Gigabit Ethernet using serial 850 nm VCSEL technologies to guaranteed distance of 600 m. Utilizing Modified Chemical Vapor Deposition process, fiber features effective modal bandwidth of 4,900 MHzkm and delivers maximum attenuation of 3.0 dB/km. Tightly controlled Differential Mode Delay performance doubles maximum 10 Gigabit Ethernet distances that IEEE specifies for multimode fiber.

M2 Optics, Inc.    Los Angeles, CA 90034
Jan 13, 2004 Microprocessor-controlled FOS-860A monitors and measures optical modulation index (OMI) of optical carrier. Capable of measuring OMI in percent, per channel, or total, all controls are front panel-accessible, and results are displayed on 2-line, 48-character, back-lit LCD. Unit features front panel BCD pushbuttons for channel loading and measures optical power in mW or dBmW within 1310 and 1550 nm optical windows in absolute or relative modes.

National Instruments Corp.    Austin, TX 78759-3504
Jan 08, 2004 Model NI PCI-4070 FlexDMM can operate as 6½-digit DMM and 1.8 MS/s high-voltage isolated digitizer. It delivers 6 ppm basic 24-hr DC voltage accuracy and sub µV sensitivity. DC reading rate ranges from 100 S/s at6 ½ digits to 10 kS/s at 4½ digits. As a digitizer, FlexDMM acquires AC and DC-coupled voltage and current waveforms up to ±300 V and ±1 A input at max sampling rate of 1.8 MS/s. Unit integrates with LabVIEW 7 Express measurement software.

Phoenix Contact    Harrisburg, PA 17111 0100
Jan 07, 2004 DIN-rail mount RAD-DATA-BUS systems enable monitoring and control at low point count remote sites while eliminating need for PLC where local logic is not required. Each transceiver consists of master, slave, and store-and-forward repeater/slave. Data radios not only move RS-232, RS-422 and RS-485 for serial data from PLC or controller with MODBUS and Allen-Bradley DF1 protocols, but also allow users to read and write analog and digital I/O from remote locations.

STMicroelectronics    Lexington, MA 02421

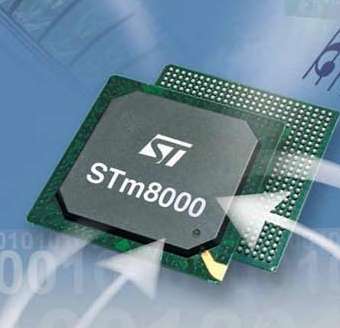

Jan 07, 2004 Single-chip Model STm8000 is an audio-video, full-duplex codec with open architecture that brings audio/video encoding to DVD or HDD recording products. It offers analog TV recording, digital free-to-air broadcast support, time shifting, DV movie transfer-to-disc, memory-card reading, DivX decoding, WMA decoding, and DVD audio. Unit addresses all DVD recorder formats, including DVD+RW, DVD-RW, and DVD-RAM.

Contemporary Control Systems, Inc.    Downers Grove, IL 60515

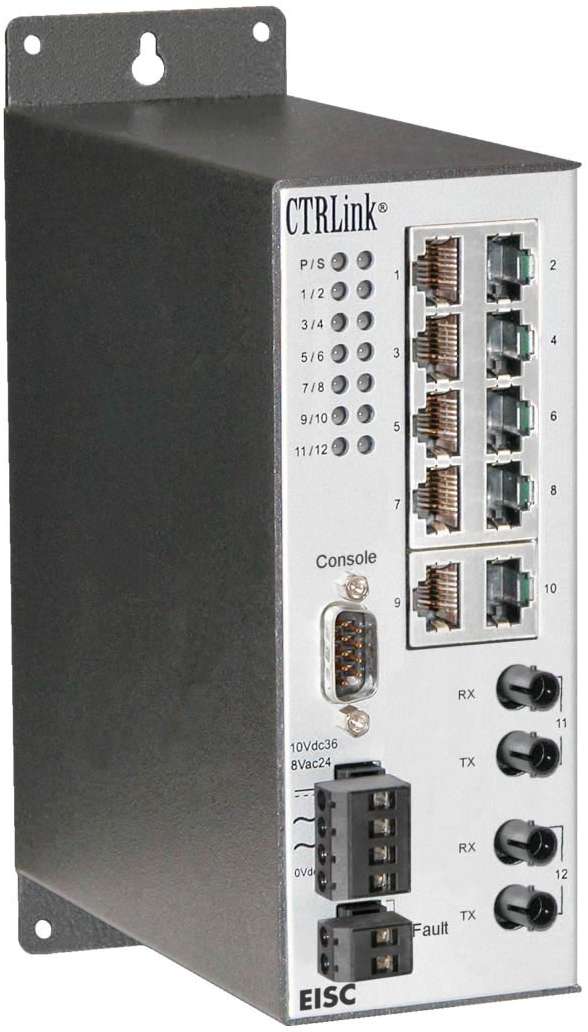

Jan 02, 2004 Configurable switch line includes fiber versions that offer Port VLAN, trunking, QoS, and programmable fault relay. Model EISC12-100T/FT has 10 twisted-pair wired ports and 2 multimode fiber ports with ST connectors. Model EISC12-100/FC is identical except for SC connectors, and EISC12-100T/FCS also uses SC connectors but with single-mode ports. DIN-rail or panel mounted units are immune to radio signals and electrical noise.

Ritron, Inc.    Carmel, IN 46032
Dec 23, 2003 Compatible with existing VHF and UHF 2-way radio systems, Patriot Display Series Portables and 110 Vac Base Stations/Monitors feature talk-back capabilities. Each of 10 channels can be programmed via PC for different 2-tone paging decode within 300-1,500 Hz frequency range. Features include dispatch selective calling, channel scanning, CTCSS and/or Digital Coded Squelch, and NOAA Weather Scan and Alert (on VHF models).

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Dec 16, 2003 Model VCA8613 incorporates 8 low-noise pre-amplifiers, 8 attenuators, and 8 post-gain amplifiers, but draws only 600 mW. Differential outputs of LNAs can be switched through 8 x 10 cross-point switch, which is programmable through serial interface input port. Device operates on single 3 V supply and features 1.2 nV/rtHz input voltage noise at 5 MHz. Gain can be varied between 21–26 dB. Programmable maximum attenuation settings include 29, 33, 36.5, and 40 dB.

Precidia Technologies Inc.    Kanata, ON K2L 2P4  Canada
Dec 15, 2003 Leveraging Ether232 product technology, iPocket232 Compact RS232-to-Ethernet adapter features DIN Rail mounting and modem replacement capability. Smaller than a credit card and offering plug-and-play installation, product connects serial equipment to Ethernet via RS232 interface for real-time access from any location on user’s network. Product also helps to eliminate cumbersome cabling and dedicated PCs.

Motorola, Inc.    Schaumburg, IL 60196 4041
Dec 15, 2003 GPS-enabled Model i305 adheres to Military Standards 810 F, for rugged construction and rain-resistance. Handset features rubber encasing, sculpted grip, and brushed chrome lens guard. Interior lining and seals protect against exposure to rain, sleet, and snow. Services include digital cellular, Nextel's Nationwide Direct Connect, Online Web, email, and text messaging. Product is speakerphone-capable and offers assignable ring tones, 600-entry phonebook, and SIM card.

SMC Networks    Irvine, CA 92618
Dec 12, 2003 EliteConnectâ„¢ Universal 2.4 GHz/5 GHz High Power Wireless CardBus Adapter conforms to 802.11a/b/g standards, enabling Enterprise laptop users to take advantage of true mobile computing. Features include support for multiple profiles, access-point detecting site survey software, and configurable output power. It supports Wi-Fi Protected Access and 64/128-bit/152-bit WEP encryption and 802.1x, EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP, and LEAP for user authentication.

SMC Networks    Irvine, CA 92618
Dec 12, 2003 EZ Connectâ„¢ 2.4 GHz, 11 Mbps Wireless USB Flash Drive combines convenience of USB-enabled PCs with benefits of 11 Mbps wireless operation for networked SOHO and mobile computing environments. Adapter, with 32 Mbyte storage capacity, connects to existing wireless infrastructure and provides 2 ways to store and share business and personal files. Compatible with IEEE 802.11 b and 802.11 g networks, drive supports WEP security standards.

Cellport Systems    Boulder, CO 80301
Dec 12, 2003 To avoid not hearing cellular phone ring in vehicles because of loud music playing, communications system mutes CD, radio, and cassette when incoming call is received. The 2-Part Personal Telematics platform provides hands-free use, offering speaker, microphone, voice dialing, as well as recharging capabilities. Phone pocket adaptor snaps directly on vehicle's system, becoming link between phone's capabilities and vehicle's resources.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Dec 10, 2003 Packaged in SOT23-6 and SO-8, OPA693 ultra-wideband, fixed-gain video buffer amplifier utilizes output stage architecture and operates from one 5–12 V power supply. Using +5 V supply, it delivers 2 Vpp output swing with 90+ mA drive current and 400 MHz bandwidth at +2 gain. Internal resistor network provides fixed gain of +2 video buffer or ±1 voltage buffer with better than 1% gain accuracy. Unit has 700 MHz bandwidth, 2,500 V/µs slew rate, and 13 mA supply current.

Motorola, Inc.    Schaumburg, IL 60196 4041
Dec 05, 2003 Advisor II one-way pager provides 80 character display per line, and can zoom in on 2 lines for larger view. Unit is synthesized, enabling user to program specific frequency in the field. It includes Optimax® EL Electra Light for readability, as well as personal and mail drop notebook areas. Available in UHF or VHF models, pager displays data and time of day and has 52 messages slots for storing multiple pages.

Ember Corporation    Boston, MA 02210
Dec 02, 2003 Model EM2420 combines transceiver with embedded networking software that can run on low-power microprocessors. It operates on 16 channels in 2.4 GHz ISM band with hardware-based, AES 128-bit encryption for secure communications. EmberNet networking protocol stack provides sending and receiving over low bitrate wireless networks. Unit is ZigBee ready and complies with 802.15.4 standard, which makes wireless communication possible in demanding environments.

ProSoft Technology Inc.    Bakersfield, CA 93311
Dec 01, 2003 DIN-rail-mountable RadioLinx Modem operates in 2.4 GHz frequency range and offers dual antenna support for adverse locations. Unit can serve as master, remote, or repeater with local control. Industrial grade packaging and design meet CE0122, CSA, and cUL certifications. RadioLinx technology enables up to 32 network channels per site, each with up to 78 repeaters and 2,000 modems. Network security is ensured by hardened ARC4 data encryption with 40/128 bit keys.

International Fiber Systems Inc    Newtown, CT 06470
Nov 25, 2003 Transmitter and Receiver Modules VT1101M and VR1100-CC can incorporate contact closure relay for alarm-event notification. Addition of relay allows device such as dome tamper switch or alarm event input to be added and its signal transmitted back to monitoring location, eliminating need for additional wiring. Modules support distances up to 2.5 miles without repeaters. Operating temperature is -40 to 74°C.
