R-Columbia Products, Inc.    Highland Park, IL 60035 2499
Apr 23, 2004 TRIPLEX 3-Headset continuous talking network permits users to talk and listen to each other simultaneously on one of 8 selectable channel pairs. Available in single and double ear headphone styles, system 903 radio phones operate in 900 MHz license-free ISM band for distances up to 1,000 ft. Noise Gate feature blocks out unwanted acoustic noise caused by wind or background noise, and automatic gain control adjusts to changing input level.

Avocent Corp.    Huntsville, AL 35805
Apr 23, 2004 With 8 user-configurable ports, Model DSR1021 accesses and controls servers and serial devices in remote offices. It gives IT administrators ability to troubleshoot, reboot, or power cycle servers or serial devices from any location using DSView management software. Switch features external modem support so that administrators can still manage remote devices even if network is down.

Ritron, Inc.    Carmel, IN 46032
Apr 21, 2004 Network-ready, RadioNexus(TM) expands existing IP network to include LMR 2-way radio users. Available in VHF and UHF frequency band models, unit includes built-in RJ-45 connector and Type 3 E and M analog interface for connection to IP network using router or VoIP gateway. RadioNexus features 2 W transmitter, automatic ON, CTCSS or DCS signaling, wide or narrow band operation, BNC connector for external antenna, local speaker, and local microphone jack.

Linear Technology Corp.    Milpitas, CA 95035
Apr 14, 2004 Model LT5519 operates over 0.7-1.4 GHz range, while Model LT5520 covers 1.3-2.3 GHz frequency bands without external matching components. On-chip RF transformer enables single-ended output operation for both units. RF port is internally 50 Ohm-matched over full operating frequency range. Built-in LO amplifiers eliminate need for external LO buffers. Operating from 5 V supply, mixers typically draw 60 mA. They come in 4 x 4 mm, 16-lead plastic QFN surface-mount package.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 12, 2004 Intelâ„¢ PRO/Wireless 2200BG Mini-PCI Adapter enables connectivity to 802.11b and 802.11g networks. It automatically searches for optimum connection, allowing users to roam through different WLAN networks and maintain connectivity throughout. Wi-Fi adapter card ships with connection configuration utility, which allows users to specify encryption and roaming settings. Unit permits data rates up to 54 Mbps in 2.4 GHz band.

Leuze electronic, Inc.    New Hudson, MI 48165
Apr 09, 2004 Model DDLS 200 Ethernet is a contact-free, wear-resistant and protocol-independent Optical Data Transmission unit that transmits data over distances up to 300 m. It includes direct Ethernet connections for either 10 or 100 Mbits and supports all Ethernet protocols. With dimensions of 90 x 190 mm, Model DDLS 200 can be mounted in virtually any position while set-up and adjustments are made via single-handed adjustment system.

FacetCorp    Plano, TX 75093
Apr 02, 2004 FacetPhone v2.2 voice mail system, for IP-PBX phone system, lets users manage voice mail like e-mail. It includes voice mail distribution lists and ability to forward and reply to one individual or group. Administrator can set up group distribution lists available for use by any member of that group, and individuals can set up distribution lists available only to them. Lists are created via GUI on PC or through telephone user interface.

Miller, J.W., Div., Bell Industries    Gardena, CA 90248
Apr 01, 2004 Series 79F Conformal Coated RF Choke comes in subminiature size of 0.10 in. dia with 0.16 in. length. Inductance range is 0.10–470 µH, operating temperature is -55 to 105°C, and dielectric strength is 500 Vrms. Self-resonant frequency is 300 MHz, with high Q value. Epoxy coating provides durability and protection against harsh environments. Choke suits application in computers, telecommunication, EMI filters, and consumer electronics.

Accutech Div., Adaptive Instruments Inc.    Hudson, MA 01749

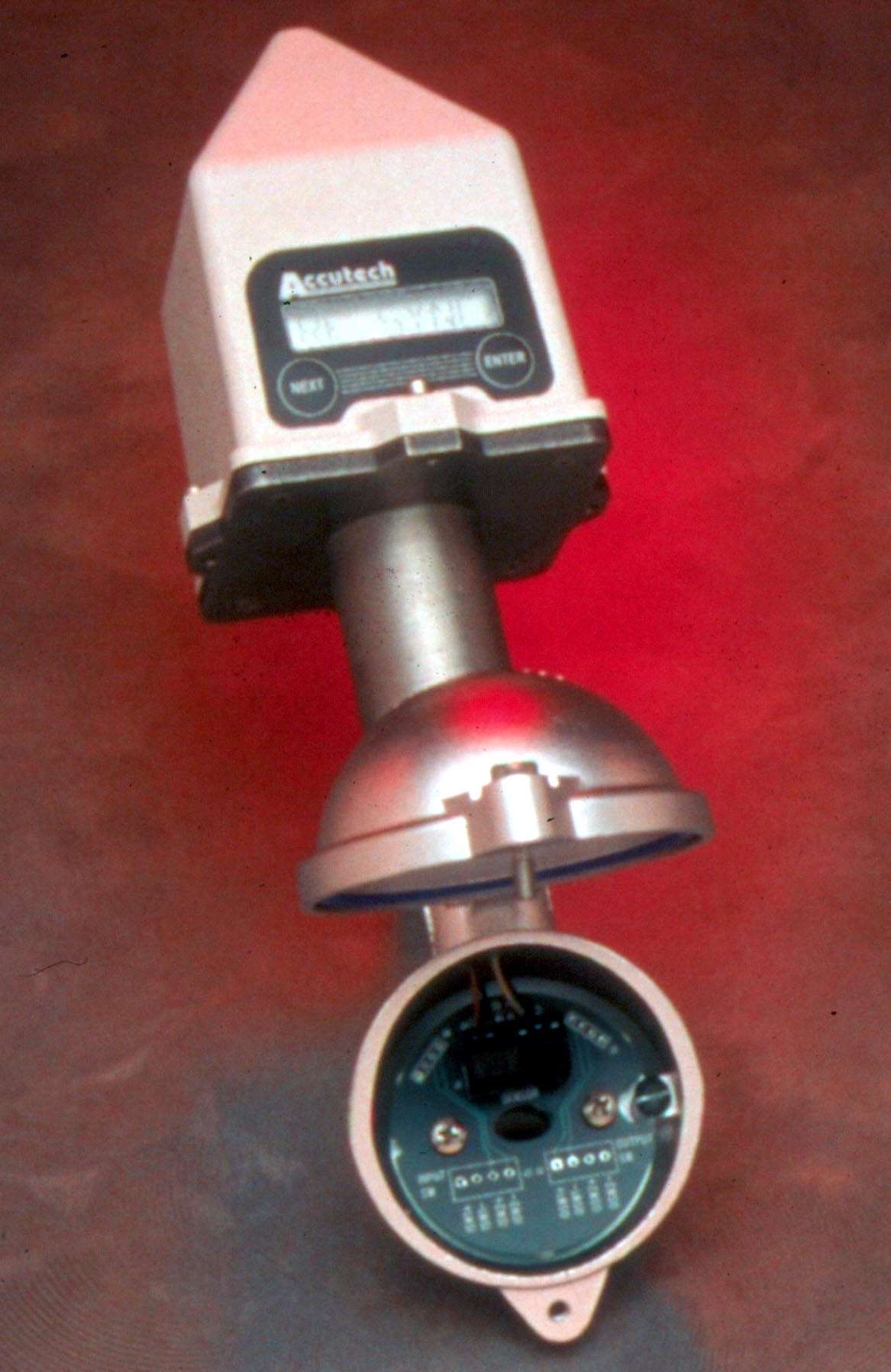

Mar 29, 2004 Multi-Input Field Units read analog and discrete values from remote locations and transmit data with no external power or signal wiring. Transceiver provides 2-way communications and operates in 900 MHz ISM license-free band. Secure FHSS technology as well as error checking and correction scheme validates accurate data are received. Instruments offer transmission range up to 3,000 ft and installation using non-invasive bolt-on brackets.

Transducers USA    Elk Grove Village, IL 60007
Mar 29, 2004 Panel mounted with .250 QC terminals, Model TRIP-4353-3 Audio Alert produces continuous, fast- or slow-pulse tones for applications where multiple tones are required to indicate different conditions. It has 43 mm OD, overall height of 33 mm, and operating voltage range of 6–28 Vdc. Suited for medical and diagnostic equipment in noisy environments, unit produces sound frequency rated at 2,900 ±500 Hz at sound pressure level of 90 dB.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Mar 25, 2004 Switches offer 1.45 mm² packages for hand-held and portable electronics. Model FSAV330 quad SPDT switch offers bandwidth of >300 MHz, allowing analog video signal to pass with minimum distortion. Ultra low cross talk and off isolation of -60 db at 10 MHz minimizes ghost image between active channels. Models FSAV331, dual 4:1 video multiplexer/demultiplexer, and FSAV332 quad SPST also available.

Zultys Technologies    Sunnyvale, CA 94085
Mar 25, 2004 Based on real-time Linux OS, ZIP 4x5 delivers all functions of business telephones and adds networking functionality, Bluetooth wireless, and voice activated dialing. Unit connects directly to DSL or cable modem, providing VPN access, firewall with NAT, switch, and router without additional devices. Built on open standards, it is compatible with IP telephony systems using SIP. Multiple call appearances provide 4 simultaneous incoming or outgoing calls.

STMicroelectronics    Lexington, MA 02421
Mar 25, 2004 Available in 27 x 27 mm PBGA package, DTTi5516 combines MPEG decoder and terrestrial demodulator in one package. It is suited for free-to-air terrestrial set-top boxes (STBs) as well as STBs using DVB-MHP (DVB-Multimedia Home Platform). Single-chip solution allows TV viewers to watch digital terrestrial TV (DTT) channels on analog TV. Pin-out of device ensures that 2-layer printed circuit layout is possible.

STMicroelectronics    Lexington, MA 02421
Mar 25, 2004 Suited for digital cable set-top boxes, single-chip Model QAMi5516 allows viewers to watch digital cable TV channels on analog TV by performing functions of QAM cable-signal demodulator and MPEG video-stream decoder. Pin-out of device ensures that 2-layer printed circuit layout is possible despite functional complexity of set-top box.

Audiovox Corp.    Hauppauge, NY 11788
Mar 25, 2004 Model GMRS 500SLK consists of 22 x 38 channel unit (8 GMRS/14 FRS) with built-in FM radio, and LED flash-light with immediate range of 25 ft and viewing range up to one mile. Measuring ¼ in. thick, unit includes rechargeable Lithium Polymer battery, ear bud with microphone, and wall charger.

Audiovox Corp.    Hauppauge, NY 11788
Mar 25, 2004 Offered for 2.4 GHz range, Model TL1200A is one expandable digital spread spectrum unit that features Caller ID, base stand with built-in telephone answering machine, and built-in hands-free speakerphone. It accepts up to 4 cordless extension phones.

Audiovox Corp.    Hauppauge, NY 11788
Mar 25, 2004 Acoutic Research Models AR5000 and AR4200 are 50 and 42 in. slim-line plasma TVs, and Model AR3000 is a 30 in. flat panel unit. Flat panel, Model FPE3000 features 30 in. LCD anti-staic/anti-glare screen and is 125-channel cable ready. Model FPE2000 offers 20 in. LCD screen, NTSC tuner, and 2 speakers. Models FPE1700/FPE1710DV have 17 in. LCDs; FPE1710DV with DVD player. Models FPE1500/FPE1510DV offer 15 in. LCD screens and 125-channel cable-ready tuner; Model FPE1510DV with DVD player.

Audiovox Corp.    Hauppauge, NY 11788
Mar 25, 2004 Hand-Held Televisions are available in 4 models with 5, 3.5, 2.5, and 1.8 in. screens. All feature high-resolution color, built-in telescopic antenna, 68-channel air ready, and mini headphone jack. Model TFT5000, with 5 in. screen, is also equipped with built-in AM/FM radio. Units run on 4 AA batteries and include AC charger and AC/DC adapter for non-portable use.

LiveOffice, Corp.    Torrance, CA 90505
Mar 25, 2004 IMConferencing enables financial professionals to take advantage of online web conferencing while remaining in compliance with SEC and NASD requirements. Within each session they can conduct seminars, work collaboratively with clients on financial plans, and review portfolio statements. Each IMC session is captured and imported into AdvisorMail, where transcripts are screened for regulatory compliance and then stored for future retrieval.

STMicroelectronics    Lexington, MA 02421
Mar 24, 2004 Model STLVDS385B converts 24 bits of video data into 4 LVDS channels to drive flat-panel display. Phase-locked transmit clock is transmitted in parallel with data streams over 5th LVDS link. At transmit clock frequency of 85 MHz, each LVDS channel transmits data to display at 595 Mbit/s. Offering on-chip input-jitter filtering and high noise rejection, transmitter supports flat panel displays with VGA, SVGA, XGA resolutions and single/dual-pixel SXGA resolutions.
