Aeroflex, Inc.    Wichita, KS 67215
Mar 15, 2013 Using POCSAG testing option, 3920 Series can verify operation of POCSAG pagers and paging systems. With full set of POCSAG receiver testing tools, operation includes user control of modulation deviation, bit rate, and message format. Pages can be sent to user-selected radio identification code or to sequence of RIC’s. Option also includes capability of testing POCSAG transmitters, with ability to decode message and measure modulation parameters.

GAO Instruments Inc.,    Toronto   Canada
Mar 14, 2013 Designed for construction and maintenance of PON networks which can be connected between OLT and ONT, model C0260007 enables accelerated testing of all PON signals along network. Portable unit performs simultaneous measurement and display of PON signals, including voice, data, and video optical signal. Simultaneously measuring all 3 wavelengths on fiber (1,490, 1,550, and 1,310 nm), tool provides 10 groups of configurable threshold values and can save 1,000 test results.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Mar 14, 2013 Supporting multiple, concurrent HDCP digital sources, rack-mount DVPHD displays up to 8 full-motion video windows on any Hi-Res monitor, projector, film screen, or flat panel display. DVPHD-8 features 4 HDMI® and 4 DVI-I video inputs with pass through, while DVPHD-4 features 2 HDMI and 2 DVI-I video inputs. Both digital video processors provide fully customizable graphics, touchscreen room control, HDCP management, and complete HD annotation capabilities.

Peerless-AV    Aurora, IL 60502
Mar 11, 2013 Utilizing vacant over-the-air broadcast frequencies known as white space channels instead of WiFi, PeerAir™ Pico Broadcaster distributes HD content to unlimited number of digital TVs within 350 ft radius. FCC-approved transmitter receives content from computer or select media players with IP transport capabilities, then broadcasts signal at HD-quality resolutions up to 720p or 1080i to any digital TV within designated range that is equipped with ATSC tuner and over-the-air antenna.

Digi International    Minnetonka, MN 55343
Mar 07, 2013 Enabling serial-to-Wi-Fi networking, XBee® Wi-Fi™ embedded module offers native iDigi Device Cloud integration, Soft Access Point (AP) interface, and Wi-Fi Protected Setup (WPS) for facilitated device provisioning and maintenance. Module offers secure 802.11 b/g/n networking and features UART and SPI, which optimizes integration with embedded MCUs. Available in through-hole and SMT styles, product is suited for industrial monitoring, asset tracking, home automation, and tank monitoring.

Atmel Corporation    San Jose, CA 95131
Mar 06, 2013 As 2.4 GHz IEEE 802.15.4 radio transceiver, AT86RF233 supports distance measurement between 2 radios (ranging). Integrated technology, combining wireless sensor networks with real-time location (RTLS) capabilities, uses measurement of phase differences between radio signals and enables items to be tracked within wireless network for industrial and consumer applications.

Pulse Electronics    Trevose, PA 19053
Mar 05, 2013 Housed in metal chassis with dielectric antenna carrier, mCOMET combines 2 LTE MIMO antennas in same end of one device to provide 9 frequency bands of functionality in volume of 3.20 cc. Frequency bands for both antennas include: low band of 698-960 MHz and high bands of 1,710-2,170 MHz and 2,500-2,690 MHz. Unit is intended for use in smartphones using RF chips with 2PDT antenna switch and metal ring feature. If user's hand is covering one antenna, transmission is switched to other antenna.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Mar 05, 2013 Built to meet HD and analog AV distribution requirements for large commercial facilities, 64 x 64 DigitalMedia™ Switcher accepts, manages, and distributes 64 AV sources of virtually any signal type over Cat5e wire or fiber. System features hot-swappable modular blade I/O expansion system, 15 in. color touchscreen, and built-in web server that enables full operation and monitoring through any web browser. Applications include stadiums, arenas, university campuses, and corporate enterprises.

Accolade Technology    Mansfield, MA 02048
Mar 04, 2013 Featuring quad 10 GigE ports over 8 PCI Express Gen 3 lanes with 8 GB on board DDR3 DRAM buffer, ANIC-40K3 PCI Express Gen 3 Packet Capture and Application Acceleration Adapter is suited for IDS, DPI, network forensics, load balancing, and flow analysis applications. Adapter is based on Advanced Packet Processing v5.0 engine, which is implemented in FPGA, providing hash based packet classification that supports up to 48 million flows, traffic management, and de-duplication.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Mar 04, 2013 Providing serial stimulus needed to evaluate and characterize circuits based on DigRF v4 specification, M9252A DigRF Host Adapter offers protocol testing solution for MIPI™ Alliance Gear2 DigRf v4 RFICs. Single module combines stimulus and Rx side capture to generate configurable control and data traffic and allow developers to observe response from DUT. Engineers can work in domain of their choice (digital or radio frequency) to characterize device's digital and wireless behavior.

Broadcom Corp.    San Jose, CA 95110
Mar 04, 2013 Simultaneously supporting 3G, 4G LTE, and WiFi offload capabilities for 200+ users, scalable small cell development platform for multiple radio access technology (RAT) integrates all required hardware and software. Modular design includes XLP-208 multicore processor as well as software which enables features such as content caching, interference monitoring, SON, DPI-based services, and security to be deployed while maintaining line speed performance as new network services are added.

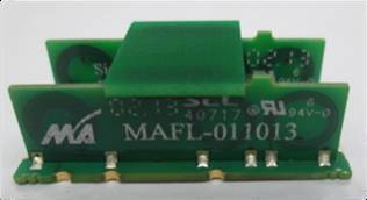

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Mar 01, 2013 Housed in 27 x 13 mm surface mount package, 42/54 MHz Model MAFL-011013 is suited for space-constrained CPE applications. RoHS-compliant diplex filter device features 75 Ω characteristic impedance, 0.5 dB insertion loss, and 50 dB isolation. Typical applications include HFC amplifiers and nodes, ONTs, STBs, eMTAs, and cable modems.

Reynard Corp.    San Clemente, CA 92673
Mar 01, 2013 Available in sizes up to 6 in., ColorLock™ Color Filter Stacks utilize transmission and blocking characteristics of 2 or more filter glass types to provide wide-angle performance from 0° to ±50°, without spectral shift. Out-of-band blocking is achieved by absorbing characteristic of glass, enabling blocking densities better than OD10. Filters come in band pass, long wave pass, and short wave pass configurations as well as custom arbitrary specifications in UV, visible, and NIR spectral ranges.

Qualcomm, Inc.    San Diego, CA 92121
Mar 01, 2013 Addressing cellular RF band fragmentation to enable single global 4G LTE design for mobile devices, Qualcomm RF360 Front End Solution includes envelope power tracker for 3G/4G LTE mobile devices, dynamic antenna matching tuner, integrated power amplifier/antenna switch, and 3D-RF packaging solution incorporating key front end components. Product is designed to work seamlessly, reduce power consumption, and improve radio performance while reducing RF front end footprint inside smartphones.

Ethernity Networks Ltd    San Francisco, CA 94129
Mar 01, 2013 Providing 10 Gbps wireless virtual connection, Carrier Ethernet Virtual Fiber Backbone over the Air delivers packet transmission over multiple wireless links while maintaining end-to-end network delay on flow base. Solution offers multi point to point scalable wireless network through ability to connect as many Wi-Fi links per virtual connection together with single gateway to construct original streams from multiple routes. With 50 ms buffering, retransmission is possible in case of link failure.

Pulse Electronics    Trevose, PA 19053
Feb 28, 2013 Measuring 35 x 50 mm with minimum thickness of 0.185 mm and 2 x 2 mm pad size, NFC Ferrite Sheet Antenna enables mobile devices to read data from up to 40 mm, supporting communication with other wireless devices for payments, access and control, credential storage/exchange, and content consumption. Antenna is constructed of thin ferrite with one-sided flex and thin adhesive. EMVCo specifications ensure global interoperability and compatibility of chip-based payment cards and acceptance devices.

Algo-Logic Systems    Santa Clara, CA 95050
Feb 28, 2013 Combining 16 precisely synchronized channels with advanced FPGA technology, Techo Kardio Graph Rackmount System allows users to perform real-time monitoring and measuring as well as data collection, mining, processing, graphing, tracking, and archiving. System can acquire data from all types of analog sensors to record temperature, motion, pressure, power, and more. Users can program signal triggers that notify them via SMS and email alerts when critical monitored events of interest occur.

Nordic Semiconductor ASA    Oslo 0213  Norway
Feb 28, 2013 With 128 kB Flash memory, nRF51822 Bluetooth® low energy and proprietary 2.4 GHz SoC offers pin-to-pin compatibility with 256 kB nRF51822 as to allow drop-in replacement. Solution offers multiprotocol radio and 32-bit ARM Cortex-M0 based processor optimized for ultra low power (ULP) wireless applications. Part also delivers -92.5 dB RX sensitivity in Bluetooth low energy mode; up to +4 dBm output power in all modes; and sub-10 mA peak currents running off 3 V coin cell battery.

Rohde & Schwarz GmbH & Co      Germany
Feb 28, 2013 R&S CMW500 provides real-time testing environment for wireless communications networks, such as LTE, WCDMA, and WLAN. Using integrated data application unit, instrument combines RF testing requirements with IP. Tester can, by adding R&S CMW KM051 option, analyze and test IP-based applications. Several functions lend to precise analysis: list of active IP connections, TCP analysis, list of protocols used, data volume statistics, protocol name resolution, and triggering on IP events.

Custom MMIC    Westford, MA 01886
Feb 27, 2013 Housed in 3 x 3 mm QFN plastic surface mount package, 5–11 GHz Model CMD132P3 delivers greater than 20 dB of gain across entire bandwidth, and has corresponding output 1 dB compression point of +10 dBm. RoHS-compliant device requires single supply voltage of +3.6 V at 30 mA. In addition to microwave radios and C- and X-band applications, amplifier is suitable for point-to-point radios, point-to-multipoint radios, military/space applications, and test instrumentation.
