Spirax Sarco, Inc.    Blythewood, SC 29016
Feb 15, 2013 Constructed of 316L stainless steel, Model CS10 is engineered to overcome problems associated with wet steam and ensure correct quality of steam is supplied to point of use, preventing damage to control valves. Fully traceable unit exceeds steam dryness value of 0.95 and features removable baffle that facilitates periodic de-rouging and inspection. CS10 is engineered in accordance with latest standard of ASME BPE guide for biopharmaceutical, food, and medical industries.

NBE    Holland, MI 49424
Jul 09, 2012 Designed and built to application requirements, ProductSaver® uses single-stream separation sequence that enables controlled recovery of dry contents for residual re-sale, reuse, or disposal as well as recovery of packaging material for recycling or disposal. Infeed is handled by one operator; whether pallet loads, cases, or single packs, no break-pack or razor knife steps are necessary. Separation is made possible via combination of integrated rotary separator and inline aspiration.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Jul 21, 2010 Suited for products that have higher moisture content or particle size and require high degree of purity, RotoDrawer(TM) Magnet separates ferrous metal from powder and bulk processed products. Motorized, cylindrical configuration of Rare Earth magnetic tubes on horizontal plane continually rotate through gravity-fed product stream. Rotational design, as well as splitter bars that further break up any clumps of product, keep flow moving through housing while capturing any ferrous metal.

Flexible Steel Lacing Co.    Downers Grove, IL 60515-4200
Jun 28, 2010 Available in workbench version and as splitter with its own stand, Novitool® PLY 130 cuts in between plies of conveyor belt, which is often required in preparation of splicing belt with splice press. Unit can prepare finger over finger splices as well as stepped splices. For safety, machine is provided with one electrical switch for on, off, and reversed operation, and foot pedal for controlling splitting operation.

Munson Machinery Co., Inc.    Utica, NY 13503
May 17, 2010 Intended for applications where solids must be removed from slurries in high volumes, self-cleaning model 24RDS24 contains 24 in. dia x 24 in. long rotating cylinder constructed of wedgewire screen. Doctor blade scrapes sludge and debris collected on outside of cylinder, while an internal spray line dislodges particles blinding screen. Variable-speed unit is equipped with wedgewire screen in 7 orifice sizes from .010-.100 in., offering respective capacities from 200-930 gpm.

K-Tool International    Wixom, MI 48393
Nov 02, 2007 Reversible jaw pullers provide optimal pressure, tightening around part to facilitate removal. Manufactured from alloy, heat-treated steel, products range in size from 3-6 in. and offer 2- to 5-ton capacities. Bearing separators have max spread of 4¼ in. and feature flush knife-edge blades that get behind work where other tools cannot fit or grip. They are made from heat-treated steel and remove generator gears, bearing cones, bearings, and similar parts.

Rotex, Inc.    Cincinnati, OH 45223 1845
Oct 09, 2007 MEGATEX XD(TM) Separator features 25-50% capacity per square ft of screen cloth in compact footprint, screen deck slope of 6°, and external drive cartridge that permits continuous operation up to 400°F. Elliptical-linear motion enables handling course to fine separations from ¼ in. to 100 mesh (6.3 mm to 150 µm). Unit includes lift-rail system, discharge door, single reaction cartridge with 2 spherical roller bearings, and support shaft suspension system with industrial U-joint bearings.

Size Reduction Specialists, Corp. (SRS)    East Lansing, MI 48823
Oct 03, 2007 Featuring compact design for press-side operation, SRS Separator removes powder from granulated plastic materials to promote consistent productivity and reliable quality. It reduces fines, dust, and powder created by screen-type, press-side granulators by 80-85% to protect integrity of processed materials as well as reduce problems such as rejected parts and downtime resulting from super-fine waste material that burns and adheres to interior wall of barrel.

TLV Corporation    Charlotte, NC 28273
Sep 19, 2007 Model SF1 Stainless Steel Separator-Filter removes condensate/particulates such as dirt and scale from dry steam or inert gas supplies. System delivers dry steam through cyclone separator to eliminate water spots and eliminates matter before filtering to reduce maintenance requirements. Other features include five-layered sintered wire mesh filter, one-piece design, CF8 stainless steel construction, and clamp design for fast disassembly.

Wyatt Technology    Santa Barbara, CA 93117
Dec 08, 2006 Based on asymmetrical Flow Field-Flow Fractionation, Eclipse system requires only one pump to generate all 3 required flow rates. Samples can be separated according to hydrodynamic radius in selected channel by interacting with cross-flow permeating through bottom wall. Developed for pharmaceutical industry, unit can characterize antibody preparations with respect to aggregation and identify impurities/contaminants at lower detection limit.

Wyatt Technology    Santa Barbara, CA 93117
Nov 16, 2006 As alternative to column chromatography for analysis of protein, biopolymer, and colloidal materials, Eclipse is based on asymmetrical flow field-flow fractionation (AF4). System requires only one pump to generate all 3 flow rates required for analysis, and samples can be separated according to hydrodynamic radius. Eclipse characterizes antibody preparations with respect to aggregation and detects low limits of impurities or contaminants.

Bell & Gossett    Morton Grove, IL 60053
Oct 20, 2006 Designed to automatically remove entrained air in hydronic heating systems, EASB-Jr. is available in ¾, 1, and 1¼ in. sizes with NPT and sweat connections, as well as 1½ and 2 in. sizes with NPT connections. Unit features non-clog venting design, max working pressure of 150 psi, and max operating temperature of 250°F. Brass body construction and stainless steel internal components make it suitable for residential and commercial hydronic heating systems.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
May 11, 2006 Available in TSSOP-14 package, LMH1981 multi-format video synchronization separator performs all necessary sync separation to generate low-jitter horizontal and vertical sync signals for NTSC, PAL, SECAM, standard-, and high-definition (HD) video formats. It features timing outputs needed for any video system and accepts bi- and tri-level sync video inputs. Unit also features 50% slicing for separation of signals that vary in amplitude, offset, and noise.

Dana Corp.    Toledo, OH 43697
Dec 16, 2005 Designed to help meet global emissions standards, MultiTwister(TM) axial cyclonic air/oil separator helps vehicles run cleaner by removing oil particles from engine's air stream. Double helix channels create spiral flow, which develops centrifugal forces that cause oil to coalesce along channels where it separates droplets from engine's airflow. Captured oil is returned to engine crankcase, eliminating excess oil from combustion process.

TLV Corporation    Charlotte, NC 28273
Nov 24, 2003 Used to disentrain condensate from steam, air, and other gases, DC7 cyclone separator has stainless steel design with no moving parts, which results in corrosion-resistant operation. It is available in pipe sizes with up to 2 in. dia, pressures to 362 psig, and temperatures to 572°F. Unit achieves condensate separation efficiency of 98% @ 100 ft/s.

Westfalia Separator, Inc.    Northvale, NJ 07647
Jul 31, 2002 HyVOL separators and clarifiers offer sealing technology that is 100% wear free and requires no water for operation. Hydrohermetic seal uses milk itself as seal and never needs maintenance. Units feature high-capacity designs, USDA accepted solids discharge, and low energy requirements.

Ameri-Kart Corp., A Myers Industries Company    Goddard, KS 67052 0751
Jun 21, 2002 Duo Recyclerâ„¢ reduces post collection separation of contaminants. It has two compartments to separate daily trash, plastic, and recyclable office paper. Smaller compartment holds cans, plastic, string, and other office trash, and can be removed for daily disposal. Larger compartment holds approximately one week's paper accumulation. Molded of polypropylene, unit offers swiveling deflector lid molded of ABS.

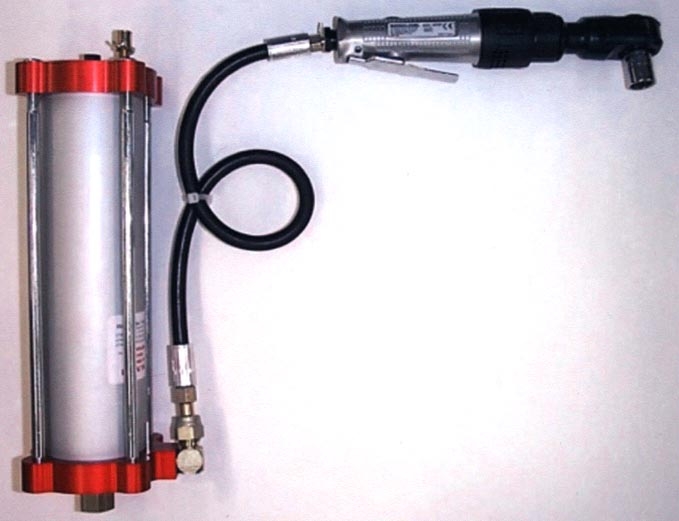

Suburban Mfg., Inc.    Monticello, MN 55362
May 24, 2002 Tsunami Water Separatorâ„¢ is available in two sizes for compressed air lines. Large model is rated 100 scfm for heavy use air drops and Modular Tsunami is rated 35 scfm for point of use applications. Both are capable of catching and discharging up to one quart of water/min. Compressed air is funneled into sump, reverses direction 180 deg, and passes through stainless steel baffle that separates water and dirt from the air flow.

Bio-Rad Laboratories Inc.    Hercules, CA 94547
May 21, 2002 Cup loading option for sample loading into rehydrated IPG (Immobilized pH gradient) strips is available for PROTEAN® IEF (isoelectric focusing) System. Suitable for separation of proteins at extreme pH ranges, cup loading improves sample uptake into ReadyStripâ„¢ IPG strips. Disposable cups are available in strips of 12 in either 100 or 150 microliter volume sizes. Adjustable electrodes will accommodate IPG strips up to 24 cm long.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207
May 14, 2002 Wright-Austin Series 30L removes entrainment, 10 microns or larger, from air, gas, and steam lines. Eleven configurations are available, plus vertical and horizontal installations with numerous inlet and outlet configurations. Vortex containment plate system uses carefully placed rings that shield separated liquid from vortex action within separator and directs it to drain, preventing re-entrainment.
