TMI International, LLC    Pittsburgh, PA 15205
May 10, 2013 By reducing exposure time between environments, 6000 Series, which includes Screen-Pro®, Vinyl-Pro, and Bird-Pro roll-up screens, doors, and barriers, minimizes unwanted insect, bird, dust, and particle infiltration. External jackshaft motor moves doors at 36 ips, allowing service in various applications. Products separate differing environments within and around facility while also helping meet AIB International Consolidated Standards for Inspection.

Maguire Products, Inc.    Aston, PA 19014
May 01, 2013 Producing uniform granulate with minimized dusting, Purging Recovery System™ (PRS) optimizes efficiency of granulating polystyrene, flexible vinyl, and other polymers that might otherwise degrade under shear forces of size reduction, causing backup or clumping. In PRS, rotor planer uses 12 knives to slice or plane rock-like purging into small chips. Then, second-stage granulator with 0.250 in. holes in screen reduces chips to regrind. Air generated by blower cools material, preventing melting.

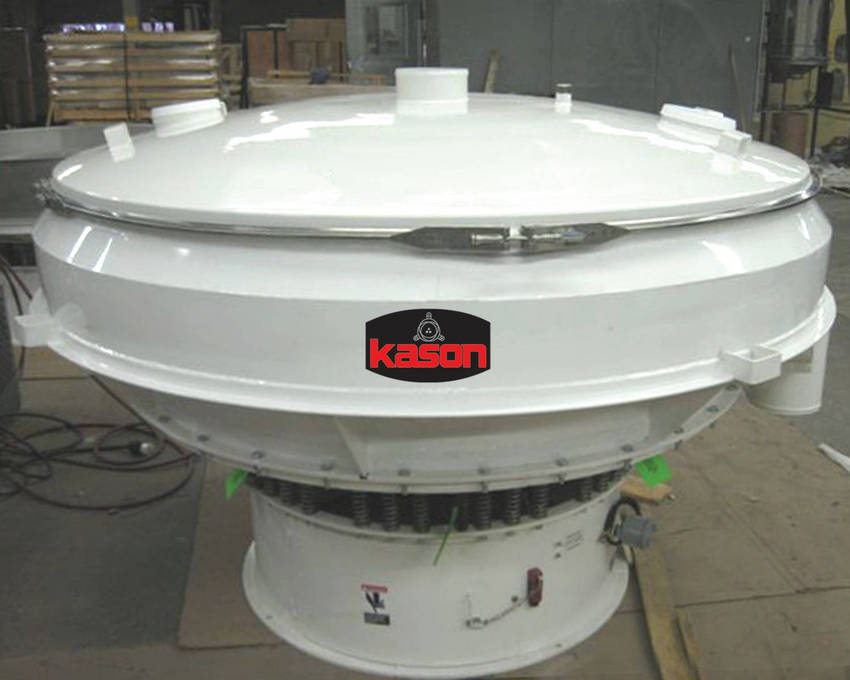

Kason Corporation    Millburn, NJ 07041
Mar 29, 2013 Measuring 40 in. in diameter, Flo-Thru Vibroscreen® Sifter employs 2 imbalanced-weight gyratory motors mounted on opposing exterior sidewalls. Design allows vertical alignment of top inlet and bottom outlet, causing on-size material to descend through screen in straight-through path. Featuring flat dust cover, sifter installs above or below storage vessels and process equipment. All material contact surfaces are stainless steel with continuous welds polished to cGMP, 3-A, USDA, and FDA standards.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Feb 22, 2013 Measuring 18 x 20 in., Filtermist Ultra™ is top-mounted on mobile cart with locking casters and is designed to fit behind chip conveyor on most machines to remove oil mist and smoke. Internal cyclone optimizes particle separation, so clean air can be exhausted back to factory floor. Because system self-drains to machine tool coolant sump, it can operate continuously. Filtermist Ultra is suitable for machines with internal volume greater than 60 ft³ and exceeds OSHA/NIOSH safety regulations.

Spirax Sarco, Inc.    Blythewood, SC 29016
Feb 15, 2013 Constructed of 316L stainless steel, Model CS10 is engineered to overcome problems associated with wet steam and ensure correct quality of steam is supplied to point of use, preventing damage to control valves. Fully traceable unit exceeds steam dryness value of 0.95 and features removable baffle that facilitates periodic de-rouging and inspection. CS10 is engineered in accordance with latest standard of ASME BPE guide for biopharmaceutical, food, and medical industries.

Russell Finex    Pineville, NC 28134
Feb 05, 2013 Featuring hygienic design with fully stainless steel construction, FDA-approved materials, and gap-free mesh screens, Russell Compact Sieve meets 3-A sanitary standards requirements. Low profile, straight-through design enables screener to fit neatly into production lines, while quick-release toggle clamps enable screen changes without tools. Product targets users of processing equipment within such sectors as dairy, meat, and other food industries.

Eriez Magnetics    Erie, PA 16506
Jan 31, 2013 ProGrade® Easy to Clean Grates in Housing, part of ProGrade standard magnetic separators, accelerate removal of accumulated fine iron contamination via push-pull operation. Accomplished within seconds, cleaning requires personnel to unlatch clamps on drawer fronts and pull magnet bank toward them; accumulated metal contamination is scraped from tube and discharged out front of housing. Rare Earth and Xtreme® Rare Earth magnet strengths are available.

Magnetic Products, Inc.    Highland, MI 48357
Jan 29, 2013 Combining holding power of rare earth magnet with reach-out of ceramic magnet, Hybrid Power Booster Magnets provide product protection and tramp metal control. Hybrid magnet material is available integrated in plate magnets, magnetic chutes, free-flow magnets, drum separators, and suspended magnets.

Cecor, Inc.    Verona, WI 53593
Jan 18, 2013 Mounted on electric, 48 V Columbia Par Car Truck, CP50-200/200CB5 Combination Coolant Sumpcleaner/Dispenser is equipped with 200 gallon tank for collecting and filtering dirty coolant and 200 gallon tank for dispensing clean coolant. Utilizing pump powered by Kohler 20 hp, 4-stroke engine with electric start, sump cleaner pumps fluid at 110 gpm and generates suction to 13 in. Hg. Dirty coolant passes through F23 filter which separates chips and swarf and can hold 2.3 ft³ of solids.

Kason Corporation    Millburn, NJ 07041
Jan 14, 2013 With vibration from imbalanced weight gyratory motor affixed to housing, Clean-In-Place Vibroscreen® Double-Deck Screener removes oversize and undersize particles from on-size materials. This 40 in. dia unit contains 2 horizontally mounted screens in cylindrical housing supported on circular base by rugged springs. Constructed of stainless steel, system has integral Clean-In-Place (CIP) spray wash system as well as quick-disconnect clamps between each screen frame.

Eriez Magnetics    Erie, PA 16506
Dec 14, 2012 Designed for industries with very hygienic demands, Eriez® Model FF5 inspects dry bulk goods under free-fall conditions and detects all ferrous and nonferrous metal contamination. Metal contaminants are rejected through Quick Flap reject unit, which minimizes good product loss. Available in standard pipe sizes of 3.15, 3.94, 4.72, 5.9, 7.87, and 9.84 in., separator fits into existing gravity pipeline systems and offers immunity to EMI and vibration.

Eriez Magnetics    Erie, PA 16506
Dec 14, 2012 Featuring eccentrically mounted Rare Earth magnetic rotor within non-conductive larger diameter shell, RevX-E™ is suited for purifying cullet and plastics, and recovered valuable metal from secondary metals and incineration ash, especially separation of small particles. Eccentric rotor concentrates eddy current forces into zone of separation at end of belt, ignoring ferrous material in flow. Other highlights include access panels for service and adjustable rotor position for optimum separation.

Russell Finex    Pineville, NC 28134
Dec 11, 2012 Adaptable to virtually any process, Liquid Solid Separator™ removes solids from liquids using centrifugal action of its impeller. Multipurpose machine can process 15,000 gph of materials such as pulps, fibers, insoluble particles, dairy, and wastewater, and design keeps meshes clear of oversize particles to ensure unrestricted liquid flow. Variable-speed drive and angle adjustment provides complete control over moisture content of solids while maintaining constant solids removal.

Eriez Magnetics    Erie, PA 16506
Nov 20, 2012 Available in 6 pipe sizes from 3.15–9.84 in., Model FF4 is primarily used in plastics and food industries to inspect dry bulk products under gravity free-fall conditions. System detects all ferrous and nonferrous metal contamination, even when enclosed in product, and rejects metal contaminants through Quick Flap. In addition to separate detection and reject valves, features include automatic or manual product compensation as well as EMI and vibration resistance.

Smith & Loveless, Inc.    Lenexa, KS 66215 1234
Nov 05, 2012 Comprising V-FORCE BAFFLE™, S&L PISTA® TURBO™ Grit Pump, and PISTA®Works™ Grit Washer featuring TRI-CLEANSE TECHNOLOGY™, PISTA®Works™ integrates screening, grit removal, and grit washing into one system. PLC-based control system includes touch screen, color HMI interface, and NEMA 4X panel. Offering peak flow capacity from 0.5–7.0 MGD, depending on model, system also includes ANSI flanged connections, 6 mm OBEX™ Spiral Fine Screen, manual bypass bar screen, and epoxy-coated carbon steel skid.

Russell Finex    Pineville, NC 28134
Oct 16, 2012 Intended for pharmaceutical industry, Compact Airlock Sieve™ employs validatable pneumatic clamping system that promotes powder containment, product quality, as well as operator health and safety. Oversize contamination is accurately removed by mesh screen fitted to unit, while good product passes through mesh screen and towards next stage of production. Featuring crevice-free, smooth services, screener is fully washable and can be disassembled in seconds without tools.

Universal Separators, Inc.    Madison, WI 53705
Oct 16, 2012 As 10,000 gauss-rated magnetic separator, The Boss can remove sub-micron ferrous fines from industrial fluids in various applications. Product installs into existing or newly installed bag filter housings, improving and extending life of machining coolants, quench fluids, and parts washer baths. Available for size No. 2 housings, standard separator unit handles fluid temperatures to 175°F and can help reduce amount of consumable filter bags used in operations.

Eriez Magnetics    Erie, PA 16506
Oct 15, 2012 Utilizing 3-step process, Hydroflow® SumpDoc™ provides complete coolant restoration and rejuvenation treatment of metalworking fluids in machine tool sump with minimal operator interface. System includes sump cleaner for removal of sludge and solids 50 microns and larger, pleated bag filter for removal of solids down to 10 micron, continuous flow tramp oil coalescer, high speed centrifuge for removal of emulsified tramp oil and fines down to 3–5 micron, ozone generator, and coolant makeup system.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Oct 01, 2012 With inlet and outlet installed to flexible hose system, 4JIT Bullet® allows dry powder and granular materials to pass through magnetic housing and be purified of metal contaminants. Access to magnetic circuit is achieved by opening tri-clover clamp on housing and removing lower body to clean collected tramp metal. Featuring 100% stainless, 2-part body, separator is available for 3, 4, and 5 in. line sizes; operates leak-free at up to 130 psi; and is suitable for use in explosive environments.

Witte Co., Inc., The    Washington, NJ 07882
Sep 24, 2012 Featuring pneumatic actuator set on adjustable cycle timer, Witte Auto-Tapper induces small resonance through perforated classifier deck that coordinates linear vibrating action to gently jolt any pellets blocking screen and permit continued movement towards reject discharge while opening holes to allow on-spec pellets to slide through screen. Available as option on pellet classifiers, Auto-Tapper is suited for separating plastic pellets, chemicals, food ingredients, animal feeds, and sludge.
