KD Scientific Inc.    Holliston, MA 01746
Apr 09, 2013 Using SBT Self Blowdown Technology, Centrifan™ PE Evaporator/Concentrator eliminates problems of bumping. Samples are dried in 20 mL scintillation or other common vials and there is no need for vacuum pump or large supply of blow-down gas. This protects samples from loss and captures toxic vapors and materials in closed system. Typical applications include organic compound evaporation, toxic and radio labeled compounds, and protein purification.

KD Scientific Inc.    Holliston, MA 01746
Nov 21, 2012 Drying solvents directly in vial, Centrifan™ PE Evaporator/Concentrator maximizes evaporation efficiency. Self-generated blowdown technology eliminates problems with common evaporation systems such as vacuum centrifuges, rotary evaporators, nitrogen blow-down, and freeze dryers. Since samples are dried in 20 mL scintillation or other vials, there is no need for vacuum pump or large supply of blow-down gas. This protects samples from loss and enables capture of toxic vapors in closed system.

DENSO Corp.    Aichi 448-8661  Japan
Sep 11, 2012 Cold Storage (CS) Evaporator limits increase in vehicle cabin temperature during idle stop when stop/start technology is employed, helping maintain occupant comfort while also increasing vehicle fuel efficiency. Cold insulator, located in heat exchanging area, stores cold energy to be used to cool in-vehicle cabin air while engine and air-conditioning cycle is off in idle-stop state. Closed case features inner fins and internal cold insulation.

JM Science, Inc.    Grand Island, NY 14072-0250
Aug 16, 2012 With heating range of ambient to 200°C, AQUACOUNTER EV-2000L completely separates water from sample matrices, eliminating any side reactions with interfering substances. Carrier gas is N2 gas or dry air and flow is 30-300 mL/min with inlet pressure at 0.8 MPa or less. Measuring 220 x 340 x 265 mm, evaporator uses molecular sieve dessicant and has aluminum block heater. System is useful for determining moisture in difficult samples such as heavy oils, grease, and peanut butter.

Labconco Corp.    Kansas City, MO 64132 2696
Aug 15, 2012 Using touchpad for programming of time and temperature, RapidVap Vertex Evaporator is capable of evaporating up to 50 samples simultaneously. System features 5 nitrogen control valves with on/off switches and 50 nitrogen-dispensing nozzles in 5 horizontal rows to introduce nitrogen to samples. Unlike water baths, 900 W dry block heater requires no distilled water and adds no potential source of contamination. Front-mounted pressure regulator shows pressure from 0-45 psi in 2 psi increments.

Aquatech International Corp.    Canonsburg, PA 15317
Jun 14, 2012 Modular and redeployable, SMARTMOD(TM) utilizes vertical tube falling film evaporator design for treating difficult produced water sources. Multiple section design ensures ASME distillate quality, and on-line washing allows for continuous distillate production at greater than 70% of design capacity during washing. With minimized center of mass and evaporator weight, SMARTMOD module and vessels eliminate need for large evaporator building.

PSI Water Systems Inc.    Manchester, NH 03102
Sep 27, 2011 Featuring pneumatic lift system and hinged clamshell walls that allow easy removal of drum, electrically heated ENCON Drum Dryer is controlled on time and temperature basis in order to concentrate slurries and sludge to dry condition. Constant circular and vertical mixing of sludge or slurry ensures homogeneous drying, and motor and gear reducer provide consistent agitation as solutions become more viscous and solid. Drum can also be used as disposal vessel to minimize handling.

Angstrom Engineering Inc.    Kitchener, ON N2E1W8  Canada
May 21, 2010 Occupying 600 x 1,000 mm footprint, Covap II provides laboratories researching organic electronics, PVs, and other thin film applications with deposition rate control as well as recipe storage. Clean room compatible system incorporates 300 mm dia x 365 mm tall clam-shell chamber design that promotes accessibility and fixturing which supports up to 100 mm dia substrates. Other features include automated pumping sequences and recipe-based depositions with process data logging.

RGF Environmental Group Inc.    West Palm Beach, FL 33404
Dec 15, 2009 Utilizing natural gas, LPG, diesel fuel, or waste oil, Thermo-Oxidizer thermally oxidizes up to 150 gallons of die casting wastewater per hour at up to 1,600°F. System eliminates need for liquid waste and slurry disposal as well as sewer discharge. Designed to meet NFPA 86 operating standards, evaporator includes automated waste nozzle cleanouts, PLC control with lock-in fault codes and external LCD display, Teflon® diaphragm waste pump, and stainless steel door frame.

Organomation Associates, Inc.    Berlin, MA 01503
Jul 14, 2009 Accommodating three 96-well microtiter plates simultaneously, MICROVAP(TM) 3 Nitrogen Evaporator provides one 2 in. long 19 Ga needle centered over each sample well. It features individually controlled manifolds for nitrogen and temperature, and consumes 20-30 Lpm of nitrogen per plate. Capable of evaporating up to 50 plates per day, device suits high volume pharmaceutical applications. Unit has 250 W heater for each plate with electronic temperature controller from ambient to 100°C.

Organomation Associates, Inc.    Berlin, MA 01503
May 20, 2009 Featuring aluminum heat block designed to accommodate 96-well microtiter plate, MICROVAP(TM) uses array of 2 in. long, 19-gauge needles, each centered over individual well, to provide separate stream of nitrogen for each sample. Consuming 20-30 lpm of nitrogen, evaporator is equipped with electronic temperature controller from ambient to 100°C, 250 W heater, and epoxy-coated aluminum base, which stands up to laboratory solvents.

PSI Water Systems Inc.    Manchester, NH 03102
Feb 10, 2009 Offered in 40-1,800 gph standard capacities, ENCON Mechanical Vapor Compression (MVC) Evaporator converts industrial wastewater into clean, distilled water by removing oils, soaps, solids, and hundreds of other contaminants. Resulting clean water can be reused in processes or safely dumped to sewer. Able to simultaneously process multiple waste streams, solution recycles energy by capturing and reusing heat. It also eliminates need for complex filtering or chemical treatment systems.

Glas-Col    Terre Haute, IN 47802
Jan 28, 2009 Used for solvent and water evaporation, Zipvap(TM) analytical nitrogen evaporators concentrate chemical and biochemical solutions for further analysis, or evaporate to dryness for further reactions. They can be used with 8 mm auto sampler vials or 62 mm dia flasks, and 96 or 384 well plates. Sample sizes vary from micro liters to more than 100 ml, and 2, 6, 8, 12, 20, 24, or 48 samples can be processed depending on vial size and manifold chosen.

Component Hardware Group, Inc.    Lakewood, NJ 08701
Nov 13, 2008 Suited for commercial refrigerators, Condensate Evaporators are available in 230 V/160 W and 230 V/254 W models. Both feature energy-efficient thermostatic control, and 50 oz/1,500 ml die-cast aluminum pan that is PTC-controlled and self-regulating to minimize power consumption when it is not needed. Plug, receptacle, cordset, and insulator pads are all CE approved, indicating conformity with essential health and safety requirements set forth by European Union.

JM Science, Inc.    Grand Island, NY 14072
Jan 23, 2008 Using azeotropic distillation solvent like toluene or xylene, AQUACOUNTER® AQL-2320 Karl Fischer Titration System evaporates moisture at low temperature, saving reagents and minimizing maintenance since titration cell remains clean and free of contaminants. Sample tray can hold 20 samples and operator can automate exchange of Karl Fisher reagents. Heating samples up to 200°C, automated oil evaporator can analyze moisture in oil, grease, paint, resins, and bonding agents.

PSI Water Systems Inc.    Manchester, NH 03102
Nov 27, 2006 ENCON Mechanical Vapor Compression (MVC) Evaporator can simultaneously process multiple industrial waste streams and yield clean distilled water. With no filters to unclog, no sludge pits to empty, and no chemicals to mix, system minimizes requirement for manpower intervention and reduces costs associated with wastewater disposal. Evaporator, available in capacities from 75-1,500 gph, removes oils, soaps, solids, and hundreds of other contaminants.

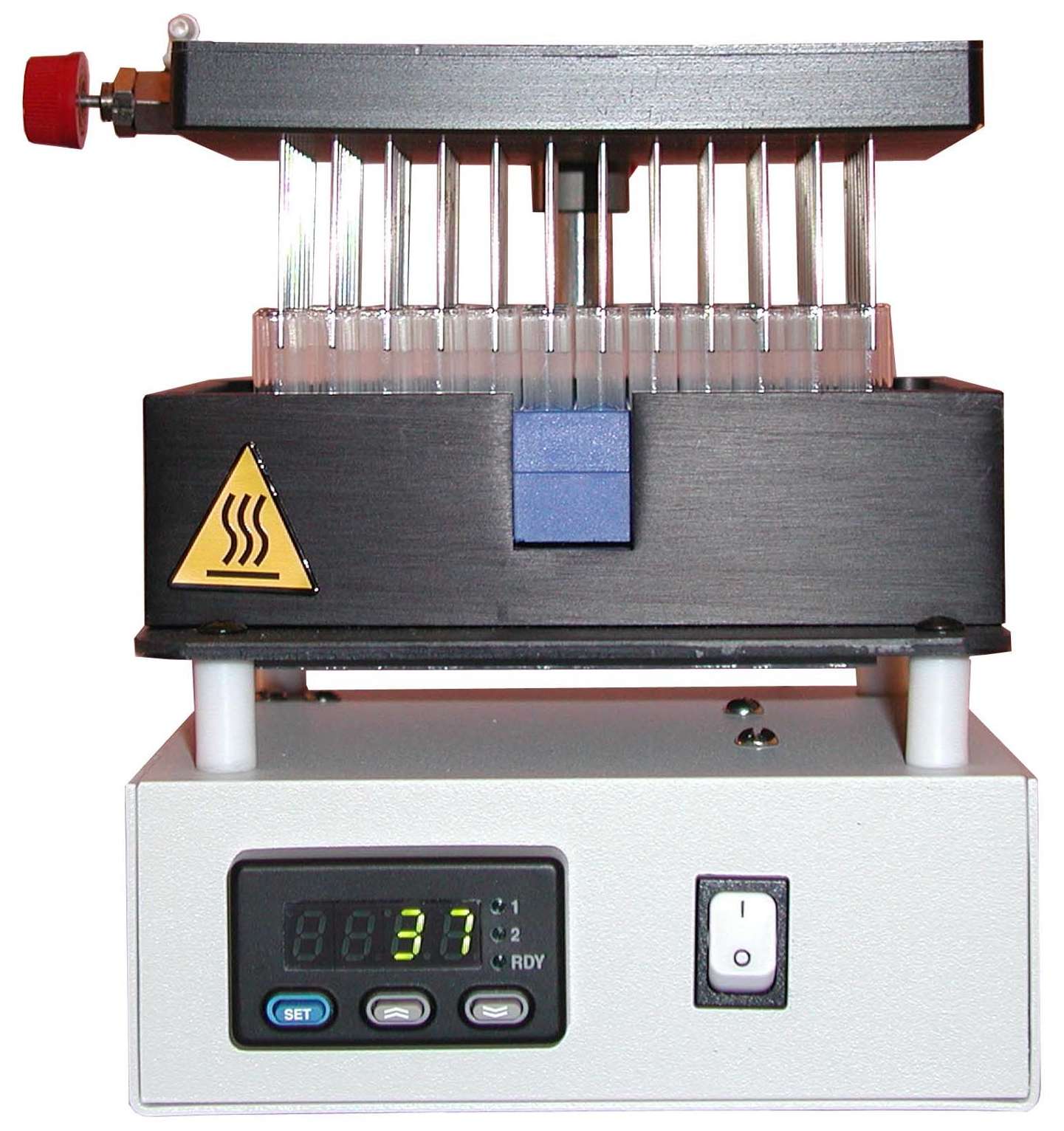

Organomation Associates, Inc.    Berlin, MA 01503
Oct 09, 2006 MULTIVAP(TM) Model 118 High Speed Nitrogen Evaporator features aluminum dry block 500 W heater with 80-position sample holder that accommodates 10-17 mm dia test tubes. It uses 19-gauge needles, aligned in rows of 10, which can each be turned on/off to let users tailor open positions to sample requirements. Along with built-in timer controls for nitrogen flow from 0-30 lpm and heat from 30º to 120ºC, analytical product includes needle guide plate and spring-assisted hoist assembly.

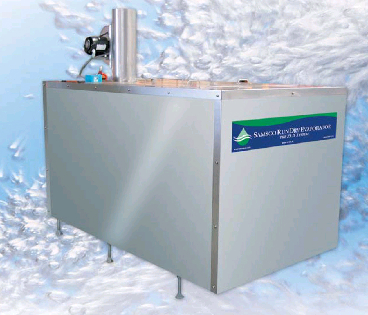

Samsco    Goffstown, NH 03045
Oct 03, 2006 Using double boiler system that allows run-to-dry operation, Rundry ZLD System minimizes residue requiring disposal and achieves zero liquid discharge. Large heat transfer surface maximizes energy efficiency, while smooth interior tank walls facilitate post-evaporation clean up. System has stainless steel exterior for corrosion protection in harsh environments. Redundant safety controls provide 2 fail-safe, high-temperature shut-offs if temperature rises unacceptably.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
Oct 02, 2006 Fitted with diagonal coil condenser, Series R1000D Eyela rotary evaporator features PTFE stopcock and PTFE feed tube offering chemically inert and grease-free liquid pathway. Viton rubber vacuum seal for solvent-resistance is protected from chemical attack by PTFE inserts. Sparkless induction motor operates from 20-190 rpm. Counterbalanced lift mechanism locks in place while control handle allows glassware to be moved up or down with just one hand. Digital Water Bath model is also available.

Edwards Vacuum Technology    Wilmington, MA 01887
Sep 07, 2006 Offering control of temperature profile and deposition rate, evaporation source is available in 2 sizes with 2 or 4 cc charge capacity. It contains heating element, temperature sensor, and interchangeable crucible and is operated by single- or 4-channel source controller that uses temperature ramps and self-tuning control loops to allow user-defined source temperature profile. Controllers operate sources between 50-600°C with accuracy of ±0.1°C.
