Maguire Products, Inc.    Aston, PA 19014
Jan 09, 2012 Featuring 2-stage operation, Purging Recovery System(TM) first slices or planes rock-like purgings into small pieces, then reduces pieces to uniform regrind. System is applicable to flexible vinyl, which stretches when worked by cutting blades and can jam conventional granulators. In addition, system can process shear-sensitive polymers like polystyrene, which can melt as frictional heat builds up in standard equipment.

Vanton Pump & Equipment Corp.    Hillside, NJ 07205
Nov 01, 2011 Featuring non-metallic design, Mobile Pump/Tank Cart transfers wastewater and caustic/acid chemicals with no corrosion and ultrapure fluids with no contamination. All fluid contact surfaces are solid polypropylene, polyethylene, PVC, or other inert thermoplastic. Utilizing rotor mounted on eccentric shaft, self-priming Flex-I-Liner® CC-PY12B pump pushes fluid trapped between elastomer liner and solid thermoplastic body block at flows to 2 gpm, pressures to 25 psig, and temperatures to 185°F.

Adwest Technologies, Inc.    Anaheim, CA 92806
May 19, 2011 Featuring flameless operation, RETOX Regenerative Thermal Oxidizer systems provide 99% VOC abatement with dual chamber ceramic heat exchanger rated up to 97% effective primary heat recovery. Units come in skid-mounted, pre-piped and wired modules with flowrates from 1,000-80,000 cfm. RTO operation does not generate any Nitrous Oxide byproducts during VOC combustion and oxidation process. Systems also do not require periodic carbon or catalyst replacement and maintenance.

Bematek Systems, Inc.    Salem, MA 01970
Feb 25, 2011 Used for in-line multi-component process development, Laboratory Pilot Mixing System can combine multiple streams of fluids into homogeneous emulsions, dispersions, and blends. Integrated rotor-stator mixing technology exposes 100% of mixed product to same shear action without bypass. Fully scalable, wet-mix process systems are FDA-, USDA-, and 3A-compliant and can produce dispersions down to 1 micron with ±1% repeatability. They mix and blend viscous materials from 1.0 CPS and up.

FIPA, Inc.    Atlanta, GA 30318
Jan 28, 2011 In addition to portable units for vacuuming cooling/lubricating agents, VZ series includes stationary units for vacuum supply of bulk consumers. Unit consists of up to 3 oil-lubricated vacuum pumps, one reservoir tank, one control unit, and necessary system peripherals. Vacuum degree is rated up to -990 mbar, and respective flow rates for portable and stationary modes are 4-60 and 25-915 m³/h. Tank capacities range from 8-25 L for portable and 100-1,000 L for stationary models.

Graver Technologies    Glasgow, DE 19702
Dec 07, 2010 Available as individual elements or as pre-assembled tube bundles, Aegis PowerGuard® Septa fits original Graver bottom tube sheet installations with OEM-supplied nuclear adapter end fittings. Poroplate® sintered metal design allows for precise control of porosity from 2-200 microns. Providing resistance to corrosion and fatigue, backwashable 316L stainless steel septa features collapse strengths over 400 psid and operating temperatures up to 1,000°F.

Mech-Chem Associates, Inc.    Norfolk, MA 02056
Oct 29, 2010 Designed for recovery and recycling of industrial acids, laboratory-sized Acid Purification System uses diffusion dialysis to separate, recover, and purify strong acids from spent acid solutions contaminated with dissolved metals. Purified acid is returned to process tank for continued use, while concentrated metal-containing aqueous solution is removed for waste treatment. Typically, 80-90% of initial process acid is recovered in 1 pass through system with 70-90% removal of dissolved metals.

Engineered Concepts, Llc    Farmington, NM 87499
Oct 27, 2009 Vapor recovery system alternative (VRSA) is designed for effective and reliable capture of tank vapors. Virtually eliminating flaring and venting, scalable system monitors and controls compressor, tank, and process. Capture of rich vapors helps increase operator profits while eliminating known emissions associated with natural gas production. System can also produce ROI on well pads producing as low as 50 Bbl of condensate per day.

Eriez Magnetics    Erie, PA 16514
Oct 26, 2009 Offering responsible method for safe recovery and recycling of e-scrap materials, multi-stage EcoTowerSort(TM) can be used for sorting of aluminum, stainless steel, copper cables, and heavy fractions. Machines are available in widths of 24-118 in. with choice of bottom or top blowing discharge designs. Utilized within vertically stacked system, modular sorting technologies can include rare earth drum separators, eddy current separators, inductive sensor sorter, or any combination thereof.

Newstripe, Inc.    Aurora, CO 80011
May 21, 2009 Accommodating up to 3 aerosol cans, AEROVENT 3 punctures and drains them in less than 10 sec. It has non-sparking design that includes cobalt piercing tips and anti-static grounding cable. Unit totally encloses cans being punctured, ensuring operator safety, while vent filter eliminates VOC and hydrocarbons from being released into atmosphere and being inhaled by operator. After being processed in unit, cans can be recycled as scrap steel or discarded as regular trash.

Koehler Instrument Co., Inc.    Bohemia, NY 11716
Mar 05, 2009 Heated Oil Test Centrifuge incorporates LCD touchscreen control panel that can be used to govern centrifuge rotation speed, turn heat on/off, set duration of test, and choose type of rotor assembly and corresponding glassware to be used during test. Manufactured to meet Class 1, Division 2 explosion resistant rating, system conforms to range of Standard Test Methods and features top-opening lid that provides access to rotor and tube holders and features 18½ in. dia viewing window.

Belmont Metals, Inc.    Brooklyn, NY 11207
Mar 02, 2009 Produced in small prototype (research) quantities, custom metallurgical alloy products and shapes are available from metal bases - aluminum, copper, nickel, tin, and zinc - for casting, chemical processes, and plating. Alloy compositions are verified throughout manufacturing cycle with spectrographs, utilizing NBS traceable standards. Along with standard formulations, shapes, and sizes, special formulations requiring adjustment of compositions and forms can also be accommodated.

Opw Engineered Systems    Lebanon, OH 45036
Feb 02, 2009 Used at major oil terminals, Model 1004D3 API Bottom-Loading Coupler features 5-cam design that ensures alignment, tight adapter connections, and resistance to side forces while loading. Dual interlocks ensure that coupler cannot be opened unless it is properly connected to API adapter. Other features include dual O-rings, Viton(TM) seal compound that is compatible with most petroleum products, and nose seal that can be replaced without removing coupler from rack.

Mono Nov Group    Manchester M34 5JA  United Kingdom
Jun 18, 2008 With capacity of up to 16,000 m³/hr, Discam can capture up to 95% of solids at 5 or 9 mm aperture sizes. It combines self-cleaning Discreen® with high torque Muncher, requiring no manual attendance/cleaning, and features high-flow side rail which increases fluid velocity through Muncher. Available in range of channel depths with 1,000, 1,500, and 2,000 mm options as standard, unit can be retrofitted into existing sewage pump stations or inlet works, as well as installed in new build facilities.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
May 02, 2008 Designed to be used in open or closed systems, DELUMPER® 1075 LP reduces hard or soft, heat-sensitive, sticky, or wet agglomerates and lumps without degrading material or causing rise in temperature. Low-friction cutting action handles sludge cake, agglomerated chemicals, plastics, fats, waxes, or solid waste. Extended cutting teeth rotate completely through heavy bar cage, self-clearing slots with each rotation, and output sizes are adjustable by changing comb speed.

Microfluidics, Division MFIC Corp.    Newton, MA 02464 9101
Mar 21, 2008 Equipped with ceramic/diamond interaction chamber that allows flow rates up to 450 mL/min at 25,000 psi, Model M-110EH-30 enables production of nano-suspensions and nano-emulsions, as well as liposomal encapsulation and cell disruption. It provides average flow rate (with water) of 320 mL/min, and can handle batch sizes of up to several gallons. Utilizing fixed geometry interaction chamber technology, unit is capable of generating shear rates within product stream.

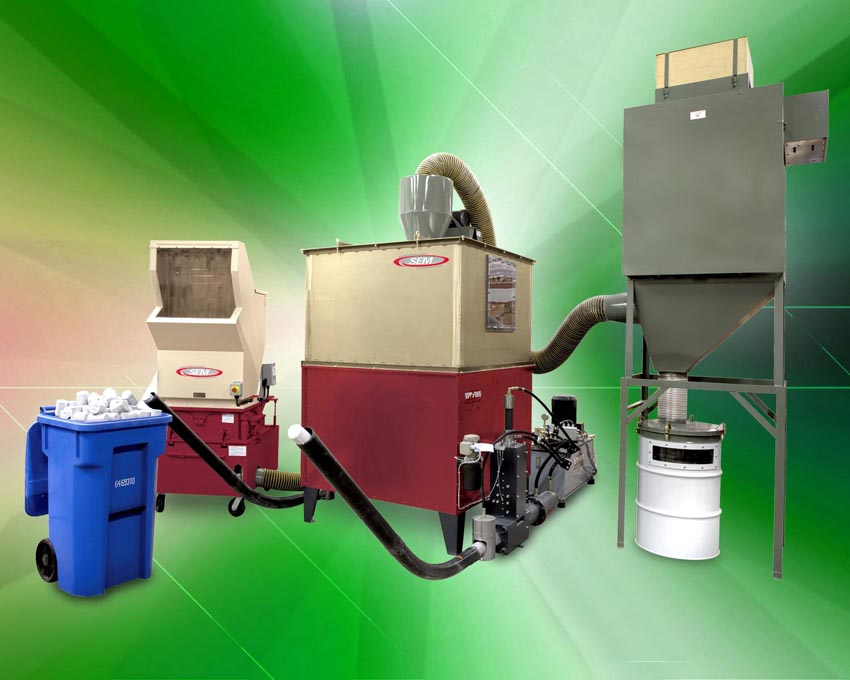

Security Engineered Machinery Co., Inc.    Westboro, MA 01581
Feb 29, 2008 Eco-Saver(TM) Briquetting Systems feature high-pressure hydraulic ram that compacts shredded paper, cardboard, and other light materials for recycling or disposal. Systems include disintegrator, evacuation equipment to transfer particles and dust from disintegrator to hopper, briquetting press, transfer tubes, and briquette collection boxes. Standard briquette sizes range from 2.5-3.2 in. dia. Available in 3 models, systems can be manually operated or fully automated.

Koch Knight LLC    East Canton, OH 44730
Aug 09, 2007 Constructed in diameters up to 15 ft, turnkey towers are custom-designed and lined to end-user specifications for applications in chemical processing, sulfuric acid, and petrochemical industries. They feature carbon steel outer shells and are lined with PYROFLEX® sheet membrane system, which remains permanently plastic. Internal lining is KNIGHT-WARE® Brick, acid-proof refractories that maintain corrosion-resistance in harsh, high-temperature environments.

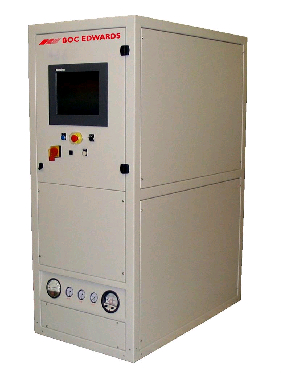

Edwards Vacuum Technology    Wilmington, MA 01887
Jul 03, 2007 Featuring 6-inlet head, combustion-based Spectra-G(TM) is capable of treating all exhaust gases generated by MOCVD production tools and uses exhaust gas itself as primary fuel source. High velocity air flow transports heat and combustion products out of system, completely eliminating need for water and treatment facilities. Oxide particles can be removed from air stream by filtering or central scrubber.

UV Resources    Valencia,, CA 91355
Jun 27, 2007 UL/CUL listed for HVACR systems, DEF (Double Ended Fixture) High Output (DEF-HO) AHU-style UV-C fixture irradiates surfaces infected by mold, bacteria, or other organic debris in/on plenums, coils, drain pans, fan intakes, filters, and more. It comes with high-intensity lamps and is designed to meet specifications for high-output UV-C in 45° air for pathogen disinfection in high-velocity air streams.
