FIPA, Inc.    Atlanta, GA 30318
May 14, 2013 Intended for pick and place robotics applications, vacuum generator uses suction cups for dynamic handling tasks. Blow-off flow is supplied via compressed air line as well as from ambient air, and blow-off boost enables precise and cautious deposit of workpieces in milliseconds. Rate of vacuum build up and dissipation accelerate gripping and placing, and each suction cup can be supplied with its own ejector. Solenoid valve withstands 100+ million switching operations.

Virtual Industries, Inc.    Colorado Springs, CO 80915
Apr 24, 2013 Able to handle range of wafers, solar cells, and other substrates, WAFER-VAC system with 8 in. molded wafer tip (WV-9000-MW8) is Class 100 Cleanroom safe and plugs directly into 110 V, 50/60 Hz. Wafer vacuum handling tool employs long-life diaphragm vacuum pump that generates up to 10 in. of mercury with open air flow of 2.3 Lpm. Provided with push-button wafer tip pen and 6 ft of clear coiled vacuum hose, 7 ¼ x 3 x 2 ½ in. unit connects to ground automatically with 3-wire power cord.

KD Scientific Inc.    Holliston, MA 01746
Apr 09, 2013 Using SBT Self Blowdown Technology, Centrifan™ PE Evaporator/Concentrator eliminates problems of bumping. Samples are dried in 20 mL scintillation or other common vials and there is no need for vacuum pump or large supply of blow-down gas. This protects samples from loss and captures toxic vapors and materials in closed system. Typical applications include organic compound evaporation, toxic and radio labeled compounds, and protein purification.

Future Design Inc.    Mississauga, ON L4W1G6
Apr 02, 2013 Saturn Evacuation System (SES) helps blown film extrusion plants reduce airborne contaminants by up to 80% and extends cleanings from every 6 weeks to quarterly or longer. Connected to vacuum side of blower, SES comprises air ring that fits any air ring or die constructed of aluminum. System creates positive vacuum that draws contamination from low-pressure zone at die exit. Polluted air is then filtered, and discharged particulates are directed to suitable location.

Gardner Denver Nash    Trumbull, CT 06611
Dec 28, 2012 Designed to operate in demanding environments, both 2BE3 and 2BE4 are available in carbon steel and stainless steel. Each model comes with corrosion- and erosion-resistant, polyisoprene-lined body, and inlet configuration allows for both top and side inlet arrangements. Model 2BE4 offers capacities from 1,500–1,900 cfm, and allows operation over entire vacuum range without need to change pump internals. With center shroud, split vacuum operation to 12 in. Hg differential is possible.

Thomas Products Division    Sheboygan, WI 53081

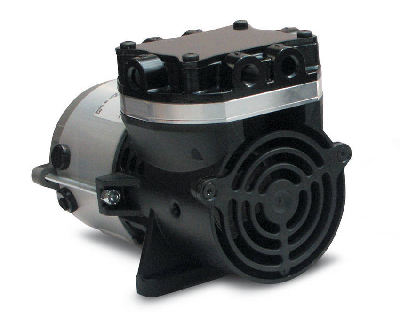

Dec 17, 2012 Designed for handheld gas and leak detection warning devices, 1010 Series has been tested for 4,000 hours of nonstop operation. Units feature sealed air path for contamination-free analysis and restart option at low temperatures for use in cold environments. Low inductance level and stall current allow for compliance with intrinsic safety requirements. Weighing just .03 lb, pumps provide max continuous pressure rating of 8.7 psi and max vacuum to 14.8 in.Hg.

McPherson, Inc.    Chelmsford, MA 01824
Nov 08, 2012 Available with range of fittings, Model DP100 features removable, conductance limiting aperture that creates transition between area of high pressure and vacuum spectrometer or experimental chamber at lower pressure. Unit can allow up to 3 orders magnitude pressure differential depending on size of conductance limiting aperture and capacity of mounted pump. Model DP100 can be used as differential pumping section or as gauging tee, gas inlet, or electrical feed through.

WELCH-ILMVAC    Niles, IL 60714
Oct 18, 2012 Mounted on mobile base frame, chemical-resistant WelchNet Titan consists of microprocessor-controlled system of high-capacity PTFE diaphragm vacuum pumps for Multi-User Laboratory Installations. Pumps work individually or in tandem as required by laboratory vacuum demand, holding vacuum level even if individual pump needs maintenance. Respectively, Titan-4 and Titan-6 utilize 4 and 6 PTFE diaphragm pumps to provide vacuum on demand for up to 30 separate users.

Ebara Technologies    Sacramento, CA 95838
Oct 04, 2012 Available with either single- or 3-phase power, Model EV-A air-cooled, dry pumps have non-contact, multi-staged roots design that lends to reliable, particle-free vacuum generation. Models EV-A03 (9 cfm), the EV-A06 (21.6 cfm), and EV-A10 (36 cfm) have water pumping capabilities when used with optional gas ballast valve. Suited for replacing wet pumps as well as scroll-type dry vacuum pumps, EV-A models can be used in such applications as load locks, PVD systems, and electron microscopes.

Metallurgical High Vacuum Corp.    Fennville, MI 49408
Sep 25, 2012 Available with capacities of 300 and 414 cfm, MHV Survivor™ vacuum pumps act as bolt-in replacements designed to handle water vapors encountered in existing primary and secondary freeze-drying operations. Oil-sealed rotary piston design lends to reliability, while standard gear-type oil pump provides positive lubrication of bearings and all other moving parts. Heavy-duty roller bearing design on main shaft promotes longevity and corrosion resistance.

Labconco Corp.    Kansas City, MO 64132 2696
Aug 16, 2012 With built-in, removable diaphragm pump, CentriVap® DNA Centrifugal Concentrator processes DNA samples and other minute quantities of solvents. Up to 60, 1.5 mL and 72, 0.5 mL micro centrifuge tubes may be processed simultaneously. There are 9 user-set programs accessible via buttons, and Quick-Start(TM) One Button Start Up function starts rotor, heater, timers, and vacuum pump. Along with Quick-Stop(TM) Rotor Brake, features include inlet and exhaust traps and optional CentriZap® Strobe Light.

Edwards High Vacuum Int'l    Crawley East Susse RH10 9LW  United Kingdom

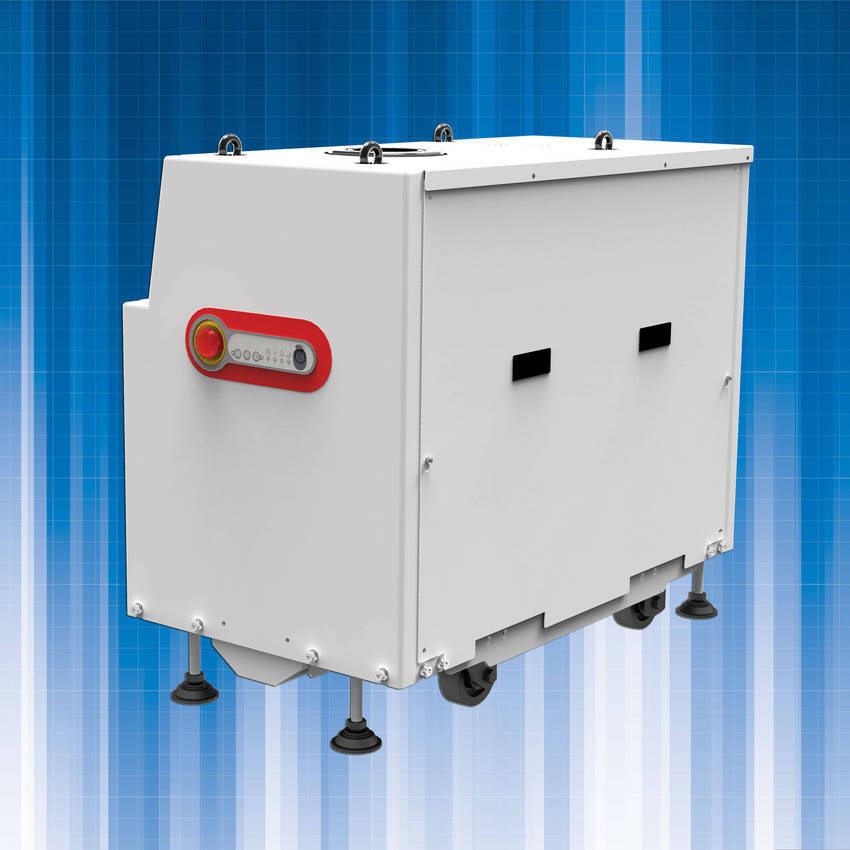

Jul 06, 2012 Suitable for use in harsh environments, corrosion-resistant iXH645H dry pump handles high flow of gases such as light hydrogen and ammonia. High-temperature capabilities prevent condensation of phosphorous compounds. Pump includes nitrogen purge barrier to protect seals, motor designed to prevent overheating or overloads, and oil lubrication and sealing to minimize maintenance. Integrated temperature control system allows full operation within 30 min of start-up.

Edwards High Vacuum Int'l    Crawley East Susse RH10 9LW  United Kingdom

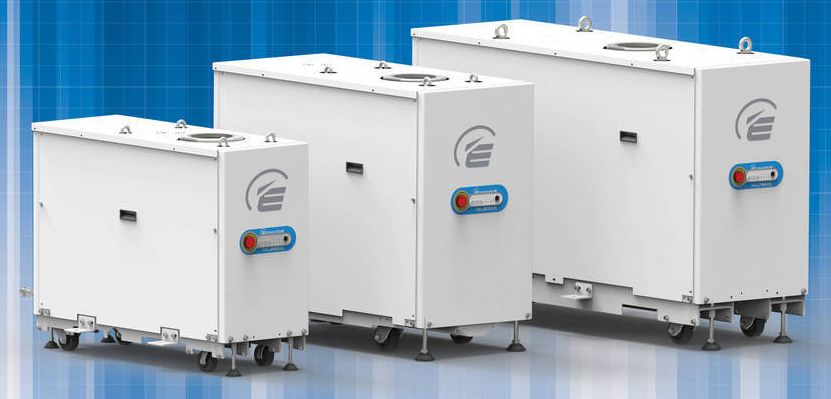

Jul 06, 2012 Meeting pump down requirements of flat panel display (FPD) and solar manufacturing market, iXL250Q and iXL750Q dry pumps are designed to maximize substrate throughput while minimizing power, footprint, and weight. No maintenance is required between overhauls, and Green Mode lets pumps run at lower power during idle periods. Respectively, iXL250Q and iXL750Q provide ~250 and ~750 m³/h pumping speed around atmospheric pressure.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

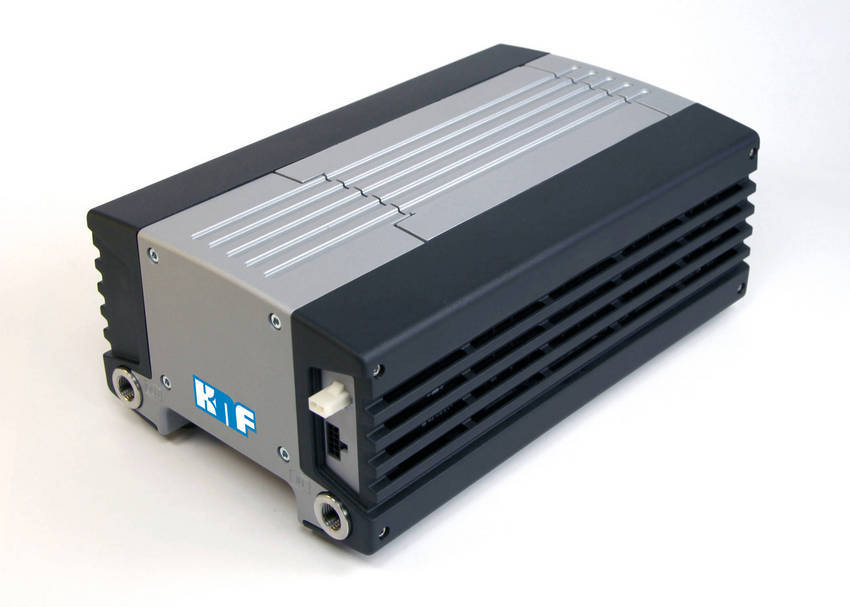

Jul 05, 2012 Providing automatic transfer or evacuation of air and gases, N950.50 Series pump has flow rates up to 50 Lpm and vacuum of less than 2 mbar abs. Compact, lightweight pump is liquid-tolerant and operates without oil, avoiding contamination of pumped medium. Product can be powered with brushless DC motor or worldwide motor with 100-240 V/50-60 Hz range. Applications include vacuum ovens and concentrators, chemiluminescence and leak detectors, and analytical instruments.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

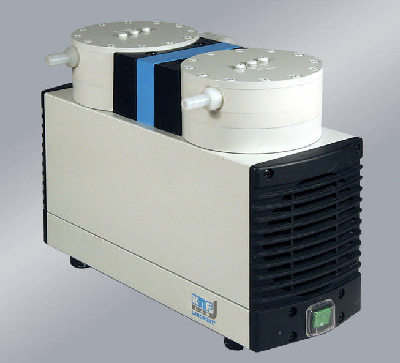

Feb 27, 2012 Operating without pump oil or maintenance, LABOPORT® Vacuum Pumps integrate corrosion-resistant PTFE wetted parts, multi-port FFPM valves, and PTFE-bonded diaphragms. Portable units can handle most aggressive vapors and can tolerate occasional condensate. Depending on model, diaphragm pumps achieve flow rates to 60 L/min and generate vacuum to 29.9 in. Hg. Units are suited for laboratory applications involving rotary evaporation, vacuum ovens, and gel drying.

Edwards Vacuum Technology    Wilmington, MA 01887
Feb 07, 2012 With ultimate vacuum typically down to 3.8 x 10^-4 Torr without purge, Models GXS450 and GXS750 deliver peak pumping speeds up to 435 cfm. When combined with booster pump, units offer speeds up to 1,978 cfm. Pump mechanism can be cleaned using high flow purge and solvent flush accessory, which removes need to partially strip pump. Fitted with controller as standard, pumps are suited for steel degassing and metallurgy processes, glass coating, solar coating, and LED manufacture.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

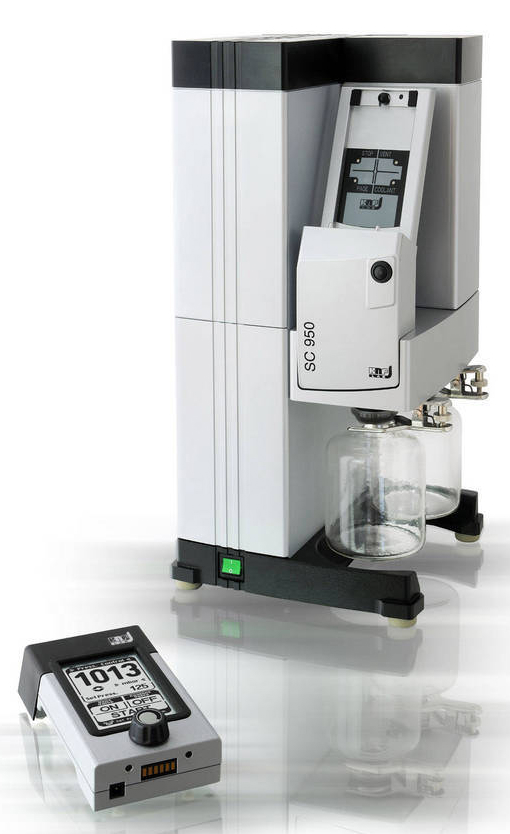

Jan 26, 2012 Intended for laboratory applications, SC950 features a 50 Lpm pumping capacity and deep 1.5 Torr end vacuum to enable shorter processing time with range of solvents. Wireless remote control enables system to be operated within fume hood with sash closed for added safety and energy conservation. Able to be positioned in remote locations, system offers 4 operating modes and can also be controlled remotely from PC via supplied Windows®-based software that has process recording capability.

EXAIR Corporation    Cincinnati, OH 45249-1621
Dec 09, 2011 Supplied with 30, 55, or 110 gallon drum, Premium Reversible Drum Vac(TM) System can fill 55 gallon drum in less than 2 minutes. With turn of knob, stainless steel pump quickly empties drum. Compressed air powered unit has no motors or impellers to clog or wear out. It comes complete with 2-way pump assembly, shutoff valve, 10 ft static-resistant hose, 20 ft compressed air hose, spill recovery kit, and drum dolly.

Edwards Vacuum Technology    Wilmington, MA 01887
Oct 21, 2011 Suited for liquid and solids handling in chemical, petrochemical, and pharmaceutical processes, CXS Pumps offer vacuum down to 10^-3 mbar with no contamination of process stream or cooling water and no effluent generation. Tapered screw technology gives smooth, gradual compression along length of rotor for optimized pumping at all inlet pressures. Independently certified for hazardous environments, units can pump up to 1 L of liquid/min continuously and up to 25 L slugs without stopping.

Ebara Technologies    Sacramento, CA 95838
Oct 17, 2011 Available with optional on-board controller, EBT Series offers solution for high vacuum pumping needs found in manufacturing, semiconductor, thin film, and photovoltaic industries. Pumps can be mounted in any orientation and have tuning-free half rack controllers requiring no battery backup. Naturally cooled, fan-cooled, and water-cooled models are available.
