Ruddux Corp.    Basking Ridge, NJ 07920
Dec 04, 2003 Portable Model 50-C treats water-based coolants in individual machine sumps. Suction strainer, pump, and coalescer mount on portable platform and are served by Ruddy Duck Deep Skimmer that is placed on coolant surface. Top ½ in. of contaminated coolant is removed (free oil and cream phases), and delivered to coalescer for oil separation. System operates unattended and treats in sump, at sump, in central tank, or any combination of these modes.

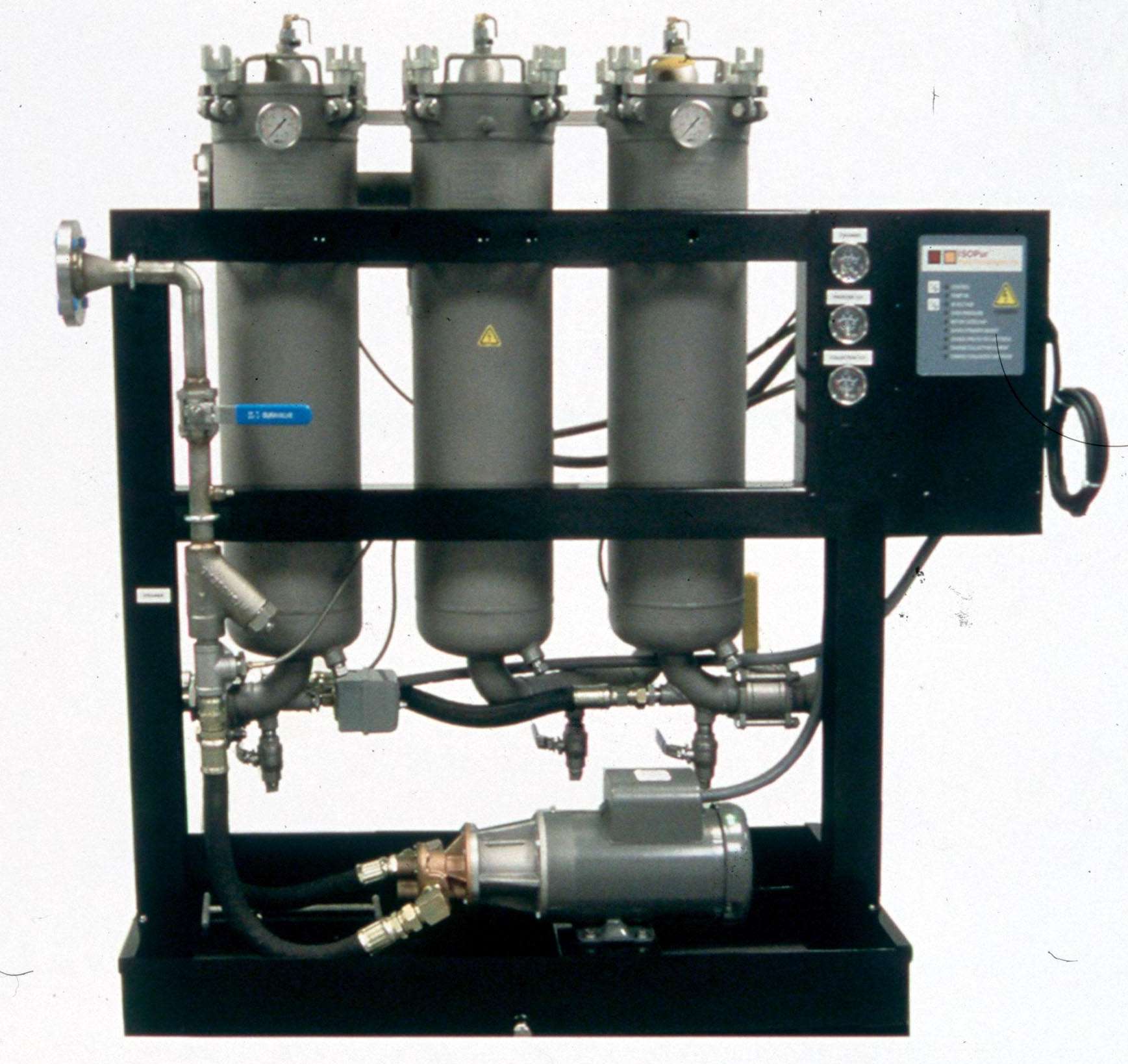

ISOPur, A Div. Of Mag Systems, Inc.    Cheshire, CT 06410
Nov 17, 2003 Series I-600, with tank sizes up to 5,000 gal, features Balanced Charge Purification technology, which purifies hydraulic and lubricating oil to sub-micron level. BCP eliminates adhesive or hard particles that create varnish and sludge that can build up in servo valves, control valves, bearings, metering orifices, regulators, and seals. I-600 system transforms lubricating oil into asset that can be used again and again without replacement.

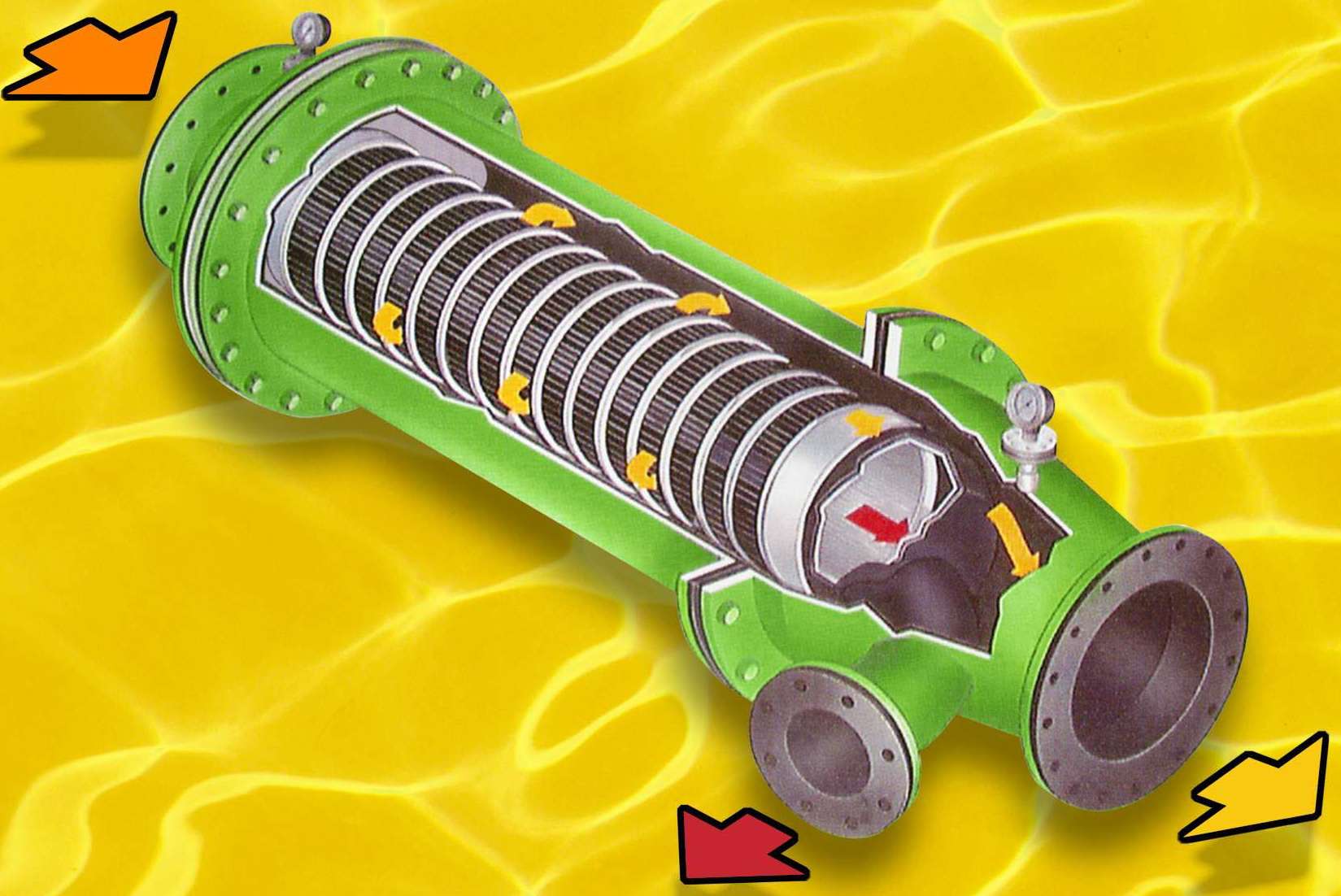

Tema Systems, Inc.    Cincinnati, OH 45249
Nov 06, 2003 In-line Guard Screens have compact design that guards against blockages and damage caused by debris. They are manufactured in self-cleaning, non-blinding, stainless steel wedgewire in various screen diameters. Bolted flange design enables replacement of internal screen cartridge, and custom screen apertures remove only unwanted sizes of debris. Discharge outlet removes unwanted particles from process, allowing screened product to continue through pipeline.

Mokon Div., Protective Closures LLC    Buffalo, NY 14207
Sep 19, 2003 ClearFlo continuously filters heat transfer fluids, removing particles as small as 10 microns, without disrupting system operation. It reduces deterioration of rotating parts, including pump rotors, impellers, seals, valves, and stems. ClearFlo PLUS filters cool oil reservoir and removes particles as small as 1/10 micron to reduce fluid contamination and water build-up, minimizing shutdowns caused by water vapor pockets.

Ona America, Inc.    Dayton, OH 45402
Sep 10, 2003 AQUA PRIMA Series AK-100 is automatic and self-cleaning. It uses mineral filter unit especially for wire EDMs and does not require filter media replacement. Featuring 300 gal tank capacity, stainless steel, stand-alone unit takes dirty water from machine and filters it to 3-micron cleanliness level to supply clean water for machining. It uses automatic EkoAdd metering tank, which reduces resin consumption. Automatic sludge discharge is fully controlled by PLC.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207
Aug 27, 2003 Duplex Filter is designed around two MAXILINE SE 12-bag filter housings linked with butterfly valve control assembly. System operator can switch flow from one filter housing to the other for filter changeout without shutting off flow. QIC-LOCK® cover with spring assist allows operator to open or close cover in 15 seconds with only finger tip effort. Duplex Filter is offered in carbon steel or stainless steel with 3–36 bags per filter.

International Diversified Marketing, Inc.    Santa Ana, CA 92705
Jul 18, 2003 Breathe Easy Air Filtering System utilizes 2-ply, multi-density filter to collect pollutants, such as pollens, dust mites, and dirt, which is discharged from ductwork. Embedded into fibers is EPA registered anti-microbial agent that, on contact, destroys, bacteria, mold, mildew, and other microorganisms. System can trap and prevent spread of microorganisms as small as 1 micron. It is aimed at facilities, maintenance, plant and property managers.

Kimberly-Clark Professional    Roswell, GA 30076
Jun 17, 2003 FATHOM® Liquid Bag Filtration Media is chemically compatible with most liquid applications and does not contain binders that can interfere with fluid. Polypropylene/polyethylene construction is chemically inert, with bi-directional strength and abrasion resistance. Series 500, 510, 520, 530, and 540 provide filtration for particles ranging from 0.5–5, 5–10, 10–25, 25–50, and 50–100 microns, respectively. Engineered gradient density improves efficiency while increasing filter life.

D-MARK, Inc.    Chesterfield, MI 48051 2600
Jun 16, 2003 OdorGuard® (OG) filters utilize CarbonWeb® filter media and are UL Class 2 approved. Medium duty filters have integrated pre-filter and are offered with granular carbon loadings of 200 g/ft² of filter area in 2 in. thickness and 100 g/ft² of filter area in 1 in. thickness. Light duty filters are offered with granular carbon loadings of 50 or 25 g/ft² of filter area in 2 and 1 in. thicknesses, respectively. Products use no adhesives.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207
May 30, 2003 HAYFLOWâ„¢ consists of 2 concentric cylinders, made of polypropylene or polyester extended-life, needle-felt media, with SENTINEL sealing ring for positive seal. Fabric welding technology forms layers with no-by-pass seam. Diameter of cylinder is same size as standard filter bag to facilitate retrofitting into existing systems. Surface area is 70% greater than standard filter bags. High flow rates allow reducing size of filter vessels in new systems by as much as 50%.

PIAB Vacuum Products    Hingham, MA 02043
May 07, 2003 Silicone- and textile-free filters allow paint to adhere properly to vehicle surface. They prevent dust and fine particles from being drawn into vacuum pump and escaping into surroundings. Products comply with FDA, GMP, and 3-A requirements and are suitable for powders with particle size of .5 micron and greater, depending on powder properties. Sintered polyethylene body is coated with PTFE.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207
May 07, 2003 Suited for industrial and commercial applications, SE MAXILINEâ„¢ reduces downtime required for filter media changing. Design incorporates spindle/interlock mechanism with integral QIC-LOCK® clamp, which prevents cover from being opened until vessel has been properly vented. Vessel cannot be re-pressurized until clamp has been fully closed and safety interlock engaged. Low-profile design is available in 3-, 4-, 6-, and 8-bag models, all constructed of stainless steel.

Algae-X International    Fort Myers, FL 33905
Apr 25, 2003 Self-contained FPS-500 allows fuel to be periodically re-circulated to remove water, sludge, and inorganic debris as well as eliminate microbial contamination. Components include Separ Fuel/Water Separator and Filter, 6 hr manual timer, fuel pressure gauge, and continuous-duty gear pump. Unit improves and maintains quality of diesel fuel, hydraulic oil, and other distillate fuels for improvement in filtration, combustion, and fuel stability.

UFI, Inc.-Hydraulic Div.    Twinsburg, OH 44087
Mar 24, 2003 Series RF tank top mounted filter features inside to outside flow path through element, and magnetic pre filter as part of cartridge. Available in 11 sizes with ports to 2 ½ in. SAE flange, filter handles flows from 25–300 gpm. High capacity elements are available with wide range of media from 25 um cellulose to 6 um glass fiber with B>200. RG Series filter comprises element and support structure of RF Series with diffuser design, allowing complete assembly to be inserted inside tank.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Mar 06, 2003 Able to remove lumps and particulates from adhesives and sealants, 1270-Series Material Filter ensures delivery of free-flowing, homogeneous material to dispense valve. Material filter also provides control of material pressure and flow rate. Rounded, internal design prevents material from becoming packed in corners and also prevents clogged material lines. Offered in 2 filter sizes, product has aluminum housing and 30-mesh stainless steel filter element down to 500 microns.

Magstar Technologies    Hopkins, MN 55343
Mar 06, 2003 ROC 5 Envi-ro-fuge System utilizes centrifugal force of over 2,000 G to remove contaminants as small as 0.5 microns. When oil change is required, cleanliness of used oil makes it recyclable. Product takes out abrasive grit, soot, and dirt, and spins them into solid cake that is removed without shutting down operation. By-pass system allows for retrofit installation for engines, generators, pumps, and compressors with 100 gal and larger oil sump reservoirs.

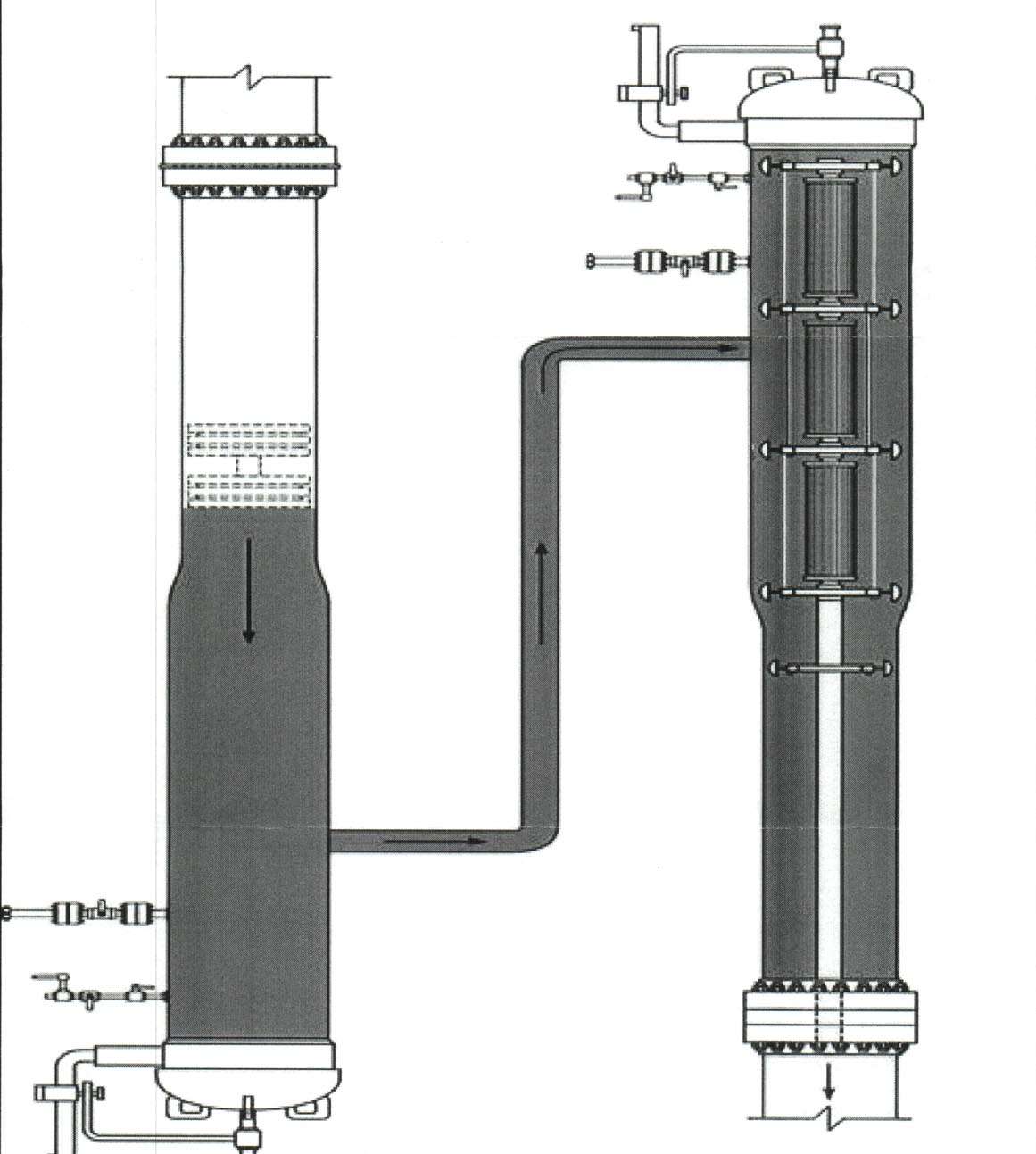

Filtration Technology Corporation    Houston, TX 77041
Feb 07, 2003 Filtration System utilizes existing pig launchers or receivers as filter housing for cartridge filters, eliminating need for external filter systems. Pig filter traps impurities in filter cartridges while filtered liquid continues to travel through pipeline. One or more filter cartridges can be utilized with pressure-tight connectors between multiple cartridge units. Applications include long-distance movement of petroleum products and liquid feedstocks.

Automatic Filters, Inc.    Los Angeles, CA 90034
Jan 30, 2003 Tekleen® fully automatic, self-cleaning water filters feature stainless steel body and range in size from 1–24 in. dia with flow rates of 5–12,000 gpm. Absolute filtration to 50 microns is standard; 5 micron is optional. Filters are offered in on-line, in-line, parallel, and bell-shaped configurations. They can be manifolded together for unlimited flow capacities. Applications include utility water, chemical processing, irrigation, plastics, HVAC, and oil refining.

Pannevis, Inc.    Rockaway, NJ 07866
Jan 29, 2003 Model RT® features FRP housing and all internal process-contact surfaces are made of non-metallic, corrosion-resistant materials. Filter is fully enclosed and based on reciprocating tray concept, making it possible to carry out multi-step process operations in single unit, including filtration, co-current or counter-current washing, and cake drying. It operates with normal air atmosphere while processing hazardous or toxic materials, or materials that require containment.

Arbortech Corp.    McHenry, IL 60050-2502
Jan 03, 2003 Stainless steel filtration system utilizes double set of elements that can be exchanged in less than 5 min with small wrench. It reduces oils and soils that interfere with cleaning. Wash stays clean all the time, eliminating inadequate parts cleaning.
