Radio Frequency Co., Inc.
Millis, MA 02054
Jun 09, 2009 Macrowave(TM) RF Drying System selectively heats coated portions on web leaving bound moisture in substrate intact, preventing overdrying, distortion, and shrinking. It operates at up to 1,500 fpm, with RF power being instant on/off and energy only consumed in proportion to load in system. Configurable to handle webs up to 120 in. wide, RF drying system meets OSHA safety regulations and FCC standards on communication noninterference.

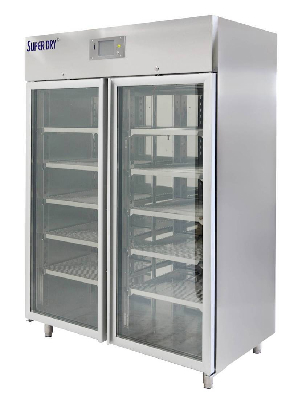

Totech America Corp
Las Vegas, NV 89123
Apr 14, 2009 Designed to exceed challenges associated with IPC J-STS-033B.1 for handling of moisture sensitive devices, Super Dry Model XSD 702 deploys self-regenerating desiccant, which is safe and virtually maintenance-free. U-5000 Zeolite drying unit achieves humidity levels under 0.5% RH which, combined with integrated heating system, combats oxidation. Featuring heavily insulated design, unit includes 24/7 data logging and ergonomic touch screen interface.

OYSTAR USA
Fairfield, NJ 07004
Mar 02, 2009 With HDGC Fluid Bed Dryer-Granulator-Coater, all functions can be performed in one product container. HDGC Fluid Bed features Diskjet air distribution plate for thorough, uniform mixing and fluidization of batches. Tangential, high-velocity exit of process air prevents sticking/clogging and container dead zones. When granulating, particle size can be controlled/reproduced by selecting specific parameters. Uniform, homogenous granulate produces optimal flow/pelletizing characteristics.

Littleford Day Inc.
Florence, KY 41042
Jan 23, 2009 Horizontal Ploughshare® Jacketed Vacuum Dryer is designed for manufacturers who are concerned with cross contamination from batch to batch in their operation due to allergens, flavors, colors, and formula changes. Full access door across front of jacketed vacuum dryer provides access to perform frequent cleaning operations. Units are capable of taking products from liquids to dry powders.

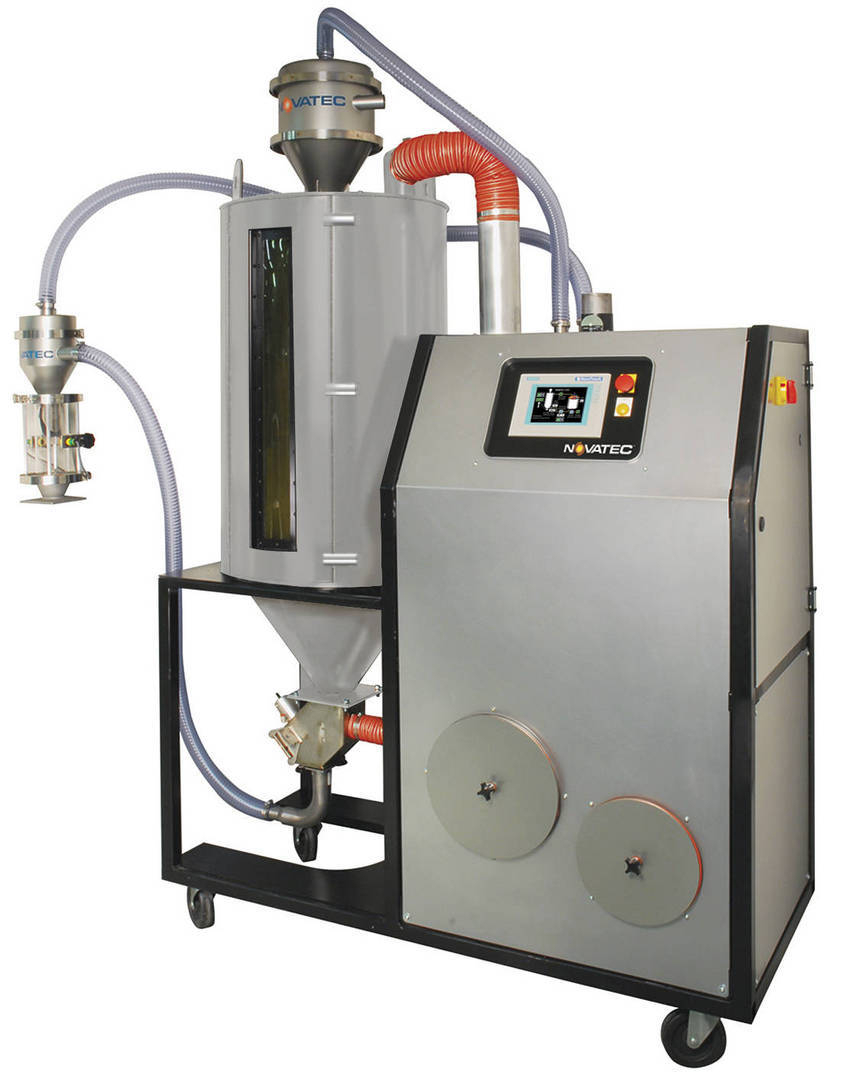

Novatec, Inc.
Baltimore, MD 21225
Jan 07, 2009 IntelliPET(TM) features desiccant wheel dryer design and airflow pattern that enable PET resin processors to conserve energy and plant space while obtaining consistent performance as result of automatic adjustment to rate and material variations. Specifically, automated temperature and speed controls adjust to variations in throughput rate, moisture level, and material temperature. Components include electric or gas-fired heater, cyclone, touch screen control, and 2-zone drying hopper.

Siemens Water Technologies
Warrendale, PA 15086
Dec 04, 2008 Featuring 1- or 2-belt adjustable-speed design, convective Sludge Belt Dryer provides evaporative capacities of 1,000-13,000 lb of water/hr and is designed to operate continuously if required. Sludge is uniformly distributed on entire belt width to cause uniform evaporation. Requiring 1,441 BTU/lb of heat, dryer includes ability to vary residence times in drying zone, which enables fine tuning of product moisture to meet final use or disposal requirements.

Kason Corporation
Millburn, NJ 07041
Dec 02, 2008 Consisting of centrifugal screener, spheroidizer, circular fluid bed dryer, and vibratory screener, Granulizing-Drying System converts non-flowing moist solids discharged from cartridge and vacuum filters, filter presses, and mixers into uniform, compact, dry, de-dusted, free-flowing granules. System is available to 3A, FDA, USDA, and BISSC standards, as individual components or complete system tailored to granulizing applications in chemical, food, and pharmaceutical industries.

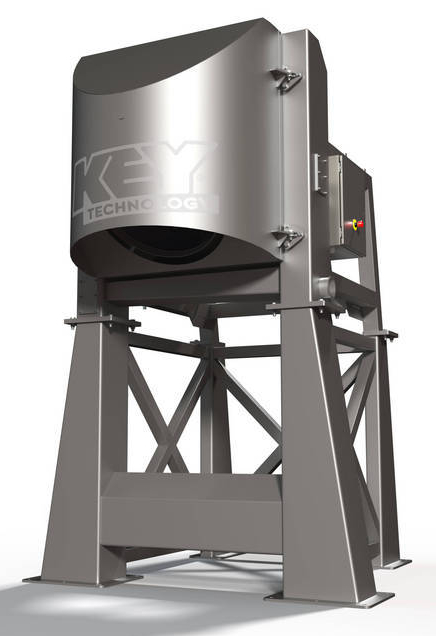

Key Technology, Inc.
Walla Walla, WA 99362
Nov 28, 2008 Available in 1-, 2-, and 4-drum configurations, Auto Dryer features 38.6 in. dia drum and offers fully automated, uninterrupted drum loading/unloading. System loads constant, even flow of product into drum via spiral layering method, minimizing product damage and enabling even drying. When drying lightweight products such as arugula and spinach, system handles 1,200-2,500 lb/hr per drum. Capacity increases to 4,000 lb/hr per drum when handling heavier products such as iceberg lettuce.

Air Control Industries Ltd
Chard Somerset TA20 2AE  United Kingdom
Oct 15, 2008 Using blowers to deliver 176°F contaminant-free air at constant volume and pressure, DRI-Line Powerpack can dry extruded products from 5-25 mm diameter at speeds in excess of 300 m/min. Drying effectiveness is achieved by passing extruded product through pair of hinged drying heads that deliver high velocity airflow directly to product. Blowers used in Powerpack are housed in stainless steel acoustic chamber to keep noise levels below 85dB(A).

KMPT USA, Inc.
Florence, KY 41042
Aug 12, 2008 Used as small production dryer or for test trials for scale-up to production size batch mixer/dryers, Pilot HD 40 Helical Dryer is provided with PLC based control panel including wireless data logging for operation in hazardous material areas. Features include heatable shaft/mixing assembly, bottom discharge, one mechanical seal, full cleanablility with CIP spray devices, and compact dimensions to fit into kilo labs and pilot plants.

Spartanics
Rolling Meadows, IL 60008
Jul 02, 2008 Featuring flat or vertical design, Sheet and Web Contact Drying System thoroughly dries wet inks from material surface to top side, avoiding residual moisture problems. System uses heated vacuum plate with transport belt on bottom of material being dried. Integrated heated air blower furthers drying process and helps eliminate solvent fumes. With system, screen printed materials that previously required 2 hours to dry can be dried within 30 seconds.

Radio Frequency Co., Inc.
Millis, MA 02054
Jul 01, 2008 Designed for high-speed drying of water-based patterned glue and coatings, Macrowave(TM) RF Drying System selectively heats only patterned coatings on web and leaves bound moisture in substrate intact, preventing over-drying, distortion, and shrinking. It needs 1/3 to 1/5 of floor space required for hot air and IR dryers, and permits lower web temperatures. Unit can handle webs up to 120° wide and meets OSHA safety regulations and FCC standards on communication non-interference.

Key Technology, Inc.
Walla Walla, WA 99362
Jun 23, 2008 Able to remove moisture to enhance shelf life of fresh-cut produce, Compact Dryer is suited for small to medium volume fresh-cut processors producing variety of products such as shredded and chopped lettuce, leafy salad mix, cabbage, and cut vegetables. Designed to withstand harsh, hot water washdowns, stainless steel unit can be sanitized inside and out, and features magnetic lock with smooth profile. With footprint of 23 x 38 x 30 in., it fits into most plant environments.

Kason Corporation
Millburn, NJ 07041
May 08, 2008 Model K30-2-SS 30 in. dia circular vibratory screener integrated with Model K40/48-1FBD-SS 40 in. dia circular fluid bed dryer remove off-size particles while dewatering and drying on-size material. System removes up to 50 gpm of water and dries up to 700 lb of on-size particles per hr. Screener is equipped with imbalanced-weight gyratory motor that vibrates screening chamber, which is suspended on springs. Circular fluid bed dryer requires only one air inlet and outlet.

SKF USA Inc.
Kulpsville, PA 19443
May 07, 2008 In conjunction with large air compressors and systems, SKF® SFD dryer system dries compressed air for pneumatic applications directly from tank. Compact device incorporates 3-in-1 system to remove oil, contaminants, and moisture, operating up to 175-200 psi. Installing on wall or directly to compressor top plate, it can be supplied for 12, 24, and 120 Vac, or fully pneumatic requiring no electrical connection. Basic flow rates up to 40 cfm can be achieved.

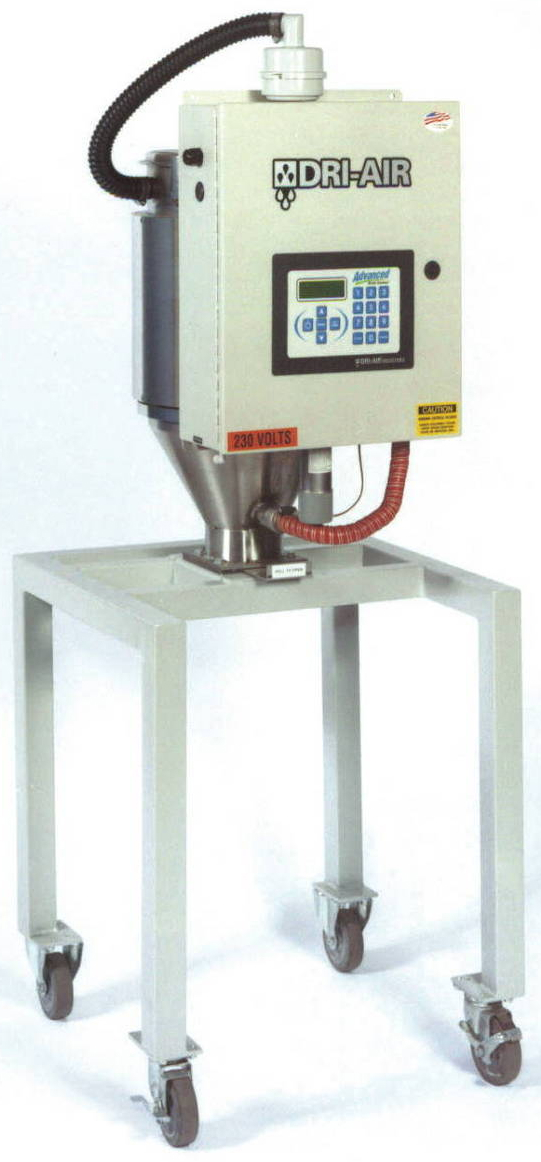

Dri-Air Industries, Inc.
East Windsor, CT 06088
Apr 17, 2008 Available in sizes from 5-2,000 lb, TUFF-WRAP Hopper features gasketless access door and utilizes air distribution cone to dry all resin down to slide gate. Non-conductive TUFF-WRAP outer covering resists dents and scratches and helps optimize drying system efficiency. Fabricated from stainless steel, MINI-FEED system moves dried material from drying hopper to feed throat of molding machine or extruder. Amount can be as small as 7 g, depending on shot size of mold.

Perma Pure Inc.
Toms River, NJ 08754
Apr 17, 2008 Able to lower sample's dew point from +4 to below -15°C, SDS(TM)-Series Supplemental Drying System eliminates formation of acid mists, including downstream SO3 formation in high SO2 services. Offered for single (up to 10 Lpm) or dual (up to 5 Lpm each) samples streams, unit also features corrosion resistant NEMA 12 enclosure. Dryer can be added on to compensate for undersized chillers, helping boost chiller performance in sample conditioning systems used in refineries and chemical plants.

Munson Machinery Co., Inc.
Utica, NY 13503
Feb 22, 2008 Intended for 3-A and USDA applications as well as applications involving contamination-sensitive materials, Rotary Batch Dryer-Dehumidifier-Cooler features all-stainless contact surfaces, continuous polished welds, and external removable seals. Configurations are available for both direct and indirect drying, dehumidifying, and cooling. Offering usable batch capacity of 20 cu-ft and total capacity of 48 cu-ft, unit can also blend ingredients in parts as small as 1 ppm with 100% uniformity.

Munson Machinery Co., Inc.
Utica, NY 13503
Feb 15, 2008 With all-stainless contact surfaces and suitable for 3-A and USDA applications, Rotary Batch Dryer-Dehumidifier-Cooler uses diagonal, vertical tumbling and spilling motion to optimize particle exposure. This, along with lifters inside drum, minimizes material degradation and promotes process efficiency. Lifters also serve to direct material into discharge spout for 100% evacuation. Ingredients can be blended in parts as small as 1 ppm with 100% uniformity in less than 3 min.

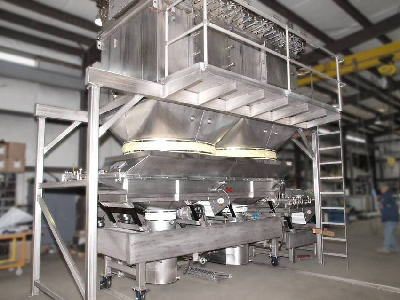

Kason Corporation
Millburn, NJ 07041
Jan 22, 2008 Self-contained system scalps and de-dusts 2,500-3,000 lb of bulk material per hour using double-deck, 30 in. dia circular vibratory screener and then dries material in 40 in. dia circular vibratory fluid bed processor. Requiring one air inlet and outlet, system is designed to remove oversize and undersize material while drying only on-size material. Elements of construction include imbalanced-weight gyratory motor, spring-suspended screening chamber, and quick-disconnect housing.
