Kason Corporation    Millburn, NJ 07041
Mar 31, 2004 Fluid Bed Processors feature circular configuration that enables entire system including heater/cooler/moisturizer, blower, and dust collector to be self-contained on frame with casters, ready to plug-in and run. Inherent strength eliminates need for heavy-gauge walls and cross braces otherwise required to withstand continuous vibration. Ranging in diameter from 18–24 in., rental units feature few weld seams and require only 1 air inlet and outlet.

Caterpillar, Inc.    Peoria, IL 61629

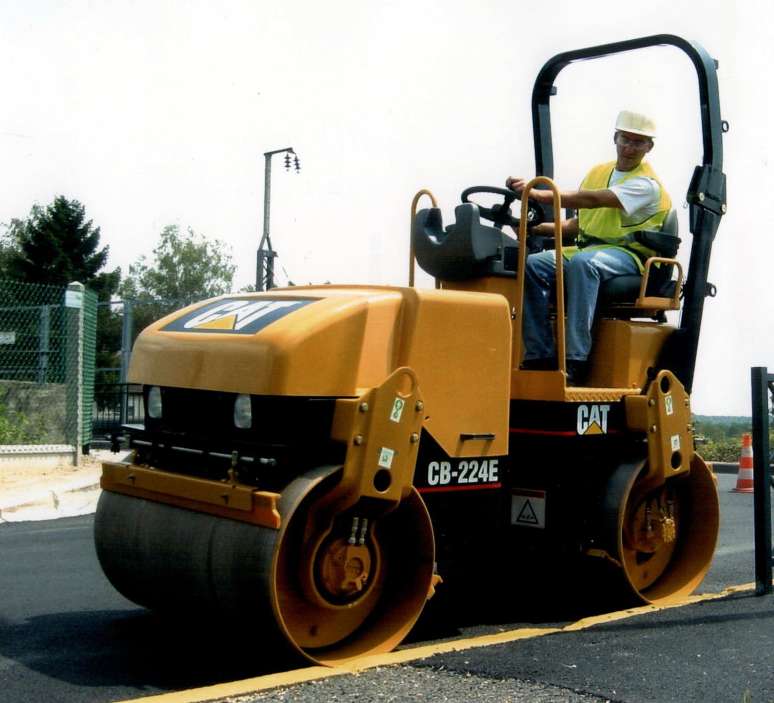

Mar 23, 2004 Models CB-214E, CB-224E, and CB-225E are powered by 3-cylinder 3013C diesel engines that provide 32.7 hp and operate at 2,800 rpm. Double-drum Model CB-214E offers 39 in. compaction width and is suited for maintaining streets, roads, and alleys. Featuring compaction width of 47 in., double-drum Model CB-224E handles tons-per-day production rate. Model CB-225E has 47 in. wide drum at front and 4 smooth tires in rear, providing benefits of vibratory and pneumatic compactor.

Henkel Loctite Corporation    Rocky Hill, CT 06067

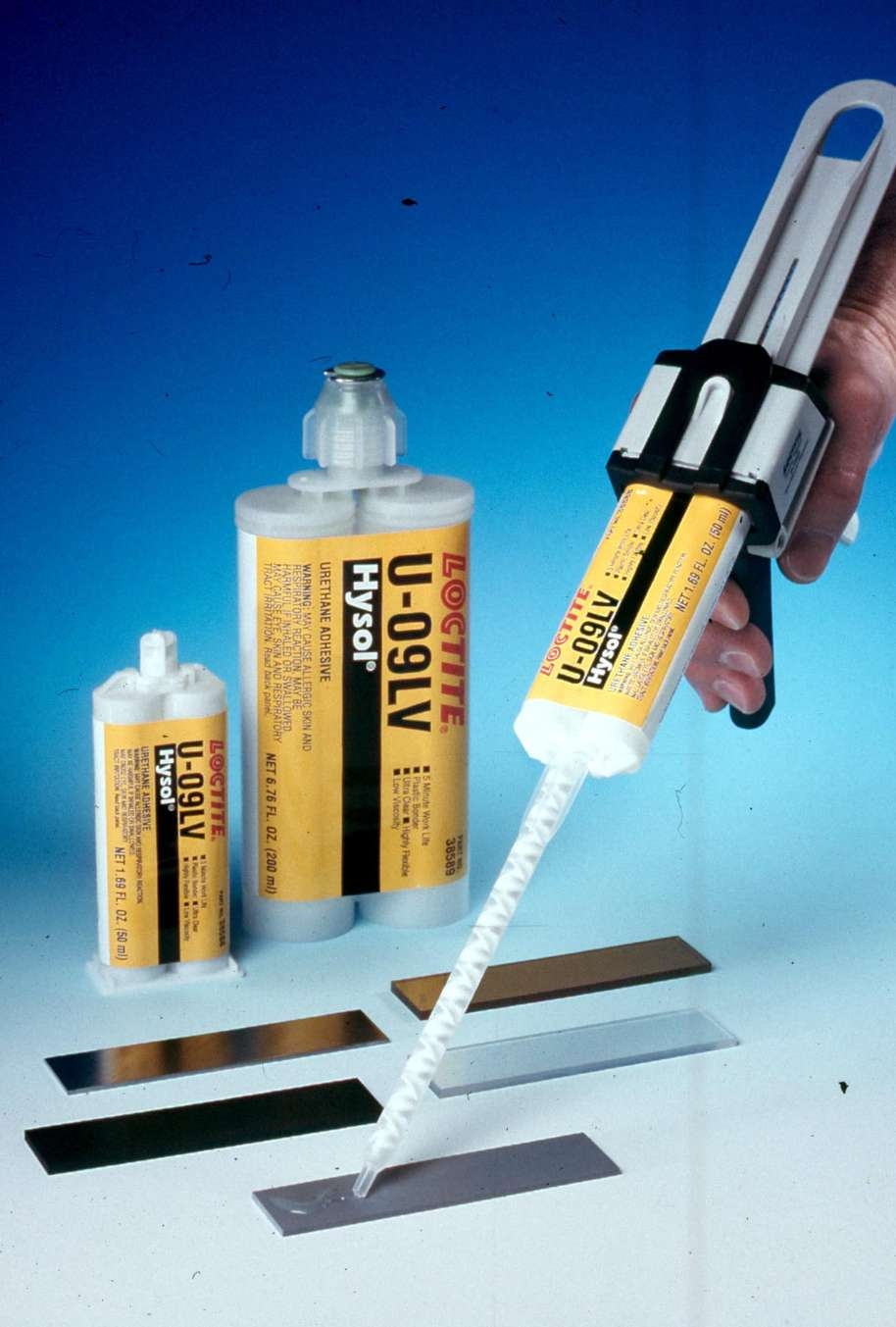

Mar 19, 2004 Loctite® Hysol® U-09LV is low viscosity, industrial grade, 2-component adhesive for bonding polycarbonate, PVC, other plastics, glass, and metal. After mixing, adhesive cures at room temperature and is suitable for applications that require optically clear, non-yellowing adhesive.

Spence Engineering Co., Inc.    Walden, NY 12586-0230

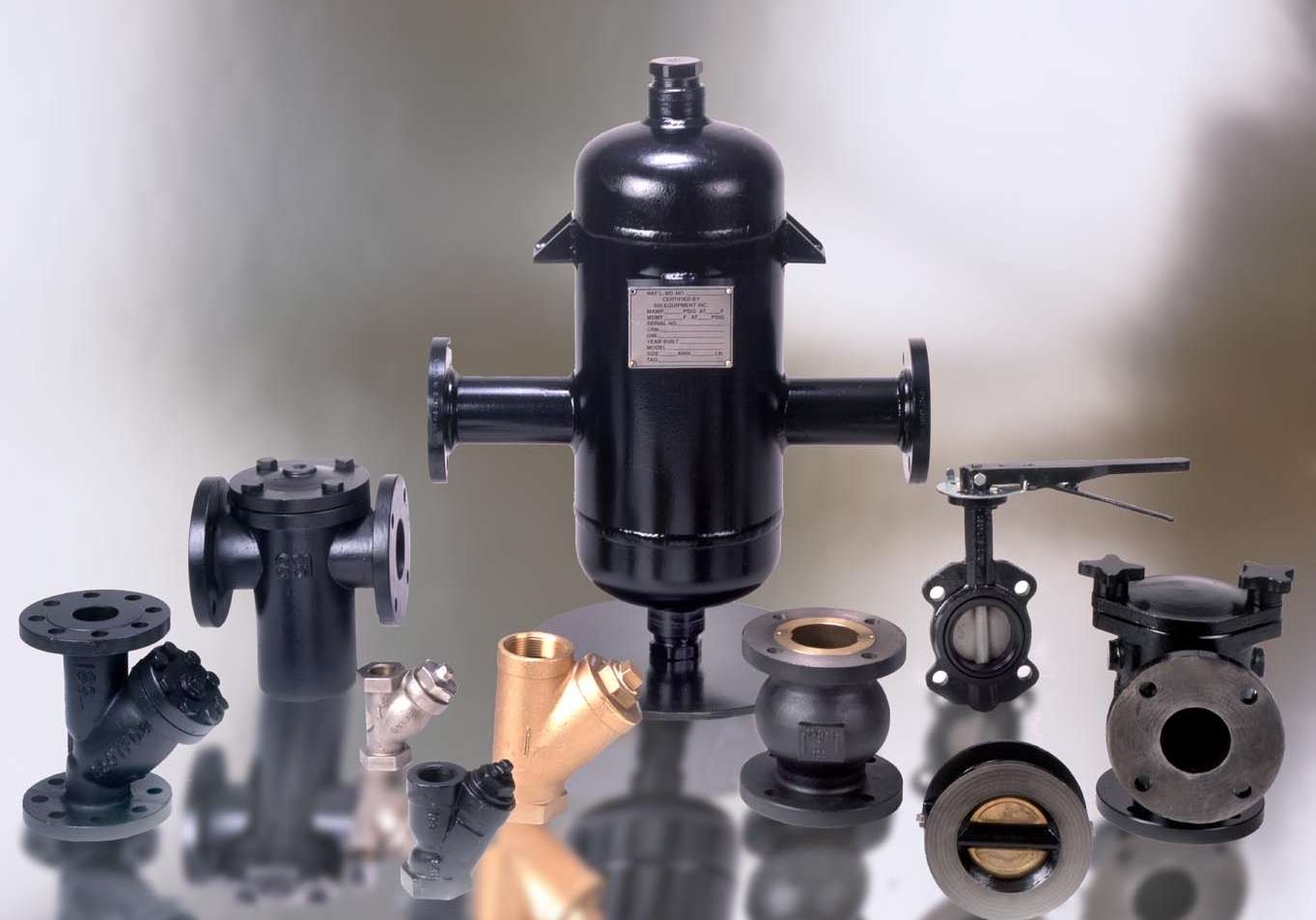

Mar 17, 2004 Y Strainers are offered in cast iron, bronze, carbon steel, chrome molly, and stainless steel with threaded, flanged, socket-weld, butt-weld, and sweat end connections. Sizes from ¼â€“16 in. are available with upper and lower machined seats, drain/blow-off connections furnished with plug, and stainless steel screens. Screens, with open flow areas greater than pipe cross-sectional area, minimize initial pressure drop and maximize time between cleanings.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Mar 16, 2004 Series TT Transfer Tubes instantly provide air movement when compressed air is applied. Transfer speed and output flow can be infinitely adjusted by regulating input pressure. Made from aluminum with anodized finish, units come in bore sizes from 0.375–1 in. ID, with airflow from 15–145 scfm. Straight-through bore design lets materials pass through without clogging. Tubes are suited for pneumatic conveying, loading hoppers or bulk bins, and dust and trim waste removal.

Busch, Inc.    Virginia Beach, VA 23452
Mar 15, 2004 Mink variable speed, positive displacement pump provides vacuum or pressure via 2 non-contacting, claw-type rotors in oil-free chamber. Wearing parts are thermally separated from pumping chamber to extend pump life. Pressure pump is available in 6 sizes with max pressure of 29.4 psig, while vacuum pump comes in 6 single-stage sizes and two 2-stage sizes with max vacuum of 29.3 in. Hg.

SMC Corporation Of America    Indianapolis, IN 46226

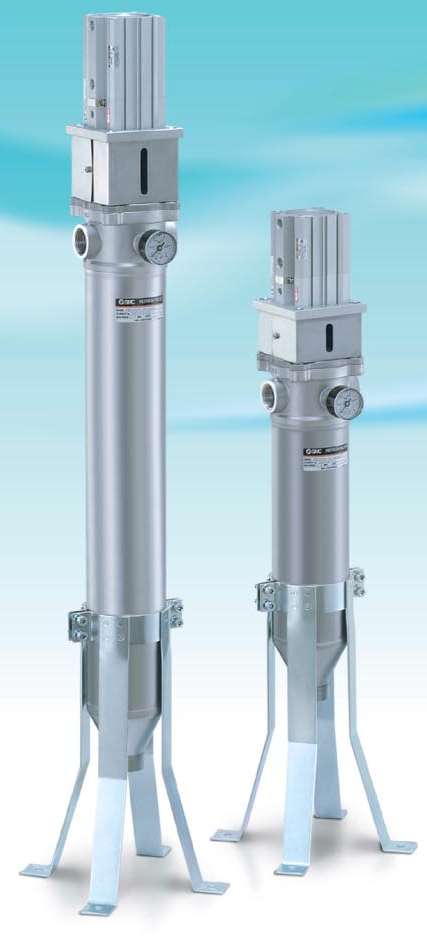

Mar 08, 2004 Constructed of stainless steel SUS304, environmental friendly Series FN1 Filter incorporates back-flush feature, which, along with filtration process, may be manual or automatic. Cylindrical or step element is constructed of grooved filter plates and wave washers placed one above other and compressed by compact cylinder. Element lengths are 250 and 500 mm with respective flow rates of 40 and 80 lpm at 20 micron filtration.

Parker Hannifin Corp., Filtration & Separation Div. Balston Products    Tewksbury, MA 01876
Feb 27, 2004 Nitrosource Nitrogen Generators include digital data management system offering status and system setup information, maintenance indicators, alarm functions, data exchange facilities, and remote control option. Modules can be added to main unit if additional output capacity is required. Generators offer flow rates from 20–120 scfm with nitrogen gas purities from 95–99.5%. All models include prefilters, carbon tower, membrane filter, and built-in oxygen monitor.

Great Western Mfg. Co., Inc.    Leavenworth, KS 66048 0149

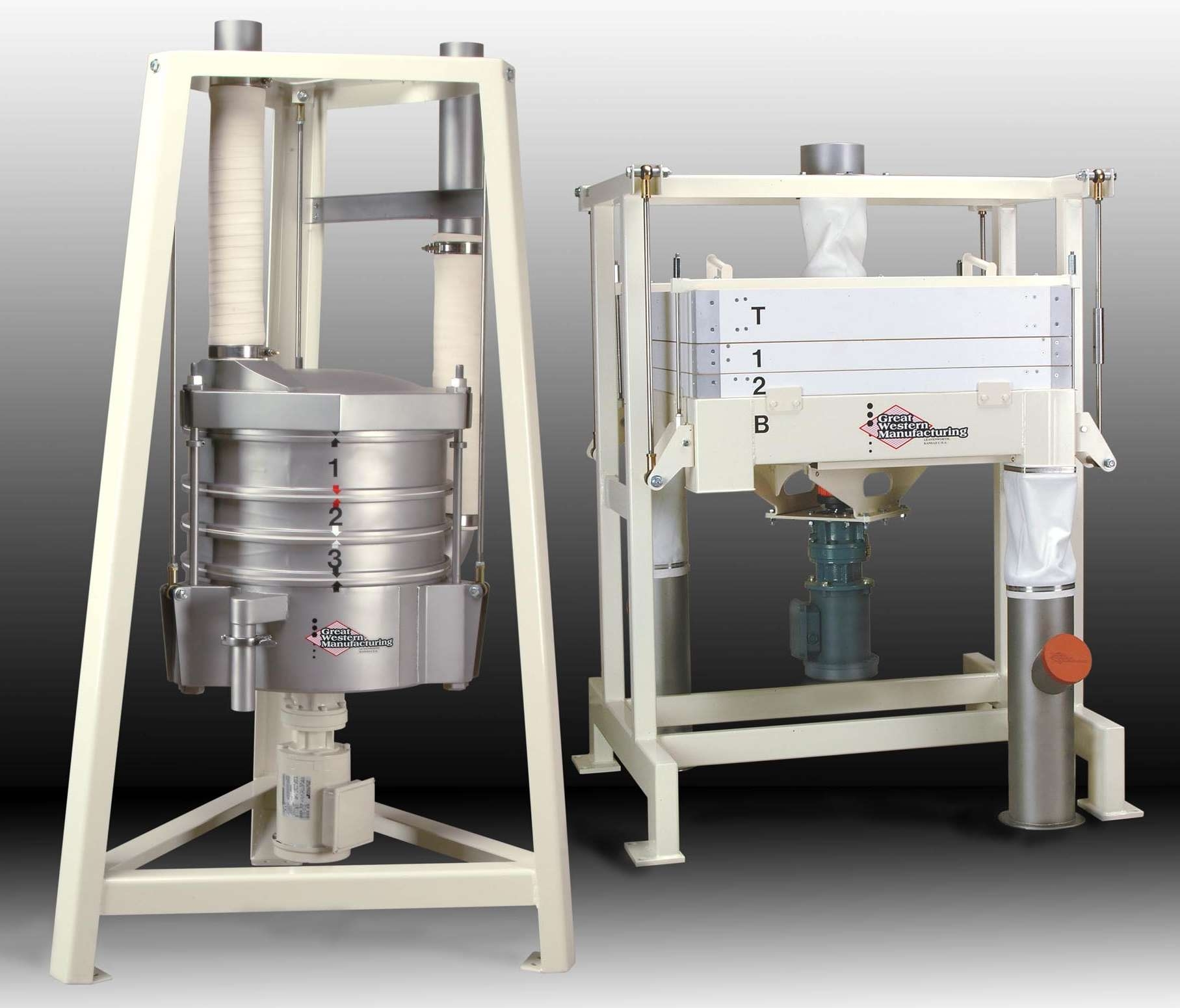

Feb 26, 2004 GyroSift is available with 1–3 sieves in choice of 3 sieve types. Suited for applications requiring small screen areas, it can be floor-mounted or suspended. Pneumatic, in-line, Model QA24 has smooth surfaces and snap-on neoprene gaskets that do not use adhesives. Net screen area is 4–10 ft² and capacity is 25–350 lb/min. Intended for high sanitation environments, system can be inserted into vacuum or dilute phase pressure pneumatic conveying system.

Diversified Brands, A Sherwin-Williams Business Group    Solon, OH 44139
Feb 20, 2004 High-gloss Iron Guardâ„¢ DTM Acrylic Enamel enables direct-to-metal application on new or cleaned metal. Low VOC, low odor enamel complies with current regulations and lowers emmissions. Gloss retention technology enables resistance to early moisture, chemicals, flash rust/early rust, and corrosion. Iron Guard is available in 13 package colors, 3 tinting bases, and 2 primers. Suitable substrates include steel, iron, aluminum, concrete, masonry, and wood.

Nicholson Steam Trap    Walden, NY 12586 2000
Feb 20, 2004 Series NFT Free Float Steam Traps are available in sizes ½ through 2 in. with flanged, screwed, or socketweld end connections, for pressures to 650 psig and temperatures to 750°F. Stainless steel internal components protect against erosion and corrosion, and there are no mechanical components to repair or replace. Optional SLR Orifice provides continuous condensate bleed, which prevents flash steam lockup when it is impossible to install trap at low point in system.

ZL Engineering Plastics    Peekskill, NY 10566

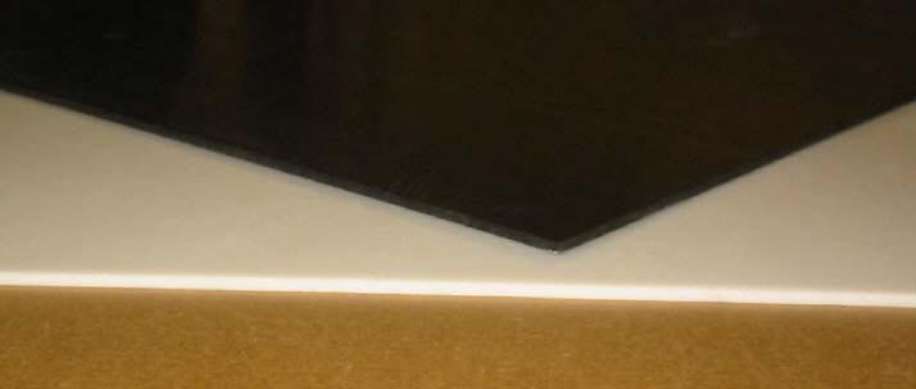

Feb 18, 2004 Natural copolymer acetal plate and black copolymer acetal plate, measuring 48 x 96 x ¼ in., are suited for applications with temperatures below 180°F that require parts with close tolerances or moderate wear resistance in wet environment. Parts machined from acetal offer low water absorption and dimensional stability. Material is used in bearings, bushings, gears, material handling equipment parts, electronic components, and parts in pump assemblies.

Valco Instrument Co., Inc.    Houston, TX 77255
Feb 17, 2004 Cheminert Nanovolume HPLC Injectors and Switching Valves feature .004 in. bore that is uniform throughout flowpath, creating less than 25 nl of port-to-port volume. Individual fingertight fittings work with PEEK, fused-silica, and 1/32 in. electroformed-nickel tubing. Microelectric actuator, operating at 100 msec, determines accurate positioning without limit switches or customer adjustment. Computer control is facilitated via RS-232 or RS-485 interface.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207

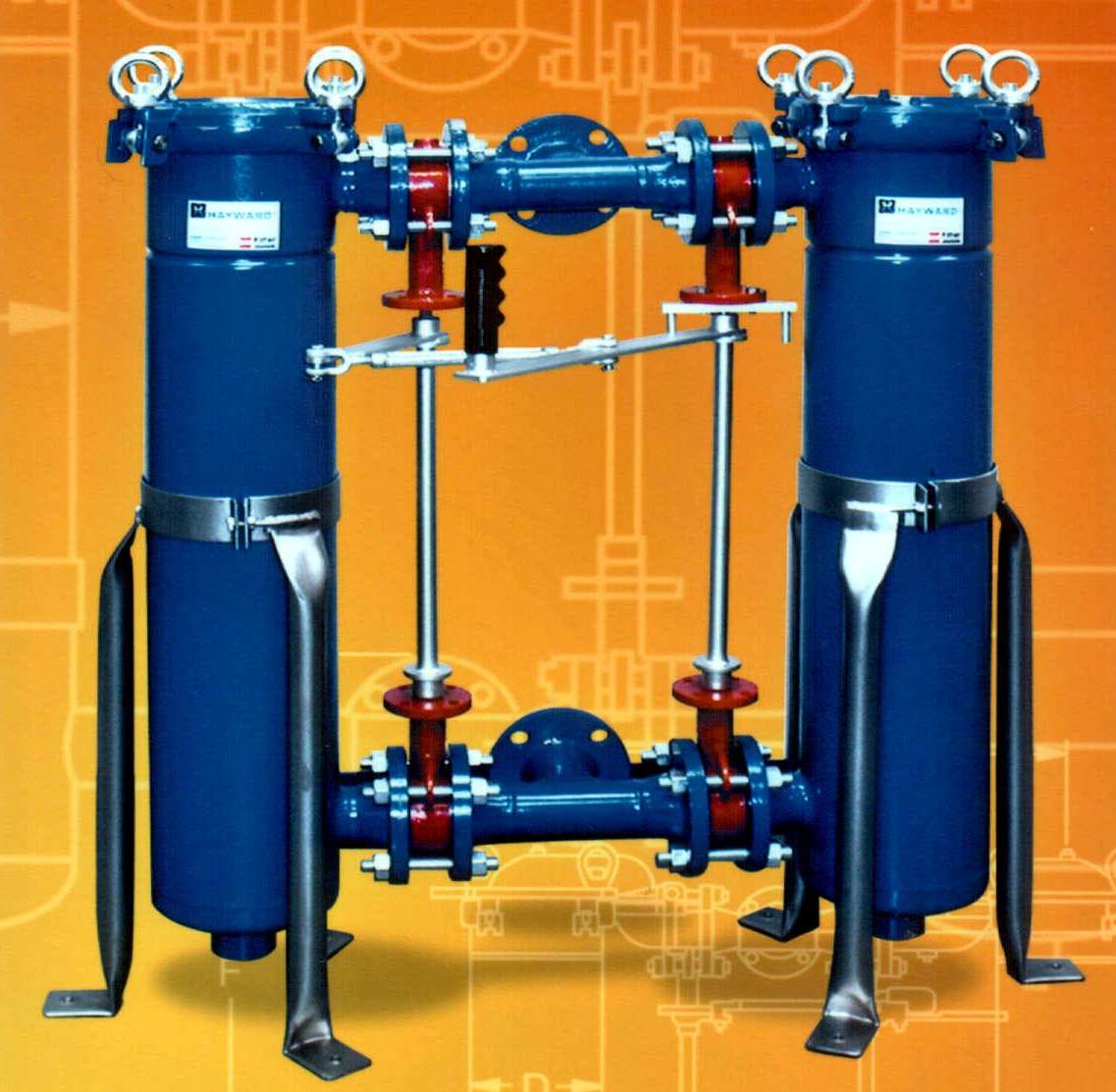

Feb 17, 2004 DUOLINEâ„¢ Bag Filters consist of 2, double length, single bag filter housings linked together with ball or butterfly valve switching system. When bag in one filter housing requires changing, flow can be diverted to other housing by opening and closing valves. Single movement of operating handle opens and closes 4 valves at once, so there is no danger of flow being shut down. Filters come in carbon steel or stainless steel with 2 or 3 in., 150 lb ANSI flanged connections.

Bohle, L.B., Inc.    Bristol, PA 19007

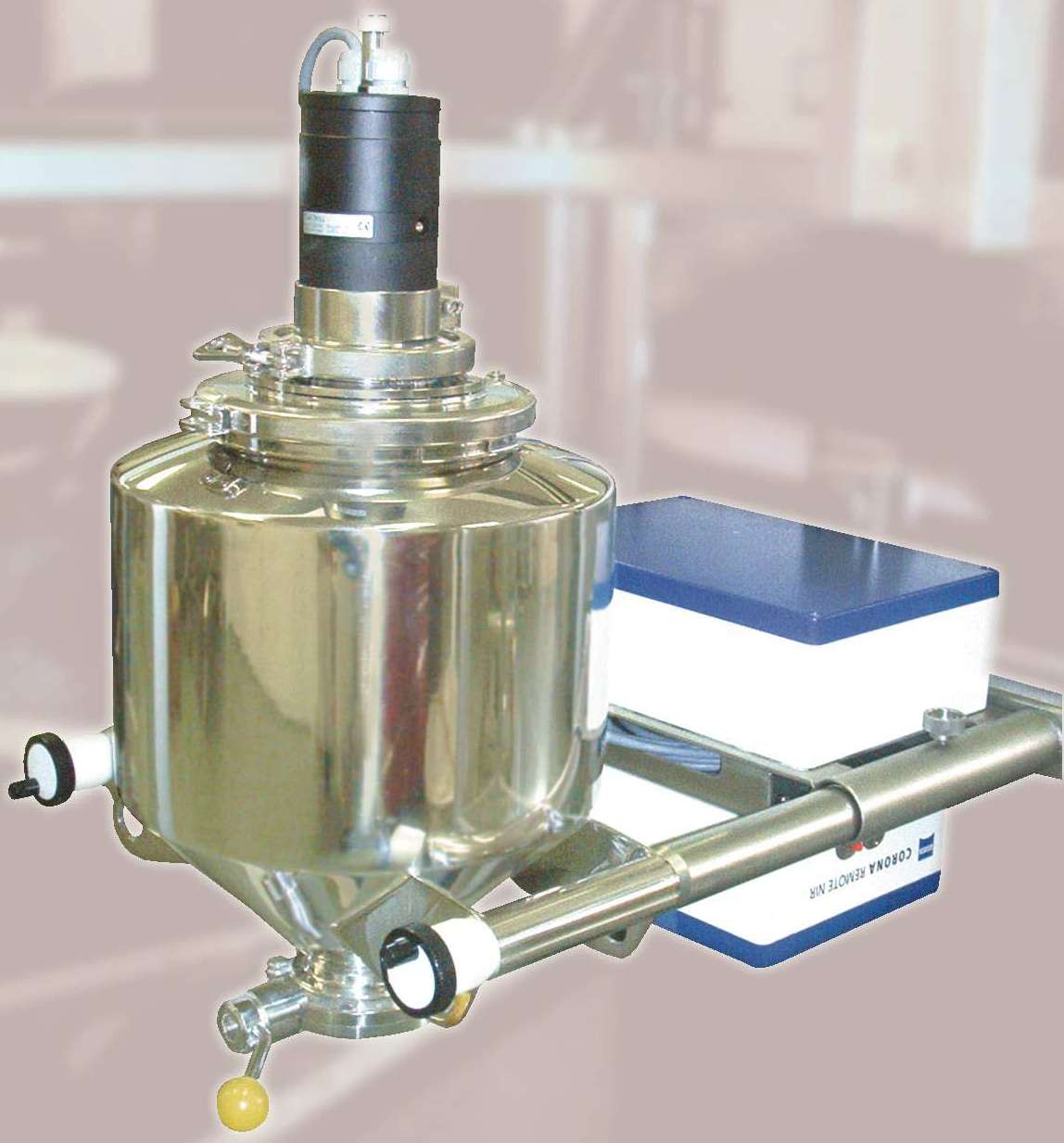

Feb 17, 2004 Fully Integrated NIR System monitors blend homogeneity and end-point determination during powder blending operations in real-time. Fully closed, turnkey system eliminates physical sampling requirements and incorporates NIR spectroscopy with 21CFR Part 11 compliant software that remotely transfers immediate, reliable data to PC. System employs vibration-resistant design and prevents contact with potent products during testing.

Caterpillar, Inc.    Peoria, IL 61629
Feb 13, 2004 Able to efficiently compact sub-base, base, and surface courses, CB-434D double drum vibratory asphalt compactor features automatic speed control with impact spacing indicator, operator's station with electronic/ergonomic propel lever, and vertical yoke frame. It has 50/50 articulation, 5 amplitude settings, and swing out radiator/oil cooler. With 59 in. wide drums, machine can be used on all phases of asphalt compaction.

Filtration Technology Corporation    Houston, TX 77041
Feb 12, 2004 Series 600 DEEP PLEAT consists of multi-media filter bags that handle particulates from 0.9–38 microns. Dirt holding capacity is maximized by pleating several different filter media together in single pleat pack. Standard bags are polypropylene or polyester and designed to fit into existing filter housings as retrofit replacement without hardware modifications. Different filter media is available to meet specific industry or plant standards.

Tra-Con, Inc.    Bedford, MA 01730

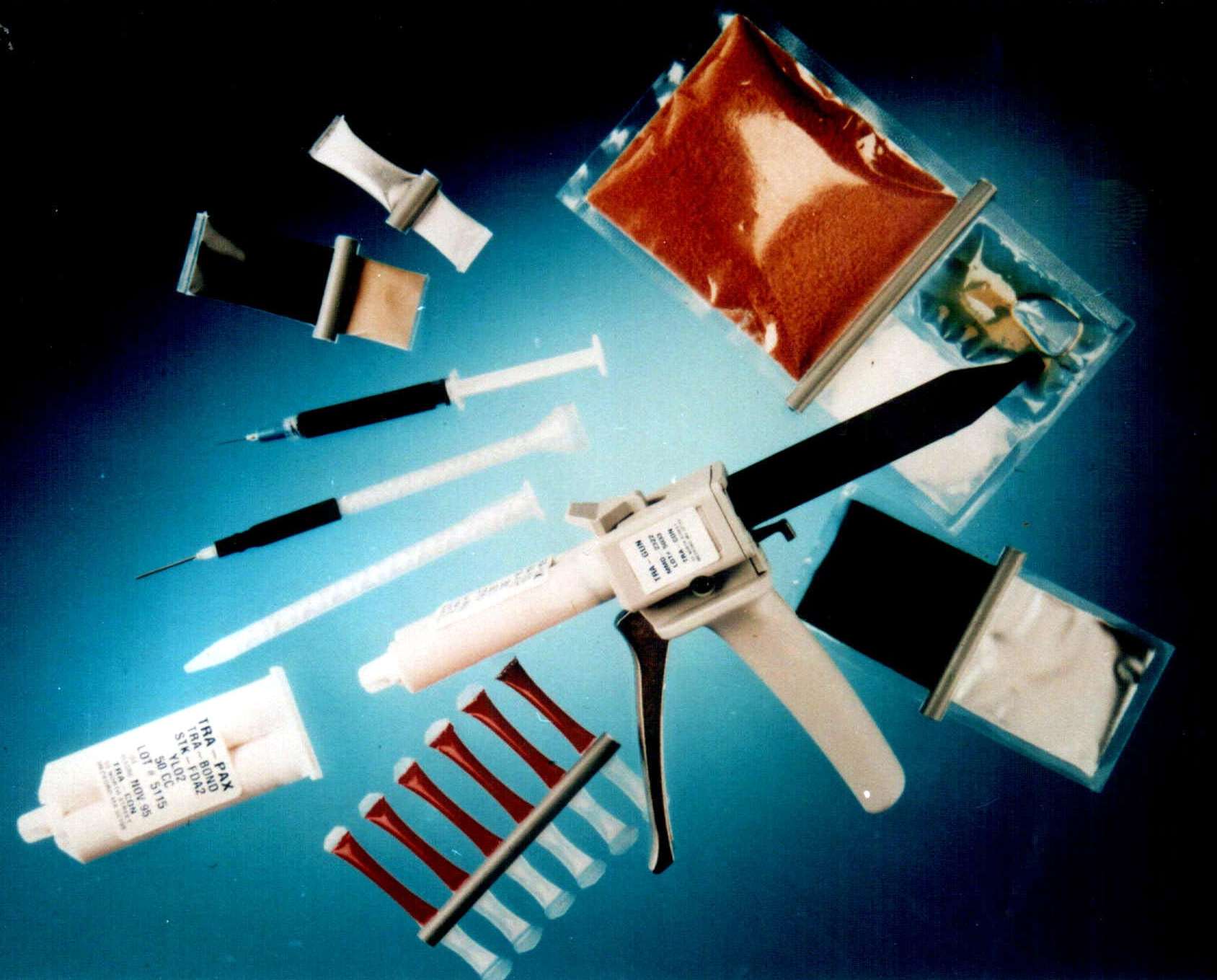

Feb 06, 2004 Silicone-based TRA-CAST 813J01 bonds well to difficult substrates, exhibits low stress, and can cure at room temperatures. Soft and flexible material has medium viscosity prior to cure. Once hardened, adhesive can handle temperatures up to 260°C without reverting. It has low Tg and work life of over 1½ hours. Typical applications include encapsulation of heat sinks, transistors, and power sources.

Airguard Industries, Inc.    Louisville, KY 40218
Jan 30, 2004 Suitable for pulse-jet dust collectors, cartridges are made with 100% spun-bond polyester media. Media filters fine particulates, has good dust-cake release characteristics, and resists abrasion. Cartridges are washable for repeated use and resistant to many acids, alkalis, oxidizing agents, and solvent.

Ensinger, Inc.    Washington, PA 15301

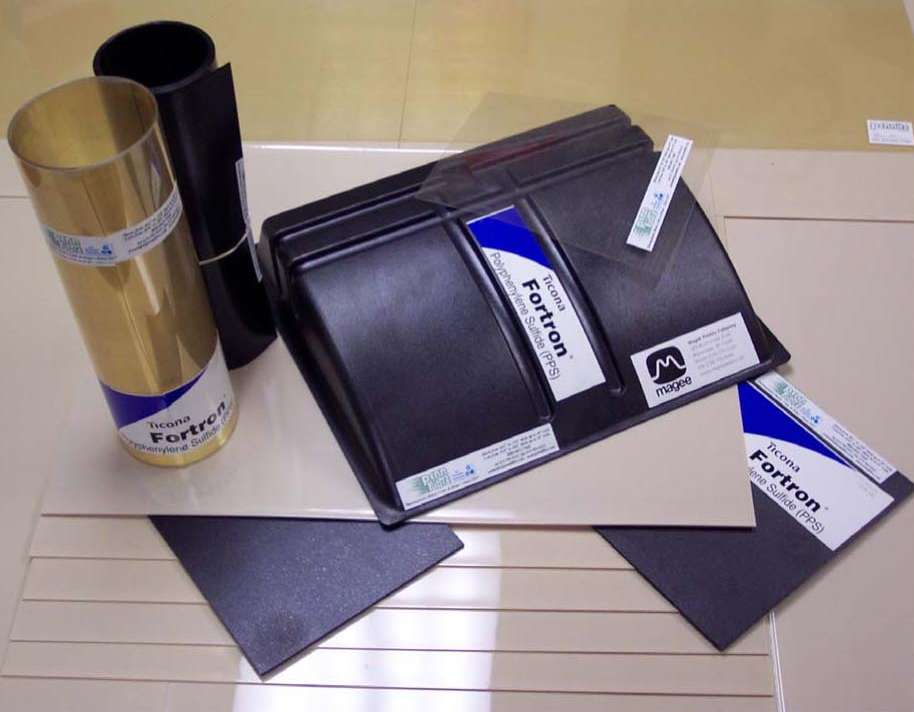

Jan 28, 2004 Thermoformable polyphenylene sulfide (PPS) sheet and roll products are suited for applications requiring thermal and chemical resistance and inherent flame retardancy. Available as monolayer sheets and rolls in widths to 48 in. and thicknesses from 0.010–0.25 in., products encompass neat, glass-filled and modified grades containing impact modifiers and tougheners. Melt point enables processing to occur between 550 and 600°F.
