DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039

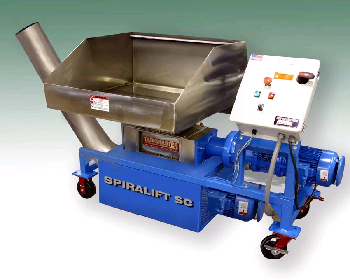

Nov 02, 2005 SPIRALIFT SC adds benefits of in-channel auger screening system to existing mechanical bar screen installation. Bar screen automatically removes solids from liquid channel and deposits them by gravity into SPIRALIFT SC hopper. Solids are reduced to small size by TASKMASTER® grinder, and are then washed to remove contaminants and organics, compacted, and conveyed from system by shaftless screw unit. SPIRALIFT SC unit is freestanding and includes PLC-based control system.

Tema    Cincinnati, OH 45249

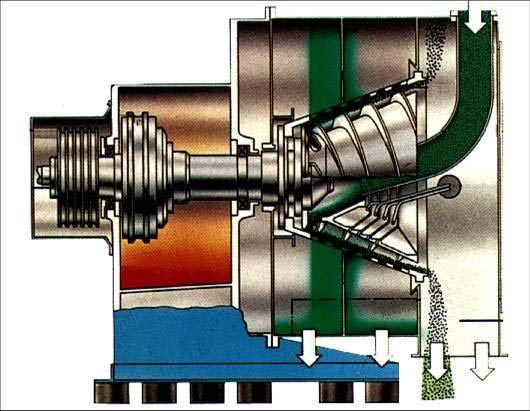

Nov 01, 2005 Conturbex Worm Screen Centrifuge features 100 µm or larger screen to remove up to 50% of remaining free moisture from crystalline material. Process works by screw feeding belt filter cake into center of continuously operating centrifuge. Centrifuge spins cake at up to 1,200 g, driving free moisture through screen and continuously discharging solids to dryer with lower moisture.

Flexicon Corporation    Bethlehem, PA 18020 8006
Oct 31, 2005 Pneumatic batching system consists of bulk bag dischargers mounted on load cells that allow loss-of-weight batching. System controller starts and stops rotary airlock valve to weigh ingredients. Minor, pre-weighed ingredients are added at manual dumping station, and dilute-phase vacuum conveyor line terminates at filter receiver that accumulates batch, then discharges it through slide gate valve into a ribbon blender, enabling concurrent batching and blending of materials.

Parker Hannifin Corp., Tube Fittings Div.    Columbus, OH 43228
Oct 28, 2005 Offering nominal ratings from 65-480 microns, Protective Screen Fittings are available in sizes -4 through -12 for use with Triple-Lok® 37° flare and Seal-Lok(TM) O-ring face seal fittings. Constructed with stainless steel screen elements, -4 size features basket-style screen, while remaining sizes are dome style. Screen fittings are suited for gauge and instrumentation protection, as well as shielding of critical hydraulic components.

Abanaki Corp., Oil Skimmer Div.    Chagrin Falls, OH 44023
Oct 27, 2005 Weighing 7 lb, Mighty Mini® SST compact belt skimmer is available with coolant decanter that optimizes efficiency of parts washers and machine tool coolant sumps by making it possible for coolant to be recycled for reuse. Decanter separates coolant from skimmed tramp oils, minimizing/eliminating coolant thrown out with tramp. Able to remove oils at up to 2 gph, oil skimmer is made of 304 stainless steel and has 24 hr timer for unattended operation.

E-Components & Chains Limited    Pocklington, York YO42 1NR  United Kingdom
Oct 27, 2005 Featuring housings made from impact-resistant/food contact-approved polypropylene material, Anti-Microbial Pens contain additive that inhibits bacteria build-up with protective barrier that reforms even after cleaning. Protection lasts lifetime of product. Pens are available in retractable and non-retractable types with selection of color inks including blue, black, and red.

GE Advanced Materials    Wilton, CT 06897

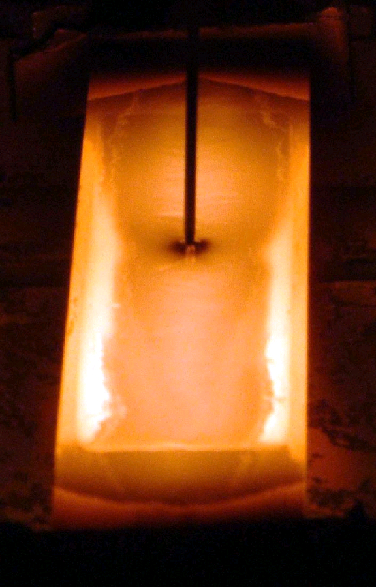

Oct 26, 2005 Able to withstand temperatures of 1,500°C or more, VaporStar Intermetallic Composite Evaporation Boats resist corrosion from different metals and provide even wet-out for consistency of deposition on substrate. They stay wettable throughout their life, even after grooving and slag build up that is typical after long periods of metallization. Thermal shock resistance enables boats to resist cracking during initial heating.

Edwards Vacuum Technology    Wilmington, MA 01887

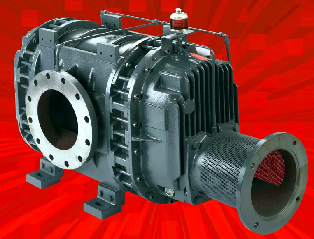

Oct 25, 2005 Based on Roots technology, SN Series is manufactured in cast iron with mechanical shaft seal and internal piston ring seals as standard. Depending on model, boosters can be supplied with motors, or variable speed drives and couplings and are available to UL, CSA, or CE Standards. Chemical versions are certified to meet ATEX requirements. Boosters are suited for steel degassing, metallurgy, coating, electron beam welding, and process engineering industries.

Kason Corporation    Millburn, NJ 07041

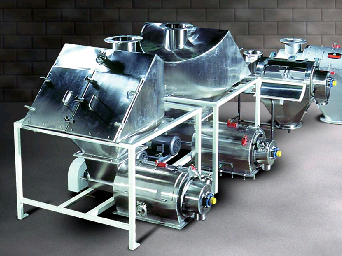

Oct 25, 2005 Configured for installation on mezzanine, Low Profile Centri-Sifter(TM) removes oversize contaminants, de-lumps manually dumped bulk materials, and gravity-discharges into process equipment. Centrifugal action created by rotating helical paddles accelerates rate at which particles pass through horizontal screen cylinder while de-lumping soft agglomerates. Bag Dump Screener is stainless steel and finished to industrial, food, 3-A dairy, and pharmaceutical standards.

JASCO, Inc.    Easton, MD 21601

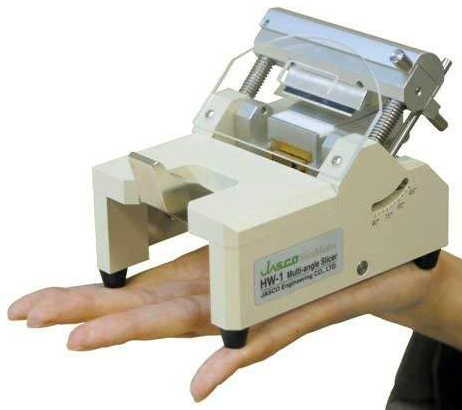

Oct 18, 2005 SliceMaster HS-1 Vertical Slicer is capable of cutting various materials in thin sections from 100-600 µm, depending on material, with variable thickness selection. Capable of cutting samples at 15° angle, HK-1 Angled Slicer handles thicknesses from 60-140 µm. Model HW-1 Multi-angle Slicer, capable of cutting samples at any angle from 45-90°, allows user to view slicing process of samples with microscope. It provides thin sections from 10-500 µm.

Nova Chemicals Corp.    Calgary, AB T2P 5C6  Canada
Oct 13, 2005 Offering freezer-to-microwave performance, DYLARK® FG 2500 styrenic copolymer provides low-temperature toughness and high-temperature rigidity that reduces danger of leakage or spillage when hot food is removed from microwave or transported. Recyclable resin, manufactured as tinted, clear, or foamed containers, can be processed on existing polystyrene or PET equipment. It is suited for restaurant takeout containers, food serviceware, and freezer-to-microwave meals.

Nova Chemicals Corp.    Calgary, AB T2P 5C6  Canada
Oct 13, 2005 Able to be processed on existing styrenics equipment, shatter-resistant ZYLAR® EX 720 can be used to design complex parts for refrigerated or frozen food packaging. Clear acrylic copolymer enhances visibility of food inside container while protecting food in low-temperature environments such as freezers or refrigerators. Uses include fresh fruit and produce containers, salad bowls and lids, cold beverage containers, deli trays, and frozen dessert packages.

Orelis S.A.S    Miribel 01708  France
Oct 05, 2005 Intended for ultrafiltration of electrophoretic paint, Pleiade® MP4 consists of stack of separate membranes. Users can see quality of permeate from each membrane though window and isolate individual membranes by means of small valve, eliminating production stoppage. Offering alternative to spiral systems and manufactured from plastics and composites, filter is modular, interchangeable, and resistant to corrosion.

Flowserve Corporation    Irving, TX 75039

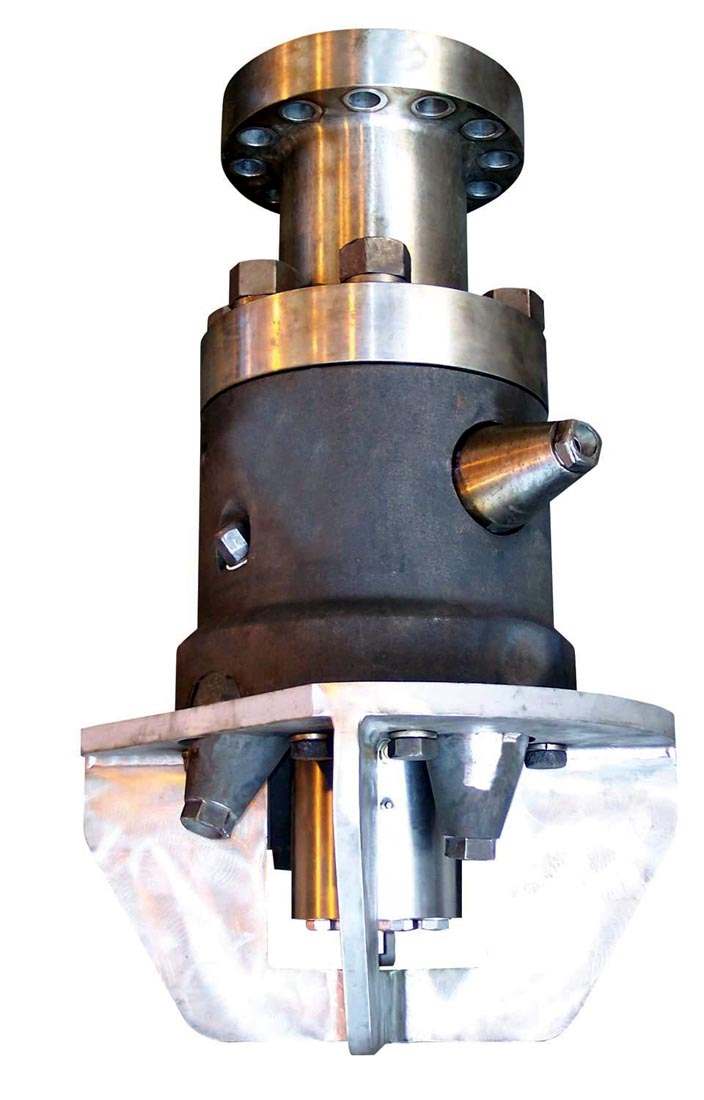

Sep 28, 2005 Available as either new equipment or as upgrade to existing hydraulic decoking systems, AutoShift(TM) combination cutting tool enables automation of hydraulic decoking operations. Mode shifting is accomplished remotely by water pressurization and depressurization, thus avoiding personnel exposure to high pressure water, hot spots or steam eruptions, hydrogen sulfide vapors, and mechanical hazards. Manual shift feature is also provided.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Sep 27, 2005 TASKMASTER TITAN TM 14000 utilizes 2 counter-rotating shafts, 5 hp motor, and cycloidal gear drive. Intermeshing cutter stacks have 2 different diameters, and cutting chambers vary from 14 x 16 in. to 14 x 60 in. Machine also comes equipped with S260 Automatic Jam Sensing Controller, which senses jam conditions and automatically reverses unit momentarily to clear obstruction. It handles items such as wood, plastics, paper, wastewater, bulky items, foodstuffs, and bottles.

Kason Corporation    Millburn, NJ 07041

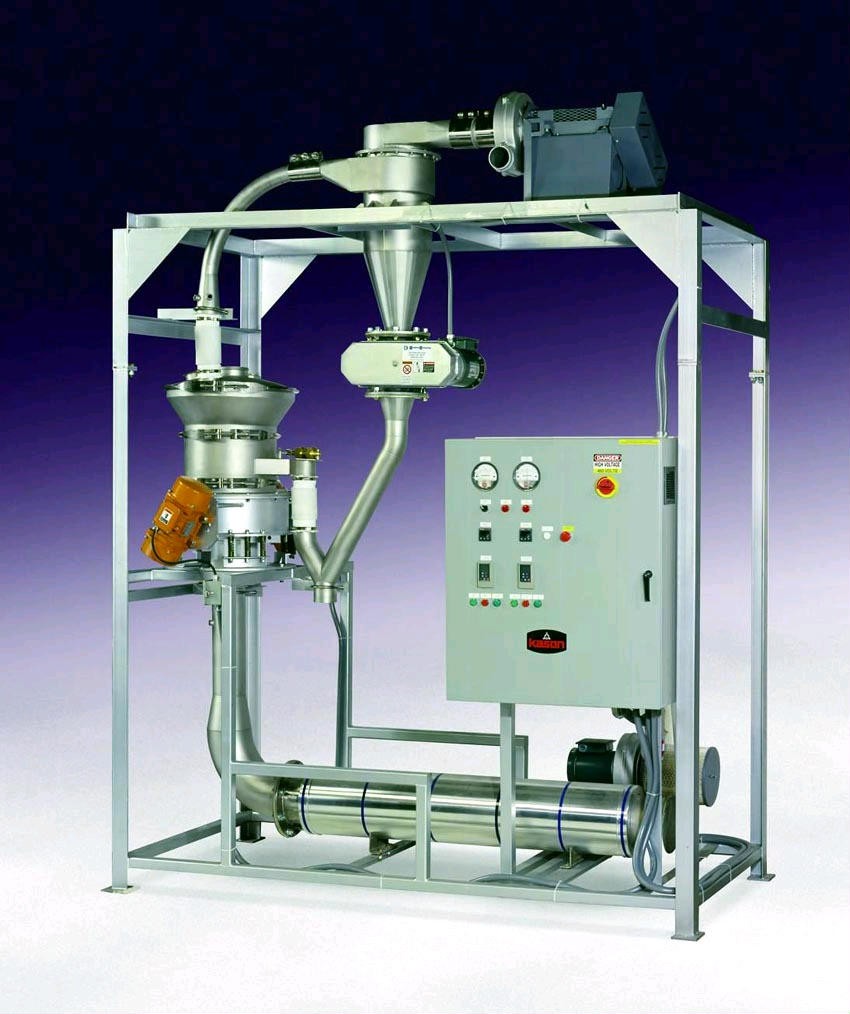

Sep 20, 2005 Circular Vibratory Fluid Bed Processing System dries batches up to 1 cu-ft at high temperatures. Integrating 18 in. diameter fluid bed processor with heater, blower, cyclone separator and control, self-contained system is ready for connection to material inlet/outlet and power source. At end of each drying cycle, valve at spout of fluid bed chamber opens automatically to evacuate batch. Optional package allows drying at temperatures up to 600°F.

Emseal Joint Systems, Ltd.    Westborough, MA 01581
Sep 20, 2005 Designed for curtainwall and metal cladding systems, as well as concrete, brick, and stone structures, pre-compressed COLORSEAL combines factory-applied and cured silicone bellows with impregnated expanded foam sealant backing. Silicone remains pliant, UV stable, and watertight over time and temperature. R-value of 3.28/in. of depth imparts thermal insulation at structural join-gaps, while non-invasive anchoring eliminates need to drill or screw into sensitive substrates.

Kason Corporation    Millburn, NJ 07041
Sep 16, 2005 Equipped with single or twin imbalanced-weight gyratory motors, VIBROSCREEN® scalps oversize particles as small as 38 microns from dry bulk materials or solids-laden slurries. It meets cGMP, 3-A, USDA, and FDA standards and can be disassembled without tools for sanitizing. Offered with wire mesh screening in 304, 316, and magnetic 400-series stainless steel, unit is offered in 18, 24, and 30 in. dia. Crevice-free interior is finished to sanitary standards.

PIAB Vacuum Products    Hingham, MA 02043

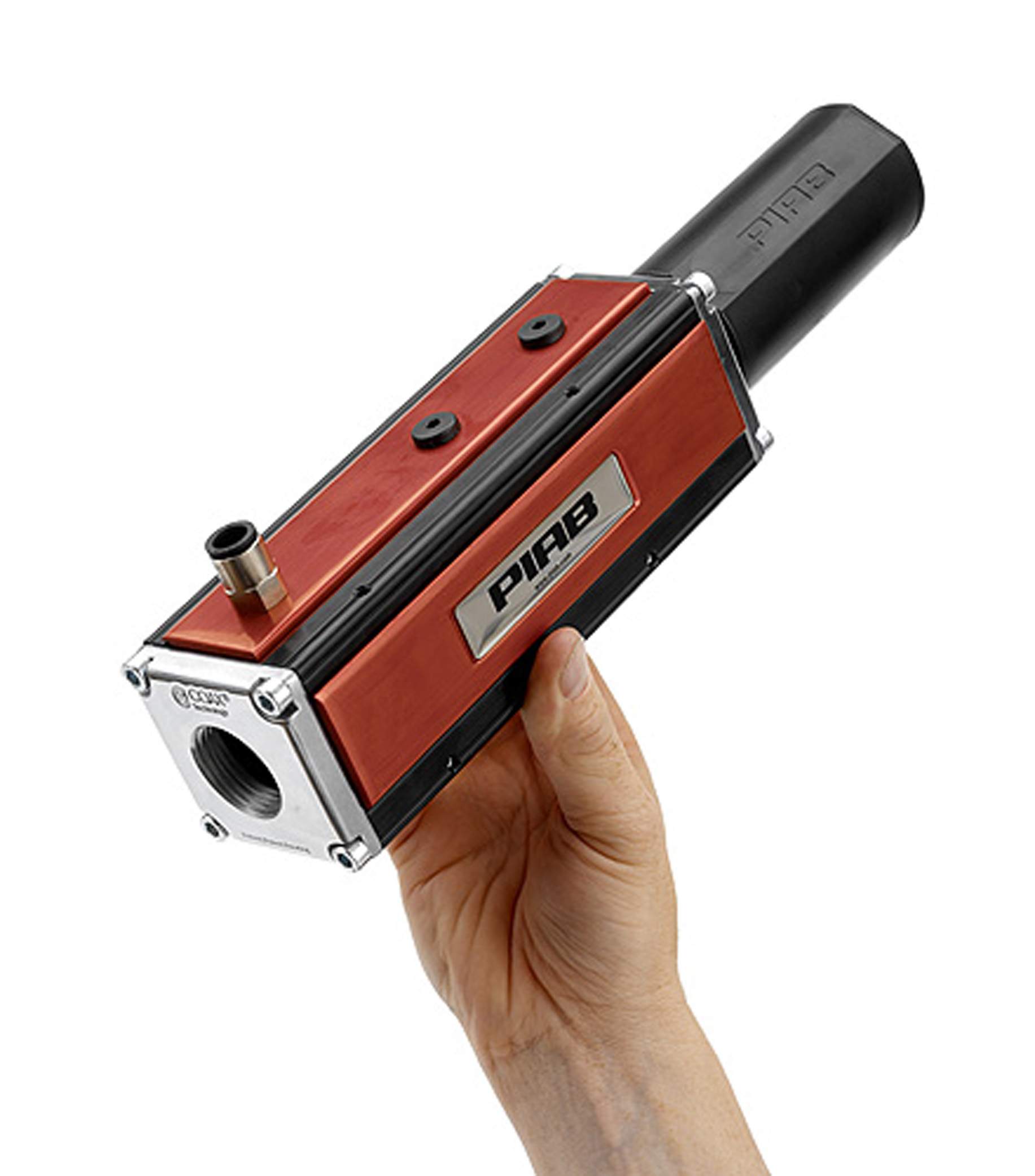

Sep 16, 2005 Based on COAX® multi-stage ejector technology, P6010 has maintenance-free design that delivers whisper-quiet, non-heat generating suction. IP65-rated unit, measuring 3 x 3 x 8 in., features modular construction and comes with choice of PIAB Cruise Control or Automatic Vacuum Management integrated control options. While both options provide vacuum sensing capability, former is suited for leak-prone materials, and latter suits non-leaking objects.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581

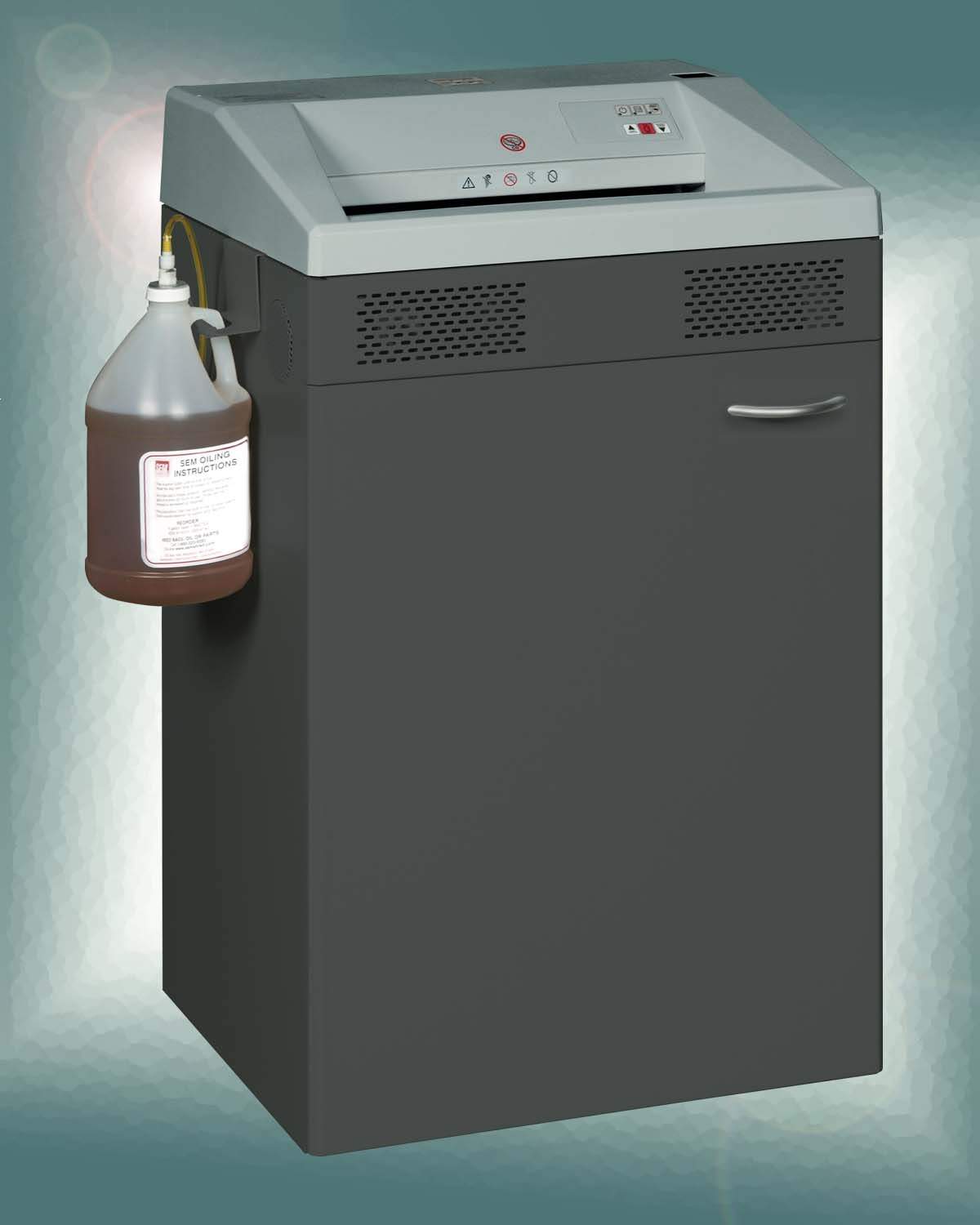

Sep 16, 2005 Powered by 1½ hp motor, maximum security Model 5140/3 shreds paper to 1 x 5 mm particles at speeds of 40 fpm. Built-in oiling system keeps cutting blades sharp, even under constant use. Photoelectric controls provide hands-free start and stop; cutters are activated by introduction of documents and are automatically shut off when material is shredded. If door of machine is open or bag inside is full, blades will not operate and indicator light will signal problem.
