Mi-T-M Corporation    Peosta, IA 52068
Jun 19, 2002 Portable AC1-PH55-08M has 5.5 hp OHV engine with single stage aluminum compressor head, cast iron cylinder and crankcase, and 10 in. flywheel for extra cooling and longer life. Compressor has canister intake filter, powder coated belt guard, pneumatic tire, powder coated 8 gal twin tank receivers, idle control, and pilot valve. It also has two gauges for tank and outlet pressure, manual drain valves, stainless steel braided discharge hose, splash lubrication, and regulator.

Gardner Denver    Quincy, IL 62301

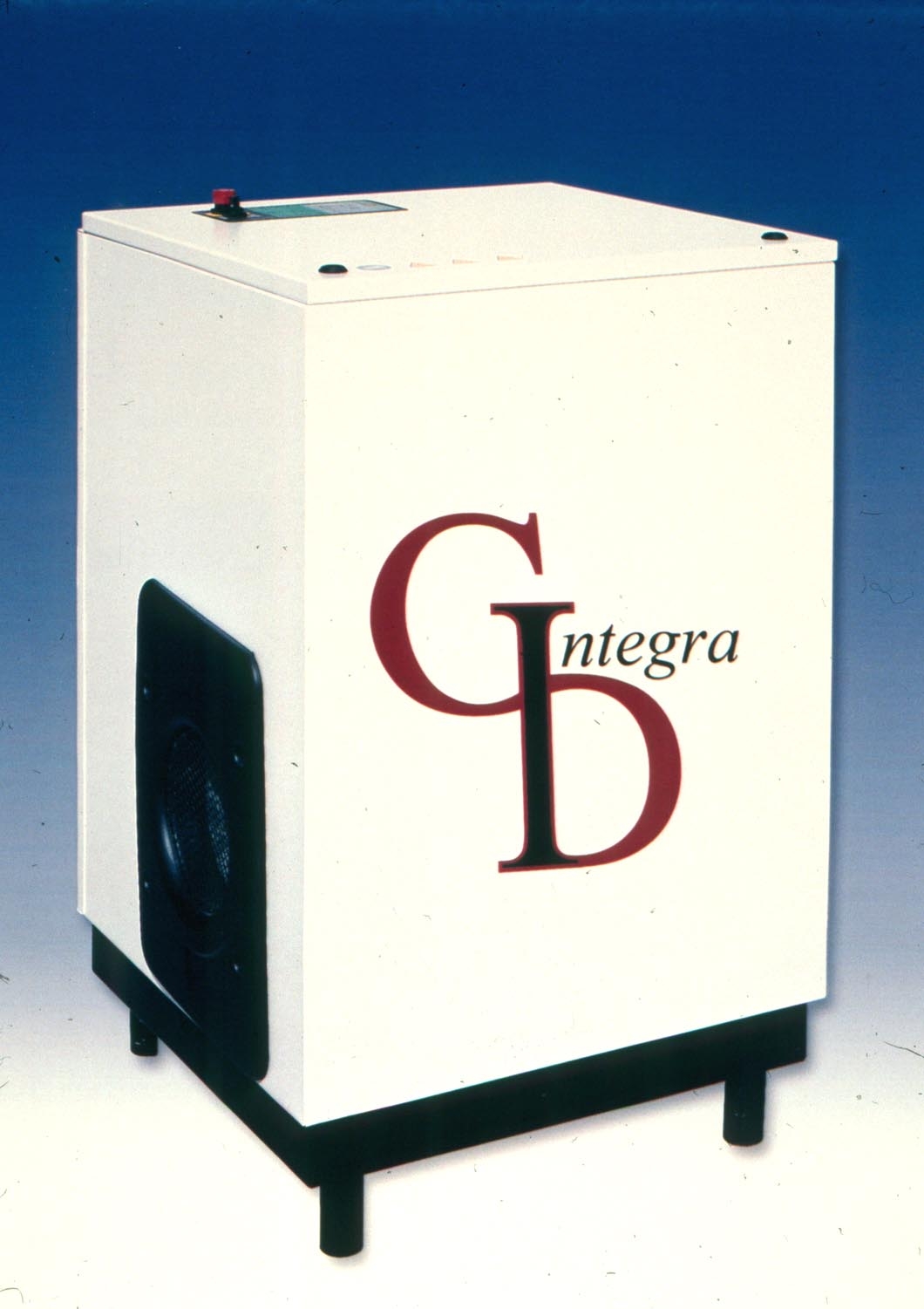

Jun 17, 2002 GD Integra 5-10 hp rotary screw air compressor has 66-68 dBA noise level standard. It combines lubricant sump, air/lubricant separation system, mixing valve, and air-end into single integrated component. Compressor provides cool, clean air at discharges of 100 to 175 psi at flows of 15 to 41 cfm. Measuring 30 x 29 x 45 in., compressor can be placed into existing floor plan and maneuvered directly next to location of air demanding station.

Thomas Products Division    Sheboygan, WI 53081

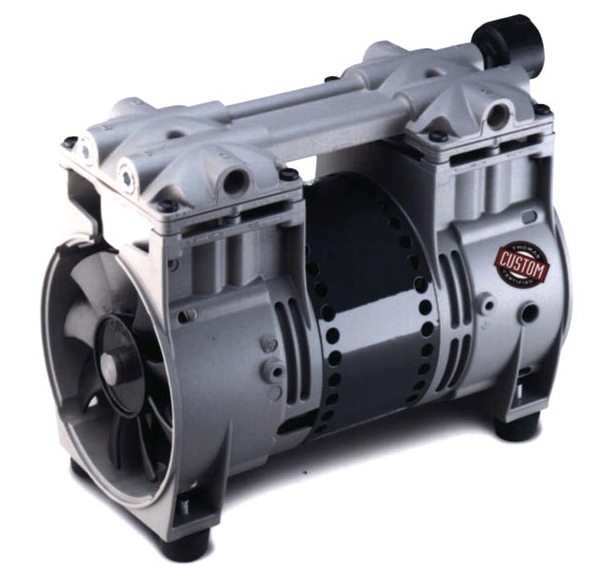

Jun 05, 2002 Series 2660 WOB-L® piston compressors' one-piece cast aluminum head design eliminates leakage and reduces sound levels. Features include nine-blade fans and high performance piston seals. Pressure is rated to 160 psi (max), maximum vacuum is rated to 29.2 in. Hg, and free flow is rated to 5.60 cfm (max). Series suits medical equipment and industrial applications.

Atlas Copco Compressors Inc.    Holyoke, MA 01040 2768

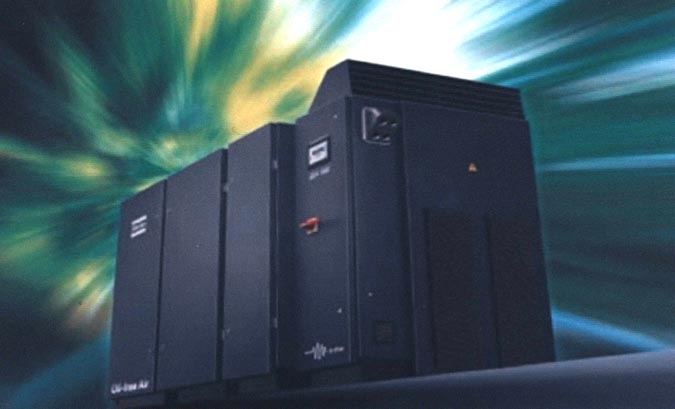

May 28, 2002 ZE 4 Variable Speed Drive Compressor offers operating range of pressure and flow variants to cover 1 to 3.5 bar and 800 to 3100 m³/hr respectively. It includes integrated frequency converter and oil-free screw design. Vibration free, ZE 4 is fully compliant with EMC directives, and comes in ready-to-use packaging. Features include air intake filter, check valve, and full load/no load regulator. Its silencing canopy reduces noise level to 75 dB(A).

Kaeser Compressors, Inc.    Fredericksburg, VA 22404

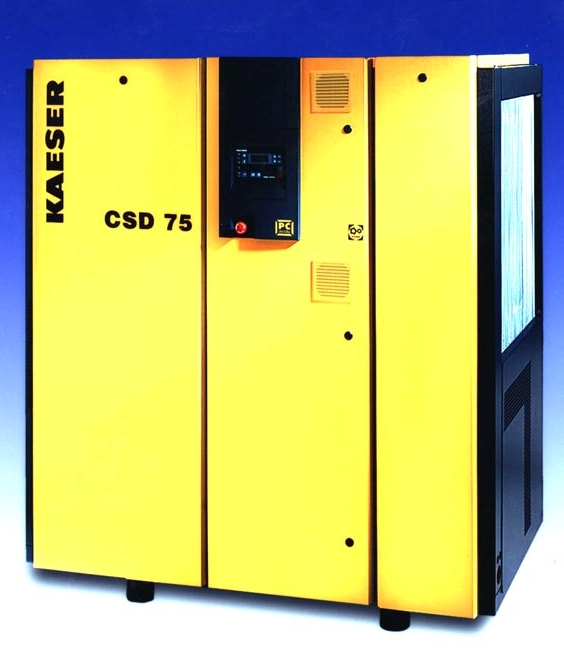

May 16, 2002 BSD and CSD rotary screw compressors are 40 to 75 hp units available in flows from 158 to 361 cfm and pressures to 217 psig. They include Sigma Profile airend and Sigma Control system. Oversized airend is connected directly to motor via maintenance-free coupling. All units are fitted with high-efficiency separator system for extremely low oil carry over.

Thomas Products Division    Sheboygan, WI 53081
May 09, 2002 Series 6025 oil-less, linear devices provide maximum continuous and restart pressures up to 4.0 psi, maximum intermittent pressure up to 5.5 psi, maximum vacuum up to 7.5 in. Hg, and maximum flow of 1.5 cfm. Series is available in pressure and pressure vacuum models, and for 60Hz/50Hz operation. Quiet operation eliminates need for sound insulation and low pulsation eliminates need for pulsation chamber. Applications include providing air for medical air beds.

Mi-T-M Corporation    Peosta, IA 52068
Apr 26, 2002 Model AC1-HE02-08M and model AC1-HE03-08M are 2.0 and 3.0 HP electric units, respectively. Features include 1.5 to 3.0 HP 120 V (230 V on 3.0 HP unit) electric motors, single stage compressor head, and 10 in. fly wheel. The 2.0 HP model is available with dual voltage option. Both models include 14 gauge powder coated belt guard, pneumatic tire, powder coated 8 gallon twin tank receivers, auto start/stop with continuous run optional, and drain valves.

Mi-T-M Corporation    Peosta, IA 52068

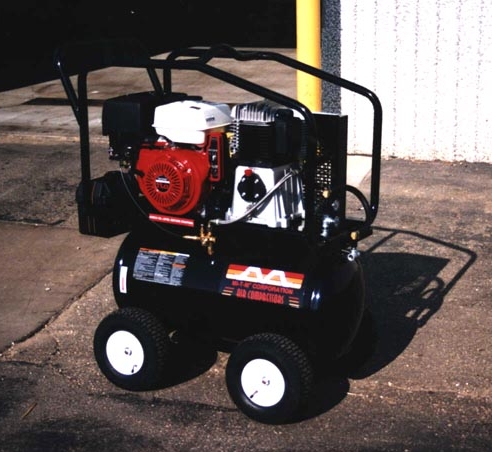

Apr 24, 2002 Two-stage air compressor has 11 hp gasoline engine with 15.7 in. fly wheel for extra cooling and longer life. It has cast iron cylinders, large canister intake filters, 14 ga powder coated belt guard, powder coated roll cage, 4 pneumatic tires, powder coated 30 gal ASME certified tank receivers, stainless steel braided discharge hose, 2 gauges for tank and outlet pressure, manual drain valve for proper maintenance, splash lubrication, and regulator.

Mi-T-M Corporation    Peosta, IA 52068
Apr 18, 2002 Portable AC1-HE02-05M has 2.0 hp 120 V electric engine, single stage compressor, and thermal overload motor protection. Twin tank is powder coated and has 5 gal capacity, drain valves, pressure release valve, and quick connect fittings. Rubber handles provide better grip. Compact design allows for easy transportation to any job site.

Mi-T-M Corporation    Peosta, IA 52068
Apr 11, 2002 Gasoline-powered AC1-HR45-05M utilizes 4.5 HP Robin OHC engine and features single-stage compressor, powder-coated 5 gal capacity tank, drain valves, and pressure-release valve. Head and crankcase are aluminum, and cylinder is cast iron. Motor and pump have protective housing. Unit includes 2-handled system for one- or two-man transporting.

Sullivan-Palatek, Inc.    Claremont, NH 03743
Apr 10, 2002 30-40-50 DG industrial electric-driven rotary screw air compressor is available in 30-50 hp models that are directly coupled to motor for positive alignment. It is equipped with air pressure gauge, hour meter, discharge temperature gauge, oil filter, and separator element differential gauges. Discharge pipe is steel braided flexible pipe. Large air intake has oversize multi-stage dry type replaceable element.

Mi-T-M Corporation    Peosta, IA 52068

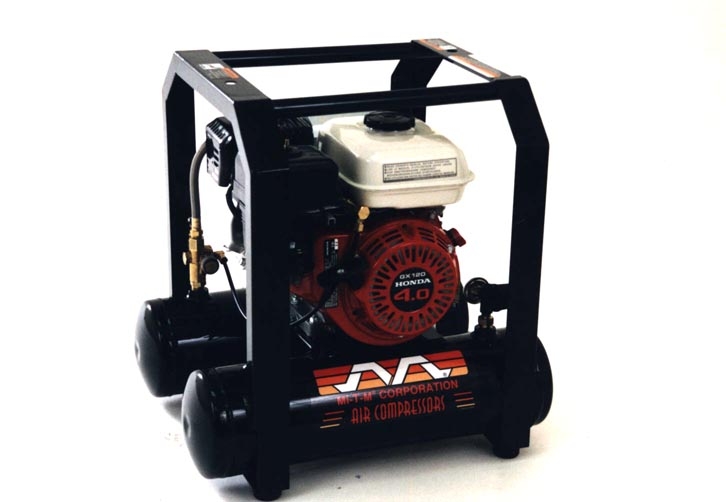

Mar 21, 2002 AC1-HH04-05M hand-carry air compressor utilizes 4.0 HP OHV engine, and has single-stage compressor, twin tank design, powder-coated 5 gal capacity tank, drain valves and pressure release valve, and protective pump and motor housing. Crankcase and head are made of aluminum, and cylinder is cast iron. Two handled system allows 1 or 2 man transporting.

RIX Industries    Benicia, CA 94510
Mar 05, 2002 Oil-free, compact RIX MicroBoost booster compressor fills gas cylinders with oxygen, nitrogen, air and other gases to 2,200 psig. 3-stage system allows user to draw supply cylinders down to 0 psig. Available in 110 and 230 V configurations, it weighs 40 lb, fits in 16 x 9 x 14 in. space, and produces 20 SCFH. Motor-driven booster does not rely on air or nitrogen for drive power, which can save over 75% on power costs.

Ingersoll-Rand Co.    Woodcliff Lake, NJ 07675
Jan 11, 2002 Compressor's hybrid permanent magneto HPM synchronous motor features independent coil modules that can be removed and serviced. HPM motor directly drives compressor, eliminating need for motor bearings, gears, pulleys, belts, couplings, or motor shaft seals. With fewer components to wear out, leak or get out of alignment, compressor offers increased reliability and simple maintenance.

Sullair Corporation    Michigan City, IN 46360

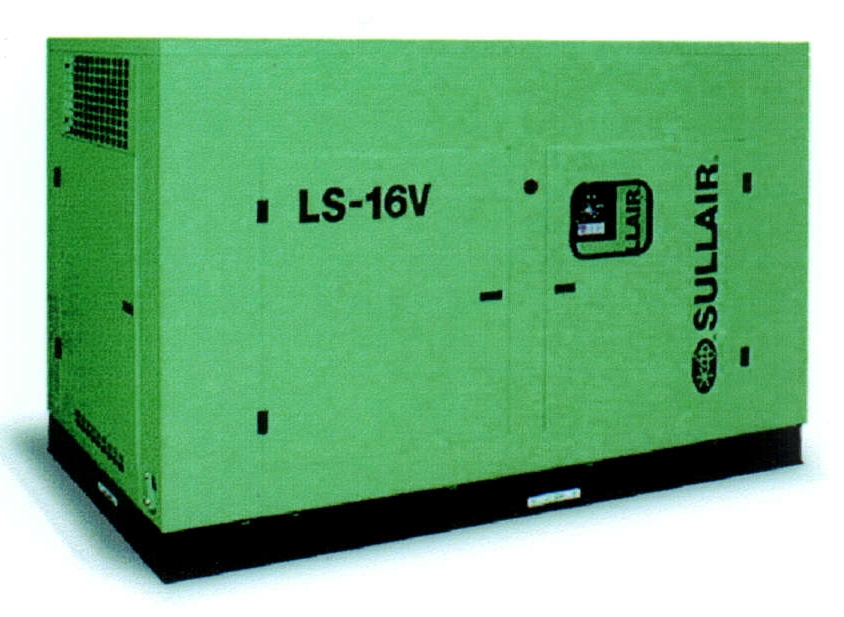

Dec 13, 2001 Variable speed drive on LS-1 6V compressor optimizes compressor output by matching system demand and saving energy. Control system also provides optimum part-load control. Compressor is available in 75 and 100 hp models with 225 to 450 cfm output and pressure ratings of 100 to 175 psig. Air-cooled and water-cooled models are available. Supervisor Controller has built-in sequencing capabilities for multiple compressors.

Sullair Corporation    Michigan City, IN 46360

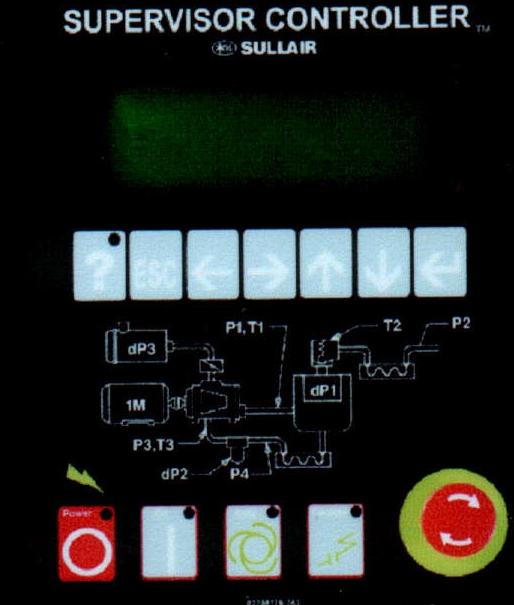

Dec 13, 2001 Supervisor Controller monitors and controls compressor, and communicates via RS485 and RS232 ports. Dual control provides lead-lag and sequencing with multiple compressors. Unit has 4-line, full-text display for constant readout of pressure and temperature, on-demand readout of operating and maintenance conditions, monitoring of key functions and safety shutdowns, and power failure auto re-start.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404

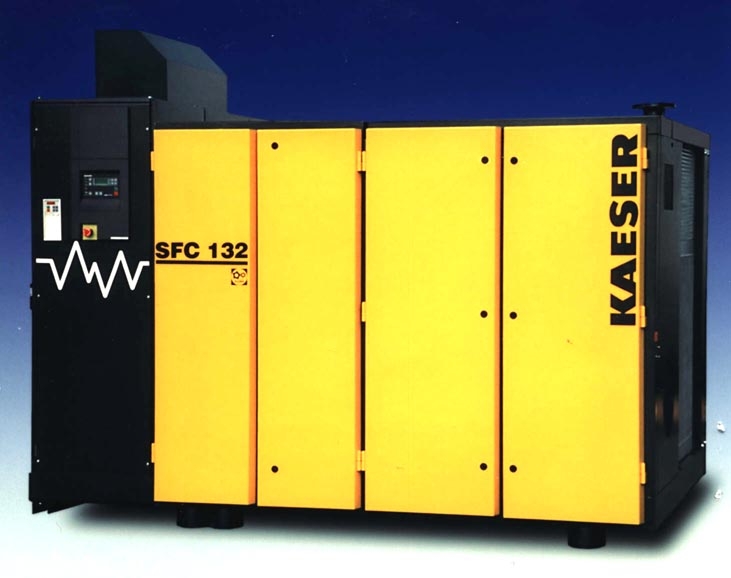

Dec 11, 2001 Sigma Screw Compressors with Sigma Frequency Control (SFC) are available with 100-215 hp and flows from 130-1001 cfm to provide pressures from 80-145 psig. Direct drive airend/motor package is designed to provide 20-100% efficiency over its entire speed range. SFC can run fully loaded for indefinite periods of time. SFC compressor packages feature sound dampening enclosures, EPAct compliant motors, and built-in Eco-Drains for condensate removal.

Anaconda Power Pack, Inc.    Moscow, OH 45153
Dec 11, 2001 Power Pack, with Kohler 5000 W, continuous-duty generator set and Ingersoll Rand 11.3 cfm @ 90 psi Air Compressor, provides power for uses such as supporting 130 A wire feed welder, air wrenches and nail guns, and emergency power needs. Locking control panel has 120V and 240V outlets. Aluminum tread-plate box, with 2.8 cu ft storage area, holds wire-feed welder, enlarged fuel tank, power tools or other supplies.
