Eclipse, Inc.    Rockford, IL 61103 1299
Jul 03, 2003 RatioAir velocity burner has integral packaged blower that is available in 4 different models with capacities from 1–5 mm BTU/hr. Ratio regulator automatically compensates for changes in operating conditions and ensures ratio-controlled operation over turndown range of more than 50:1. Direct drive air butterfly eliminates linkages, and burner achieves gas velocities of up to 500 ft/sec. It suits applications that require use of unusual fuels and confined firing chambers.

Lochinvar Corp.    Nashville, TN 37210 3807
May 13, 2003 Residential water heater, with Shield Combustion Systemâ„¢, employs Lock-Shield flame arrestor plate with 18,000 air louvers that prevent ignited flammable vapors from traveling backwards out of combustion chamber/water heater. Thermal switch detects increases in heat and shuts down gas supply to pilot and main burner. Piezo igniter provides pushbutton ignition of pilot flame, while sight glass allows unrestricted view into combustion chamber for observation of burner and pilot flames.

Leslie Controls, Inc.    Tampa, FL 33637
May 01, 2003 Constantemp heater provides instantaneous hot water at desired temperature. Heat exchanger consists of tube within tube, with air space in between to prevent contamination of potable water by toxic heating substance. Feed-forward blending device ensures hot- and cold-water blend ratio is accurately proportioned to maintain set temperature for flow demands up to 7,200 gph. Integrated fail-safe system prevents overheating/scalding.

FlatPlate, Inc.    York, PA 17404

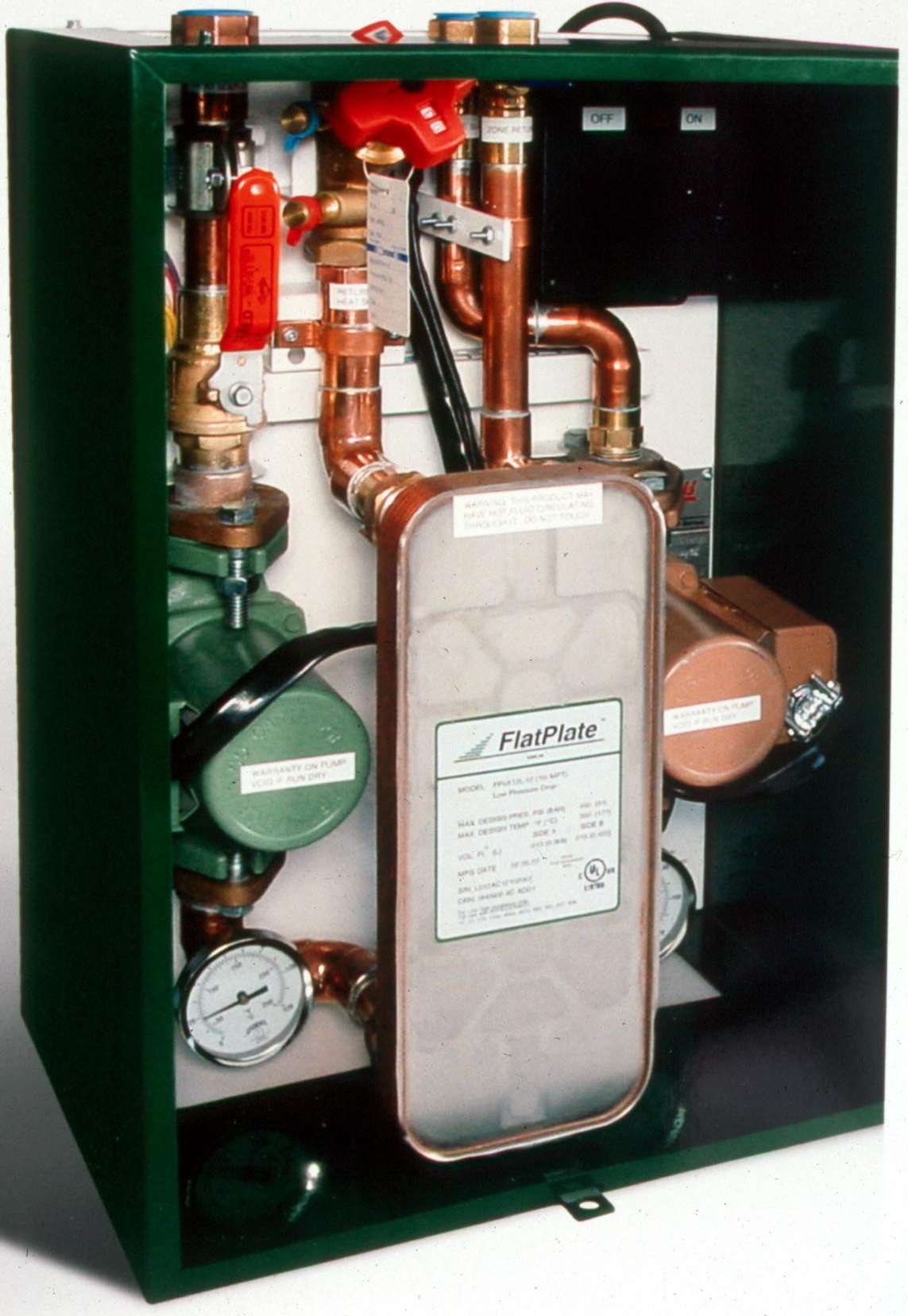

Mar 27, 2003 DHW Green Hot Water Heater Module, for domestic hot water heating, eliminates cold showers when connected to hydronic boilers. Capacity range is 75,000–400,000 Btu/hr, with up to 1,000,000 Btu/hr available when full boiler hot water heating and fast recovery are required. System module includes heat exchanger, pumps, hand and balancing valves, temperature gauges, control interface and electrical connections.

AMTROL Inc.    West Warwick, RI 02893
Mar 27, 2003 BoilerMateâ„¢ Series tanks have seamless inner corrosion-proof, nonmetallic, polyethylene reservoirs, and CFC-free molded insulation. Dual O-Ring Sealing System for WH-7 and WH-9 Series water heaters provides second seal that protects interior section of water heaters. Dual O-ring offers confirmation of seal and guards against future leaks. If seal is not secure, second O-ring inhibits internal water heater damage caused by internal leaks.

AMTROL Inc.    West Warwick, RI 02893
Mar 06, 2003 Indirect-fired Series WH-7 and WH-9 BoilerMateâ„¢ Classic incorporate sealing system which provides second seal that acts as backup for protection of interior section of water heaters. Sealing system disperses water that leaks down exterior sides of water heater if seal is not secure and inhibits internal water heater damage caused by internal leaks. Products use seamless inner corrosion-proof, nonmetallic, polyethylene reservoirs and CFC-free molded insulation.

Lochinvar Corp.    Nashville, TN 37210 3807
Feb 11, 2003 Commercial Copper-Fin II provides 990,000–2,070,000 Btu/hr and 85% (water heater) and 84% (boiler) efficiency. Unit incorporates independent dual-ignition systems, gasketless heat exchanger, and multiple referenced gas valves. Multiple blowers maintain proper airflow, while built-in sequencer automatically controls each function. With 7 venting options, multi-stack frame unit has fan-assisted combustion process, which produces NOx emissions at rates of less than 30 ppm.

Lochinvar Corp.    Nashville, TN 37210 3807
Feb 11, 2003 With fully condensing, sealed combustion chamber, tank type TurboChargerâ„¢ is suited for tight mechanical rooms. Unit offers direct vent design, which draws all combustion air from outside and vents all byproducts outdoors. Submerged combustion chamber, premix power burner, and triple pass flue system create thermal efficiencies to 98%. Single model configuration is offered with storage capacity of 100 gal and firing rate of 200,000 Btu/hr in natural gas.

Excel Comfort Systems, Inc.    Blackville, SC 29817
Feb 06, 2003 SH10B heat pump offers 2–5 ton cooling capacity and up to 7.00 HSPF. Copeland Compliant scroll compressor has insulated cabinet for sound control and vertical air discharge. Unit has evaporator coil with anti-microbial coating, permanently lubricated motors, and galvanized steel base rails. All models feature adjustable time and temperature defrost controls and 4- and 5-ton models are convertible to downshot for rooftop applications.

AMTROL Inc.    West Warwick, RI 02893
Jan 08, 2003 StorageMateâ„¢ insulated tanks are offered in 41, 80, and 119 gallon models. Smallest model utilizes dense, polyethylene liner, while larger models are constructed of stainless steel. Tanks can function as recirculating aquaboosters with tank-less coils, hydronic buffer tanks for low-mass boilers and radiant systems, and as additional storage. Optional mechanical aquastats control temperature. Applications include whirlpool baths, hot tubs, dishwashers, and laundry machines.

Greenheck    Schofield, WI 54476 0410

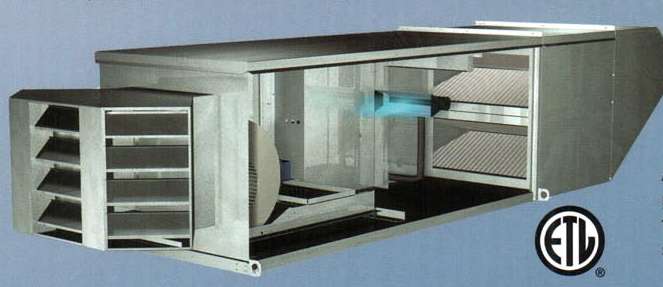

Oct 29, 2002 GreenHeat System uses direct gas-fired burner designed and ETL listed for 140°F temperature rise. It includes discharge diffuser to evenly distribute high temperature air for consistent space heating. Louvers, roof fans and propeller fans are available to complete package.

Melcor Corp., A Unit Of Laird Technologies    Trenton, NJ 08648 4534
Sep 19, 2002 Suitable for cooling and heating various materials or flat surfaces, MPA Series pumps incorporate heat exchangers manufactured with high-density aluminum bonded fin technology and aluminum base plates. Cooling capacities range from 20 to 70+ W, and heating capabilities are rated at over 150 W. Pumps are suitable for hot/cold plates, spot cooling and heating, and liquid container temperature control. High temperature versions (+200°C) are available.

SUSSMAN Electric Boilers, a Div. of Sussman-Automatic Corp.    Long Island City, NY 11101
Jul 30, 2002 Series ES produces steam up to 90 psig in range from 36-540 PPH. It can be located virtually anywhere, and is compatible with standard feed water. Small in size, almost no heat is lost to surrounding ambient. No flues, fuel lines or tanks are involved in operation. Typical applications include: pipe tracing, steam for tanks, autoclaves and sterilizers, food processing and storage, reactors, and humidification.

Everhot All-Copper, Inc.    Watertown, MA 02472-2003

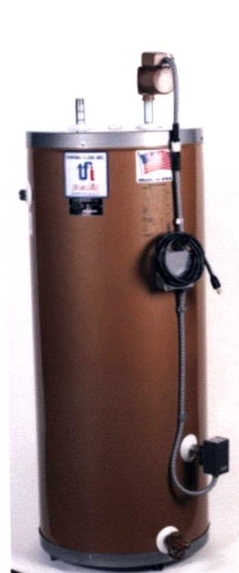

Jun 10, 2002 Indirect Water Heater and Booster maintain hot water temperature with heat loss of under 1/2° per hour. This is made possible via 2 in. CFR Flame Retardant soft foam insulation. Reinforced stainless steel tank base eliminates pressure stress on tank bottom. Aquastat control (thermostat) sits within well space, which enables replacement if tank needs to be drained. Construction includes stainless steel heat exchanger within stainless steel tank shell.

Miura Boiler West, Inc.    Wheeling, IL 60090
Feb 12, 2002 EX Series gas/oil steam boilers have rows of vertical water tubes sandwiched between 2 ring-shaped headers. Because headers are only attached to tubes, they float, unconstrained, up and down with tubes' thermal expansion and contraction. Boilers reach full steam in 5 min and maintain 85% fuel to steam efficiency.

Bryan Steam Corp.    Peru, IN 46970
Feb 07, 2002 DR Series steam and hot water boilers are available in forced draft gas, oil, or dual fuel (gas/oil) fired models. They utilize tube configuration, which provides water-cooled combustion chamber, and stimulates heat transfer. Removable/replaceable tubes require 24 in. for maintenance access. Largest size DR Series boiler is 33-7/8 in. wide, and will fit through most doors.

INDEECO    St. Louis, MO 63144

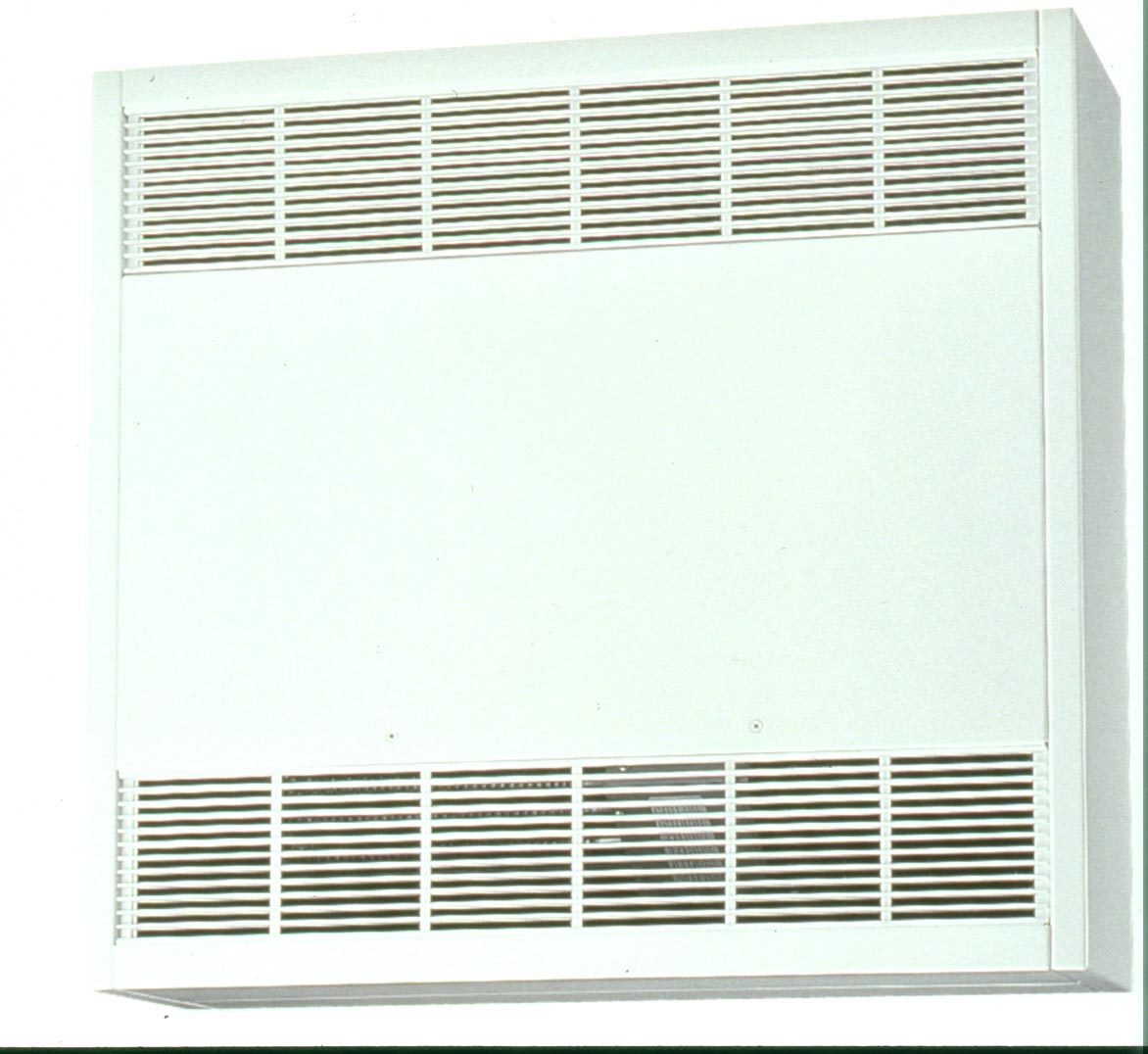

Jan 28, 2002 BAI/BASI Series architectural heaters provide large amounts of quiet heat where fan noise is distracting and unacceptable. Constructed of heavy gauge steel, units are available up to 4 kW. BII/BISI Industrial heaters are constructed of heavy gauge, painted steel with screw assembly for additional strength and are available up to 2.5 kW. BCI/BCSI commercial heaters feature aluminum cover with steel cabinetry and are available up to 2.5 kW.

Indeeco Controls    St. Louis, MO 63144
Jan 02, 2002 Ranging from 2-24 kW, CUI Series heaters may be mounted on floor, wall or ceiling, or recessed into wall or ceiling. Standard voltages include 208, 240, 277 and 480, with other voltages available. Lengths range from 28-80 in., depending on kW and voltage. Extruded aluminum grille discourages tampering with finned, tubular heating element. Controls include built-in automatic reset thermal cutout for overtemperature protection and fan delay relay.

INDEECO    St. Louis, MO 63144
Nov 27, 2001 Electric WAI and WCI Series Heaters are available in sizes from 2 kW to 4.8 kW. Commercial units have aluminum grille with dark brown powder coat finish. Industrial units have rounded corners, louvered 18-ga steel front grille, and white or almond powder coat finish for durability. Controls for both include built-in automatic reset thermal cutout for overtemperature protection, built-in thermostat and fan overide. Both are CSA and UL approved.

Leslie Controls, Inc.    Tampa, FL 33637
Nov 16, 2001 Constantemp Steam Water Heater has heat exchanger that transfers energy from very low steam pressures, blends water instantly and delivers liquids with accurate temperatures. Feed-forward blending device ensures that hot and cold water blend ratio is accurately proportioned to maintain set temperature for all flow demands and prevent overheating or scalding. Output is up to 7,200 gph. Unit fits through standard doorway.
