MP Systems, Inc    East Granby, CT 06026
Apr 23, 2012 Combining chiller and high-pressure coolant system, Model S2 can be integrated with most types of CNC machine tools, including machining centers, turning centers, and Swiss-style lathes. PLC provides real-time monitoring, directs system to respond to changing conditions, stabilizes coolant to ±1° of ambient temperature, and includes 7-day timer clock. When used with water-based coolant, S2 pumps up to 1,000 psi at 8 gpm, and with oils, it reaches up to 2,000 psi at 5 gpm.

DENSO Corp.    Aichi 448-8661  Japan
Feb 02, 2012 Without compromising on strength or performance, 16 mm wide radiator is sized to afford flexibility for installation in engine compartment while also promoting vehicle safety in case of frontal collision. Tank is made with environmentally friendly plant-derived resin, and efficient heat radiation is achieved via fin design with optimized number of louvers on surface. Material of construction for fins and tubes also promotes to overall efficiency.

Tellurex Corp.    Traverse City, MI 49686
Dec 29, 2011 Able to cool down to 45°C below ambient room temperature, MegaCool225 is designed for large heat pumping applications and accommodates needs of lab refrigerators/freezers and industrial enclosures. Unit may be used as cold plate contact cooler; as 700 BTU air conditioner, with attachment of matched air exchanger; and fluid loop cooler with attachment of matched fluid heat exchanger. Integrated technology also permits contents of enclosure to be warmed up in precise increments of 0.1°C.

Mokon    Buffalo, NY 14207
Dec 09, 2011 Heat transfer fluid-based Full Range systems, combined with chiller, deliver respective heating and pumping capacities to 48 kW and 30 gpm. Capable of heating from 50 to 600°F, self-supporting unit incorporates microprocessor-based controller with LCD readout, green-friendly refrigerant, and continuous flow cool oil reservoir. System provides heating and cooling in one package, meets NFPA 79 electrical safety standards, and features insulated nonferrous components on chiller side.

GJ Chemical Co., Inc.    Newark, NJ 07105
Aug 10, 2011 Custom-blended to application requirements, GJ Therm provides freeze/burst and corrosion protection in closed heating and air conditioning systems. This industrial coolant and heat transfer fluid, comprised of inhibited ethylene and propylene glycol, is compatible with all manufacturers. Inhibitors remain at full strength despite system dilution requirements, and formula allows mixing with existing systems and topping off or adding to existing fluids without issues.

CeramTec North America Corp.    Laurens, SC 29360
Jun 03, 2011 Made of aluminum nitride, CeramCool® Box provides efficient cooling for extreme packing densities. Temperature profile is consistent, with thermal conductivity of greater than or equal to 170 W/mK. Electric conductors are placed directly on ceramic heat-sink, forming permanent connection without thermal barriers or risk of delamination. At 1 mm, walls minimize distance between coolant and heat source to optimize heat transfer. Cooling water connections consist of one inlet and outlet.

Thermacore Inc.    Lancaster, PA 17601
Mar 16, 2011 Designed to meet VME64x/VPX standards, Cold Plates are available in 3U, 6U, and 9U formats. Baseline aluminum cold plates are produced from aluminum alloys such as 6061 and 6063 with thermal conductivity values of 166 and 201 W/m. k-Core® models, encapsulating Annealed Pyrolytic Graphite with same aluminum alloys as basic models, deliver up to 6x conductance. Embedded Heat Pipe options are constructed from solid aluminum with integrated heat pipes to remove hot spots.

MAG IAS, LLC    Erlanger, KY 41018
Aug 25, 2010 Performance rated to 15,000 rpm and 1,000 psi fluid pressure, CYCLO BLAST meets or exceeds CTS tooling requirements for most applications, including deep hole drilling. Non-air driven system minimizes shop air supply requirements because it requires no vacuum pump to keep post bearing cool. System includes rotary union technology, leakproof belt drive and head, and diverter valve that halts coolant flow instantly when pump is shut off and provides instant flow when restarting.

Laird Technologies    Chesterfield, MO 63017
Aug 13, 2010 Cascade Series Thermoelectric Assemblies (TEAs) use multistage Thermoelectric Modules (TEMs) to achieve high temperature differential from ambient. Able to be located directly on actual devices requiring cooling, standard configurations include Air-Air (AA), which uses convection cooling, and Direct-Air (DA), which uses conduction cooling. At temperature differentials greater than 30°C from ambient, cooling capacity is near 60% of max cooling power.

Safety-Kleen Corporation    Palatine, IL 60067-9910
May 04, 2010 Utilizing Hybrid Organic Acid Technology (HOAT) additive package, Khameleon Universal meets ASTM D3306 specification and mixes easily with other antifreeze and coolants. Solution with recycled ethylene glycol has antifreeze and coolant service life up to 5 yr or 150,000 miles for light-duty vehicles. Available in 55 gal drums and in bulk where available, phosphate-free coolant includes bittering agent to protect children and pets against poisoning from accidental ingestion.

Syrris Ltd.    Royston SG8 5HW  United Kingdom
Apr 16, 2010 Designed to fit on virtually any magnetic stirrer or stirrer hotplate with diameter of 135 mm, Hot and Cold Plate operates from -40 to +160°C and has safety shield that protects user from extreme temperatures. Unit is chemically compatible with anodized aluminum and PTFE coated plate, offering wipe clean surface. It can be temperature controlled by wide range of circulators, and leak-free connection is possible using M16 fittings or Atlas quick circulator connectors.

Rite-Hite Corp.    Milwaukee, WI 53224
Apr 13, 2010 AirLine(TM) Fabric Air Tunnel delivers balanced ambient airflow where it is needed most to cool people who work in picking, sorting, or light assembly environments. Spot-On(TM) Air Outlets, at 2 in. dia and spaced at 15 in. intervals, are directed at 5 and 7 o'clock positions for most effective distribution of air. Mounted above floor to eliminate clutter and tripping hazards, air tunnel is available in lengths up to 80 ft in 10 ft increments.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Mar 15, 2010 Designed to fit most Miller Arc Armor Helmets, CoolBand(TM) reduces under hood temperature by up to 8°F. One battery charge provides up to 6 hr of continuous cooling, and downward and upward air vents provide constant air movement over user's face and head. Offered as belt-mounted cooling system, CoolBelt(TM) reduces under hood temperatures by up to 17°F and offers multiple air speeds with directional air controls. Rechargeable battery pack provides up to 5 hr of operation.

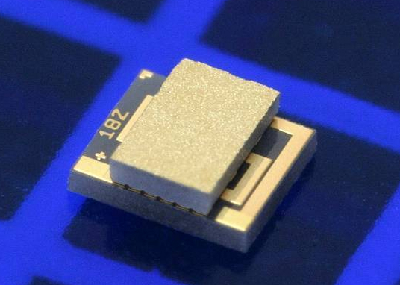

Nextreme Thermal Solutions    Durham, NC 27003
Dec 17, 2009 Compatible with eutectic gold-tin solder, OptoCooler HV14 enables assembly temperatures as high as 320°C. At 85°C, unit operates at max of 2.7 V and can pump 1.7 W of heat in footprint of 3 mm². RoHS-compliant module can create temperature differential of up to 50°C between hot and cold sides, making it suited for cooling and temperature control of optoelectronic devices such as laser diodes, semiconductor optical amplifiers, and sensors.

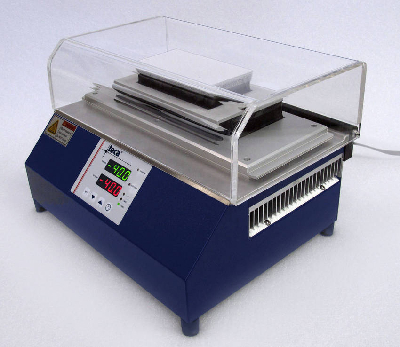

Thermoelectric Cooling America Corp. (TECA)    Chicago, IL 60639-2122
Dec 15, 2009 Featuring 11.2 x 15.1 in. footprint, Model AHP1200CPV has machined aluminum cold plate surface measuring 5.8 x 13.3 in. At 25°C ambient, cold plate surface is controllable from -15 to +90°C, and options can extend that range to below -45°C and above +90°C. Providing precise adjustment of surface temperature within ±0.1°C, integral PID temperature control includes remote sensing and RS-232 communications as well as temperature cycling, ramping, and soaking programs.

Laird Technologies    Chesterfield, MO 63017
Dec 14, 2009 Suited for cooling applications with tight geometric space constraints, Tunnel Series maximizes heat transfer when pulling air through heat exchanger. Heat is absorbed and dissipated through high-density heat sink equipped with metal shrouds and fans. Air-Air Models AA-027-12-22 and AA-035-24-22 utilize convection cooling method, while Direct-Air Models DA-033-12-02 and DA-039-12-02 utilize conduction cooling.

Jaro Thermal    Boca Raton, FL 33487
Dec 09, 2009 Measuring only 15 mm high, NtelliJet(TM) series uses rapid-fire pulses of turbulent air produced by oscillating diaphragm working between 50 and 200 Hz to cool heatsinks and surrounding components. Low-acoustic device is immune to shock and vibration and eliminates mechanical wear, dirt, and dust clogging. Providing 100,000 hr of life at 60°C, unit is suited for range of industrial applications and designs, where cooling is needed for specific chips or areas of coverage.

Laird Technologies    Chesterfield, MO 63017
Jul 27, 2009 Suited for telecom battery back-up systems and electronic integration enclosures in harsh environments, AA-100/-150/-200 Air-to-Air Outdoor Thermoelectric Cooler Assemblies feature solid-state operation and do not use compressor or CFC refrigerants. Elements of construction include waterproof connectors, high-density heat sinks with heavy-duty anodization, and overheat protection as well as double environmental seals, fans, and custom thermoelectric modules.

Trantech Radiator Products    Edgefield, SC 29824
May 11, 2009 As 520 mm radiator, E4 optimizes heat dissipation via header diameter on inlet and exit path of oil. Enlarged sump conveys oil from inlet header to plates of radiator on inlet side, and similarly enlarged neck conveys oil from plates to exit header on outlet side. Plate spacing increases hydraulic diameter in plate for same perimeter, reducing friction factor for external flow of air. Improves heat transfer coefficient 18-22%, radiator maintains minimal valves and other connections.

Elma Electronic Inc.    Fremont, CA 94538
Apr 29, 2009 Aluminum based black anodized Elma front panel heat sinks dissipate heat while covering open sections of enclosure. Cooling fin extrusion has width of 42 HP and comes in 1U high increments. Each fin is built upon 1.5 HP pitch to leave enough space in between for screw heads. Heat sink front panels come in various sizes and configurations, but are specifically designed for 19 in. technology. EMC versions with mounting bracket for gaskets are also available.
