American Power Conversion    West Kingston, RI 02892
May 28, 2009 Featuring up to 7 kW of cooling capacity, 600 mm wide rack enclosure, as well as front and rear containment options, InRow® SC Systems can be deployed as fully contained IT environment or partially contained system that can be added as retrofit. Self-contained solutions monitor and actively adjust cooling capacity to ensure proper server inlet temperatures. Intelligent and manageable components make the system network-enabled and self-monitoring.

Knight Electronics    Dallas, TX 75243

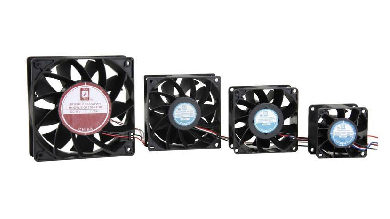

May 28, 2009 Available in 12, 24, and 48 Vdc configurations and 120 x 38, 92 x 38, 80 x 38, and 60 x 38 mm frame sizes, VA Series Fans feature dual ball bearing system with brushless DC, auto restart, polarity-protected motor. Units maximize airflow even in nearly sealed enclosures, making them suited for networking and telecommunications equipment, industrial electronic cabinets, and medical imaging equipment. PWM, tachometer, alarm, and thermal control options are available.

SenGenuity, a division of Vectron International    Hudson, NH 03051
May 27, 2009 Delivering performance for real-time, in-process temperature sensing applications, wireless TempTrackr(TM) allows for parallel interrogation of several independent passive temperature sensors. SAW-based sensors maintain unique identification within system architecture and require no power source. Along with 4 dipole antennas and wireless interrogator, TempTrackr Multi-Sensor kit includes 4 sensors capable of reading temperatures between 0 and +120°C from max distance of 70 in.

Kavlico    Moorpark, CA 93021
May 22, 2009 Housed in stainless steel with MIL-38999 style connector, Combined Pressure and Temperature Sensors are available in pressure ranges of 0-500 through 0-10,000 psia with temperature range of -55 to +125°C and accuracy of ±1.0% FSO. Operating on 5-15 Vdc, sensors can be configured with amplified 0.5-4.5 Vdc or non-amplified 50-100 mV at 10 Vdc excitation output. Sensors can withstand harsh environments, and are suited for active control systems, system status, and health monitoring.

Vent-A-Fume, A Div. of Vent-A-Kiln Corp.    Buffalo, NY 14207
May 22, 2009 Available in 4 models with fume extraction capacities from 400-1,150 cfm, Place-A-Vent is designed for removing and ventilating fumes produced by welding, brazing, soldering, laser cutting, plasma cutting, and similar operations. It employs negative pressure system that exhausts all fumes quickly to outside or into existing ductwork. Accessories include flexible gooseneck hood support arms and customized systems are also available.

Kathabar Dehumidification Systems Inc.    Somerset, NJ 08873
May 22, 2009 Secure Environmental System(TM) (SES) ecologically safe technology which prevents contamination of building ventilation air from outside sources. It also exchanges temperature and humidity between airstreams with bactericidal and virucidal desiccant transfer solution, which provides energy recovery and removes airborne contaminants. Ventilation and exhaust air are handled by separate units; no cross leakage or microbiological cross-contamination of exhaust air to ventilation air can occur.

Nol-Tec Systems, Inc.    Lino Lakes, MN 55014

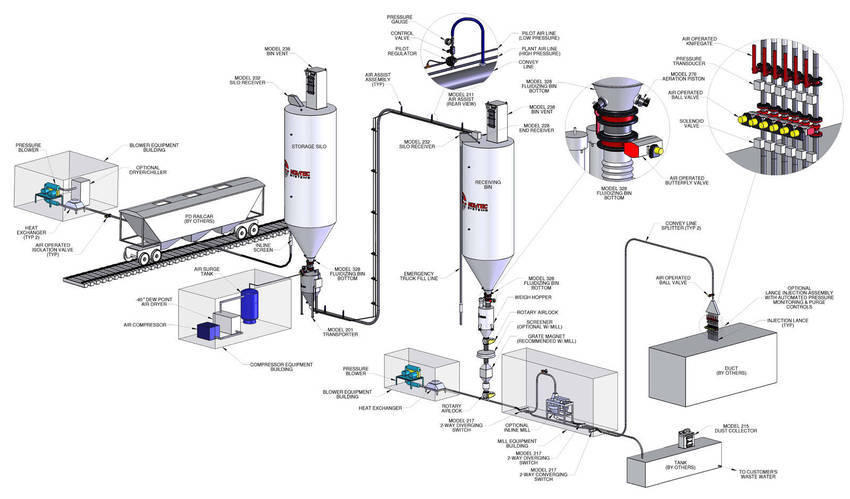

May 20, 2009 Using dilute-phase positive-pressure pneumatic conveying technology, Sorb-N-Ject(TM) Technology injection systems continuously transfer dry bulk sorbent material from storage silos to injection ports on boiler flue gas ducts, which reacts with multi-pollutants in flue gas to reduce emissions. Fluidizing bin bottom installed on each silo prevents stored material from rat holing, bridging, or arching. System includes loss-in-weight feeder hopper with reverse jet pulse dust filter system.

Easy Heat Inc.    East Granby, CT 06026
May 18, 2009 Warm Tiles® DFT 120 V floor warming cable kit allows contractors to install full floor warming coverage simply by lacing free form cable on floor wherever heated area is required. Cables can be used over variety of substrates including plywood, backer board, and concrete, and are placed 3 in. apart in typical room above heated area, and 1.5 in. apart for room above unheated area, on concrete slabs, or in high heat loss room. Kits are available for heating areas from 11-108 sq ft.

Visionaire, Inc.    Grand Prairie, TX 75051

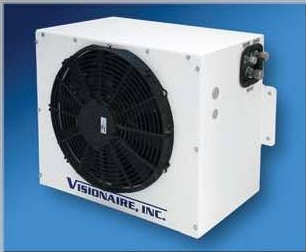

May 15, 2009 With internal hydraulic compressor drive that requires flow of 8 gpm at 1,200-1500 psi, Model 3110 condenser unit for work equipment can be paired with wide variety of in-cab air conditioners and heater components. It is rated at 24,000 BTU/hr and features formed and welded steel construction, powder coating, and fully hydraulic component isolation. Optional equipment includes diesel fired coolant heater and variety of cab air filtration and pressurization systems.

SUSSMAN Electric Boilers, a Div. of Sussman-Automatic Corp.    Long Island City, NY 11101
May 14, 2009 Designed for industrial marketplace, Model ES electrically heated saturated steam boiler suits laboratory, hospital, industrial plant, pilot plant, as well as food and chemical processing applications requiring steam from 0-100 psig. It features automatic pressure and liquid level controllers as well as ASME Code pressure vessel and safety valve. Installation only requires water feed connection and electrical hook-up.

Calex Electronics Limited    Bedfordshire   United Kingdom

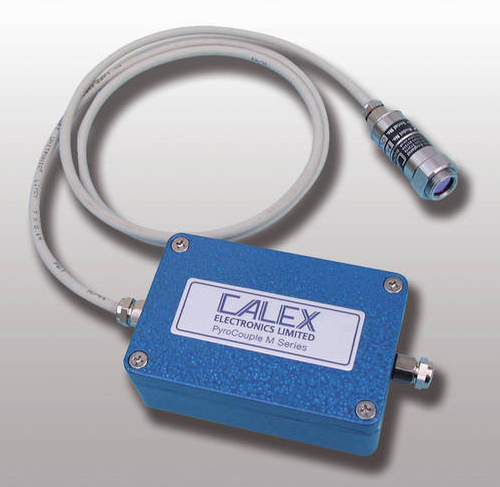

May 13, 2009 Measuring temperatures from -20 to +500°C, PyroCouple M series sensors include model PCM21 with 2:1 optics, PCM151 with optical resolution of 15:1, and PCM301 with resolution of 30:1. Each features miniature 18 mm dia x 45 mm sensing head, made of SS and sealed to IP65, which connects via EMI-resistant cable to 98 x 64 x 34 mm electronics module powered from 24 Vdc power source. Noncontact sensors have 250 ms response time with signal stability optimized by adaptive filtering.

Gardner Denver Nash    Trumbull, CT 06611

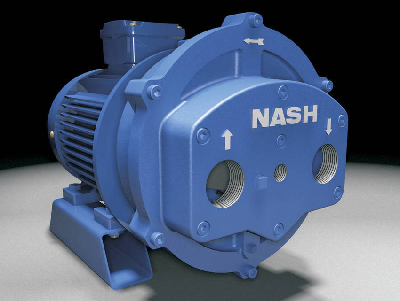

May 13, 2009 Available with Monoblock or Pedestal drive arrangement, Vectra SX Series Liquid Ring Pumps and Compressors come in 3 variations to meet different process needs. High vacuum version provides performance to 1 in. HgA, while water handling version handles large amounts of process water or carryover, and compressor version is designed for wide pressure range. Units are available in all 316 precision cast stainless steel or cast iron with cast 316 SS impeller and corrosion-resistant pump.

Trantech Radiator Products    Edgefield, SC 29824
May 11, 2009 As 520 mm radiator, E4 optimizes heat dissipation via header diameter on inlet and exit path of oil. Enlarged sump conveys oil from inlet header to plates of radiator on inlet side, and similarly enlarged neck conveys oil from plates to exit header on outlet side. Plate spacing increases hydraulic diameter in plate for same perimeter, reducing friction factor for external flow of air. Improves heat transfer coefficient 18-22%, radiator maintains minimal valves and other connections.

Rotobrush® International    Grapevine, TX 76051
May 08, 2009 Featuring all-steel construction, RotoStorm(TM) accommodates use of cellulose or fiberglass insulation at respective rates up to 1,350 and 450 lb/hr. Portable solution offers variable air pressure and incorporates double agitators that ensure smooth and accurate fiber conditioning. Accessory package, also available, includes insulation bricks, blowing hoses, soffit covers, recessed light covers, goggles, respirators, and R value rulers.

Greenheck    Schofield, WI 54476 0410
May 07, 2009 Round backdraft damper Model WDR-53 features galvanized steel frame with aluminum blade, while Model SSWDR-53 is constructed with 304 stainless steel frame and blade. They can be installed horizontally for vertical up/down airflow or mounted vertically for horizontal airflow, and offer pressures up to 2 in. wg in diameter sizes from 4-24 in. Both models are available with optional top frame extension.

DuCool    Miami Beach, FL 33140
May 06, 2009 DuHybrid system combines desiccant dehumidification with evaporative/geothermal cooling, utilizing solar thermal energy but automatically switching to electric power when needed. In renewable energy mode, unit can generate over 20 tons of refrigeration, while in electric mode, waste heat of compressor is used as energy source. System allows independent control of humidity/temperature and has liquid desiccant cooling process to eliminate bacteria/particles.

Air Dynamics Industrial Systems Corp.    York, PA 17403
May 06, 2009 Suitable for 24/7 operations, CKV HydroDynamic Scrubber(TM) removes grease, smoke, and odor from commercial cooking process to reduce or eliminate chances of fire damage, grease-induced deterioration of rubber roofing, stains on building exterior, and contaminated HVAC coils. Using approach suited to airstream pollutants, system effectively removes grease particulate and grease vapors in commercial kitchen ventilation (CKV) operations.

Lochinvar Corp.    Lebanon, TN 37090
May 01, 2009 Installed with separate storage tank to minimize maintenance concerns, 3 ARMOR® models feature stainless steel heat exchanger, 5:1 modulating turndown, and SMART SYSTEM(TM) operating control. These 98% thermally efficient units, available with inputs from 600,000-800,000 BTU/hr, help eliminate wasted fuel and minimize operating expenditure. Protected against harmful effects of lime scale buildup, products permit direct-vent distances up to 100 ft for combustion air and vent runs.

Heat-Timer Corporation    Fairfield, NJ 07004

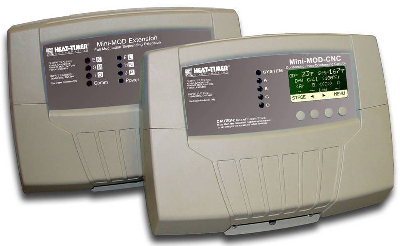

May 01, 2009 Mini-MOD-CNC automatically mixes and matches non-condensing boiler operation and condensing boiler operation to optimize efficiency of combined (hybrid) system. It also allows for mixed control of modulating and staging boilers, since condensing boilers typically have modulating burners and non-condensing boilers typically have staging or on/off burners. Control automatically switches to high mass boilers when building heat requirements approach design loads.

DENSO Corp.    Aichi 448-8661  Japan
May 01, 2009 Promoting fuel efficiency and cleaner emissions, Exhaust Gas Temperature Sensor is located in front of and used to control temperature for diesel particulate filter (DPF) regeneration. Accuracy is promoted via probe length as well as extension of sensing tip into exhaust pipe. Vibration-resistant structure with anti-resonance pipe supports probe, or sheath pin, at its optimal position. Also included, thermistor or sensing element improves detection accuracy to ±10°C.
