Laser Cutting System suits sheet metal processing.

Press Release Summary:




Offered in Standard and Plus models, automation-ready Sirius system provides precise positioning combined with axis speeds up to 120 m/min. Modular design includes 3 x 1.5 m integrated shuttle tables, which maximize uptime by allowing one table to be loaded while machine is cutting on other table; change time is 25 sec. Flying Optics system employs 2.5 or 4 kW GE Fanuc RF excited fast axial flow CO2 laser, which is integrated with CNC control, drives, and motors.



Original Press Release:

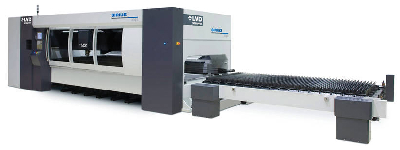

LVD Strippit Introduces Automation-Ready Flying Optics Laser Cutting System for Fast, Efficient Sheet Metal Processing



Akron, NY-LVD Strippit introduces Sirius, an automation-ready flying optics laser cutting system. Sirius is designed to provide efficient processing of parts at optimal speeds and accelerations to suit the part geometry, offering reliable cutting performance at an affordable price-performance ratio. Sirius is offered in a standard and a Plus model. The Sirius Plus is optimized with additional features and automation capabilities.

Sirius provides quick and precise positioning and consistently accurate laser processing. The combination of a dynamic machine with an excellent laser beam quality allows high-speed laser cutting. Quick positioning is achieved with axis speeds up to 120 m/min.

Sirius is designed with a modular construction, permitting the user to select the configuration that works best for the application and budget. As a standard unit, the laser cutting system features 3 m by 1.5 m integrated shuttle tables, which maximize uptime by allowing one table to be loaded while the machine is cutting on the other table. Table change time is a mere 25 seconds.

Sirius Plus is engineered as automation-ready and can be expanded with the addition of various components to form an automated load/unload system. An optional compact tower system creates a productive, flexible manufacturing cell that can be operated "lights out." The tower system, working in concert with the material handling unit, provides full capabilities for loading and unloading, and includes a shelving unit for storing raw material and finished parts.

QUICK SET-UP
Sirius is equipped with a laser cutting head that accommodates a 5-inch or 7.5-inch quick-change lens for fast changeover and minimal set-up. These water-cooled quick-change lenses can be exchanged very easily, using a self-centering system. Lens calibration is programmable and quick to achieve.

The feature enhanced Sirius Plus model offers NC Focus for programmable adjustment of the focal position without operator intervention. This model also provides Process Control for piercing and cutting and an automatic shut down feature.

CONSISTENT CUT QUALITY
Sirius is equipped with a high-pressure cutting head that produces exceptionally clean cuts. A crash-protection system protects the head from damage after collision with the workpiece.

A total power control feature automatically adjusts the laser power in relation to the cutting speed, ensuring an optimal cut at every contour width and minimizing the heat-affected zone. The machine's edge function feature processes sharp corners cleanly, particularly in thicker materials.

INTEGRATED LASER & CNC CONTROL
Like all LVD Strippit laser cutting systems, Sirius series employs the highly reliable GE Fanuc RF excited fast axial flow CO2 laser. Sirius is available with a powerful 2.5 kW or 4 kW CO2 laser.

The laser, CNC control, drives and motors are fully integrated, providing superior processing speed, high reliability, and low operating and maintenance costs.

The integrated GE Fanuc PC-based control provides perfect reproduction of programmed contours, producing acute angles at high speed. The laser power is matched to the vectorial speeds to achieve a constant cut width and a small heat-affected zone.

All parameters, diagnostic and start-up procedures are conveniently displayed on the screen. The 32-bit control features powerful mathematical capabilities and an extensive material library.

Optional CADMAN-L 3D offline programming software provides a comprehensive laser-cutting CAM package. This includes an integrated 3D design and unfolding module, which allows easy importing of 2D and 3D designs, automatic unfolding and generation of flat patterns from 2D or 3D files. CADMAN-L 3D also incorporates fully automatic, semi-automatic or manual nesting and optimizes cutting and machine parameters to maximize sheet utilization. Advanced features include cutting path optimization, common line cutting and high-speed communications via Windows, networking or DNC link to maximize machine productivity.

ABOUT LVD
The LVD Group is a leading manufacturer of a comprehensive range of sheet metal/plate working machine tools and software solutions, including laser cutting systems, punch presses, press brakes, guillotine shears and mid-level automation systems, integrated and supported by its CADMAN® PC-based Windows® compatible software.

For more information, contact Strippit, Inc., 12975 Clarence Center Road, Akron, NY 14001, call toll free 1-800-828-1527, or visit www.lvdgroup.com.
