Gearheads have no backlash.
Share:
Press Release Summary:

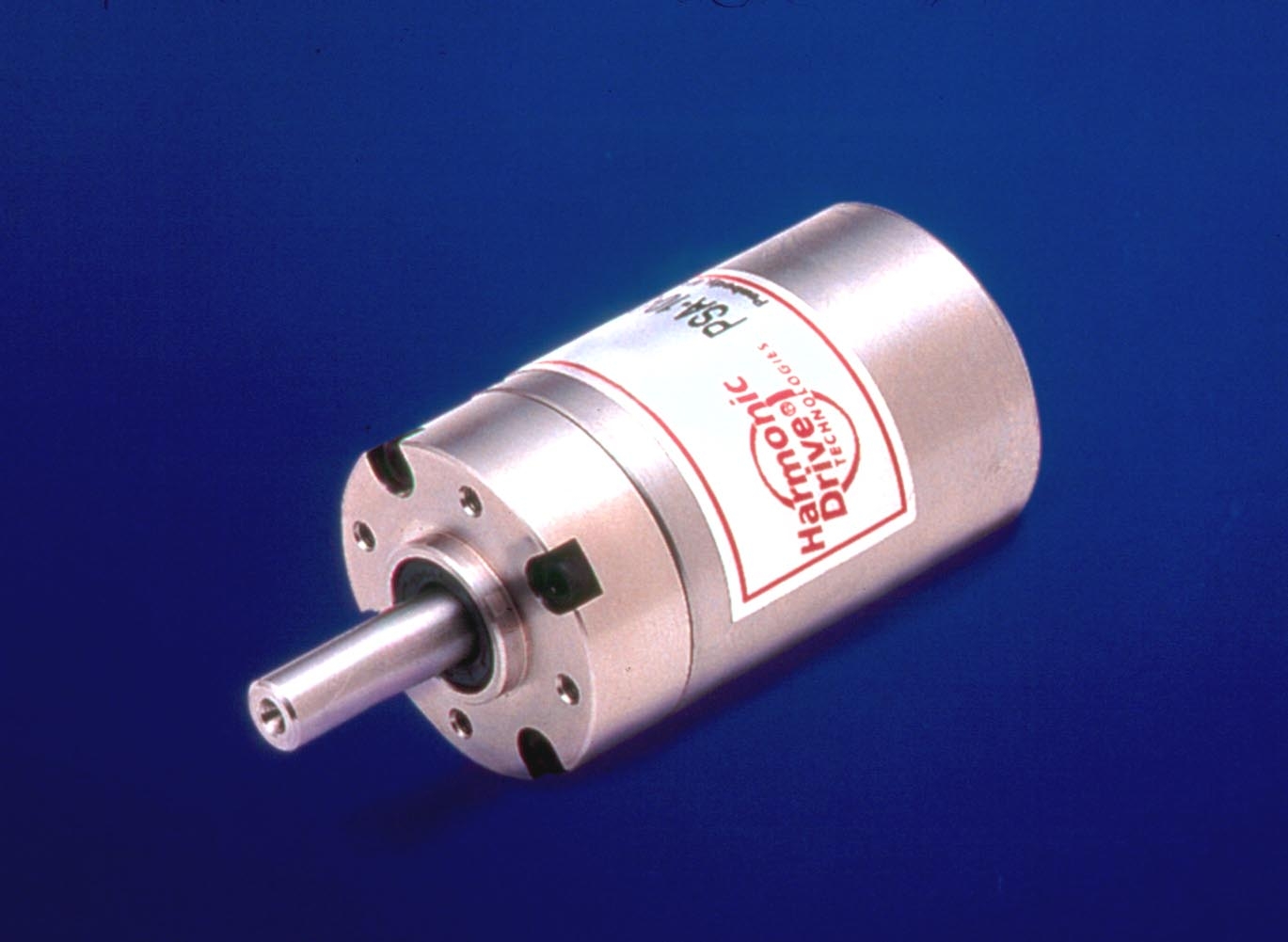

Lightweight PSA-G harmonic drive gearheads provide zero-backlash speed reduction for accurate angular positioning. Input-to-output gear ratios from 50:1 to 100:1 are available. They handle high axial and overhung loads, making them suitable for automation applications such as robotics and handling small components in assembly process. Maximum radial shaft loading is up to 115 lb. Gearheads are compact, measuring as little as 1.3 in. dia and 2 in. body length.
Original Press Release:
Light Weight Zero-Backlash Gearheads Ideal For Precision Factory Automation Applications
Harmonic Drive Technologies, a leading manufacturer of precision gear and servo actuators, introduces its new line of PSA-G harmonic drive gearheads. The gearheads are ideal for factory automation applications such as robotics and handling small components in the assembly process.
The gearheads are available in standard gear ratios ranging from 50:1 to 100:1. These compact, rugged gearheads are specifically designed to handle high axial and overhung loads. Maximum radial shaft loading of the gearheads is up to 52 kg (115 lb.). In addition, the gearheads are very compact, measuring as little as 33 mm (1.3") in diameter and 50mm (2") in body length.
Harmonic drive gearing is a precise, zero-backlash speed reduction system that delivers an accurate angular position and an extremely high input-to-output ratio (50:1 and up). The gearheads are also very light and compact for the large torque that they transmit.
Harmonic Drive Technologies of Peabody, Mass., is a leading manufacturer of harmonic drive gearheads, component gear sets and complete harmonic drive actuators for several industries, including: semiconductor, factory automation, medical and aerospace. Following the theme of lighter, smaller and stronger, Harmonic Drive Technologies supplies standard and custom harmonic drive gearing designed and constructed to minimize space while offering high-load and long-life characteristics.
For further information regarding harmonic Drive Technologies and their products, call 978-532-1800; visit Harmonic Drive Technologies' Web Site at harmonic-drive.com; or send an e-mail to info@harmonic-drive.com.
