CSA-Certified DP Switch withstands hazardous environments.

Press Release Summary:




Available in aluminum or 316 stainless steel, model 120 gauge and switch contains components with various Elastomers to suit any media (liquid or gas). It is CSA-certified for service in areas rated Class I, Division II, Group A/B/C/D as well as Class II, Division II Groups F/G. Suited for applications with one or two switches in SPST and SPDT configurations, product has 6,000 PSIG SWP and is available with 2 ½, 3 ½, or 4 ½ in. dials with aluminum or engineered plastic dial chambers.



Original Press Release:



Switch for Potentially Hazardous Locations

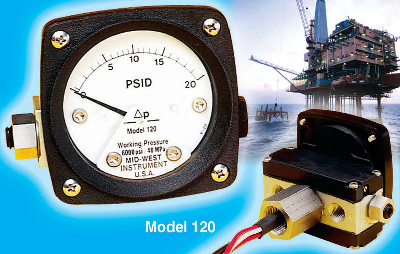

Mid-West Instruments model 120 gauge and switch is a cost effective solution to solve your hazardous location problem. The 120 is available in aluminum or 316 stainless pressure containing components with a wide variety of Elastomers to suit every media, whether liquid or gas. SWP is 6000 PSIG.

CSA Certified
The entire 120 unit and all of its components are CSA certified for service in Class I, Division II, Group A, B, C, and D and Class II, Division II Groups F and G. Application available with one or two switches in SPST and SPDT configurations.

120 Benefits include

Easy to hook-up, standard or custom dial scales, from low cost differential pressure indicators to high accuracy differential pressure gauges, available for liquids or gas, totally CSA certified. Available in 2 ½, 3 ½ and 4 ½ inch dials with aluminum or engineered plastic dial chambers.

For more information contact:

Mid-West Instrument, 6500 Dobry Dr. Sterling Heights, MI 48314.

Ph: 586-254-6500, 800-648-5778 Fax: 586-254-6509,

Web site: www.midwestinstrument.com
