Coriolis Mass Flow Meter has 80,800 lb/hr max capacity.

Press Release Summary:




Featuring U tube flow sensor design, Model CMU is suited for line sizes from 0.25-12 in. and measures flow rates as low as 2.2 lb/hr. Unit provides true mass flow measurement while simultaneously measuring fluid temperature, density, and volumetric flow. Multivariable process measurement tool, with accuracy range of 0.1%-0.15% in liquids and 0.5% in gases ± reading, is available with 3- or 5-point density calibrations for applications with variable fluid densities.



Original Press Release:



New Large Line Size Coriolis Flow Meter Breaks Industry's Flow Rate Barrier



Ideal for Custody Transfer, Production Line Batching, Test Stand Measurement

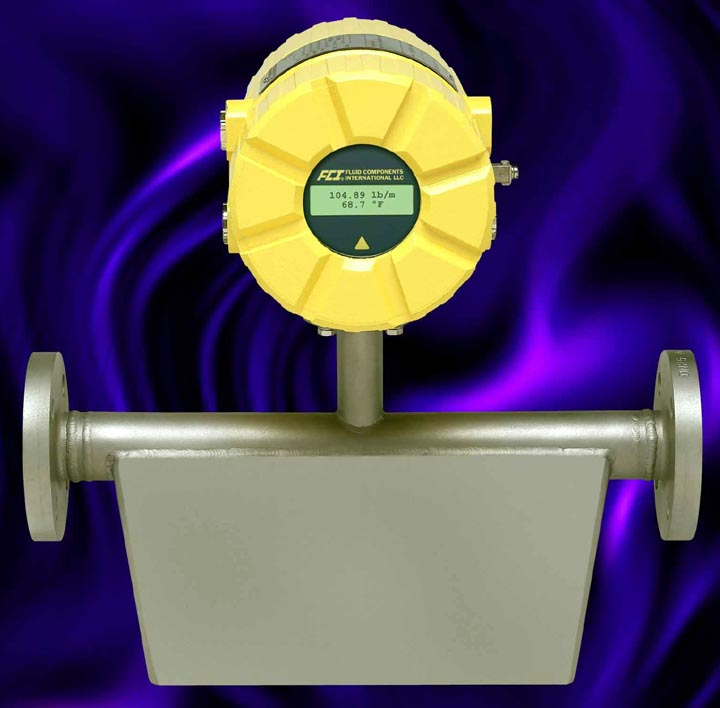

San Marcos, CA-March 28, 2006--With an advanced "U" tube flow sensor design, the new Model CMU Coriolis Mass Flow Meter from Fluid Components International now delivers more than twice the industry standard flow rate than previously available to set a new benchmark when compared to other Coriolis devices in its class. FCI's Model CMU flow meter combines large line size service, high flow rate capability and outstanding measurement accuracy--all in a standard product.

Designed for line sizes from 0.25 to 12 inches (DN 8 to DN 300), the CMU measures flow rates from 2.2 to 80,800 lb/hr (60 to 2,200,00 kg/hr). The CMU provides true mass flow measurement with superior accuracy, while at the same time measuring fluid temperature, density and volumetric flow-making it a truly multivariable process measurement tool that reduces the need for other sensors.

The CMU's innovative "U" tube flow sensor design features a lightweight tube, minimal welding and vibration dampening technology. This design achieves higher long-term mechanical reliability and lower installation costs when compared to the typical heavy die-cast elements found in ordinary Coriolis devices. It also eliminates the bulky and costly extra structural supports often required to mount and secure other metering devices.

The CMU's accuracy range is 0.1 to 0.15 percent in liquids (depending on line size) and 0.5 percent in gases (± reading). With its high accuracy, excellent repeatability and multivariable parameter measurement capabilities, the CMU meets the stringent industry requirements for applications in custody transfer, precision product line batching and test-stand performance measurement.

In applications where density measurement and/or with variable fluid densities, the CMU is available with special optional density calibrations. Selections include a 3-point, or for greater accuracy, a 5-point density calibration.

A ruggedized full-featured transmitter, the Model CT is available to support the CMU flow meter. Available as a blind transmitter or with an integral two-line LCD digital display, the transmitter is the electronics interface to the sensor and an array of analog and/or digital outputs. Standard outputs include dual 4-20mA, one standard with HART, a frequency/pulse output of total flow, and a binary output of instrument status. Output options include Profibus-PA and a tamper-proof, custody transfer configuration that is sealed/certified, and prevents resetting of the internal totalizer. The CT can be mounted integral with the sensor or remote mounted up to 1000 feet (300 m) away.

With Model CMU, FCI expands Coriolis flow meter technology to serve a much broader range of applications in chemical, petrochemical, oil/gas, pharmaceutical, food and beverage, engine test stands, pilot plants and many more. Precision Coriolis flow measurement technology is here at last for the most challenging high flow rate applications.

Many challenging process applications that could be improved or achieve cost savings with high accuracy Coriolis flow measurement have been long ignored because of line sizes, and flow rate limitations. Typical Coriolis Flow Meters have been limited to service in line sizes 6 inches or smaller and for use with benign fluids compatible with stainless steel or Hastelloy C. FCI's new Coriolis flow meter product line overcomes these obstacles to expand the applications envelope for this technology.
Fluid Components International is a global company committed to meeting the needs of its customers through innovative solutions to the most challenging requirements for sensing, measuring and controlling the flow and level of air, gases and liquids.

Product Information Contact: FCI: 1755 La Costa Meadows Dr, San Marcos, CA 92078
Brochure: www.fluidcomponents.com/Sales%20Brochures/Coriolis/Coriolis%20Brochure.pdf
Web: www.fluidcomponents.com Tel: 800-854-1993 Tel: 760-744-6950 Fax: 760-736-6250 Email: www.fluidcomponents.com/contact_us.htm
