Workholding Vise suits small machining centers.

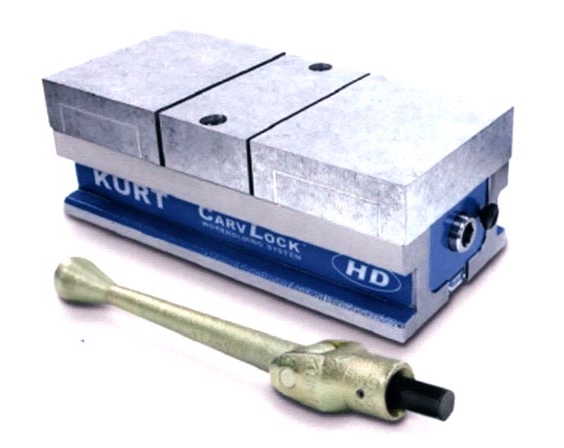

June 12, 2002 - CarvLock™ HDM6 2-station vise has overall length of 13.750 in. and is designed on 80,000 psi iron base. It produces approximately 11,000 lbs of clamping force at 100 lbs of torque with repeatable clamping to .001 in. Vise is available in 2-station pallet, 4-station tombstone (back-to-back), and 8-station towers, and in manual and hydraulic models for use on vertical and horizontal machining centers. HDM6 comes with quick change jaw block system.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Kurt Manufacturing
5280 Main Street N.E.
Minneapolis, MN, 55421
USA
All New Kurt High Density, Heavy Duty Machinable 6 Inch Jaw Vises Are Smaller And Lighter – Available in 2-Station Vises, 4-Station Back-To-Back Tombstones, And 8-Station Towers – FREE Brochure 1-800-328-2565
Minneapolis, Minnesota: Kurt's newest generation High Density, Heavy Duty workholding products are designed specifically for the latest smaller machining centers requiring reduced table size and table load.
The two station model (HDM6) has an overall length of just 13.750 inch, weighs just 48 lbs. and is designed on a rugged 80,000 PSI ductile iron base.
Without compromising part holding accuracy, this Kurt CarvLock™ HDM6 vise produces approximately 11,000 lbs. of clamping force at 100 lbs. of torque with repeatable clamping to .001 inches.
Available in 2-station pallet, 4-station tombstone (back-to-back) and 8-station towers, these new Kurt high density, heavy duty products are available in manual and hydraulic models for use on vertical and horizontal machining centers.
"Kurt's new High Density, Heavy Duty workholding combines the best in ductile iron and aluminum vise designs," reports Steve Kane, Kurt Sales Manager. "The two station base model 2 is a real bulldog of a vise. Its rugged ductile iron base insures strength, rigidity and long term accuracy while the reduced length and carvable aluminum jaws reduce bulk and table load."
Another important feature of the HDM6 is the smaller footprint which reduces spindle travel, part to part, maximizing throughput without compromising holding accuracy. The ductile iron vise body resists flexing while it absorbs machine vibration.
Kurt's CarvLock HDM6 features include: adjustable preloaded movable jaw for fast part loading, easy movable jaw removal without tools, enclosed vise body keeps out chips and contaminants-makes cleanup fast and easy.
The HDM6 comes with a quick change jaw block system which includes a set of 7075 T-6 aluminum jaw blocks or a set of ductile iron jaw blocks (1.73 inch standard thickness, 2.50 inch optional thickness). Screw and nut assemblies are reversible with the vise body. One jaw kit will handle two different parts. Also available as an option is a 7075 T-6 aluminum pallet faceplate.
