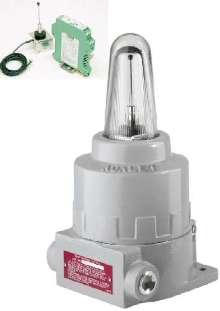

Wireless I/O System is housed in NEMA 4X enclosure.
February 4, 2004 - Housed in cast aluminum enclosure, N4ANT ruggedized wireless I/O transmitter/receiver system suits industrial, commercial, or general-purpose areas rated NEMA 4X. Aluminum enclosure is impact-resistant to UL requirements, and glass that protects antenna does not interfere with signal strength. Features include 1 W transmitter power, 4–20 mA analog signal, 3 contact outputs rated 120 Vac @ .05 A, and range of 600–1,000 ft with obstructed line of sight.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
AD Products Co.
4799 W. 150th
Cleveland, OH, 44135
USA
New! Rugged Wireless I/O System Now Available
Greetings!
Introducing the most revolutionary product to enter the Industrial or Commercial markets which provides a rugged wireless I/O system housed in a cast aluminum NEMA 4X enclosure.
The Adalet Wireless Antenna Armor Series
INDUSTRIES FIRST RUGGED WIRELESS I/O COMMUNICATION SYSTEM NOW AVAILABLE FROM AD PRODUCTS
Cleveland, OH (February 2, 2004) - AD Products is pleased to announce the N4ANT ruggedized wireless I/O transmitter / receiver system from Adalet.
Get more info
This Patent Pending wireless I/O system features a cast aluminum enclosure designed to house a transmitter and antenna and protect it from harsh indoor or outdoor environments while carrying a NEMA 4X rating. A receiver and antenna is included loose with the packaged system and can be installed in an enclosure made from painted carbon, fiberglass or stainless steel which are also available through AD Products. The ruggedized, cast aluminum enclosure is impact resistant to UL requirements and the glass that protects the antenna will not interfere with signal strength.
This system is perfect for any industrial, commercial or general purpose areas rated NEMA 4X where ruggedized protection is important. It provides a wireless solution thus reducing installation labor costs and eliminating the need for conduit and wires in hazardous or other industrial locations. This Patent Pending system comes complete with a transmitter and antenna enclosed in an Adalet cast aluminum enclosure and a receiver unit with antenna which can be housed in any of Adalet's stainless steel or fiberglass enclosures. Contact AD Products to identify an enclosure system to house the receiver and antenna.
Features: ¡Ãœ 1 Watt transmitter power ¡Ãœ Analog signal 4-20mA ¡Ãœ Three contact outputs rated at 120VAC @ .05 amps ¡Ãœ Range: 600-1000 feet with obstructed line of sight ¡Ãœ Frequency Hopping Spread Spectrum technology (Interference free operation) ¡Ãœ License free 902-928 MHz ISM band ¡Ãœ 17.5mm wide DIN-rail mounted transmitter and receiver ¡Ãœ ANSI grey for NEMA 4X applications ¡Ãœ Stainless steel hardware ¡Ãœ Optional ¨Ãº" NPT factory sealed hub for dc power supply and analog signal communications ¡Ãœ Two ¨Ãº" NPT hub and standard third conduit entry accommodates up to 1" NPT ¡Ãœ PATENT PENDING
Applications: ¡Ãœ SCADA Systems ¡Ãœ Tank level ¡Ãœ PLC / RTU extensions ¡Ãœ Mills / quarries / factories ¡Ãœ Pump control ¡Ãœ Sensor monitoring ¡Ãœ Waste / wastewater ¡Ãœ Utilities ¡Ãœ Oil & gas ¡Ãœ Irrigation systems ¡Ãœ Petrochemical
AREAS OF USE Any indoor or outdoor environment requiring a rugged wireless solution due to harsh conditions or that require NEMA 4X protection
APPLICABLE DESIGN STANDARDS ¡¤ UL Standard 50 ¡¤ NEMA 4X
