Wire-to-Board Connectors feature voltage rating of 125 V.
November 25, 2008 -

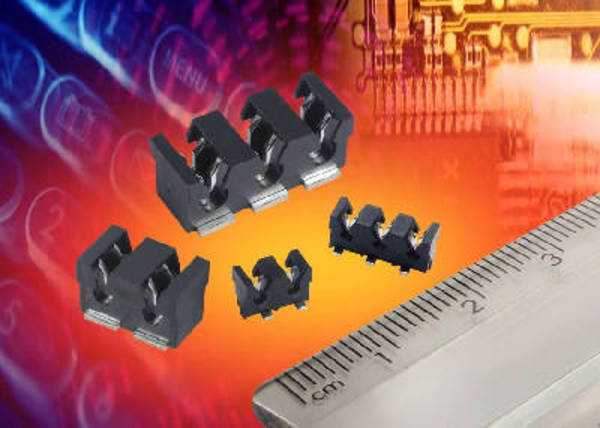

Available in 2- and 3- position configurations, 9176 and 9177 Series are end-to-end stackable to deliver exact number of terminations required. Units are rated at 10 and 15 A and accept 18-24 AWG and 14-20 AWG solid or stranded wires, respectively. Discrete devices deliver minimum insulation resistance of 100 MW and max termination resistance of 20 mW. Manufactured from high-temperature nylon, connectors operate from -40 to +105°C.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
AVX Corp.
P.O. Box 867
Myrtle Beach, SC, 29578
USA
AVX Develops Small, Easy to Assemble IDC Wire-to-Board Connectors
MYRTLE BEACH S.C. (November 13, 2008) - AVX Corporation, a leading manufacturer of
advanced passive components and interconnect solutions, has expanded the original 9175 series of discrete wire-to-board Insulation Displacement Connectors (IDC) into two larger formats to meet the growing market requests. Originally designed to accept 26AWG to 28AWG stranded or solid wires, the 9176 and 9177 series have been added to now include 18AWG to 24AWG and 14AWG to 20AWG respectively. This expansion opens up the market now across a broader range of applications.
The value of this connector is achieved from the total applied cost of the wire connection. This is achieved from the simplicity of the connector and wire termination process. For starters, the 2 position and 3 position connectors are tape and reel packaged for high volume SMT placement onto the PCB. The individual wires are then located over the top of the contact and are simply and reliably pressed into the slot via hand or arbor type press-in tools. This process allows the contact tines to pierce the insulation jacket which creates a gas tight connection, while using plastic insulator features to securely grab the insulation providing a strong strain relief on
the final assembly. There is no wire stripping or preparation needed prior to termination. Contact material is phosphor bronze, with three re-terminations achievable for each individual contact.
"These connectors are unlike anything currently available on the market, as they have a
smaller footprint, are end-to-end stackable and assembling the wires to the connector is very easy." said Bob Bastian, AVX Product Manager.
"AVX discrete wire IDC connectors are manufactured with high temperature nylon material to withstand RoHS reflow processes and high working temperatures. The IDC connectors are based on automotive level temperature and vibration specifications, resulting in products that are robust and suitable for a wide variety of harsh operating conditions."
Providing design flexibility, these connectors are available in two and three position
configurations that can be end-to-end stackable to deliver the exact number of terminations required. In addition to standard wire gauges, the connectors have been tested to a wide range of insulation composition and diameters. With such a broad wire range accommodated within the product series, a wide variety of applications within the Industrial, Medical, Automotive and Transportation markets. Very specifically, the LED lighting market is a perfect fit for this type of connector, for use in LED lighting strips for sports arena signs, display cases, lighted cabinets, advertising signs, and architectural lights used for building feature enhancement or internal
feature lighting. The connectors also suit solar panels, emergency signage and automotive applications - internally or outside of car - as well as high volume consumer market applications such as speakers, buzzers, microphones, vibration mechanisms.
The IDC 9175, 9176 and 9177 Series are rated in current at 1A, 10A and 15A
respectively, with corresponding stranded wire gauges of 26-28 AWG, 18-24 AWG and 14-
20AWG. The parts have a voltage rating of 125V, deliver a minimum insulation resistance of 100MW, and a maximum termination resistance of 20mW. All three series have operating temperature ranges of -40°C to +105°C.
These connectors are supplied in tape and reel packing and are RoHS-compliant.
Pricing for the 9175/9-9176 IDC Connectors is set at competitive market levels with a
lead time of eight weeks.
For more information about AVX's 9175, 9176 and 9177 Connectors, contact AVX Sales
and Marketing at 801 17th Avenue South, Myrtle Beach, S.C. 29578; by calling 843-448-9411; by fax at 843-444-2864; or on the Web at www.avx.com.
