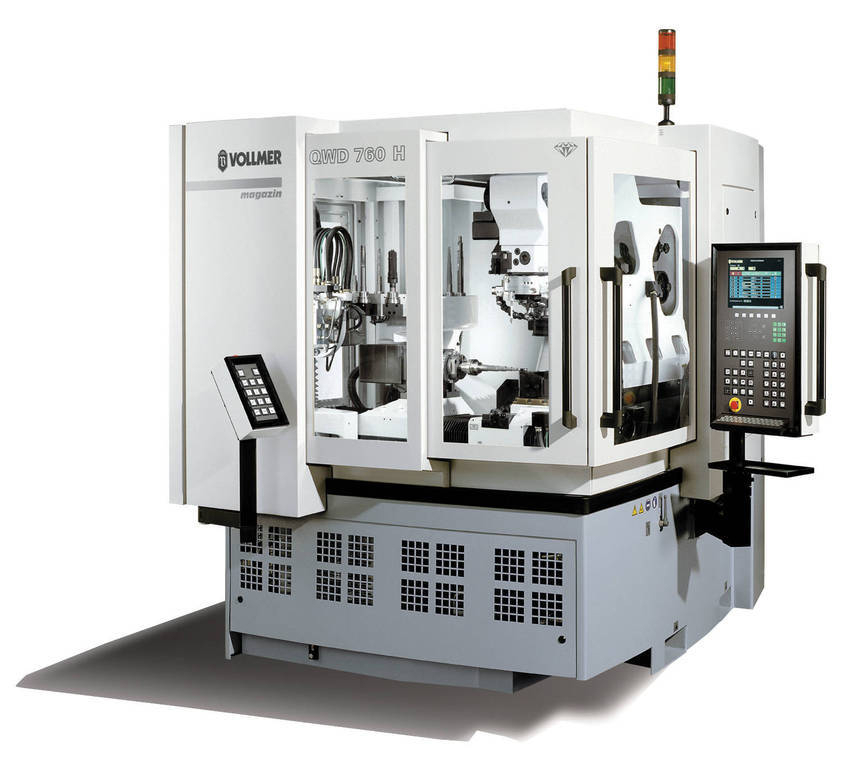

Wire Erosion Machine can be fully automated.
December 23, 2008 -
Featuring 5-axis CNC loader, QWD 760H includes rotating work head in E and A axes that enables precise, repeatable, and continuous path profiling of complex tool shapes such as step and profile tools. ExProg Software allows for simulating parts machining for review prior to eroding first workpiece. With completely programmable generator, which can be set for 4 erosion stages for coarse roughing, roughing, finishing, and fine finishing, unit achieves surface finishes less than 0.2 microns Ra.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Vollmer of America Corp.
105 Broadway
Carnegie, PA, 15205
USA
New Technology for Precise Manufacturing a Wide Variety of Diamond Cutting Tools
Carnegie, PA.. Vollmer of America Corporation has introduced a new series of wire
erosion machines designed specifically for the manufacture of diamond tipped metal
cutting tools. The Model QWD 760H incorporates the unique and patented wire erosion
technology that has proven to be the most efficient and successful method for removing
large volumes of PCD profiles that cannot be reached by a grinding wheel in a typical
tool cutter/grinder. Specifically designed to manufacture smaller diameter tools with
intricate geometries, such as stepped tools, the QWD760H delivers precise erosion of
tools between centers with unmatched concentricity and minimum TIR.
The QWD 760H features 5 axis machining including a rotating work head in the E axis
(patented) and A axis that enables extremely precise, repeatable and continuous path
profiling of complex tool shapes such as step and profile tools. This enables the electrode to swivel around the center of the head to cut difficult axial and radial angles in a single set-up. This feature is ideal for tools with "internal" cutting edges. Unique to the QWD 760H is the addition of a 5-axis CNC loader. This feature brings a new level of automation into play, making unattended machining a viable option.
At the heart of this technology is Vollmer's proprietary generator and ExProg Software
that interfaces with any industrial PC. With ExProg Software parts machining can be
simulated for review prior to eroding the first workpiece. Completely programmable, the
generator can be set for four erosion stages for coarse roughing, roughing, finishing and fine finishing. Settings can be stored and recalled easily to accurately control the amount of erosion required for any stage. This results in consistent surface finishes less than 0.2 microns Ra. The QWD 760H can be equipped with magazines holding 4, 12 or 36 tools and multiple chucking systems such as SK and HSK. The QWD 760H can be fully automated to provide unattended third shift operation.
For additional information, please contact Vollmer of America Corporation at
412.278.0655 or visit us on the internet at www.vollmer-us.com.
|
|
|
|
