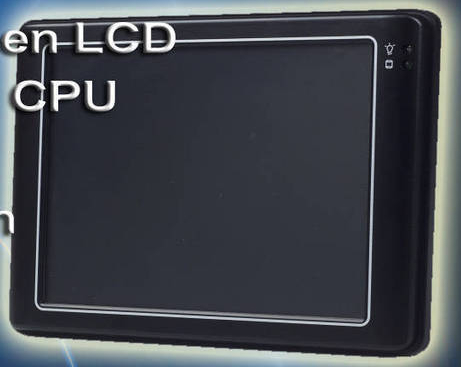

Widescreen Panel PC for PoS features 8.9 in. touchscreen.
February 12, 2010 -
Housed in 236 x 146 x 35 mm enclosure, fanless PDX-089T is powered by 1 GHz Vortex86DX CPU and features 1,024 x 600 resolution TFT LCD with LED backlight, 100° x 140° (V x H) viewing angles, and 25,000+ hr predicted life. Connectivity is fostered via one LAN, 2 USB 2.0, one RS-232, and Mini-PCI interfaces, while audio line out, additional USB port, and WLAN are optional. Product draws 1.3 A @ 5 Vdc and comes standard with 512 MB DDR2 memory, Compact Flash, and Micro SD slot.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
ICOP Digital, Inc.
16801 West 116th Street
Lenexa, KS, 66219
USA
An 8.9" Touchscreen System Ideal for Home Automation and Point of Sale
Following the very positive response to the PDX-057T 5.7" panel PC, DSL has now launched a larger widescreen variant known as the PDX-089T.
Designed as an ideal solution for Home Automation, Point of Sale and many other aesthetically demanding vertical markets the fanless PDX-089T is based on the 1GHz Vortex86DX CPU and features a Compact Flash and Micro SD slot, LAN, two USB 2.0 ports, one RS-232 port and Mini-PCI expansion. 512MB DDR2 memory is fitted as standard and optional audio line out, an additional USB port and wireless LAN are available on request.
Fitted with an 8.9" 1024x600 resolution TFT display with user friendly viewing angles of 100° (vertical) and 140° (horizontal) and LED backlight with a predicted life of >25,000 hours, the unit also has USB analog resistive touch (with a durability of 1 million touches).
Weighing a mere 468g and housed in a really neat black die cast enclosure (236mm x 146mm x 35 mm) with VESA 75 mounting holes to the rear , the PDX-089T draws just 1.3A at 5V DC (5V AC adapter included) and has an operating temperature range of -5°C to +60°C.
The PDX-089T supports DOS, Linux, Windows CE and Windows XPe any of which can be supplied pre-installed to flash memory. A free of charge OS customisation service is available at OEM volumes.
Certified to CE, FCC, UL and VCCI the PDX-089T has an optional 8-35VDC input voltage and IP65 rated variants are shortly to be launched broadening its appeal to vehicular and marine applications.
|
|
|
|
|
|
|
|
