Wideband Switches offer high isolation and high frequency.
June 26, 2008 -

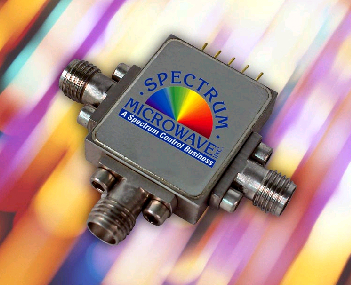

Ranging from 100 MHz to 22 GHz, Series 021 features integral TTL driver and is available with switching speeds of 100 nsec, isolation up to +95 dB, and insertion loss as low as 0.8 dB. Units are constructed with gold wire, gold-plated leads, and SMA connectorized housing with field removable connectors. Customizable with up to 5 throws, switches offer continuous RF input power to +30 dBm, dc nominal voltage of +5.0/-12 V, VSWR of 1.5:1, and operating temperature from -55 to +85°C.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Spectrum Control, Inc.
8031 Avonia Rd.
Fairview, PA, 16415
USA
Expanded Line Of Wideband Switches Offer High Isolation And High Frequency
Delmar, DE - June 5, 2008 - Spectrum Microwave introduces their newly expanded line of switches now offering SPDT to SP5T designs with a wide bandwidth from 100 MHz to 22 GHz. These high performance switches feature an integral TTL driver and are available with fast switching speeds of better than 100 nsec, high isolation of up to +95 dB and insertion loss as low as 0.8 dB.
Spectrum Microwave's high isolation, high frequency switches are constructed with gold wire and gold plated leads, which provides lower loss than other types of construction. These switches are fully customizable with up to 5 throws with continuous RF input power to +30 dBm, DC nominal voltage of +5.0/-12 Volts, VSWR of 1.5:1 and an operating temperature of -55°C to +85°C. The switches also feature an SMA connectorized housing with field removable connectors.
Spectrum Microwave's high isolation, high frequency switches are ideal for a wide range of applications including test equipment, radar, fiber optic and demanding military programs. The series 021 switches are priced starting from $200 depending on quantity and configuration, with typical delivery lead-times of 8 weeks.
About Spectrum Microwave
Spectrum Microwave is a wholly owned subsidiary of Spectrum Control, Inc. and produces a wide range of microwave components and systems. Frequency Control Components include a wide range low phase noise amplifier, LNAs, Mixers, Switches, DROs and VCOs. The Filter Division specializes in Lumped Element Filters, Cavity, Ceramic, Waveguide, Tubular, Diplexer and Multiplexer Designs. The Integrated Microwave Systems Group designs Switch Filter Banks, Synthesizers, PLOs, DTOs, GPS LNAs, and Sophisticated Microwave Assemblies.
About Spectrum Control
Spectrum Control, an ISO 9001:2000 and TS 16949 certified company, designs, manufactures and markets a broad line of EMI/RFI filters and power components, power management systems, microwave components, and sensors and controls.
The Spectrum Control Signal & Power Integrity Group produces discrete surface mount EMI filters, resin sealed and hermetically sealed EMI filters, EMI filtered arrays, EMI filtered connectors, ESD/EFT protected connectors, filtered data-com connectors, gaskets and shielding, patch antenna elements, single line filters, filtered terminal blocks, power entry modules, power line filters, military/aerospace multi-section filters, and commercial custom assemblies.
Spectrum Power Management Systems produces AC and DC power distribution and remote management systems. Products include off-the-shelf SMART start products as well as customized products or systems designed to suit specific user requirements. DC power circuit breaker and fuse interface panels, power outlet strips and data acquisition modules are also offered.
Spectrum Sensors & Controls Precision Positioning Sensors Operation manufactures a variety of precision co-molded conductive plastic potentiometers and position sensors, as well as element segments and cable assemblies. Designs for these potentiometers and position sensors include rotary, motorized, hollow shaft, linear and fader types, as well as custom assemblies. The company's Advanced Thermal Products Operation produces temperature sensing probes and assemblies, PTC and NTC thermistors and resistive temperature detectors (RTDs).
For further product information, contact Walter Witt, Regional Manager, Spectrum Microwave, 2707 Black Lake Place Philadelphia, PA. Phone: 888 553-1531. Fax: 888 553-1532. E-mail: WittW@spectrummicrowave.com Website: www.SpectrumMicrowave.com
|
|
|
|
|
|
|
|
