Wear-Resistant Insert Drills combine durability, flexibility.
November 16, 2011 -
Walter Valenite Xtraotec® insert drills come in diameters as small as 0.531 in., which are suitable for depths up to 5xD and equipped with size 1 inserts. Also available, cartridge format drills cover 2.35-4.70 in. dia range. Standard version features 3.15 in. dia with 3xD depth, while 4.70 in. dia and 5xD depth model can be ordered. Hole diameter can be finely adjusted to 0.024 in. on outer cartridge, and center cartridge comes with heavy-duty PVD-coated Tigerotec® cutting tool material.
Original Press release
Walter USA, Inc.
N22 W23855 Ridgeview Pkwy. W.
Waukesha, WI, 53188
USA
Walter USA, LLC Complements its Walter Valenite Xtraotec Line of Tough, Versatile and Wear Resistant Insert Drills
Expansion includes cartridge-style insert drills in popular metric sizes within the 60-120 mm diameter range with wear-resistant nickel plated surface and modular tool interface connection for use on nearly any machine spindle.
Waukesha, WI - Walter USA, LLC has expanded its versatile Walter Valenite Xtraotec® insert drill line with additional products at both ends of the diameter spectrum. For users who needed smaller diameter Xtraotec insert drills than were previously available, Walter now offers these drills with diameters as small as 13.5 mm (0.531"), suitable for depths up to 5xD. The tools in this range are equipped with size 1 (P484-1r) inserts.

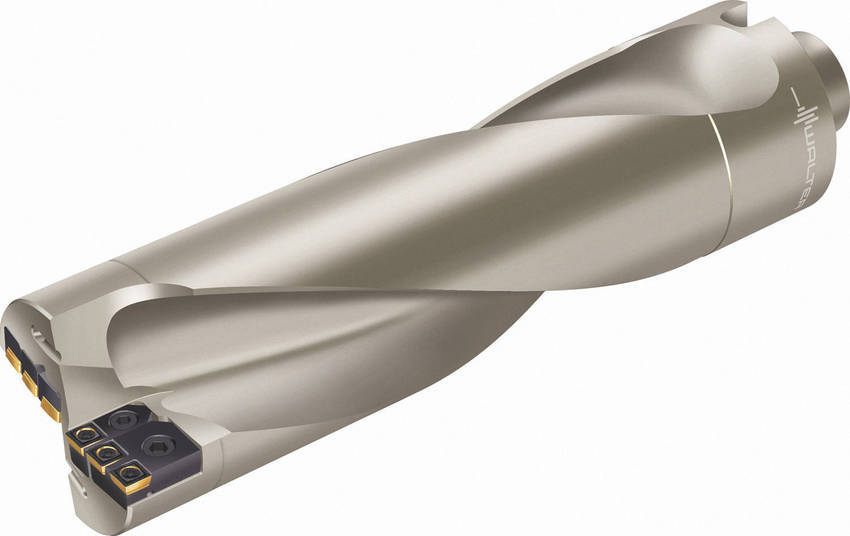

At the other end of the spectrum, Walter has introduced drills in a cartridge format for the 60-120 mm (2.35-4.70") diameter range. The cartridge format allows easy replacement of wear parts. The standard version features a diameter of 80 mm (3.15") with 3xD depth, while a 120 mm (4.70") diameter and 5xD depth model is offered as a special.
Suitable for use with all steels, including stainless, as well as cast iron and other hard to machine materials, these new cartridge versions exhibit a high degree of process reliability thanks in part of the positive locking of the cartridges. Precision is enhanced thanks to the fact that the hole diameter can be finely adjusted to + 0.6 mm (0.024") on the outer cartridge. The center cartridge is equipped with a heavy-duty PVD coated Tigerotec® cutting tool material. Indexable inserts with various Tigerotec grades can be selected for the outer cartridges, including wiper edges which help ensure excellent surface quality. Flexibility is boosted because the shank of the drill body has a modular NCT tool interface connection, enabling these models to be used on nearly any machine spindle. Plus, the interface helps ensure maximum stability due to its short taper and support face.
The cartridge versions offers further advantages, such as: drilling into solid material, inclined drilling, spot drilling on convex surfaces and chain drilling. The inserts have four cutting edges minimizing the costs per cutting edge. In addition, TorxPlus insert clamping screws provide a higher clamping and release torque, as well as easy handling. A hard-nickel plated surface protects the tool body from corrosion and wear while facilitating chip flow.
Walter USA, LLC offers an extensive line up of cutting tools for milling, drilling, turning, boring and specialized tooling for unique applications through its competence brands Walter Valenite, Walter Titex and Walter Prototyp. As well as multi-level service programs through its Walter Multiply brand. Headquartered in Waukesha, Wisconsin the company has a strong network of distributors and field engineers across North America. The Walter name is synonymous with productivity, thanks to more than 80 years of developing cutting tools and inserts that set new standards in production. Walter USA, LLC combines over 75 years of U.S.-based tooling production with long-standing traditions of quality and innovation.
|
|
|
|
|
|
|
|
