Walk-In Oven cures printed circuit boards.
March 22, 2011 -
Offering 48 x 48 x 72 in. workspace dimensions, No. 813 features 350,000 BTU/hr modulating natural gas burner for temperatures to 500°F and 3,300 cfm, 2 hp recirculating blower for horizontal airflow. Unit has 4 in. insulated walls, aluminized stainless steel interior and exterior, and 2 in. insulated floor with truck wheel guide tracks. Safety equipment, such as 325 cfm 1/3 hp powered force exhauster, is included as required by IRI, FM, and NFPA Standard 86.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Grieve Corporation, The
500 Hart Rd.
Round Lake, IL, 60073-2898
USA

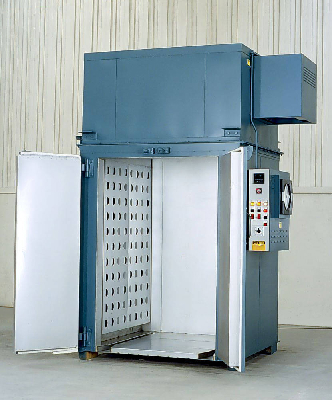

500°F Walk-In Oven
No. 813 is a gas-heated 500°F(~260°C) walk-in oven from Grieve, currently used for curing printed circuit boards. 350,000 BTU/HR is installed in a modulating natural gas burner and workspace dimensions are 48" wide x 48" deep x 72" high.
The unit has 4" insulated walls and an aluminized stainless steel interior and exterior. A 3300 CFM, 2-HP recirculating blower provides horizontal airflow to the oven. Safety equipment, such as a 325 CFM 1/3 powered force exhauster, is included as required by the IRI, FM and the National Fire Protection Association Standard 86 for gas-fired equipment. The oven also features a 2" insulated floor with truck wheel guide tracks and a removable top-mounted heat chamber.
Controls onboard No. 813 include a recirculating blower airflow safety switch, circular chart temperature controller and a manual reset excess temperature controller.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart
Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-
9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank
Calabrese.
|
|
|
|
|
|
|
|
