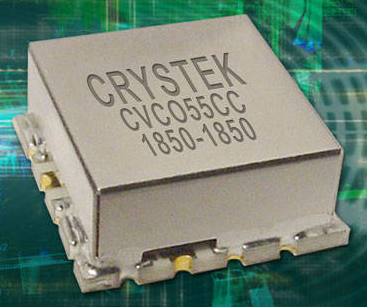

Voltage Controlled Oscillator suits digital radio applications.
December 14, 2010 -
Operating at 1,850 MHz with 0.5-4.5 V control voltage range, CVCO55CC-1850-1850 has typ phase noise of -117 dBc/Hz @ 10 kHz offset and typ output power of +2.5 dBm. Unit comes in 0.5 x 0.5 in. SMD package and features input voltage of 5 V with max current consumption of 20 mA. While pulling and pushing are respectively minimized to 2.0 and 1.0 MHz/V, second harmonic suppression is -15 dBc typ. Uses include fixed wireless access, satellite communications systems, and base stations.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Crystek Corp.
2351 Crystal Dr.
Fort Myers, FL, 33907
USA
New 1850 MHz VCO From Crystek Corporation
Fort Myers, FL - Crystek's CVCO55CC-1850-1850 VCO (Voltage Controlled Oscillator) operates at 1850 MHz with a control voltage range of 0.5V~4.5V. This VCO features a typical phase noise of -117 dBc/Hz @ 10KHz offset and has excellent linearity. Output power is typically +2.5 dBm.
Engineered and manufactured in the USA, the model CVCO55CC-1850-1850 is packaged in the industry-standard 0.5-in. x 0.5-in. SMD package. Input voltage is 5V, with a max. current consumption of 20 mA. Pulling and Pushing are minimized to 2.0 MHz and 1.0 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.
The CVCO55CC-1850-1850 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
For pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com. For more information,
contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913.
Tel: 800-237-3061 or 239-561-3311; Fax: 239-561-1025; E-mail: sales@crystek.com;
Web: www.crystek.com.
Crystek Corporation® has been providing frequency products since 1958, including quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), and VCXOs (voltage controlled crystal oscillators). Crystek operates two divisions dedicated to frequency control. Crystek Crystal is dedicated to the development and manufacture of frequency products using quartz-based resonators. Crystek Microwave develops of frequency control and support products for the microwave industry.
