Voice Coil Positioning Stage supports oscillatory applications.
May 7, 2012 -
Used for high force, oscillatory applications requiring sinusoidal motion, Part No. VCS12-1000-LB-C consists of open loop system driven by NCC moving coil type linear actuator and guided by 2 ceramic coated shafts sliding within 2 precision linear bushings. Each voice coil has 1.2 in. stroke and generates 100 lb continuous force (300 lb peak). Solution can be supplied with springs so that voice coil will operate as balanced spring mass system.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
H2W Technologies, Inc.
26470 Ruether Ave. #102
Santa Clarita, CA, 91350
USA

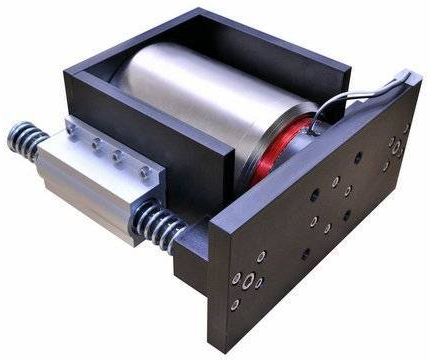

High Force Oscillatory Voice Coil Positioning Stage
H2W's voice coil positioning stage (P/N VCS12-1000-LB-C) is an open loop system that can be used for high force, oscillatory applications that require sinusoidal motion. The stage is driven by an NCC moving coil type linear actuator and is guided by two ceramic coated shafts sliding within two precision linear bushings. Each voice coil has a 1.2" [30.5 mm] stroke, generates 100 lbs [445 N] of continuous force and 300 lbs [1362 N] of peak force. It can be supplied with springs so that the voice coil will operate as a balanced spring mass system. Digital output linear encoders are available as an option.
Features:
- High Force
- High acceleration available
- Low maintenance
- Custom strokes and force configurations available
H2W Technologies is dedicated to the design and manufacture of linear and rotary motion products that are used in the motion control industry. The complete line of linear electric motors includes: single and dual axis linear steppers, DC brush and brushless linear motors, voice coil actuators, and AC induction motors. Also offered is a complete line of ball screw, lead screw and belt driven positioning stages.
Other motion control products include: limited angle torque motors for compact, limited angular excursion rotary servo applications, 3 phase brushless rotary servo motors with matching digital servo amplifiers and permanent magnet linear brakes for fail-safe, zero power braking for baggage handling and people moving applications as well as amusement park rides.
With over 75 years combined experience in the linear and rotary motion field, the H2W Technologies team of engineers offers the optimal solution to the most demanding motion control requirements.
