Vibration Transmitter has dual semiconductor relay alarms.
October 30, 2007 -
Suited for monitoring unbalance and misalignment on motors, pump sets, and other rotating equipment, Model 682A08 Vibration Transmitter is ICP® accelerometer signal conditioner that retransmits acceleration or velocity signal as 4-20 mA signal for trending and simple interface with PLC, DCS, and SCADA systems. DIN rail mounted and 24 Vdc powered unit comes with selectable low pass filters at 1 or 10 kHz and high pass filters at 3 or 10 Hz.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
IMI Sensors, Div. of PCB Piezotronics
3425 Walden Ave.
Depew, NY, 14043-2495
USA
IMI Sensors New ICP® Accelerometer Alarm Transmitter for Monitoring Unbalance and Misalignment on Motors, Pump Sets and Other Rotating Equipment

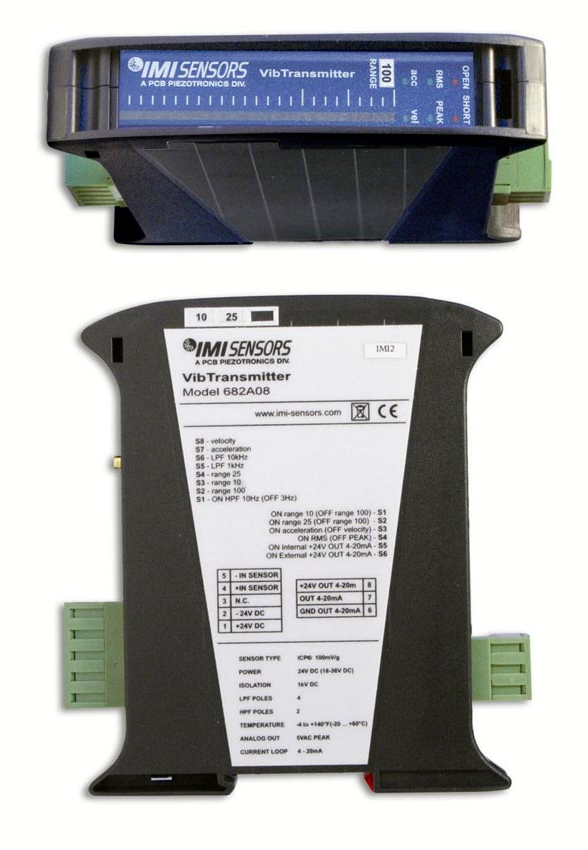

October 4, 2007, Depew, NY, USA - The new Model 682A08 Vibration Transmitter from the IMI Sensors division of PCB Piezotronics (PCB®) is an all-encompassing ICP® accelerometer signal conditioner, complete with dual semiconductor relay alarms and 4-20 mA signal transmission, for continuous monitoring of critical machinery. The product's versatility makes it ideal for monitoring unbalance and misalignment on motors, pump sets and other rotating equipment. This module provides excitation power for industry standard 100 mV/g (10.2 mV/(m/s˛)) ICP® accelerometers, and has the capability to integrate the signal into velocity. The product comes standard with selectable low pass filters at 1k Hz or 10k Hz, and high pass filters at 3 Hz or 10 Hz.
Model 682A08 retransmits an acceleration or velocity signal as a 4-20 mA signal for trending and simple interface with PLC, DCS, and SCADA systems. It also outputs the raw vibration signal from an accelerometer for frequency analysis and system diagnostics. It is DIN rail mounted, 24 VDC powered, and is an economical solution for ICP® signal conditioning and alarming, in a simple, compact design.
|
|
|
|
|
|
|
|
