Vertical Milling Machines handle load capacities to 770 lb.
September 4, 2009 -
Available with table sizes from 9 x 42 to 10 x 54 in., DX Series is made from treated high-grade cast iron, with hardened and ground X and Y guideways that are coated with Turcite-B. Machines feature X and Y axis ballscrews, heavy-duty alloy spindle, precision angular spindle bearings, and phosphor bronze nut for wear resistance. One-shot lubrication system lubricates all guideways and ballscrews. For flexibility, head can swing 90° left/right, 45° front/back, and rotate 360° horizontally.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Dalian Machine Tool Group Co., Ltd.
38 Anshan Road
Liaoning, , 116022
China

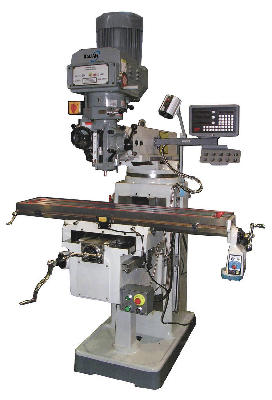

Dalian Introduces the DX Series Vertical Milling Machines
Dalian DX Series vertical milling machines are designed and engineered to provide precision and a long working life. These machines come with a range of features, including a one-shot lubrication system that lubricates all guideways and ballscrews. The DX Series machines have a compact configuration, and offer high machining flexibility. The body is made from treated high-grade cast iron, with hardened and ground X & Y guideways that are coated with Turcite-B. The machines feature X & Y axis ballscrews, guideways that are highly rigid with a large contacting surface, a heavy-duty alloy spindle, precision angular spindle bearings for high precision and a high-grade phosphor bronze nut for excellent wear-resistance. The head on the DX Series milling machines can swing 90º left, right, 45º front and back and rotate 360º horizontally, providing exceptional flexibility. The chrome and molybdenum spindle runs in Class 5 precision angular bearings to ensure high cutting force and extremely close tolerances. The DX milling machines are available with table sizes from 9" × 42" to 10" × 54", and table load capacities up to 770 lbs.
DMTG North America is the domestic sales network for Dalian Machine Tool Group, one of China's largest machine tool builders. DMTG's core business is machine tools encompassing special purpose machines with flexible manufacturing systems, vertical and horizontal machining centers, CNC lathes including turning and milling centers, and high speed precision lathes and machine tool accessories. DMTG has established a complete quality management system and has achieved ISO 9001 certification.
|
|
|
|
