VPX Load Board comes in conduction cooled format.
December 22, 2010 -
Designed per IEEE standard 1101.2 mechanical format, 6U VPX Load Board helps confirm chassis meets VITA 46/48/65 power specifications for VPX and aids in locating hot spots within enclosure. Specifically, it helps test system by applying load to power supply for verification and creating necessary heat to confirm chassis cooling. External voltage monitoring, load stepping, and GO-NO-GO LED indicators are standard, and MCU-based stepped load control is rated to 100 W max.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Elma Bustronic
44350 Grimmer Blvd.
Fremont, CA, 94538
USA

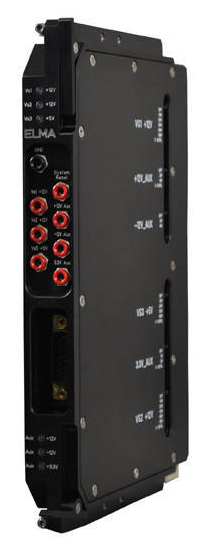

New 6U VPX Load Board from Bustronic Designed for Conduction Cooled Chassis
FREMONT, California - Elma Bustronic Corporation, an industry leading designer and manufacturer of high performance backplanes has announced a new 6U VPX Load Board in a conduction-cooled format. The board is designed per the IEEE standard 1101.2 mechanical format.
The conduction-cooled VPX load board helps confirm the chassis meets the VITA 46/48/65 power specifications for VPX and aids in locating hot spots within the enclosure. It helps test a system's cooling capabilities by applying the load to the power supply for verification and creating the necessary heat to confirm chassis cooling. The board features external voltage monitoring, load stepping, and GO-NO-GO indicator LEDs.
Like the standard air-cooled version, the conduction-cooled load card has a microcontroller-based stepped load control to 100W maximum. The voltage rotary switch has settings for 3.3V, 5V, 12V, +12V_Aux, - 12V / 48V, and Sys Reset. The set load power levels are saved in EEPROM. Bustronic also offers VPX load boards in a 3U form factor and 6U air cooled formats.
The lead-time is 2-3 weeks ARO.
About ELMA BUSTRONIC:
Founded in 1989, Elma Bustronic specializes in the design and manufacture of high-performance backplanes. Elma Bustronic has a complete line of industry-standard backplanes, including CompactPCI, VME, VME64x, H.110 CT, VXI, VXS, and ATCA. Elma Bustronic's custom design service combines creative engineering, highly sophisticated computer simulation and modern design techniques to offer customized backplanes that meet the most specialized system requirements. A member of the ELMA Electronic group, Elma Bustronic is located in Fremont, California. Elma Bustronic is a member of PICMG(TM), VITA, and the StarFabric Trade Association and can be found on the World Wide Web at www.Bustronic.com.
|
|
|
|
|
|
|
|
