VCO suits digital radio equipment and base stations.
November 28, 2008 -

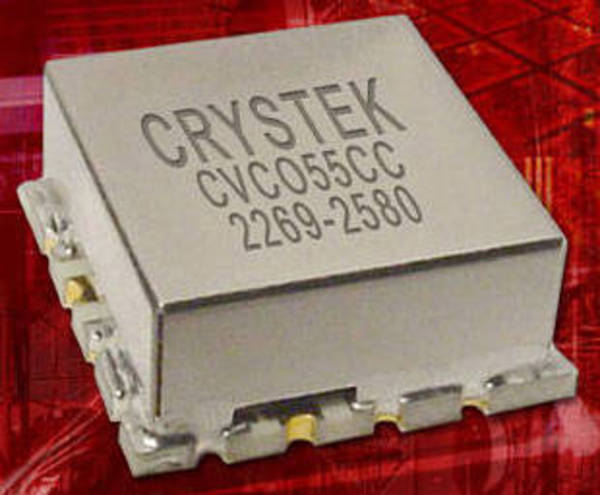

Operating from 2,269-2,580 MHz with control voltage range of 0.5-16 V, CVCO55CC-2269-2580 VCO (Voltage Controlled Oscillator) features typical phase noise of -107 dBc/Hz @ 10 KHz offset and typical output power of +5.0 dBm. It comes in 0.5 x 0.5 in. SMD package, accepts 8 V input, and has max current consumption rating of 35 mA. Respectively, pulling and pushing are minimized to 3.00 MHz and 0.50 MHz/V, and typical second harmonic suppression is -20 dBc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Crystek Crystals Corp.
12730 Commonwealth Dr.
Fort Myers, FL, 33913
USA
New 2269-2580 MHz VCO from Crystek Corporation
Fort Myers, FL, November 14, 2008 - Crystek's CVCO55CC-2269-2580 VCO (Voltage Controlled Oscillator) operates from 2269 MHz to 2580 MHz with a control voltage range of 0.5V~16V. This VCO features a typical phase noise of -107 dBc/Hz @ 10KHz offset and has excellent linearity. Output power is typically +5.0 dBm.
The model CVCO55CC-2269-2580 is packaged in the industry-standard 0.5-in. x 0.5-in. SMD package. Input voltage is 8V, with a max current consumption of 35 mA. Pulling and Pushing are minimized to 3.00 MHz and 0.50 MHz/V, respectively. Second harmonic suppression is -20 dBc typical.
The CVCO55CC-2269-2580 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
Pricing for the CVCO55CC-2269-2580 will start at $18.46 ea. in volume. For additional pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com. For more information,
contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913.
Tel: 800-237-3061 or 239-561-3311; Fax: 239-561-1025; E-mail: sales@crystek.com;
Web: www.crystek.com.
Crystek Corporation® is a leading manufacturer of Frequency Control Products - quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), VCXOs (voltage controlled crystal oscillators), and TCVCXOs (temperature compensated voltage controlled oscillators). Founded in 1958, Crystek's capabilities include custom manufacturing of quartz crystal and oscillators from quartz bars through packaged and tested finished products. Crystek's facilities include climate controlled manufacturing plants and state-of-the-art product validation centers. Crystek's on-site warehousing facility boasts an inventory of more than five million items, which allows the company to respond to most customer requests on a next day basis.
Reader Service Inquiries: Please forward to Sales at Crystek Corporation,
12730 Commonwealth Drive, Ft. Myers, FL 33913; E-mail: sales@crystek.com
(e-mail preferred).
|
|
|
|
|
|
|
|
