VCO offers typical output power of +5.5 dBm.
October 27, 2009 -
Operating at 1,000-2,000 MHz with control voltage range of 1.0-20.0 V, CRBV55CW-1000-2000 features typical phase noise of -100 dBc/Hz at 10 kHz offset. VCO is enclosed in 1.25 x 1.25 x 0.58 in. aluminum enclosure with SMA connectors that enables plug-and-play integration. It has input voltage of 10 V, with max current consumption of 25 mA. Pulling and Pushing are minimized to 15.0 MHz and 5.0 MHz/V, respectively, and second harmonic suppression is -10 dBc typical.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Crystek Corporation
12730 Commonwealth Drive
Ft. Myers, FL, 33913
USA

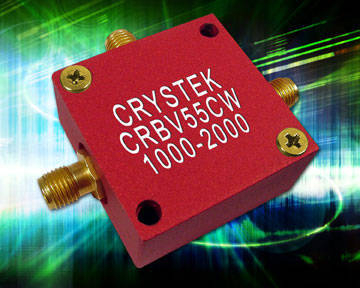

New 1000-2000 MHz RedBox VCO from Crystek Corporation
Fort Myers, FL - October 15, 2009 - Crystek's CRBV55CW-1000-2000 RedBox VCO (Voltage Controlled Oscillator) operates from 1000 MHz to 2000 MHz with a control voltage range of 1.0~20.0V. This VCO features a typical phase noise of -100 dBc/Hz @ 10KHz offset and has excellent linearity. Output power is typically +5.5 dBm.
Crystek's RedBox line comprises VCOs enclosed in a robust aluminum enclosure (1.25" x 1.25" x 0.58") with SMA connectors, enhancing the VCO's durability and making integration of a VCO into any application an easy, plug-and-play option.
Engineered and manufactured in the USA, the model CRBV55CW-1000-2000 features an input voltage of 10V, with a max current consumption of 25 mA. Pulling and Pushing are minimized to 15.0 MHz and 5.0 MHz/V, respectively. Second harmonic suppression is -10 dBc typical.
The CRBV55CW-1000-2000 RedBox VCO is ideal for use in applications such as telecommunications, computers, radio equipment, base stations and other electronic applications.
For pricing details, contact Crystek Corporation.
Family datasheets are available for download at www.crystek.com. For more information,
contact sales at Crystek Corporation, 12730 Commonwealth Drive, Ft. Myers, FL 33913.
Tel: 800-237-3061 or 239-561-3311; Fax: 239-561-1025; E-mail: sales@crystek.com;
Web: www.crystek.com.
Crystek Corporation® has been providing frequency products since 1958, including quartz crystals, XOs (clock oscillators), TCXOs (temperature compensated oscillators), VCOs (voltage controlled oscillators), and VCXOs (voltage controlled crystal oscillators). Crystek operates two divisions dedicated to frequency control. Crystek Crystal is dedicated to the development and manufacture of frequency products using quartz-based resonators. Crystek Microwave develops of frequency control and support products for the microwave industry.
Reader Service Inquiries:
Please forward to Sales at Crystek Corporation,
12730 Commonwealth Drive, Ft. Myers, FL 33913;
E-mail: sales@crystek.com
(e-mail preferred).
|
|
|
|
