VCO features ultra low phase noise.
September 30, 2009 -
Operating at 3,400 MHz with tuning voltage of 0.5-4.5 Vdc, S-band Model CRO3400C-LF features typical phase noise of -112 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 5 MHz/V. Unit delivers output power of 3 dBm at 5 Vdc supply while drawing 24 mA over temperature range of -40 to 85°C. Housed in MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in., RoHS-compliant voltage controlled oscillator features typical harmonic suppression of -20 dBc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Z-Communications, Inc.
9939 Via Pasar
San Diego, CA, 92126
USA

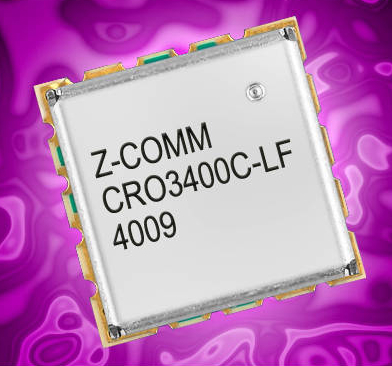

VCO: CRO3400C-LF Features Ultra Low Phase Noise
Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model CRO3400C-LF in S-band. The CRO3400C-LF operates at 3400 MHz with a tuning voltage range of 0.5-4.5 Vdc. This VCO features a typical phase noise of -112 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 5 MHz/V.
The CRO3400C-LF is designed to deliver a typical output power of 3 dBm at 5 Vdc supply while drawing 24 mA (typical) over the temperature range of -40º to 85º C. This VCO features typical second harmonic suppression of -20 dBc and comes in Z-Comm's standard MINI-16-SM package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The CRO3400C-LF is also ideal for automated surface mount assembly and reflow.
CRO3400C-LF is well suited for satellite communication and fixed wireless applications that require ultra low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/Product... .
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
Part Number: CRO3400C-LF
Delivery: Stock-4 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support - mailto:applications@zcomm.com
Email Sales: mailto:sales@zcomm.com
URL: http://www.zcomm.com
|
|
|
|
