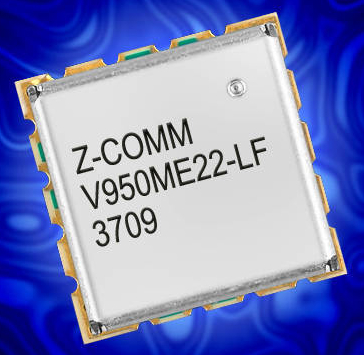

VCO features ultra low phase noise.
September 9, 2009 -
Model V950ME22-LF VCO in C-band operates at 4,400-5,000 MHz with tuning voltage range of 0-9.5 Vdc. Typical phase noise is -89 dBc/Hz @ 10 kHz offset and typical tuning sensitivity is 120 MHz/V. Operating over temperature range of -40 to +85ºC, RoHS-compliant unit delivers output power of 3 dBm at 10 Vdc supply while drawing 25 mA. It is available in MINI-14S package measuring 0.5 x 0.5 x 0.22 in. as well as in tape and reel packaging for production requirements.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Z-Communications, Inc.
9939 Via Pasar
San Diego, CA, 92126
USA
VCO: V950ME22-LF Features Ultra Low Phase Noise
Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model V950ME22-LF in C-band. The V950ME22-LF operates at 4400-5000 MHz with a tuning voltage range of 0-9.5 Vdc. This VCO features a typical phase noise of -89 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 120 MHz/V.
The V950ME22-LF is designed to deliver a typical output power of 3 dBm at 10 Vdc supply while drawing 25 mA (typical) over the temperature range of -40º to 85ºC. This VCO comes in Z-Comm's standard MINI-14S package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The V950ME22-LF is also ideal for automated surface mount assembly and reflow.
V950ME22-LF is well suited for satellite communication and digital radio applications that require ultra low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/Product....
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
Part Number: V950ME22-LF
Delivery: Stock-3 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support - mailto:applications@zcomm.com
Email Sales: mailto:sales@zcomm.com
URL: http://www.zcomm.com
|
|
|
|
