Ultra Live Centers suit high thrust operations.
September 18, 2007 -

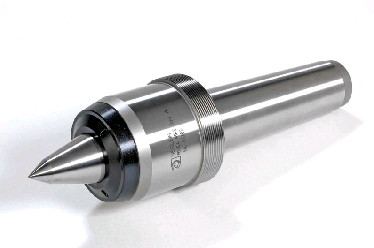

Available in carbide or half carbide, Neidlein Ultra Live Centers offer .00020 in. TIR for lathe work and guaranteed .00012 in. TIR for grinding. Bodies and bearings are permanently sealed and lubricated for maintenance-free operation. Full size frontcap protects high-speed seals, which in turn protect centers from contaminants and coolant. Centers are suited for operations with face drivers and other workholding devices, heavy depth of cut lathes, and high-precision grinders.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Logansport Matsumoto Co.
1200 W. Linden Ave., P.O. Box 7006
Logansport, IN, 46947
USA
New Neidlein Ultra Live Centers Available From LMC Workholding
Logansport, IN - LMC Workholding introduces the new Neidlein Ultra Live Centers, suited for high thrust operations with face drivers and other workholding devices, heavier depth of cut lathes, larger workpieces and high precision grinders. These new live centers feature the tightest run-out tolerances and are the longest lasting on the market.
The Ultra Live Centers are available in carbide or half carbide and are equipped for high axial and radial forces and for high revolutions per minute. The centers offer .00020" TIR for lathe work and a guaranteed .00012" TIR for grinding. A new HQ model offers .0008" for grinding.
Other features include a better tool clearance between the workpiece and housing and a maintenance-free design, due to permanently sealed and lubricated bodies and bearings. A full size frontcap protects the high speed seals, which in turn protect the centers from contaminants and coolant. The frontcap also protects the seal-systems against chips and other particles, offering a better performance for vertical applications.
The entire LMC Workholding line includes...
o LMC power chucks, cylinders and wheel chucks;
o Atling Steady Rests;
o Neidlein face divers, as well as live and dead centers.
Contact LMC Workholding, P.O. Box 7006, Logansport, IN 46947-7006, telephone: 574-735-0225, fax: 574-722-6559, e-mail: info@logan-mmk.com. Website: www.logan-mmk.com.
|
|
|
|
|
|
|
|
|
|
|
