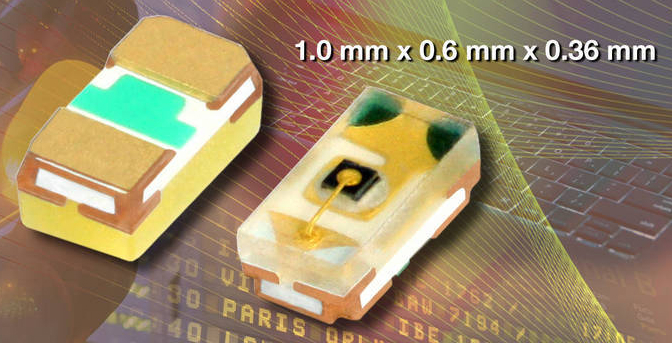

Ultra-Bright LEDs come in compact 0402 ChipLED package.
August 20, 2012 -
Supplied in 1.0 x 0.5 x 0.35 mm SMT package, VLMx1500-GS08 series includes InGaN-based blue and white LEDs as well as AllnGaP-based super red, soft orange, yellow, yellow green LEDs. White LEDs are chromaticity coordinated categorized according to CIE 1931, per packing unit, with typical coordinates of 0.294 (x) and 0.286 (y) and typ color temperature of 7,000 K. With luminous intensity to 180 mcd and viewing angle of 130°, LEDs suit indicator and backlighting applications.
Original Press release
Vishay Intertechnology, Inc.
63 Lincoln Hwy., P.O. Box 4004
Malvern, PA, 19355 2143
USA
Vishay Intertechnology Offers Ultra-Bright LEDs in Compact 0402 ChipLED Package
Link to datasheets:
http://www.vishay.com/doc?82554 (VLMS1500, VLMO1500, VLMY1500, VLMG1500, VLMB1500)
http://www.vishay.com/doc?82522 (VLMW1500)
Vishay Intertechnology Offers Super Red, Soft Orange, Yellow, Yellow Green, Blue, and White Ultra-Bright LEDs in Compact 0402 ChipLED Package
Devices Measure 1.0 mm by 0.5 mm With Ultra-Low 0.35 mm Profile, Provide Luminous Intensity to 180 mcd
MALVERN, Pa. - The Optoelectronics group of Vishay Intertechnology, Inc. (NYSE: VSH) today announced a new series of super red, soft orange, yellow, yellow green, blue, and white ultra-bright LEDs in a tiny surface-mount 0402 ChipLED package. Measuring 1.0 mm by 0.5 mm with an ultra-thin 0.35 mm profile, VLMx1500-GS08 series devices provide exceptional brightness with a luminous intensity to 180 mcd.
While the blue and white LEDs in the VLMx1500-GS08 series use highly efficient InGaN technology, the super red, soft orange, yellow, and yellow green devices utilize the latest advanced AllnGaP technology to increase light output by a factor of three. With their high brightness and small size, VLMx1500-GS08 series LEDS are the perfect choice for reliable performance in indicator and backlighting for audio and video equipment; office equipment; LCDs, switches, and symbols; interior and exterior lighting; and indoor and outdoor message boards.
Super red, soft orange, yellow, yellow green, and blue devices are grouped by luminous intensity, wavelength, and forward voltage, and they offer an extremely wide viewing angle of 130°. The white LEDs are chromaticity coordinated categorized according to CIE 1931, per packing unit, with typical coordinates of 0.294 (x) and 0.286 (y) and a typical color temperature of 7,000 K.
VLMx1500-GS08 series LEDs are available in 8 mm tape. RoHS-compliant and Vishay GREEN, the devices are compatible with IR-reflow soldering processes and preconditioned according to JEDEC Level 2a.
Device Specification Table:
Part # Color Luminous @ IF (mA) Wavelength (nm) Forward Technology
intensity voltage
range (mcd) max. (V)
VLMS1500-GS08 Super red 18 to 54 20 631 typ. 2.4 AllnGaP
VLMO1500-GS08 Soft orange 45 to 90 20 605 typ. 2.4 AllnGaP
VLMY1500-GS08 Yellow 28 to 180 20 587 to 597 2.4 AllnGaP
VLMG1500-GS08 Yellow green 18 to 35 20 571 typ. 2.4 AllnGaP
VLMB1500-GS08 Blue 11.2 to 45 5 470 to 475 3.15 InGaN
VLMW1500-GS08 White 45 to 180 5 - 3.15 InGaN/yellow converter
Samples and production quantities of the VLMx1500-GS08 series are available now, with lead times of eight weeks for larger orders. Pricing for U.S. delivery starts at $3.00 for 100 pieces. Follow LEDs from Vishay at http://twitter.com/vishayindust.
