USB Protocol Tester includes electrical test modes.
October 4, 2011 -
Connected to host PC via USB, Packet-Master USB-PET is controlled by GraphicUSB application software, which can generate test reports and perform analyzer-style captures. Front panel features micro-AB receptacle and D-type connector for connection to Unit-Under-Test, while rear-panel allows connection of meter or oscilloscope. Packet-Master USB-PET can perform OTG compliance testing, battery charging compliance testing, analysis of bus activity, and high-speed electrical testing.
Original Press release
Saelig Co., Inc.
1160-D2 Pittsford-Victor Rd.
Pittsford, NY, 14534
USA
Saelig Debuts Packet-Master USB-PET Protocol and Electrical Tester

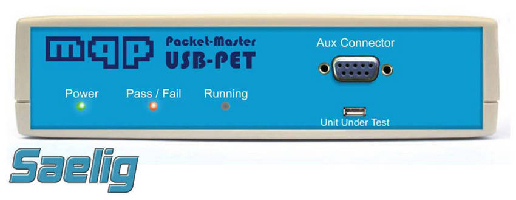

Pittsford, NY, USA: Saelig Company, Inc. announces the Packet-Master USB-PET - a unique USB protocol and electrical tester capable of performing the suite of tests defined in the USB Implementers Forum, Inc.'s 'Battery Charging, USB On-The-Go and Embedded Host Automated Compliance Plan' (http://www.usb.org/developers/onthego...). Packet-Master USB-PET is connected to a host PC using a High-Speed USB connection, and controlled using the GraphicUSB application software, which can generate test reports and perform analyzer-style captures. USB-PET's front panel features a micro-AB receptacle and a D-type connector for connection to a Unit-Under-Test. The rear-panel allows the connection of a meter or an oscilloscope for monitoring, for example, VBUS voltage.
The comprehensive series of tests that Packetmaster USB-PET can perform includes:
o OTG Compliance Testing: USB-PET provides automated compliance testing of both the data protocol and the electrical and timing requirements of the 'On-The-Go and Embedded Host Supplement to the USB Revision 2.0 Specification'. All aspects of On-The-Go and Embedded Hosts are tested, including VBUS voltage and current performance, and SRP, HNP and ADP protocols.
o Battery Charging Compliance Testing: USB-PET can carry out the compliance testing required by the USB Charging Port Compliance Plan, including tests on Charging Ports, Portable Devices, and Accessory Charger Adapters.
o Analyzer Functionality: USB-PET can capture an analysis of bus activity during the compliance test, in the same format as other MQP analyzers. This allows rapid investigation of protocol-based test failures.
o Control of Testing: Tests are usually carried out as a suite for a particular type of Unit-Under-Test (UUT) but individual tests can also be selected to investigate a particular failure. Users can even write their own test scripts to modify parameters for more in-depth or special investigations.
o High Speed Electrical Test Modes: Single click operations allow the initiation of any of the High Speed Electrical Test modes defined in the supplement and the core USB specification.
Physical Specifications
Weight: 500 g
Dimensions: 190 x 140 x 52 mm
Temperature: 0°C - 40°C
Humidity: 20% - 80% non-condensing
USB-PET is designed and made by Europe's foremost USB experts MQP Electronics and will be available from October 1st from stock at $5995.00 from Saelig Company. Inc. Pittsford NY. info@saelig.com. For detailed specifications, free technical assistance, or additional information, please contact Saelig at 888-7SAELIG, via email: info@saelig.com, or visit www.saelig.com.
