UHF Band VCO features low phase noise.
October 28, 2009 -
Operating from 200-400 MHz with tuning voltage range of 1-16 Vdc, V350ME24-LF has typical phase noise of -95 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 16 MHz/V. RoHS-compliant VCO (Voltage-Controlled Oscillator) delivers typical output power of 3 dBm at 10 Vdc supply while drawing 16 mA (typ) over -20 to +55°C range. Typical second harmonic suppression is -20 dBc, and MINI-14S package measures 0.5 x 0.5 x 0.22 in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Z-Communications, Inc.
9939 Via Pasar
San Diego, CA, 92126
USA

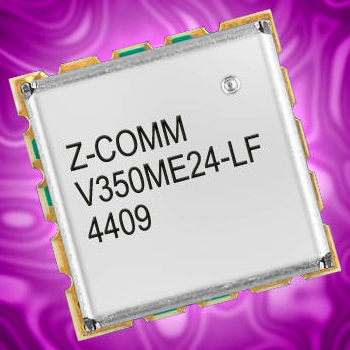

VCO: V350ME24-LF Features Low Phase Noise
Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model V350ME24-LF in UHF-band. The V350ME24-LF operates at 200-400 MHz with a tuning voltage range of 1-16 Vdc. This VCO features a typical phase noise of -95 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 16 MHz/V.
The V350ME24-LF is designed to deliver a typical output power of 3 dBm at 10 Vdc supply while drawing 16 mA (typical) over the temperature range of -20° to 55° C. This VCO features typical second harmonic suppression of -20 dBc and comes in Z-Comm's standard MINI-14S package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The V350ME24-LF is also ideal for automated surface mount assembly and reflow.
V350ME24-LF is well suited for mobile radio and test and measurement applications that require ultra low phase noise performance. Additional specifications for this product can be found on-line at http://www.zcomm.com/webstore/Product... .
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.
Part Number: V350ME24-LF
Delivery: Stock-4 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support - mailto:applications@zcomm.com
Email Sales: mailto:sales@zcomm.com
URL: http://www.zcomm.com
|
|
|
|
