Turning Center features twin-spindle design.
October 13, 2006 -
Designed to machine parts with up to 9.8 in. dia, DVH250i duo vertical pick-up turning center includes shuttle-type part feeder and enables parallel production of 2 identical or different parts simultaneously at rates up to 200 parts/hr. Machine has work envelope of 11.8 x 7.9 in. and requires 64.6 sq ft floor space, with axis traverse rates of 1,772 ipm in X direction and 1,181 ipm in Z direction. Standard tool interface is VDI 40 to DIN 69880.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Hessapp MAG Industrial Automation Systems
Aarstrasse 157
Taunusstein-Hahn D-65232, ,
Germany
Hessapp Introduces Its New DVH250 i duo Twin-Spindle, High-Production Turning Center at IMTS 2006
Chicago, IL, September 6, 2006 - Hessapp introduces its new "DVH 250 i duo" vertical pick-up turning center in Booth A-8218 at IMTS 2006. This twin spindle turning machine is designed for high-volume production applications. It has a work envelope of 11.8 x 7.9 inches (300 x 200 mm) and only requires 64.6 square feet (6 m2) of floor space.
The DVH250i duo turning center is designed to machine parts up to 9.8 inches (250 mm) in diameter, and has a shuttle-type part feeder to ensure fast part loading times. Axis traverse rates are 1,772 ipm (45 m/min) in the X direction and 1,181 ipm (30 m/min) in the Z direction.
The twin spindle design allows parallel production of two identical parts simultaneously, or parallel production of two different parts. The DVH250 i duo turning center can also be used to sequentially process a single part by moving it from spindle to spindle. In parallel production, typical parts can be machined at rates up to 200 parts per hour.
Each of the two machining areas can be equipped with a 12-position tool turret for static tools. Powered tools are optionally available. The standard tool interface is VDI 40 to DIN 69880.
A 320-size version of the DVH i duo machine is also available from Hessapp to accommodate a maximum turning diameter of 2x320 mm (12.5 inches).
For more information on the DVH250 i duo vertical pick-up turning center in North America, please contact Hessapp at 2555 20th Street, Port Huron, MI 48060, phone (586) 532-2500, fax (586) 532-2501, or by visiting the company's web site at www.hessapp.com
Hessapp is part of the Special Machining Technologies Division of the globally operating MAG Industrial Automation Systems Group. Within this organization, Hessapp is the center of competence for vertical turning systems.
About MAG Industrial Automation Systems
MAG Industrial Automation Systems (MAG-IAS), Sterling Heights, MI, is a group of leading machine tool and systems companies serving the durable-goods industry, worldwide, with a large portfolio of highly-recognized and well-respected brands. With manufacturing operations on five continents, MAG-IAS ranks as a leader in the global metalworking capital equipment market.
For more information about MAG Industrial Automation Systems or its companies visit www.mag-ias.com

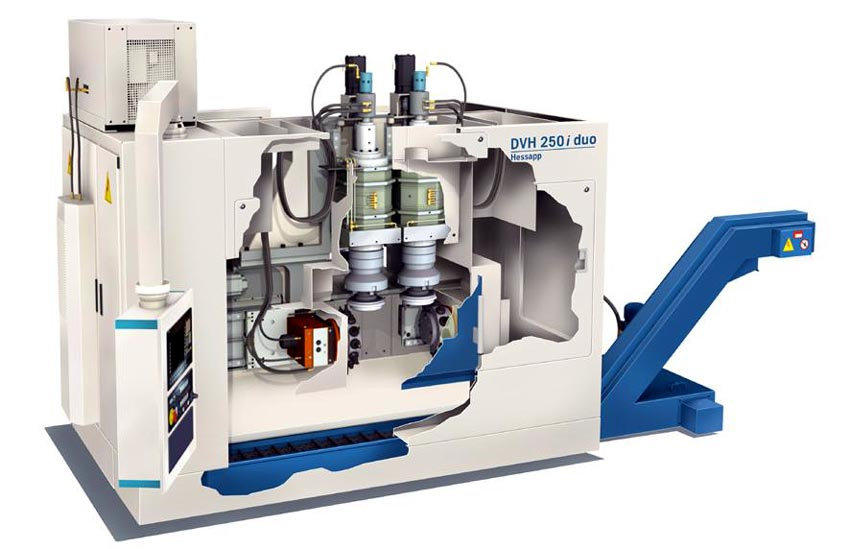

Hessapp introduces its new "DVH 250 i duo" vertical pick-up, twin spindle turning center in Booth A-8218 at IMTS 2006.
|
|
|
|
|
|
|
|
