Torque Sensor meets demands of motor flange applications.
June 12, 2008 -
Designed to measure reaction forces exerted on motor housing, Model 01302 is directly mounted to motor flange face as main interface between it and torque load. It can be used with variable displacement motors, fluid meters, and linear actuators and is adaptable for motor face couplings, such as SAE type flanges. Torque capacities can be designed to meet requirements and typically range from 100-10,000 lb-in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Sensor Developments, Inc.
1050 W. Silver Bell Rd.
Orion, MI, 48359
USA

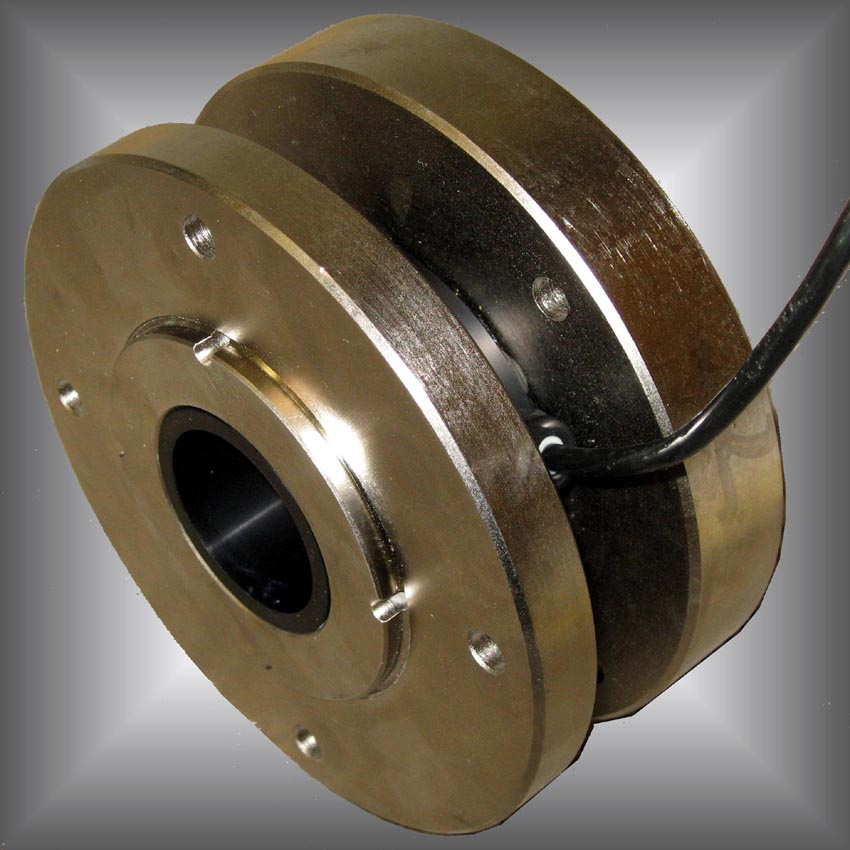

Motor Flange Torque Sensor
This unique style torque sensor is designed to measure the reaction forces exerted on the motor housing. SDI's model 01302 is directly mounted to the motor's flange face as the main interface between it and the torque load. It can be used with variable displacement motors, fluid meters, linear actuators, and other drive motors to measure the output torque, in real-time and at the source. The use of this sensor greatly reduces the potential of electrical noise due to bearings or slip-ring brushes, and allows for more extreme environmental exposures, such as at sea or at remote field sites.
This sensor design can be adapted for a wide range of applications and motor face couplings including SAE type flanges.
Torque capacities can be designed to meet your requirements and typically range from 100in-lbs 10,000in-lbs (11N-m to 1100Nm).
|
|
|
|
|
|
|
|
