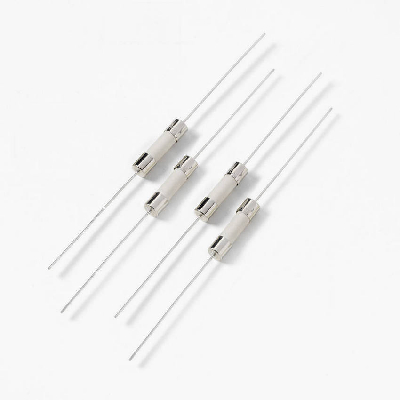

Time-Lag Fuses feature single-pigtail design.
September 10, 2010 -
With 5 x 20 mm footprint and ceramic body, 215SP Series has one cap at each terminal side, rather than double caps at each side. Units feature 1,500 A at 250 Vac interrupting rating and meet IEC 60127-2, Sheet 5 specification for time-lag fuses. RoHS-compliant and 100% lead-free, fuses are available in wide range of current ratings from 1-10 A and carry UL, VDE, and CCC approvals. Units are suited for providing supplementary protection in appliance or utilization equipment.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Littelfuse, Inc.
800 E. Northwest Hwy.
Des Plaines, IL, 60016
USA
Littelfuse Introduces 215SP Series 5x20mm Time-Lag Fuse with Single-Pigtail Design
Compact fuse gives designers a new alternative to the standard 215 Series pigtail fuse
CHICAGO, Illinois, - Littelfuse, Inc. (NASDAQ/NGS:LFUS) has introduced the 215SP Series fuse, a single pigtail fuse that complements Littelfuse's line of traditional pigtail fuses. Unlike the existing 215 Series, the 215SP Series fuse has one cap at each terminal side, rather than double caps at each side. By doing away with conventional overcapping, Littelfuse was able to offer a ceramic-body fuse with a more compact footprint in the 5x20mm size.
Applied to individual components and circuits, the new 250VAC fuse is ideal for providing supplementary protection in appliance or utilization equipment.
The new 215SP Series single pigtail fuse has the same circuit interrupting capacity and electrical characteristics as the existing 215 Series traditional pigtail fuses. Its interrupting ratingof 1500A at 250V AC is also consistent with the existing 215 Series. It meets the IEC 60127-2, Sheet 5 specification for time-lag fuses, and it carries approvals from variety of agencies, including UL, VDE, CCC and many others. It is 100 percent lead free and RoHS compliant. It is available in a wide range of current ratings from 1A to 10A. A flexible manufacturing process enables Littelfuse to offer the 215SP fuse with improved lead times.
Availability
The 215SP Series fuse is available in 1000 pcs loose pack. Contact a Littelfuse sales representative for price and delivery information, or to request samples. For the list of Littelfuse distributors, please visit www.littelfuse.com.
For More Information
For more information about the 215SP Series fuse, please visit the Littelfuse web site at www.littelfuse.com or contact your local Littelfuse Technical Support expert.
Product page:
http://www.littelfuse.com/products/Fu...
|
|
|
|
|
|
|
|
