Thin Film Resistor Networks operate to 215°C.
December 9, 2011 -
Featuring molded 50 mil pitch construction with no internal solder, HTRN Series offers 4 isolated resistors with resistance range of 1-100 kW per resistor and divider ratios from 2:1 to 100:1. Dual-in-line units feature absolute TCR of ±25 ppm/°C, TCR tracking of 5 ppm/°C, and ratio tolerances to ±0.05%. With power rating of 100 mW per element, resistors are suited for automotive applications, oil and gas exploration, aerospace engine control, and telecommunications equipment.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Vishay Intertechnology, Inc.
63 Lincoln Hwy., P.O. Box 4004
Malvern, PA, 19355 2143
USA
Vishay Launches New Dual-in-Line Thin Film Resistor Networks With Operation to 215 Deg. C
Vishay Intertechnology Introduces New Dual-in-Line Thin Film Resistor Networks Offering High-Temperature Operation to + 215 °C and Ratio Tolerances to ± 0.05 %

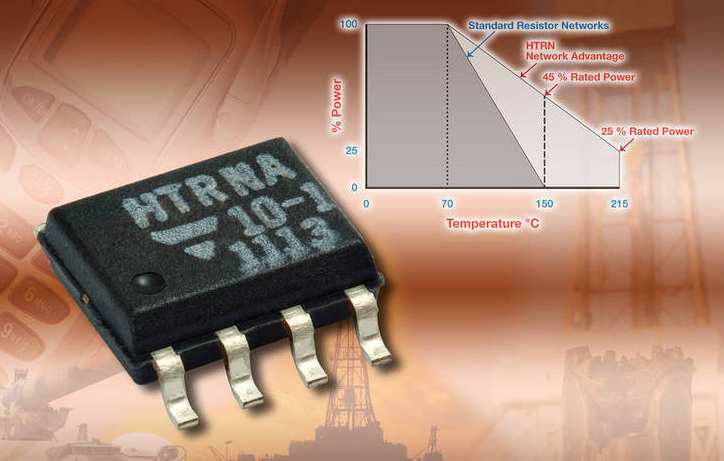

MALVERN, Pa. - Vishay Intertechnology, Inc. (VSH: NYSE) today introduced a new series of dual-in-line thin film resistor networks offering a wide operating temperature range of - 55 °C to + 215 °C. Providing nearly a 100 °C extension in operating temperature range over traditional thin film chip resistors, the HTRN series features low absolute TCR of ± 25 ppm/ºC, TCR tracking of 5 ppm/ºC, and tight ratio tolerances to ± 0.05 %.
Featuring a rugged, molded 50 mil pitch construction with no internal solder, the HTRN series of resistor networks offers four isolated resistors with a wide resistance range of 1 kW to 100 kW per resistor, with divider ratios from 2:1 to 100:1. The devices feature very low noise of < - 35 dB, low voltage coefficients of 0.1 ppm/V, and a power rating of 100 mW per element (400 mW per package).
With stable film and performance characteristics of 500 ppm with 25 % rated power at + 215 °C for 2,000 hours, the resistors released today are optimized for the low-noise, single-signal processing required to compensate for low offset and temperature drift in high-temperature environments, including down-hole applications, automotive under-the-hood applications, high-precision oil and gas exploration, aerospace engine control, and telecommunications and industrial equipment.
Offering a low 1.73 mm maximum seated height, HTRN devices feature a high-purity ceramic substrate and 10 µin to 20 µin gold terminations for high-temperature HMP soldering. The resistor networks are compliant with RoHS Directive 2002/95/EC, halogen-free according to the IEC 61249-2-21 definition, and flame-resistant in accordance to UL 94 V-0.
Samples and production quantities of the HTRN resistor networks are available now, with lead times of eight to 10 weeks for standard orders. Pricing for U.S. delivery ranges from $3 to $3.50 per piece - depending on tolerance and divider ratio - in 1,000-piece quantities. Follow thin film resistor networks from Vishay at http://twitter.com/vishayindust.
